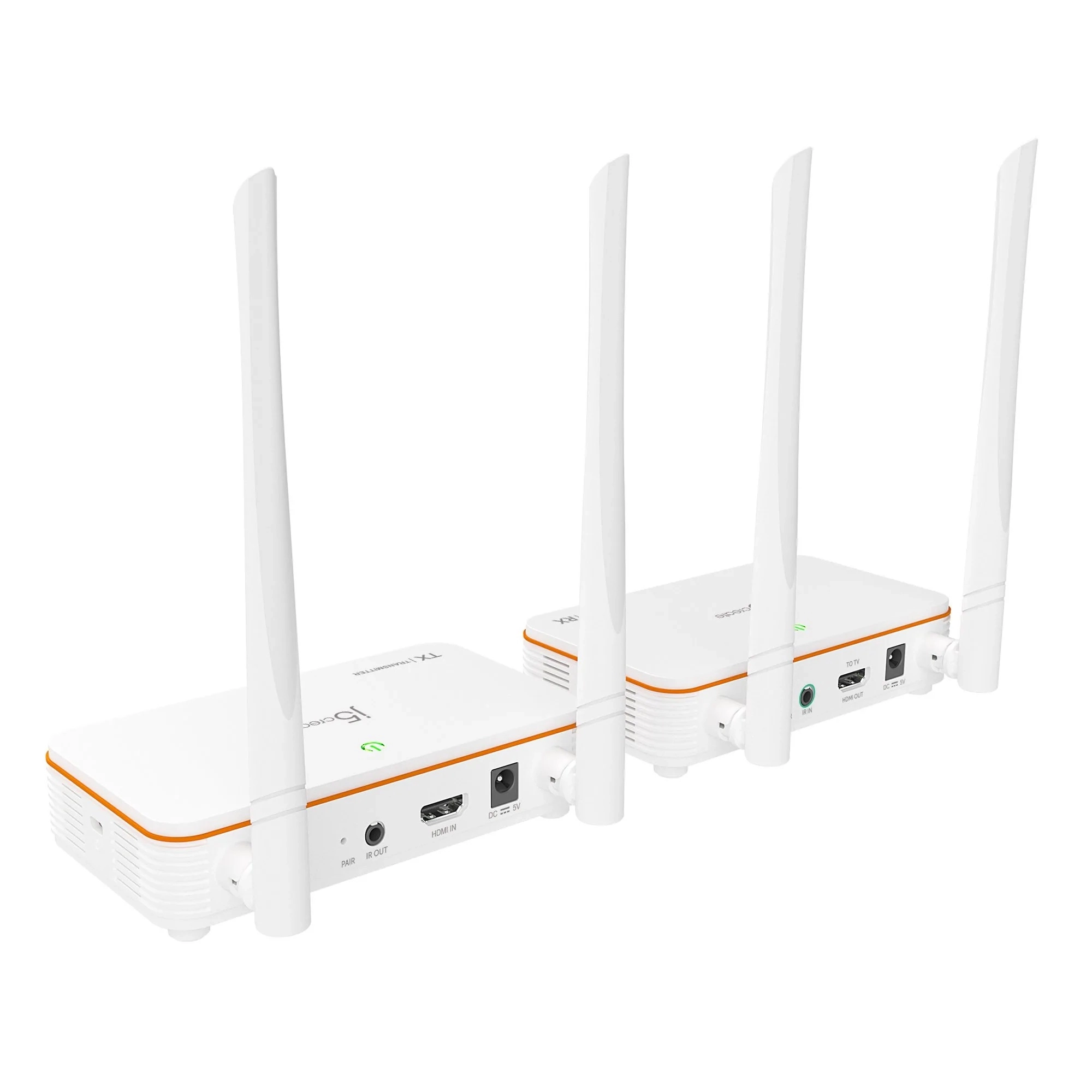

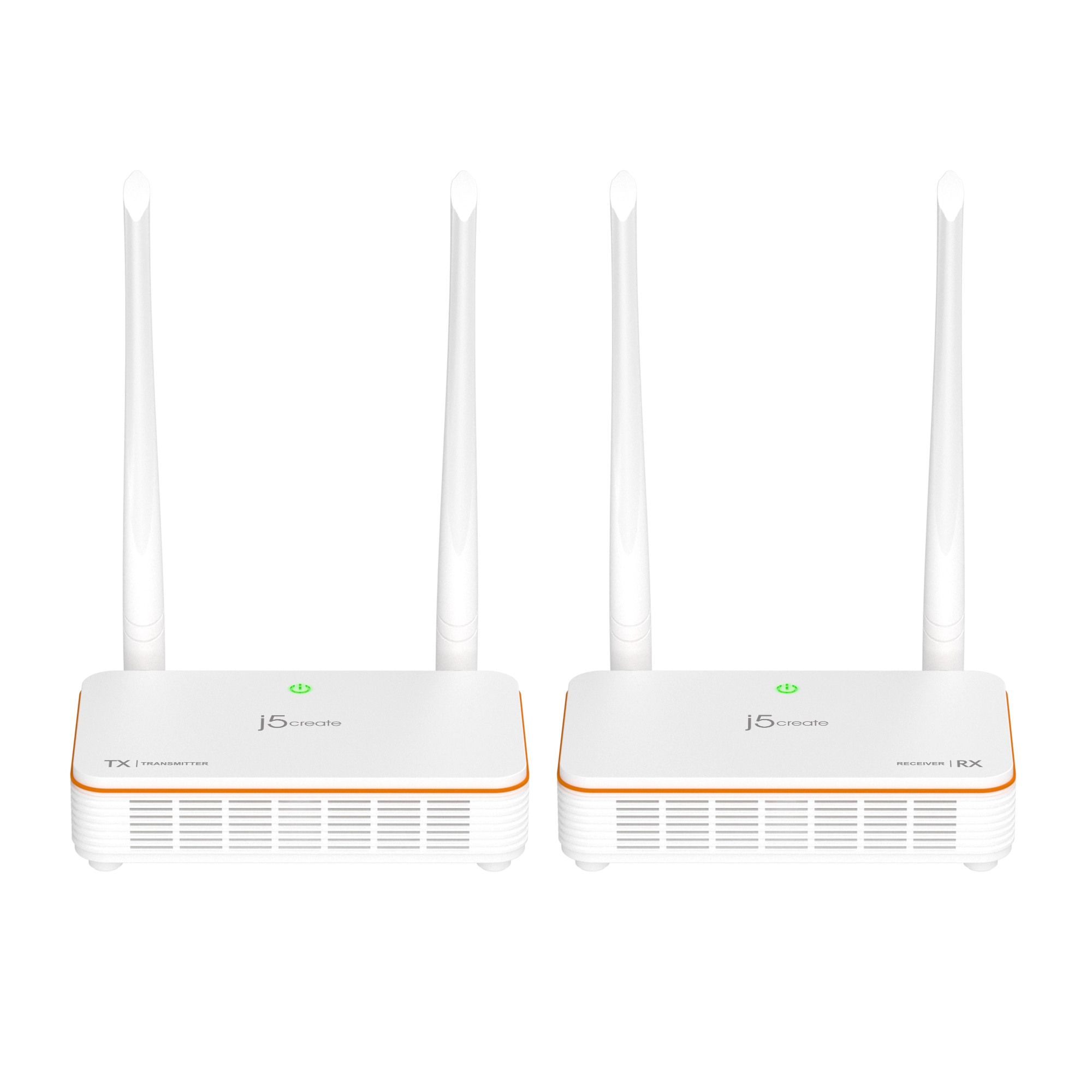

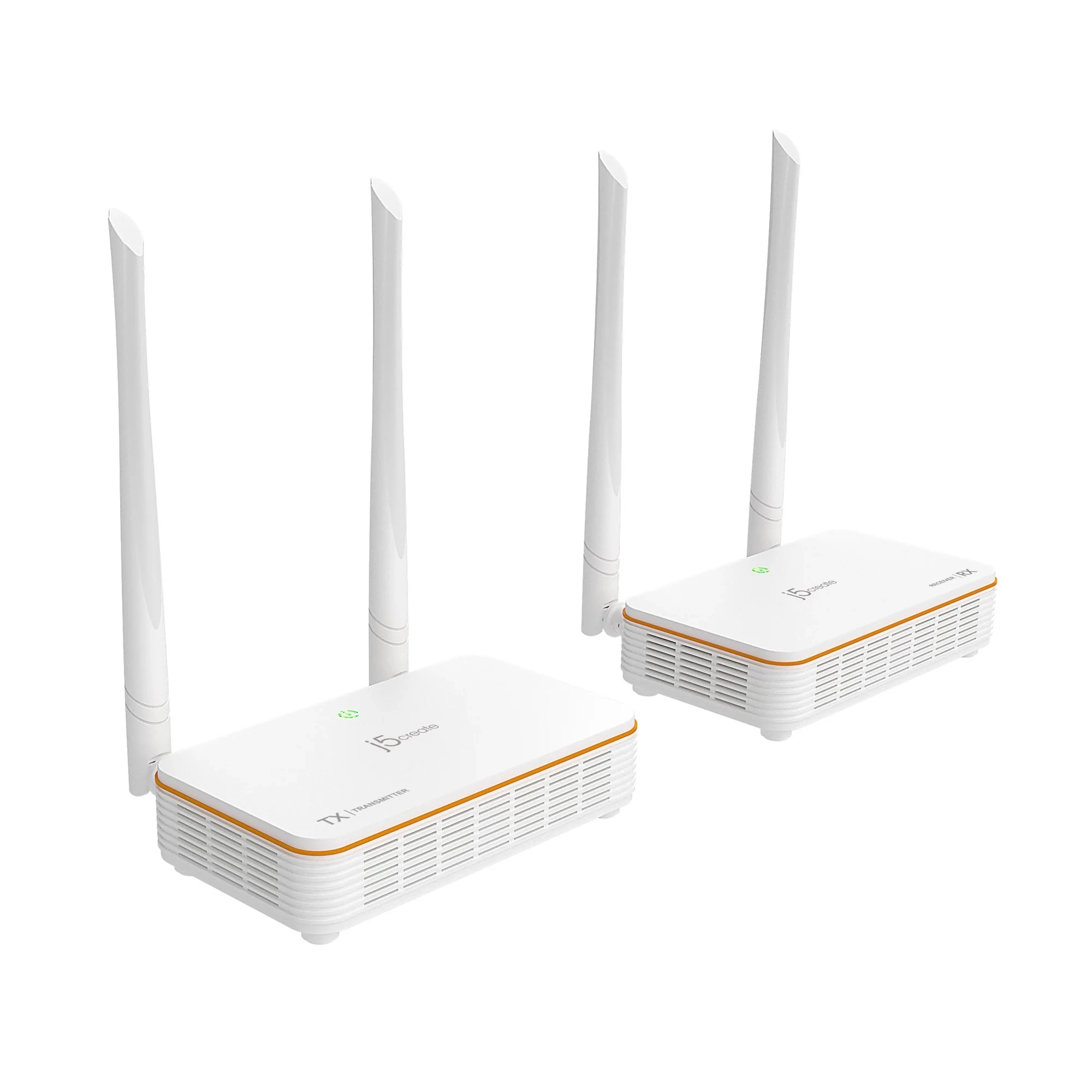

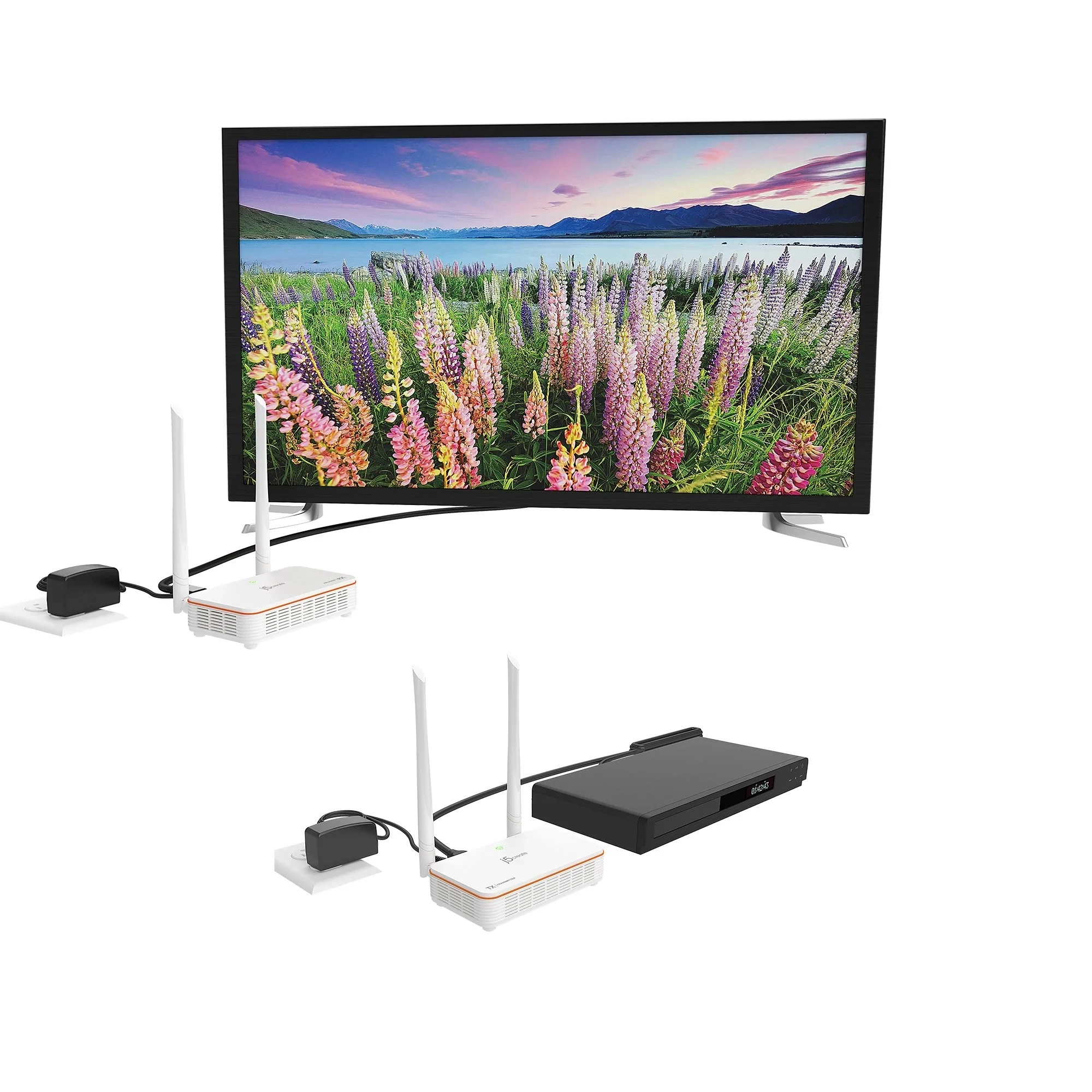

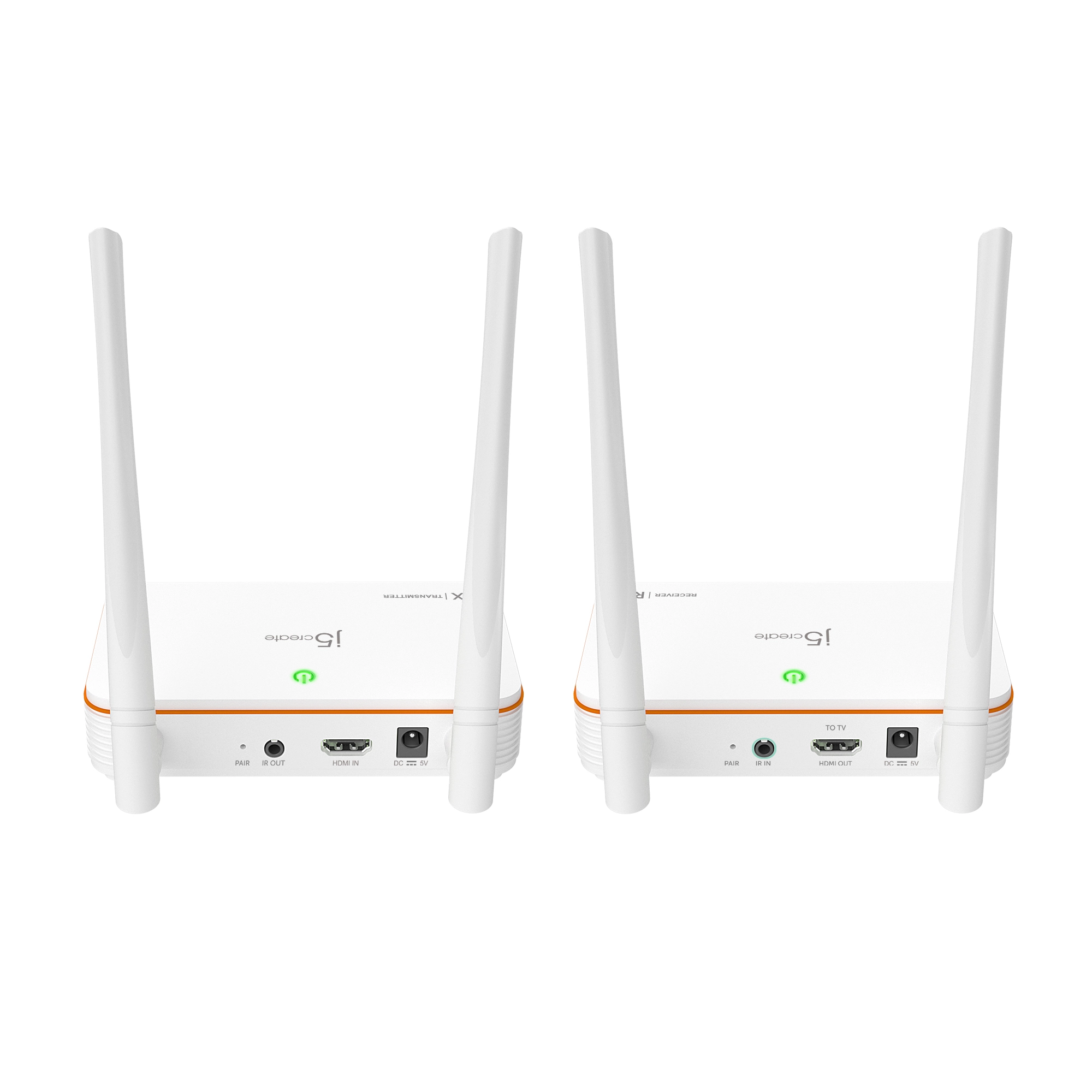

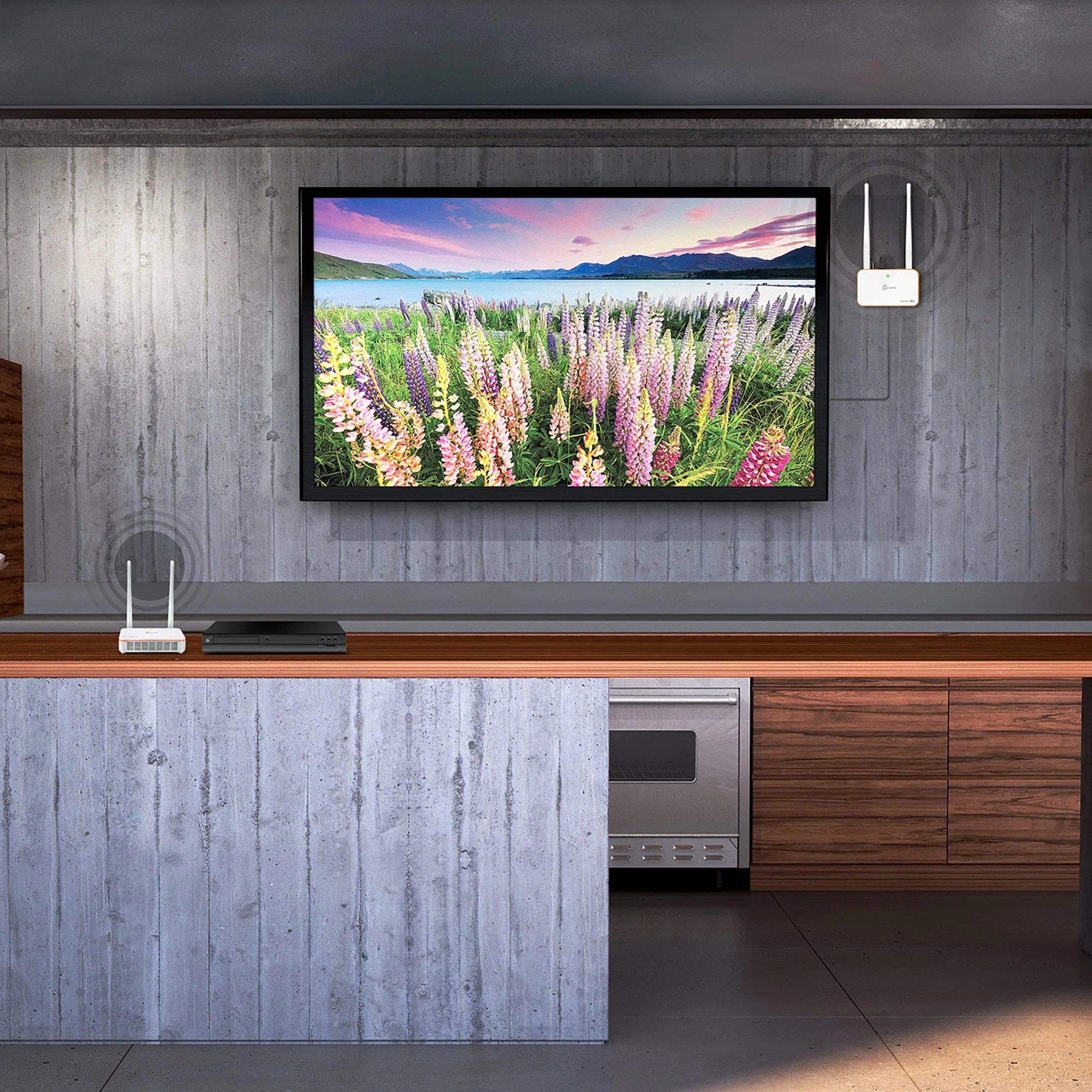

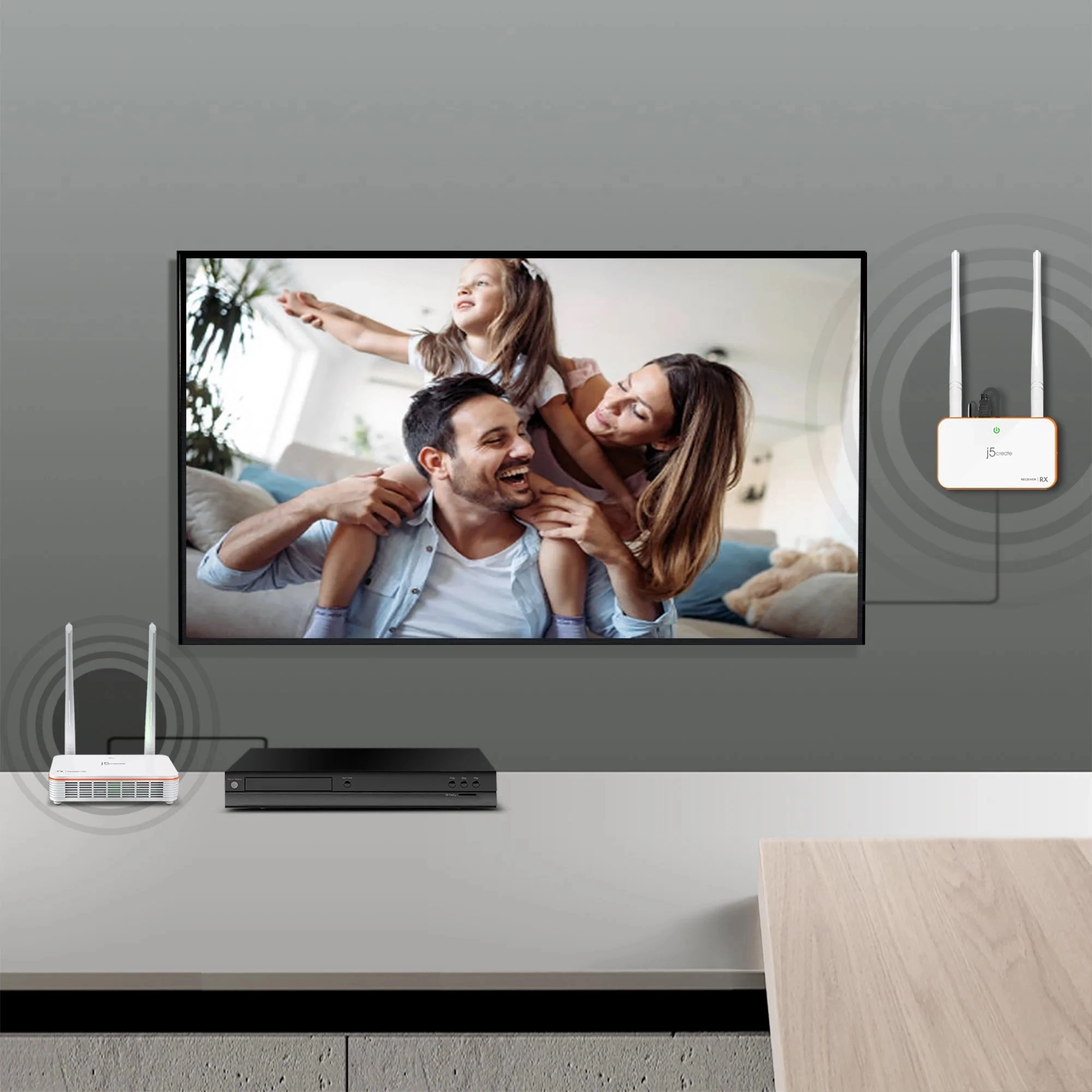

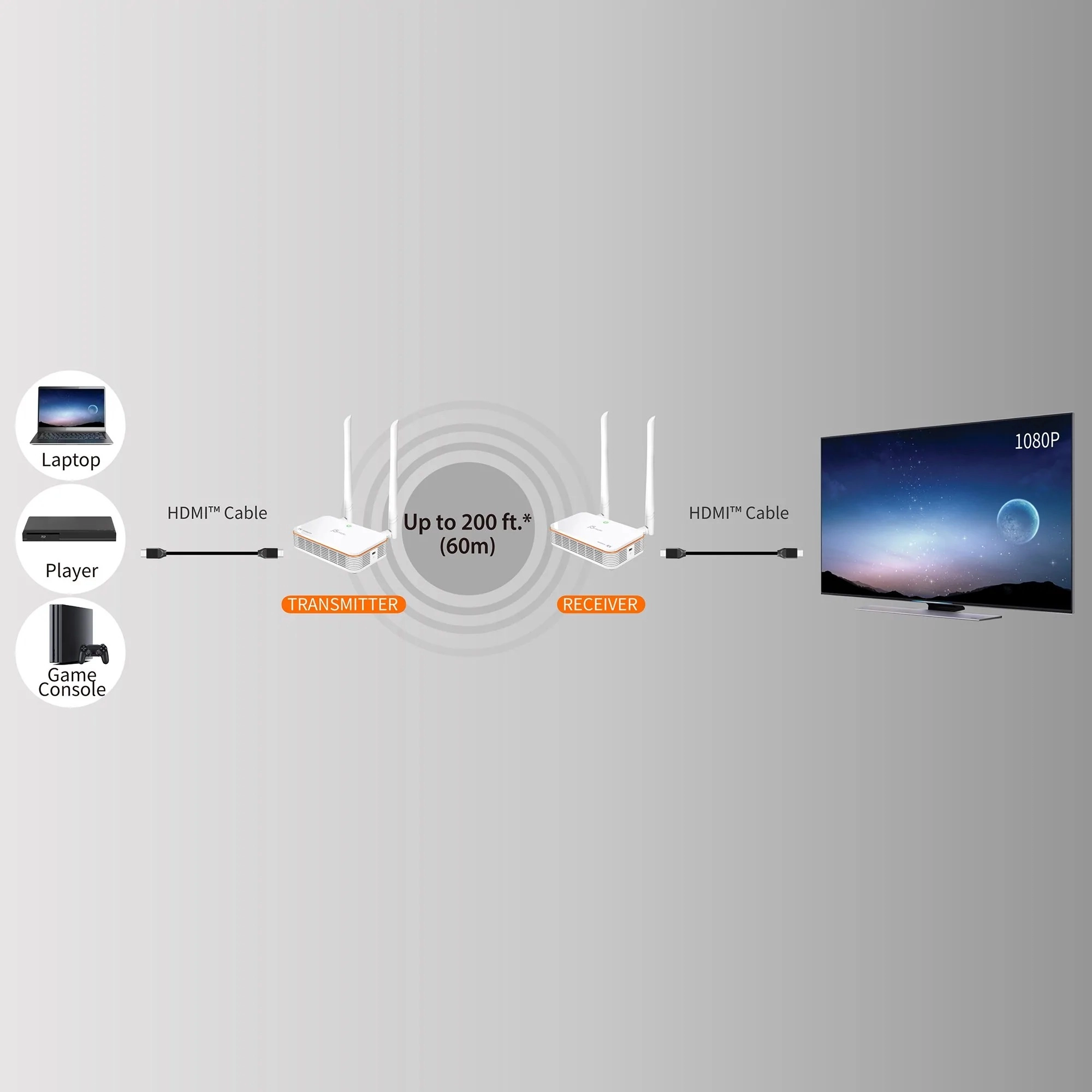

Enjoy your favorite videos in HD anywhere you wish without costly cable installation and clutter with this HDMI™ extender kit. It extends audio and video signals up to 200 ft/60m with nearly zero delays (less than 0.06s/60ms), offering the ultimate flexibility when it comes to placing your source device and display wherever you prefer.

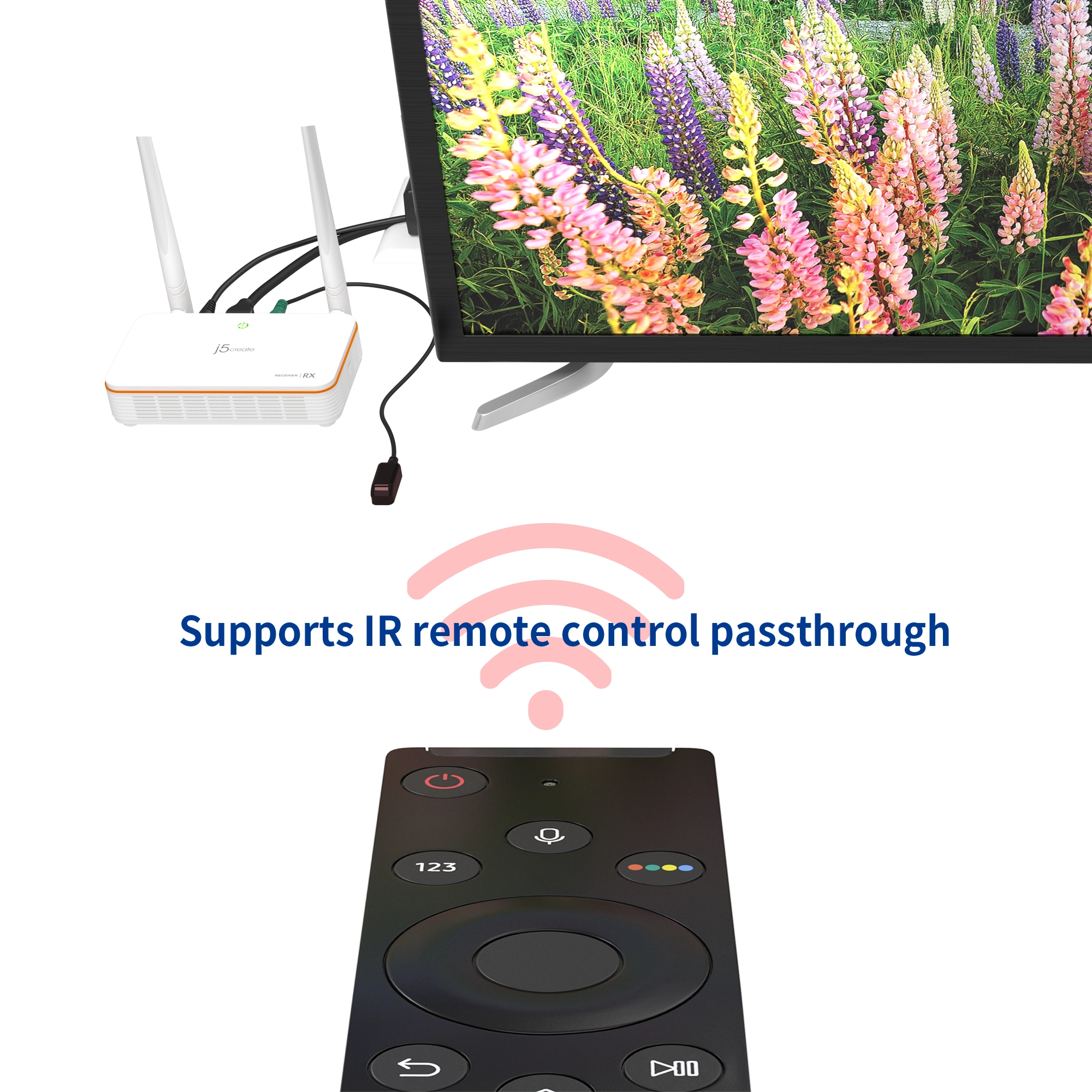

Compliant with HDMI™ 1.3, HDCP 1.2 and DVI 1.0, the extender supports up to 1080p60 video resolution, stereo digital audio and is compatible with all HDMI™ enabled devices including DVD/ Blu-ray™ players, laptops, game consoles, and more. With its built-in infrared signal, the IR extender cable (included) gives you the ability to control the source device at the display’s location with its original remote (play, pause, fast forward, etc. ).

Specification

Product
Product id	990369
Brand	j5create
Partnr	JVAW53-N
EAN/UPC code	4712795085464
Warranty (months)	2 year manufacturer warranty
Features
Type	AV transmitter & transceiver
Maximum resolution	1920 x 1080 Pixels
Cable types supported	HDMI
Maximum transfer distance	60 m
Maximum refresh rate	60 Hz
Frame rate	60 fps
Plug and Play	Y
Daisy chain	N
HDCP version	1.2
LED indicators	Power, Ready
Supported video modes	480p, 720p, 1080p
Supported graphics resolutions	640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Impedance	100 Ohm
Security algorithms	128-bit AES, 256-bit AES
HDCP	Y
Material	Plastic
Product colour	White
Windows operating systems supported	Y
Resolution	1920 x 1080 Pixels
Ports & interfaces
Connectivity technology	Wireless
Wi-Fi	N
Bluetooth	N
WLAN data transfer rate (first band)	866 Mbit/s
Ethernet LAN	N
HDMI version	1.3
Number of HDMI outputs	1
HDMI in	1
USB version	2.0
Power
Power source type	DC
Operating voltage	5 V
Power consumption (max)	6.5 W
USB Power Delivery	Y
USB powered	Y
External power adapter	Y
Current	0.13 A
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	40 - 70 °C
Operating relative humidity (H-H)	20 - 80 procent
Storage relative humidity (H-H)	20 - 80 procent
Weight & dimensions
Width	135 mm
Depth	76 mm
Height	33.5 mm
Weight	150.5 g
Packaging data
Quantity per pack	2 stuk(s)
Package width	123 mm
Package depth	237 mm
Package height	94 mm
Package weight	909 g
Packaging length	237 mm
Package type	Box
Package weight	0.9 kg
Packaging content
AC adapter included	Y
Cables included	HDMI, IR
Quick start guide	Y
Manual	Y
IR blaster included	Y
IR receiver included	Y

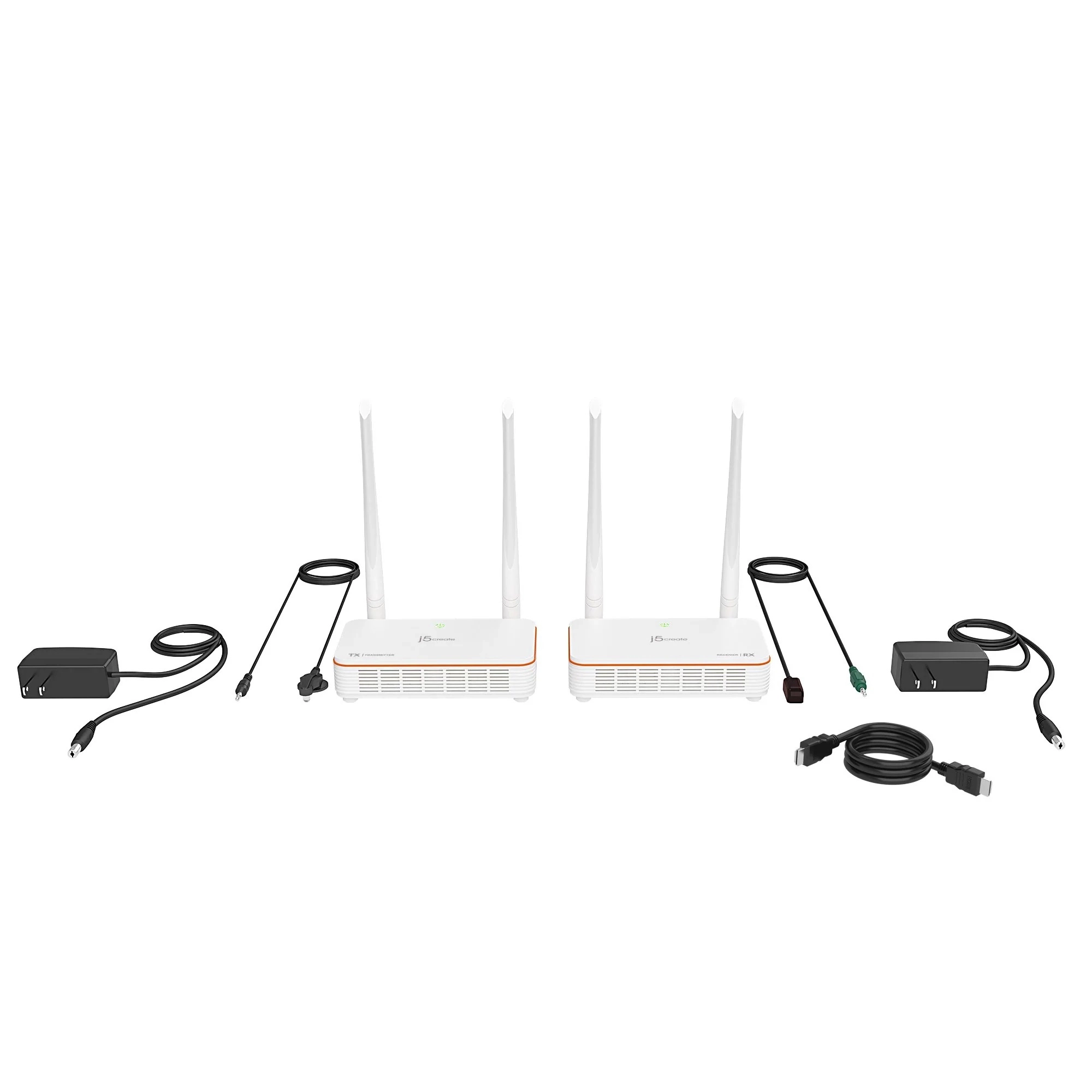

Packaging content	1 x JVAW53TX HDMI™ Transmitter, 1 x JVAW53RX HDMI™ Receiver, 1 x IR blaster cable, 1 x IR receiver cable, 2 x 5V DC/2A adapter, 1 x HDMI™ cable, 1 x Quick Installation Guide (QIG)
Technical details
Wireless technology	802.11ac
Country of origin	Taiwan
Warranty period	2 jaar
Wireless connection	Y
Logistics data
Master (outer) case width	207 mm
Master (outer) case length	275 mm
Master (outer) case height	155 mm
Quantity per master (outer) case	2 stuk(s)
Export Control Classification Number (ECCN)	EAR99
Minimum order quantity	2 stuk(s)
Master (outer) case weight	2200 g
Master (outer) case GTIN (EAN/UPC)	24712795085468
