Eliminate the need for expensive cables by wirelessly sending what’s on your laptop, tablet, or mobile phone to your HDTV with this HDMI™ Extender. The JVAW61 transmits audio and video from a USB-C® device to an HDMI™ TV, projector, or monitor, creating a dedicated audio and video connection without the hassle of needing to connect to a network. Enjoy a larger screen by simply connecting the transmitter to your compatible mobile device and the receiver to your TV.

Specification

Product
Product id	990375
Brand	j5create
Partnr	JVAW61-N
EAN/UPC code
Warranty (months)	Two Years
Features
Type	AV transmitter & receiver
Maximum resolution	1920 x 1080 Pixels
Maximum transfer distance	15 m
Maximum refresh rate	60 Hz
Audio output channels	2.1 kanalen
Plug and Play	Y
Networking standards	IEEE 802.11n
HDCP version	1.4
Supported graphics resolutions	1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Security algorithms	WPA2
HDCP	Y
Material	Plastic
Product colour	White
Windows operating systems supported	Y
Mac operating systems supported	Y
Bandwidth	20 MHz
Firmware upgradeable	Y
Antenna type	Internal antenna
Integrated antenna	Y
Frequency range	5.8 - 5.8 GHz
Ports & interfaces
Connectivity technology	Wireless
Wi-Fi	Y
HDMI version	1.3
USB connector type	USB Type-C
Video out	HDMI
Power
Power source type	USB
Operating voltage	5 V
Power consumption (typical)	17 W
USB powered	Y
Current	1 A
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	0 - 85 procent
Storage relative humidity (H-H)	0 - 85 procent
Weight & dimensions
Width	69.2 mm
Depth	100 mm
Height	16 mm
Weight	465 g
Receiver dimensions (W x D x H)	19.8 x 600 x 9.45 mm
Receiver weight	245 g
Transmitter dimensions (WxDxH)	69.2 x 100 x 16 mm
Packaging data
Quantity per pack	1 stuk(s)
Package width	193 mm
Package depth	125 mm
Package height	25 mm
Package weight	136.5 g
Package type	Box
Packaging content
Cables included	USB Type-A
Quick start guide	Y
IR receiver included	Y

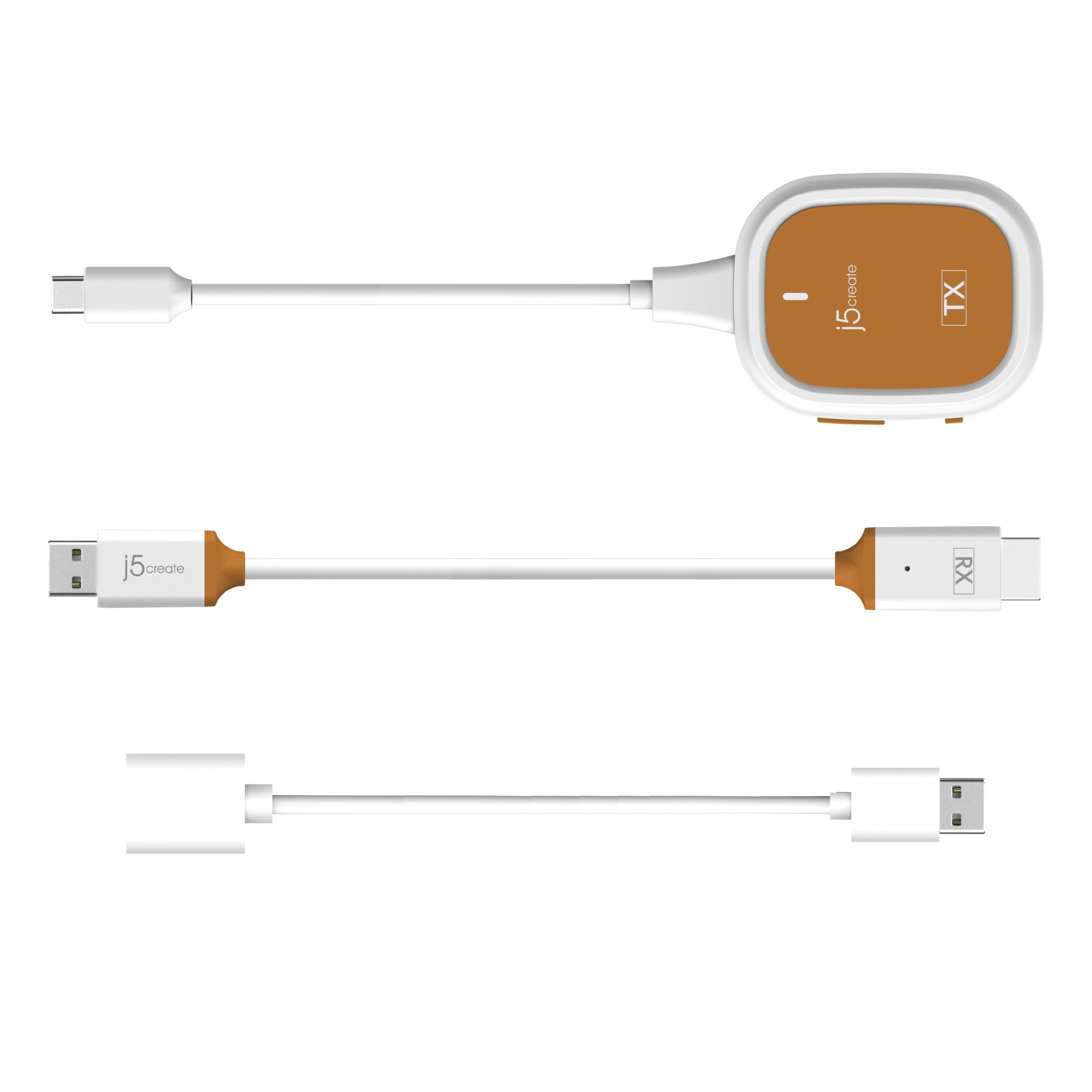

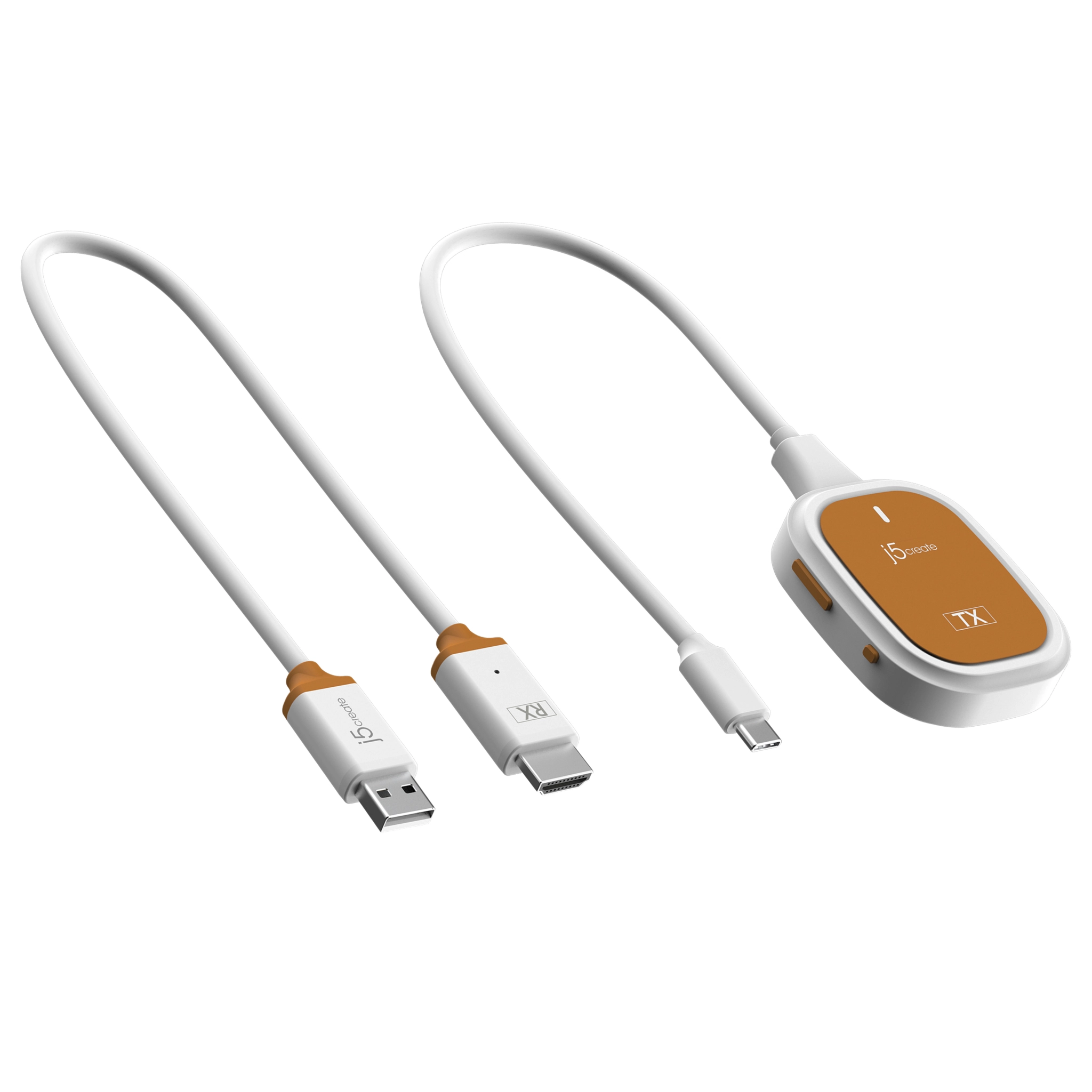

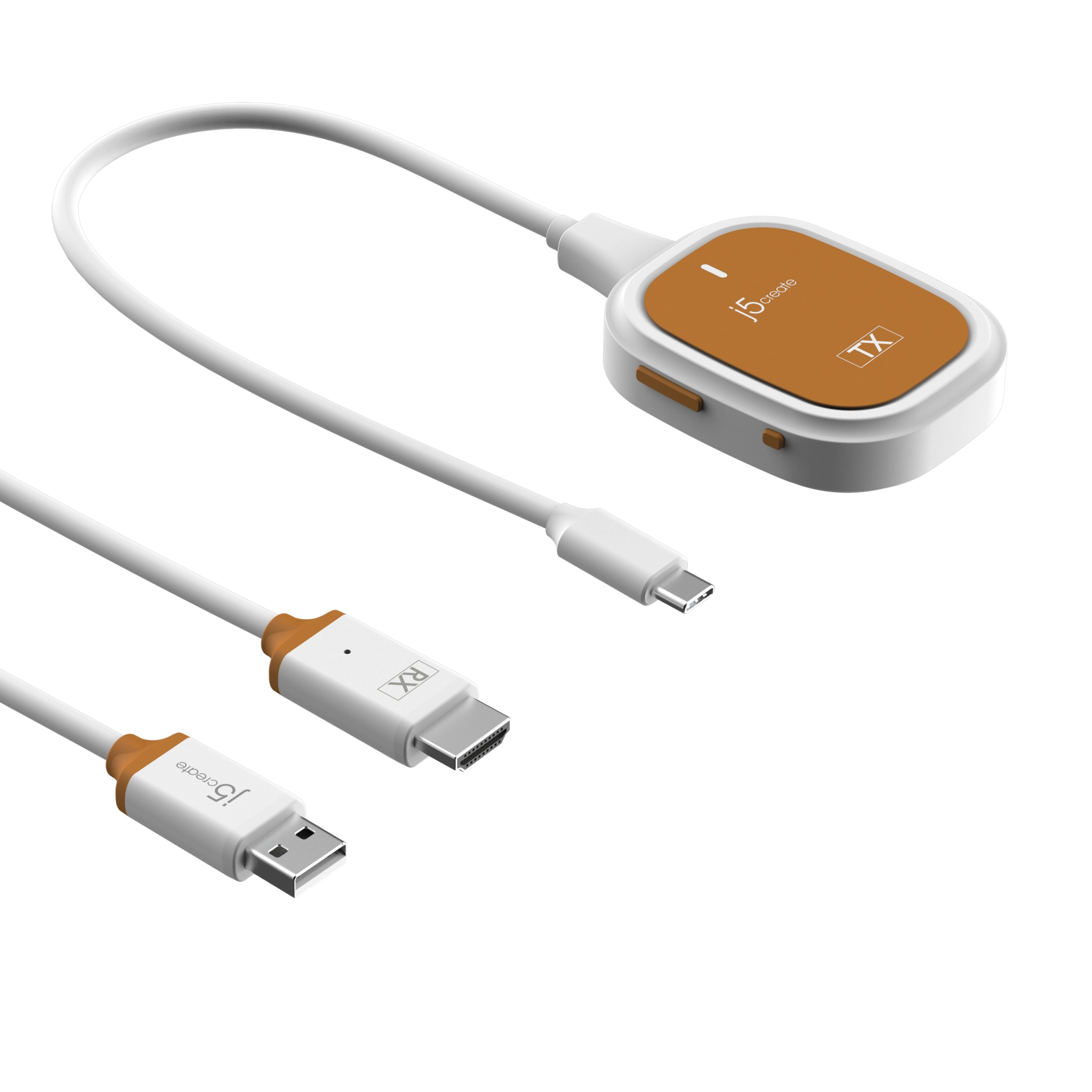

Packaging content	1 - JVAW61 ScreenCast FHD USB-C® Wireless Display Extender (1 x Transmitter & 1 x Receiver) 1 - USB™ Type-A extension cable (60 cm / 23.6 in. ) 1 - Quick Installation Guide (QIG)
Technical details
Country of origin	Taiwan
Warranty period	2 jaar
Logistics data
Master (outer) case width	226 mm
Master (outer) case length	445 mm
Master (outer) case height	190 mm
Quantity per master (outer) case	18 stuk(s)
Quantity per shipping (inner) case	6 stuk(s)
Shipping (inner) case length	212 mm
Shipping (inner) case width	165 mm
Shipping (inner) case height	137 mm
Export Control Classification Number (ECCN)	EAR99
Minimum order quantity	18 stuk(s)
Master (outer) case weight	3300 g
Master (outer) case GTIN (EAN/UPC)	24712795089114
