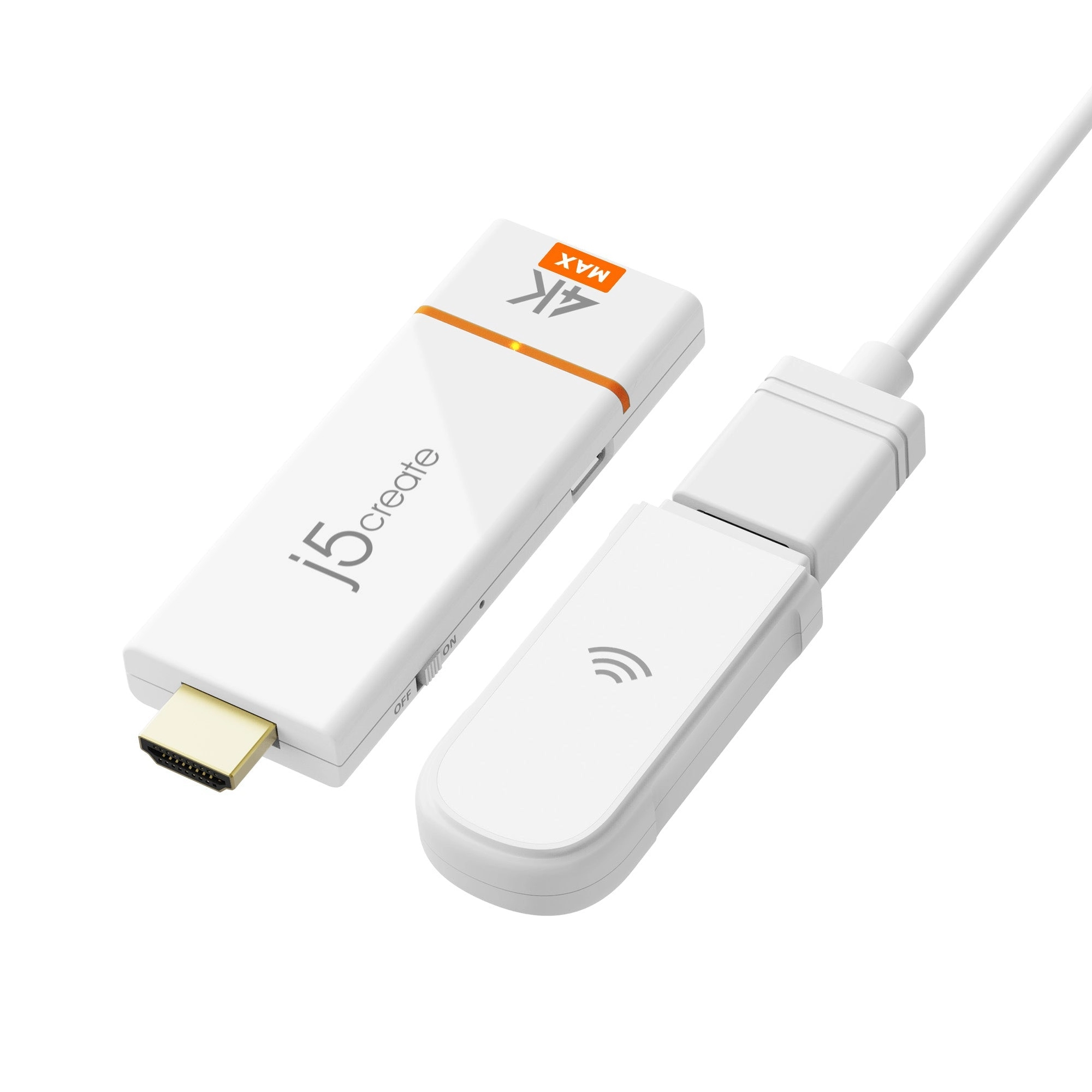

Wirelessly display content from a phone, tablet, or laptop onto a bigger screen with the ScreenCast 4K Max Wireless Display Adapter. Cast to TVs, projectors, and monitors. With its support of multiple wireless display standards (Miracast™, AirPlay®, and Chromecast™), this wireless display adapter is compatible with mobile devices you already own, including Windows®, macOS®, iOS®, Android™ and other cast compatible laptops, tablets, and mobile phones. In addition to its compact design, the ScreenCast 4K Max Wireless Display Adapter features an external antenna for enhanced signal coverage, making it perfect for home use and travel. The JVAW76MAX adds more features for business or education scenarios, such as Point-to-Point mode (use your Windows® device, Mac®, iPad®, or iPhone® without setting up a Wi-Fi® connection). A customizable background image gives you the ability to better express your corporate identity. Includes a Miracast™ pin code feature for additional security.

Specification

Product
Product id	990373
Brand	j5create
Partnr	JVAW76MAX-N
EAN/UPC code
Warranty (months)	Two Years
Features
Type	AV receiver
Maximum resolution	3840 x 2160 Pixels
Maximum transfer distance	15 m
Plug and Play	Y
Networking standards	IEEE 802.11ac
Supported video modes	720p, 1080p, 2160p
Cable length	1 m
Security algorithms	WPA2
Material	Plastic
Product colour	White
Windows operating systems supported	Y
Resolution	3840 x 2160 Pixels
Mac operating systems supported	Y
Firmware upgradeable	Y
Ports & interfaces
Connectivity technology	Wireless
Wi-Fi	Y
WLAN data transfer rate (first band)	200 Mbit/s
HDMI version	1.4
HDMI in	1
USB ports quantity	1
USB version	2.0
Power
Power source type	USB
Operating voltage	5 V
Output current	1 A
Power consumption (typical)	1.5 W
Operational conditions
Operating temperature (T-T)	-10 - 40 °C
Storage temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	0 - 85 procent
Storage relative humidity (H-H)	0 - 85 procent
Weight & dimensions
Width	32 mm
Depth	11 mm
Height	95 mm
Weight	79.5 g
Packaging data
Quantity per pack	1 stuk(s)
Package width	155 mm
Package depth	95 mm
Package height	40 mm
Package weight	134 g
Package type	Box
Packaging content
AC adapter included	Y
Cables included	USB
Packaging content	1 - JVAW76MAX ScreenCast 4K Max Wireless Display Adapter, 1 - External antenna with USB™ Type-A power cable (39”), 1 - HDMI™ extension cable (5.11”), 1 - Quick Installation Guide (QIG)
Technical details
Country of origin	Taiwan
Warranty period	2 jaar
Logistics data
Master (outer) case width	230 mm
Master (outer) case length	435 mm
Master (outer) case height	190 mm
Quantity per master (outer) case	20 stuk(s)
Quantity per shipping (inner) case	5 stuk(s)
Shipping (inner) case length	218 mm
Shipping (inner) case width	103 mm
Shipping (inner) case height	165 mm
Export Control Classification Number (ECCN)	EAR99
Minimum order quantity	20 stuk(s)
Master (outer) case weight	3500 g
Master (outer) case GTIN (EAN/UPC)	24712795089459
