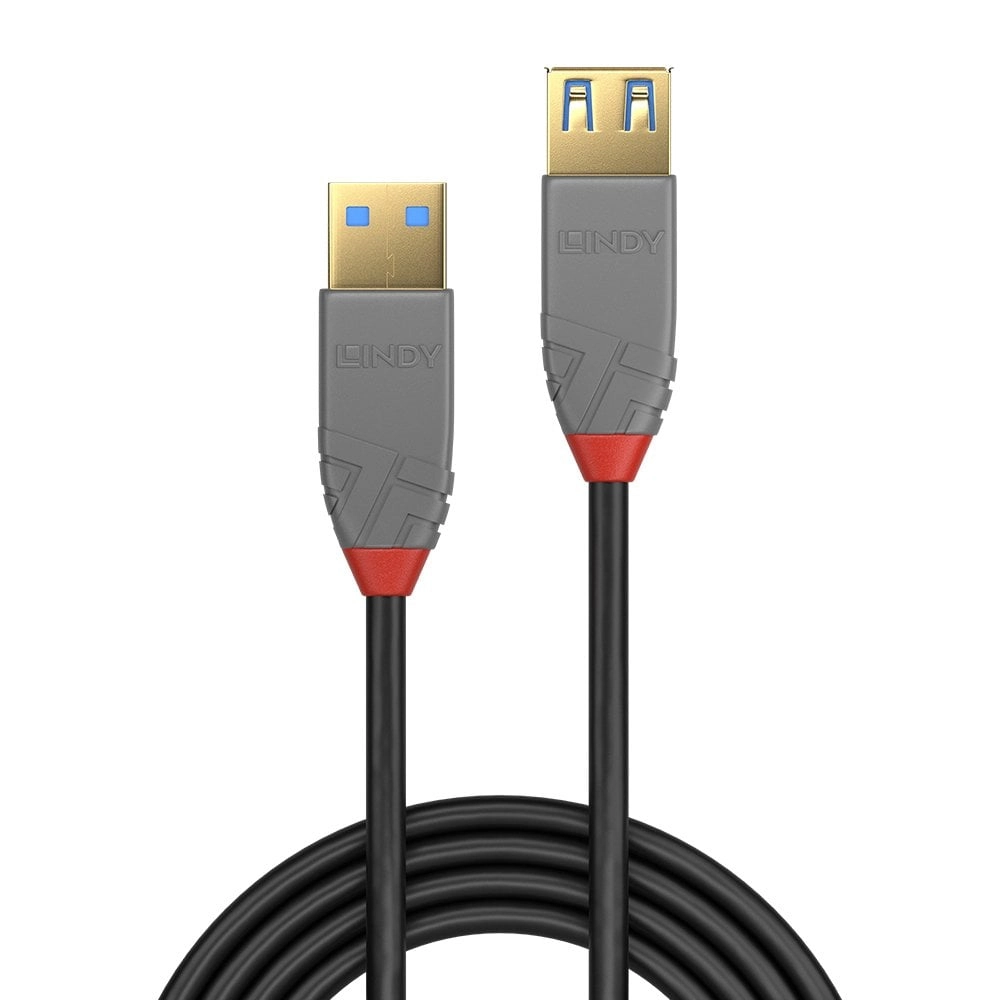

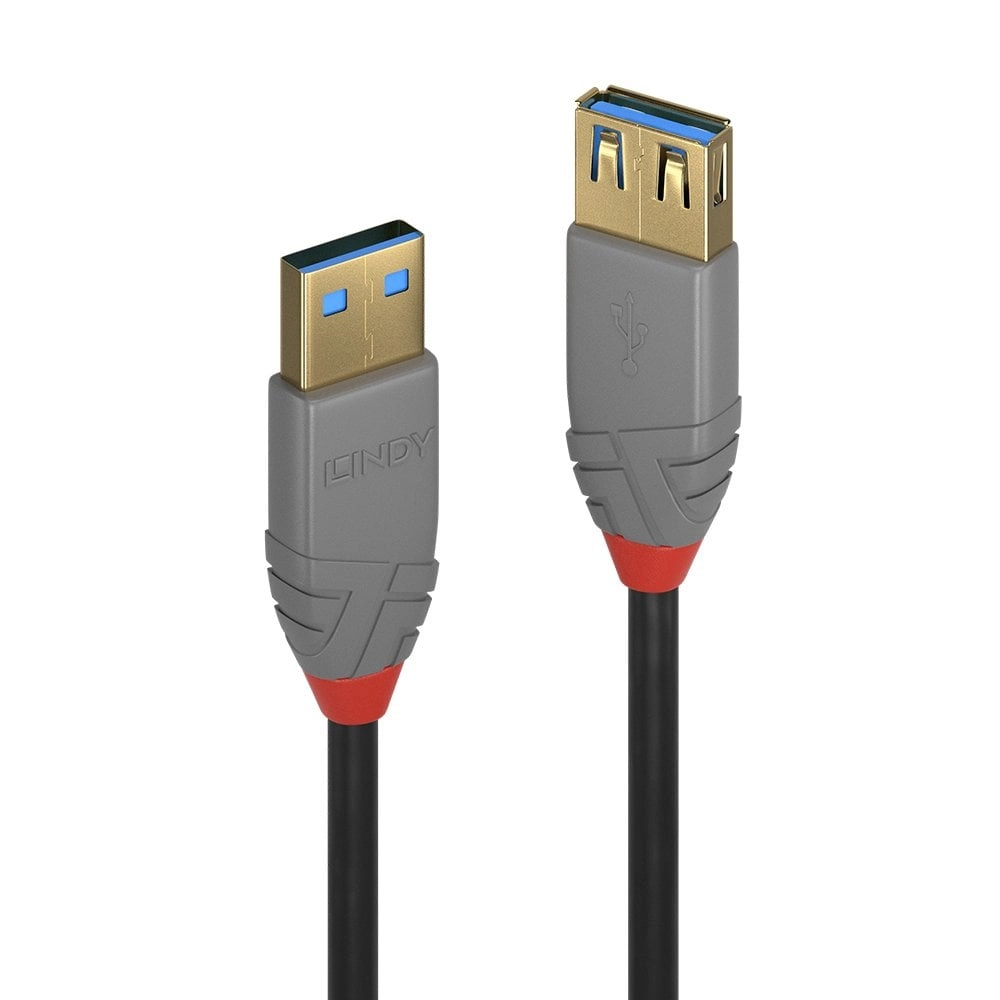

The Anthra Line USB 3.2 Type A to A Extension cables from Lindy's Cable Lines concept are the professional choice for high performance connections in commercial AV and IT installations.

Anthra Line USB 3.2 cables are premium connections that feature triple shielded construction with tinned copper conductors for performance and corrosion resistance. High quality gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.

USB bandwidths up to 5Gbps are supported for rapid transfer of large data volumes.

Anthra Line USB 3.2 Type A to A Extension cables are available in the following lengths: 0.5m, 1m, 2m and 3m.

Information about USB generations We have adapted the naming of our USB 3 cables to follow the updated USB specification. USB 3.0 and USB 3.1 Gen 1 have been renamed to USB 3.2 Gen 1, supporting data transfer up to 5Gbps USB 3.1 and USB 3.1 Gen 2 are now called USB 3.2 Gen 2, supporting data transfer rates up to 10 Gbps USB 3.2 Gen 2x2 is a new standard, supporting data transfer rates up to 20 Gbps

USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.

Specification

Product
Product id	707562
Brand	Lindy
Partnr	36761
EAN/UPC code	4002888367615
Features
Cable length	1 m
USB version	USB 3.2 Gen 1 (3.1 Gen 1)
Connector 1	USB A
Connector 2	USB A
Connector 1 gender	Male connector
Connector 2 gender	Female connector
Connector 1 form factor	Straight
Connector 2 form factor	Straight
AWG wire size	24/28/30
Connector contacts plating	Gold
Connector material	Gold
Contact material	Copper
Cable jacket material	Polyvinyl chloride (PVC)
Conductor material	Tinned copper
Connector shielding	Y
Maximum data transfer rate	5000 Mbit/s
Connector shield material	Aluminium
Product colour	Black
Connector housing material	Polyvinyl chloride (PVC)
Maximum data transfer rate	5 Gbit/s
Certification	RoHS, REACH, UL
Nominal attenuation	0.5-5m: 0.5MHz-7.5GHz
Weight & dimensions
Cable diameter	5.5 mm
Connector 1 dimensions (WxDxH)	15.5 x 35 x 7.8 mm
Bend radius (min)	48 mm
Connector 2 dimensions (WxDxH)	17 x 35 x 9.8 mm
Technical details
Sustainability certificates	UL ECOLOGO
Harmonized System (HS) code	84733080
Warranty period	10 jaar
Packaging data
Quantity per pack	1 stuk(s)
Package type	Polybag
Other features
Operating temperature (T-T)	0 - 60 °C
Storage temperature (T-T)	0 - 60 °C
Compliance certificates	REACH, RoHS
Cable type	Round cable
