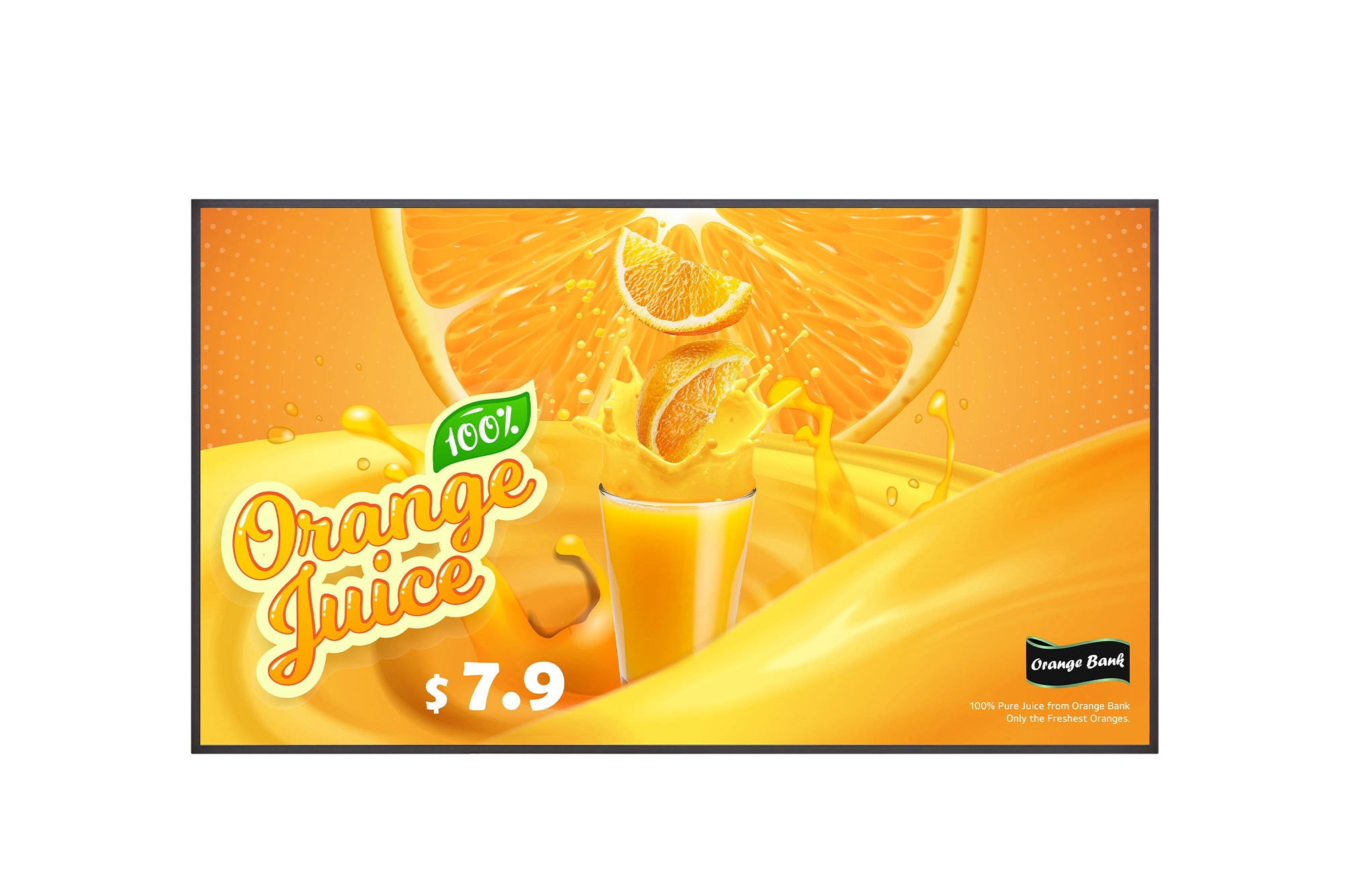

Superb Picture Quality with Ultra HD Resolution
With the resolution of LG UHD Signage, it makes the color and details of the contents vivid and realistic. In addition, the wide viewing angle provides clear contents.

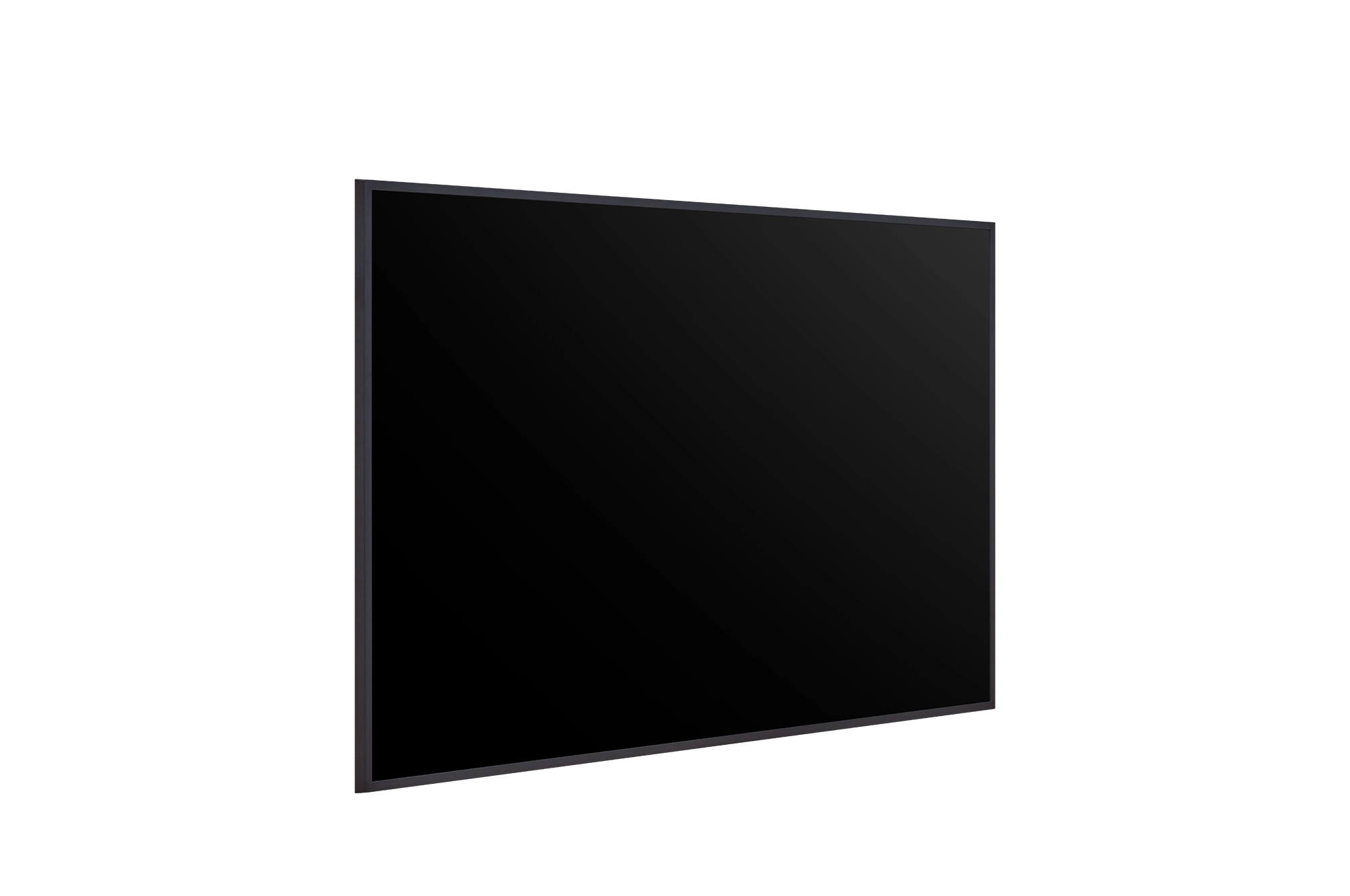

Even & Slim Bezel Design
The UH5Q series features perfectly balanced horizontal and vertical slim bezels, creating a visually harmonious display solution. Its specialized design simplifies installation in retail environments while delivering a truly immersive viewing experience.

Convenient webOS Platform
The UH5Q is equipped with a high-performance SoC that allows for multiple tasks to be performed without a separate media player. The webOS platform provides app development tools with an intuitive UI that enhances user convenience, and includes webOS partner apps to create an SI-friendly environment.

Design for Space Utilization
Designed with thin bezels and simple cable management, the UH5Q saves space. With specialized hidden power inlets, it can be installed close to the wall, leaving only about 13.5 mm of space with the slim bracket.

Durability that Provides Reliability for LG UHD Signage Optimized for business environments
Optimized for business environments, the UH5Q is protected against salt, dust, iron powder and humidity thanks to conformal partial coating on power board, allowing for stable operation. Also, its customer-centric features, such as IP5x and Shock Monitoring*, provide both reliability and satisfaction, ensuring the durability of LG UHD signage.

Comprehensive Security
webOS Signage goes beyond security measures at the operating system (OS) level. LG Shield employs a five-tiered defense system, encompassing server, application, operating system, system, and hardware. Each layer operates independently, providing comprehensive protection against various threats. Also, the webOS platform supports ETSI EN 303 645.

SuperSign Solutions
LG SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.

Specification

Product
Product id	1007377
Brand	LG Electronics
Partnr	55UH5Q-E.AEU
EAN/UPC code	8806096522172
Display
Display diagonal	55 inch
LED backlight	Y
LED backlighting type	Edge-LED
Display resolution	3840 x 2160 Pixels
Display brightness	500 cd/m²
HD type	4K Ultra HD
Touchscreen	N
Native aspect ratio	16:9
Response time	8 ms
Contrast ratio (typical)	1200:1
Contrast ratio (dynamic)	1000000:1
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Display number of colours	1.07 billion colours
Display diagonal (metric)	139 cm
Panel life	50000 uur
Native refresh rate	60 Hz
Haze rate	25 procent
Colour depth	10 Bit
Colour gamut	95 procent
Panel type	ADS
Ports & interfaces
HDMI ports quantity	3
DVI port	N
DisplayPorts quantity	1
USB port	Y
USB ports quantity	2
USB version	2.0
Ethernet LAN	Y
Ethernet LAN (RJ-45) ports	1
Wi-Fi	Y
RS-232C	Y
Remote (IR) input	1
Audio
Built-in speaker(s)	Y
RMS rated power	20 W
Design
Design	Digital signage flat panel
Product colour	Black
Placement supported	Indoor
Orientation	Horizontal/Vertical
VESA mounting	Y
Panel mounting interface	300 x 300 mm
Bezel colour	Black
Bezel width (bottom)	11.4 mm
Performance
Purpose	Universal
Operating hours (hours/days)	24/7
Automatic brightness control	Y
HDCP	Y
HDCP version	1.4/2.2
International Protection (IP) code	IP5X
Power
Power consumption (typical)	130 W
Power consumption (standby)	0.5 W
Power consumption (off)	0.5 W
Energy efficiency class (SDR)	G
AC input voltage	100-240 V
AC input frequency	50-60 Hz
Energy consumption (SDR) per 1000 hours	103 kWu
Heat dissipation	351 BTU/h
Energy efficiency scale	A to G
Computer system
Computer system	Y
Computer system type	System on Chip (SoC)
Internal memory	16 GB
Operating system installed	WebOS
Operating system version	8.0
Weight & dimensions
Display width	1240.1 mm
Display depth	29.7 mm
Display height	711.9 mm
Display weight	14300 g
Packaging data
Package width	1360 mm
Package depth	152 mm
Package height	810 mm
Package weight	18100 g
Packaging content
Handheld remote control	Y
Cables included	Phone
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 80 procent
Features
Heat dissipation (max)	525 BTU/h
Technical details
Real Time Clock (RTC)	Y
Other features
USB connector type	USB Type-A
Audio output	1
Display technology	LCD
Power consumption (max)	154 W
Power consumption (PowerSave)	72 W
Plug and Play	Y
