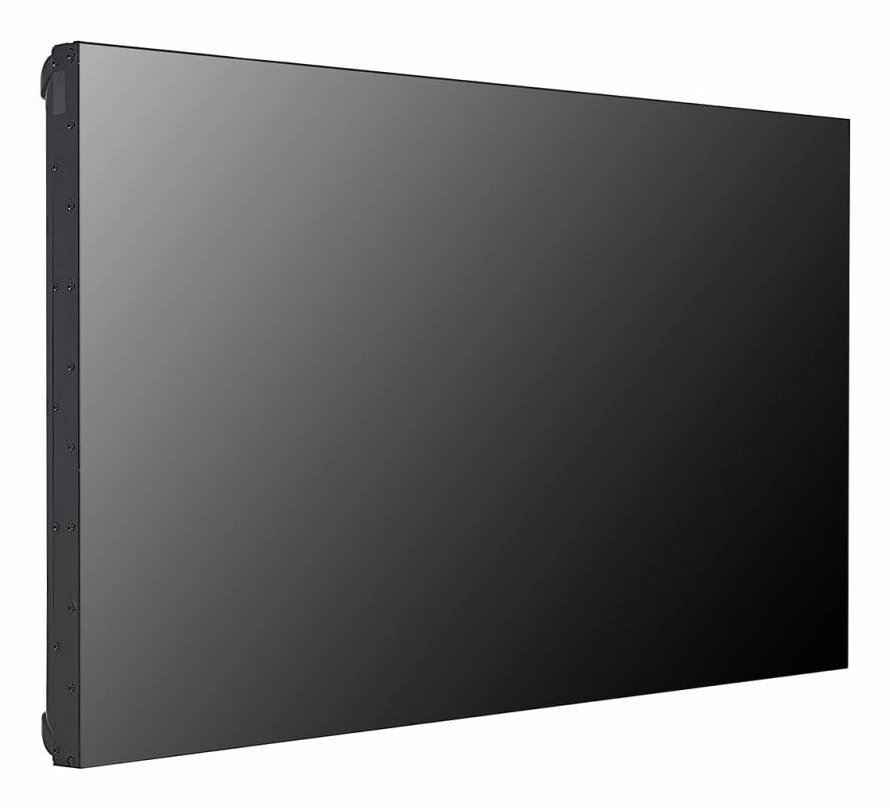

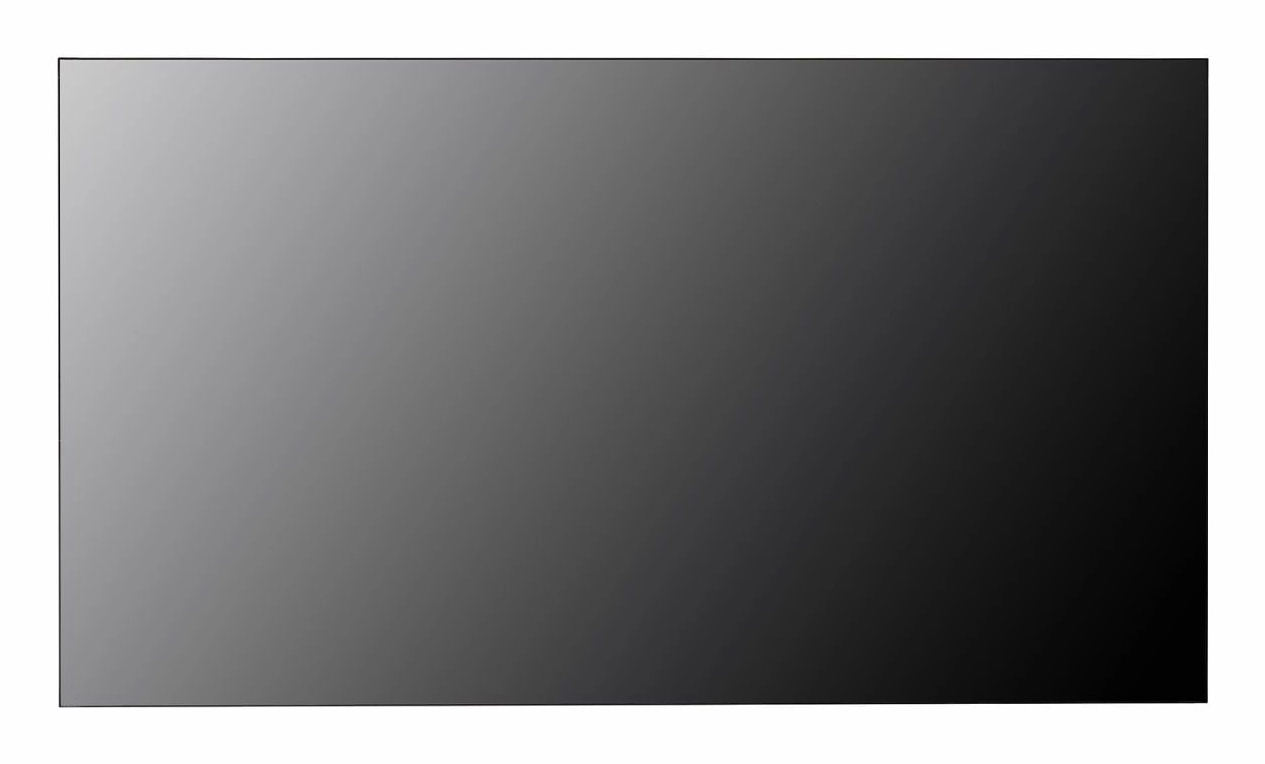

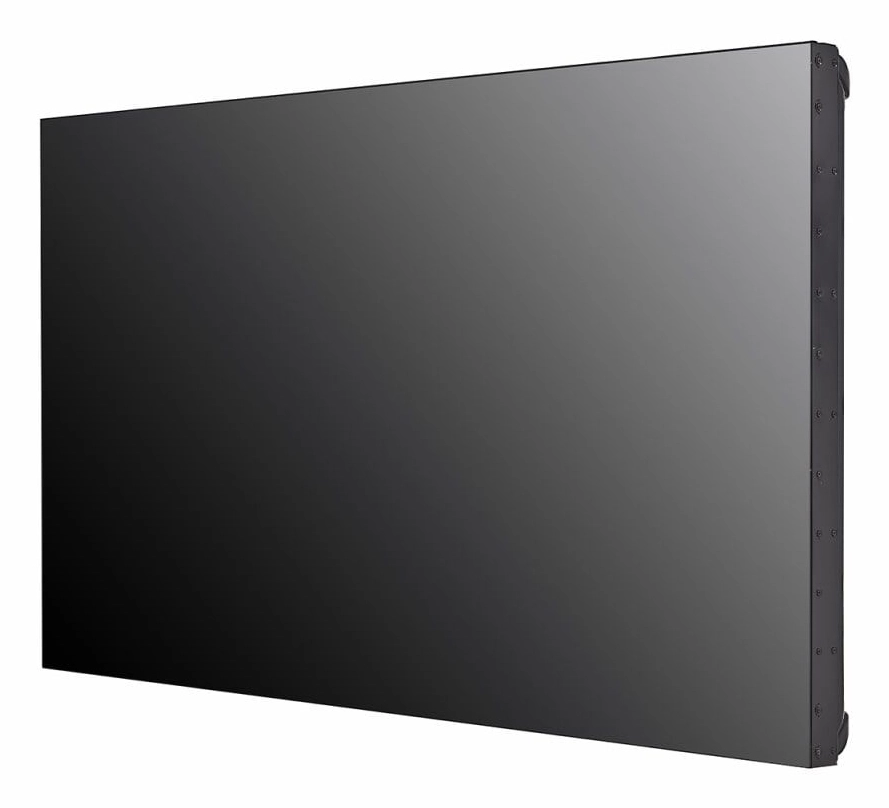

Seamless Large Screens with Extreme-Narrow Bezel

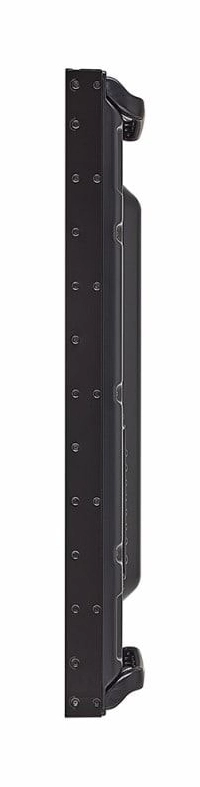

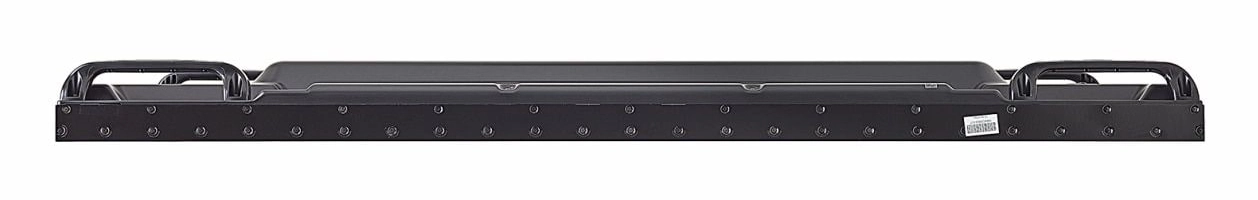

The ultra slim bezel, with its 1.74mm BtoB (Panel Bezel to Panel Bezel), drastically reduces bezel interference and delivers immersive and seamless content on assembled video wall screens.

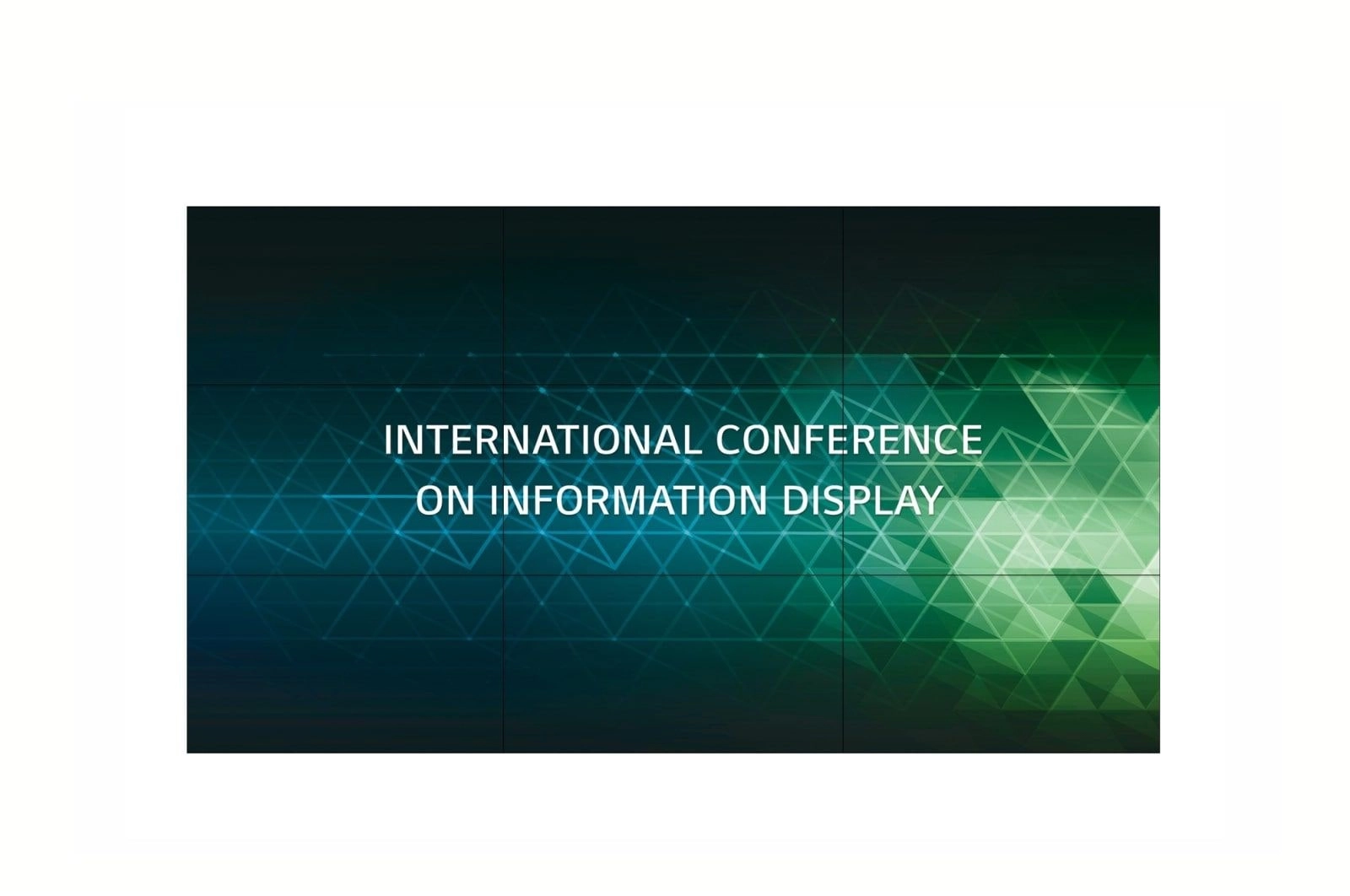

Image Gap Reduction
The VH7J-H includes an image improvement algorithm that can reduce image gaps among tiled displays when playing back videos. Objects located on the bezel boundaries are adjusted for a seamless viewing experience.

Intuitive Menu Structure
The menu structure has been optimized for commercial use. It simplifies approach flows and groups similar functions together, adopting a more intuitive GUI for ease of use. This way, users can avoid having to do trial-and-error when exploring desired functions and managing displays.

Dedicated GUI for Portrait Orientation
The conventional GUI (Graphic User Interface) was designed based on landscape-oriented consumer TV usage, so OSD (On Screen Display) wasn’t well-suited for screens in portrait mode. The OSD of the VH7J-H, however, consists of a long range menu with bigger font sizes and a 9:16 ratio, creating a comfortable and efficient business environment.

Conformal Coating
Video wall in various places can't avoid exposure to environments with dust, and humidity, which may lead to hampered performance over time. Conformal coating on the major circuit board (power board) significantly reduces these risks from such environments by protecting video wall from salt, dust, iron powder, humidity, etc.

Daisy Chain Capability
A LAN daisy chain allows you to control and monitor video walls and even update their firmwares at once. Also, through UHD daisy chain using HDMI and DisplayPort, you can easily set up a UHD video wall without the need of DisplayPort MST.

Specification

Product
Product id	1005731
Brand	LG Electronics
Partnr	55VH7J-H
EAN/UPC code	8806091407658
Warranty (months)	-
Display
Display diagonal	55 inch
LED backlighting type	Direct-LED
Display resolution	1920 x 1080 Pixels
Display brightness	700 cd/m²
HD type	Full HD
Touchscreen	N
Native aspect ratio	16:9
Response time	8 ms
Contrast ratio (typical)	1000:1
Contrast ratio (dynamic)	500000:1
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Display number of colours	1.07 billion colours
Native refresh rate	60 Hz
Rated lifetime	60000 uur
Haze rate	28 procent
Panel type	IPS
Ports & interfaces
HDMI ports quantity	2
HDMI version	2.2
DVI port	Y
DVI-D ports quantity	1
DisplayPorts quantity	1
USB port	Y
USB ports quantity	1
USB version	2.0
Ethernet LAN	Y
Ethernet LAN (RJ-45) ports	1
RS-232C	Y
Design
Design	Panorama design
Product colour	Black

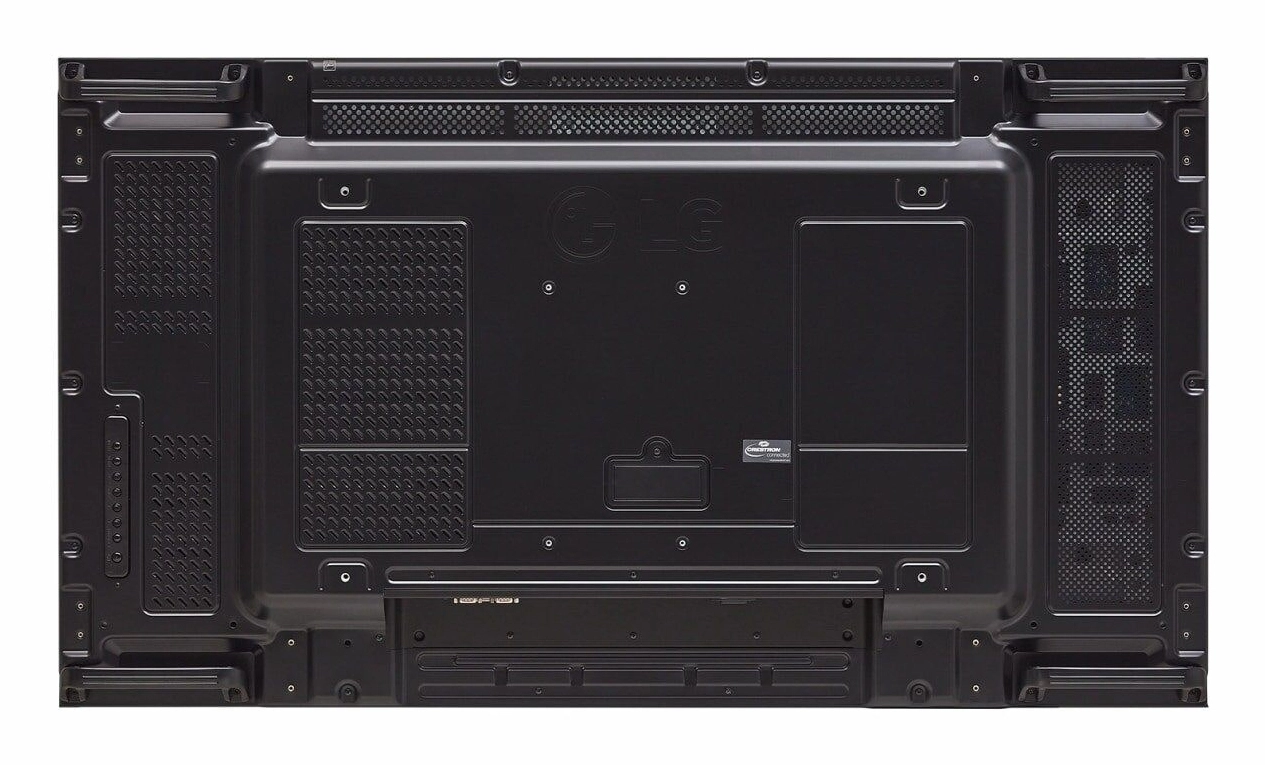

VESA mounting	Y
Panel mounting interface	600 x 400 mm
Performance
Purpose	Commercial
On Screen Display (OSD)	Y
Operating hours (hours/days)	24/7
Power
Power consumption (typical)	250 W
Power consumption (off)	0.5 W
Energy efficiency class (SDR)	G
AC input voltage	100-240 V
AC input frequency	50/6 Hz
Energy consumption (SDR) per 1000 hours	157 kWu
Energy efficiency scale	A to G
Weight & dimensions
Display width	1212.2 mm
Display depth	86.9 mm
Display height	683 mm
Display weight	18800 g
Packaging data
Package width	1353 mm
Package depth	263 mm
Package height	855 mm
Package weight	31000 g
Packaging content
Handheld remote control	Y
Cables included	DisplayPort, Power, RS-232
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 80 procent
Logistics data
Country of origin	South Korea
