58:9 Space-Fitting Wide Screen
The 86BH5F is the most suitable display for delivering new forms of advertising and multiplexed information in a 58:9 widescreen format. It can bring unused & leftover space to life by being installed without restriction.

58:9 Extended Wide Format
It is a unique wide screen with 58:9 bar type which provides much more flexibility in playing content* than the conventional display of 16:9 ratio.

Ultra HD Resolution (3, 840 x 600)
Ultra HD resolution delivers an immersive viewing experience with vivid colors and clear images.

Multi Screen Mode with 4PBP
The Picture-by-Picture (PBP) feature allows you to show multi content in one single display by up-to four parts. It is very useful and convenient to deliver various advertisements or pieces of information at the same time without calibration.

Tiled Scene with Immersive View
The 86BH5F can show a tiled scene by up to 15 × 15 configuration. This will be the best choice if you want to use a large screen, or provide visual impact to your customers in a different way.

IP5x Certified Design
The IP5x Dust-Proof Certification ensures that the product is completely protected from dust, eliminating the risk of performance degradation.

User-Friendly UX
The 86BH5F is equipped with a user-friendly UX to simplify approach flows, groups similar functions together, and adopts an intuitive GUI for ease of use. When using the display in portrait mode, OSD* can also be adjusted accordingly.

LAN Daisy Chain Management
By using this daisy-chained network feature, you can execute commands such as controlling, monitoring and even updating firmware.

Real-Time Monitoring with LG ConnectedCare
Easier and faster maintenance are available with our optional cloud service solution LG ConnectedCare*. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of clients' businesses.

Specification

Product
Product id	1004835
Brand	LG Electronics
Partnr	86BH5F-M
EAN/UPC code	8806091607157
Warranty (months)	24 months
Display
Display diagonal	86 inch
Display resolution	3840 x 600 Pixels
Display brightness	500 cd/m²
Touchscreen	N
Response time	8 ms
Contrast ratio (typical)	1100:1
Contrast ratio (dynamic)	500000:1
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Display number of colours	1.07 billion colours
Haze rate	3 procent
Panel type	IPS
RGB colour space	NTSC

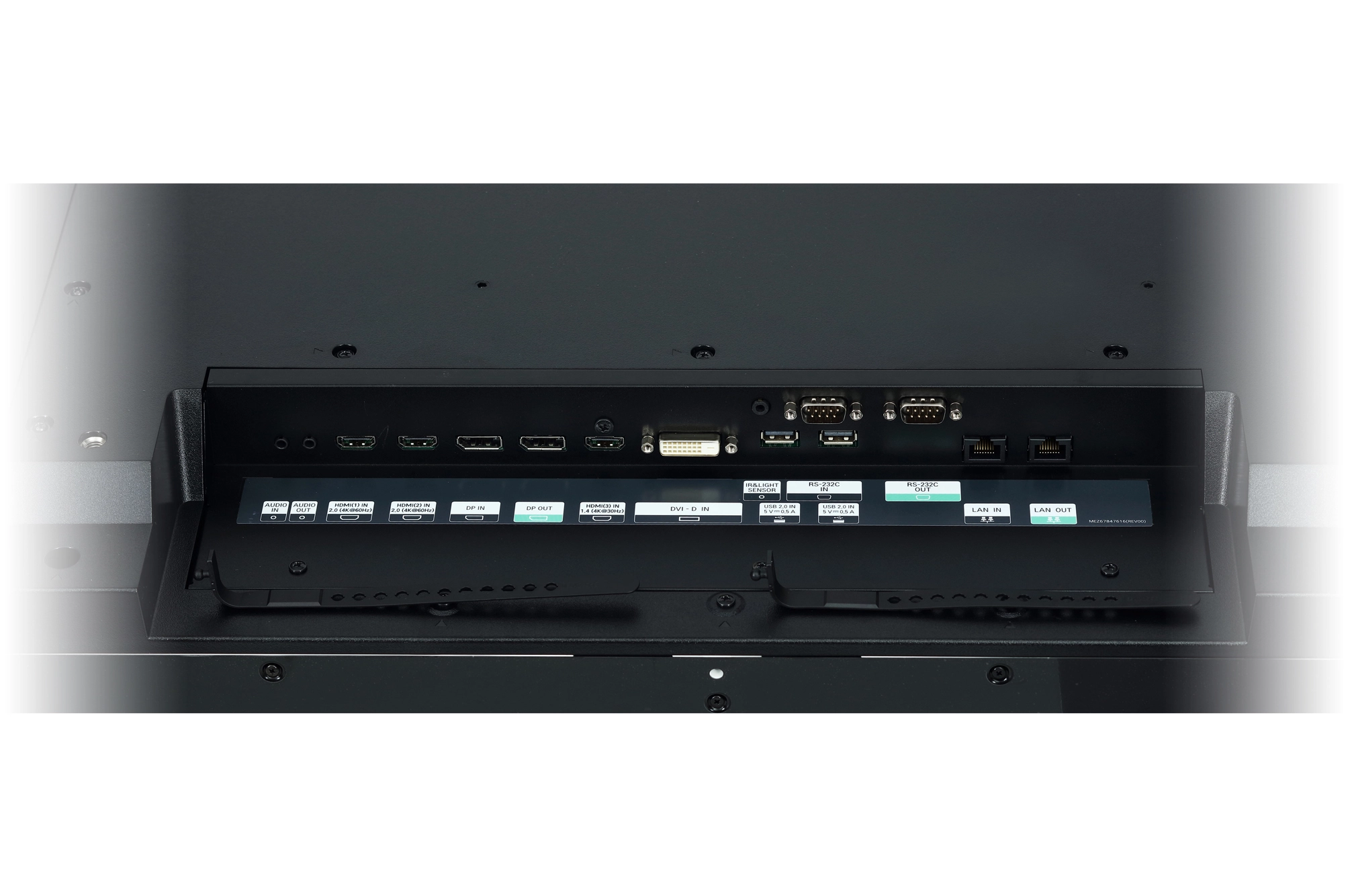

Ports & interfaces
HDMI ports quantity	3
HDMI version	2.2
DVI port	Y
DVI-D ports quantity	1
DisplayPorts quantity	2
DisplayPorts in	1
DisplayPorts out	1
USB port	Y
USB ports quantity	2
USB version	2.0
Ethernet LAN	Y
Ethernet LAN (RJ-45) ports	1
Wi-Fi	Y
Audio (L/R) in	1
Audio (L/R) out	1
RS-232C	Y
Remote (IR) input	1
Audio
Built-in speaker(s)	N
Design
Design	Digital signage flat panel
Product colour	Black
Placement supported	Indoor
Orientation	Horizontal/Vertical
VESA mounting	Y
Panel mounting interface	600 x 200 mm
Bezel width (top)	5.9 mm
Bezel width (side)	4.4 mm
Bezel width (bottom)	5.9 mm
Performance
Purpose	Retail
Operating hours (hours/days)	24/7
Power
Power consumption (typical)	220 W
Energy efficiency class (SDR)	G
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Energy consumption (SDR) per 1000 hours	143 kWu
Heat dissipation	751 BTU/h
Energy efficiency scale	A to G
Computer system
Computer system	Y
Internal memory	8 GB
Operating system installed	WebOS
Weight & dimensions
Width	2158.3 mm
Depth	81.7 mm
Height	348.5 mm
Weight	20500 g
Packaging content
Handheld remote control	Y
Cables included	AC, DisplayPort, IR, IR sensor
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 80 procent
Features
Harmonized System (HS) code	85285210
Technical details
Special features	CB, NRTL, FCC Class "A", CE, KC,
Sustainability certificates	ErP
