UHD Large Screen Digital Signage with LG webOS™

Ultra HD Resolution
UHD resolution is 4 times higher than FHD, which makes the color and details of the contents more vivid and realistic. In addition, the IPS Panel allows for wider viewing angles and provides clearer content with no distortion.

Clear Content Delivered with 500 nits Brightness
With a brightness rating of 500 nits the UM5K series displays deliver brilliant content and attracts attention, making these displays an ideal choice for a wide variety of businesses, including retail and corporate.

High-Performance with webOS™
LG webOS™ platform enhances user convenience with intuitive GUI and simple app development tools.

Built-in Speaker
Enrich content with sound effects from built-in speakers.

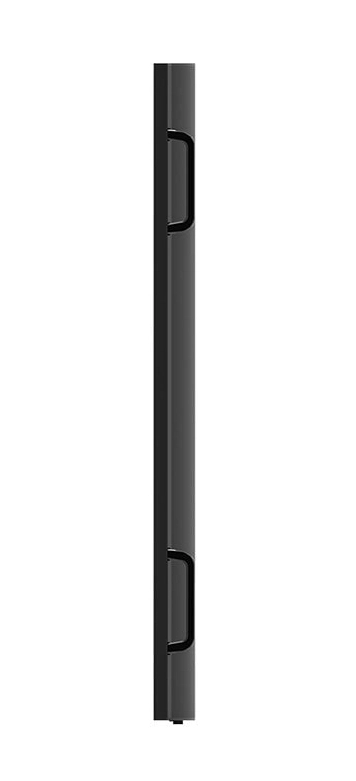

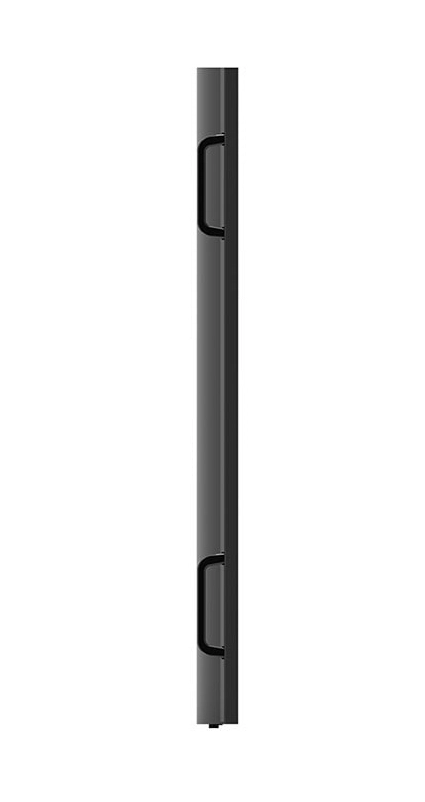

Slim Design
The slim design of the UM5K allows it to be installed closer to the wall, helping to create an immersive experience and sophisticated look.

Mobile Content Management
Create a store profile and get template recommendations using the LG Promota app. Users can customize templates as needed and easily create and manage content not only on PCs but also on mobile devices.

Compatible with AV Control System
The UM5K series supports Crestron Connected® for compatibility with professional AV controls to achieve seamless integration and automated network-based control.

LG SuperSign™ Solutions
SuperSign™ is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.

Specification

Product
Product id	1004837
Brand	LG Electronics
Partnr	98UM5K-B
EAN/UPC code	8806084240644
Warranty (months)	3 Year Limited
Display
Display diagonal	98 inch
LED backlight	Y
LED backlighting type	Direct-LED
Display resolution	3840 x 2160 Pixels
Display brightness	500 cd/m²
HD type	4K Ultra HD
Native aspect ratio	16:9
Response time	8 ms
Contrast ratio (typical)	1200:1
Contrast ratio (dynamic)	200000:1
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Display number of colours	1.07 billion colours
Native refresh rate	60 Hz
Rated lifetime	30000 uur
Haze rate	25 procent
Panel type	ADS
Ports & interfaces
HDMI ports quantity	3
HDMI version	1.2
HDMI input ports quantity	3
HDMI output ports quantity	1
DVI port	Y
DVI-D ports quantity	1
DisplayPorts quantity	1
USB port	Y
USB ports quantity	1
USB version	2.0
Ethernet LAN	Y
Ethernet LAN (RJ-45) ports	1
Wi-Fi	Y
Audio (L/R) in	1
Audio (L/R) out	1
RS-232C	Y
Remote (IR) input	1
Audio
Built-in speaker(s)	Y
Number of built-in speakers	2
RMS rated power	20 W
Design
Design	Digital signage flat panel
Product colour	Black
Placement supported	Indoor
VESA mounting	Y
Panel mounting interface	800 x 400 mm
Bezel width (top)	17 mm
Bezel width (side)	17 mm
Bezel width (bottom)	17 mm
Performance
Purpose	Commercial
Number of OSD languages	22
On Screen Display (OSD) languages	ARA, CHI (SIMPL), CHI (TR), CZE, DAN, DEU, DUT, ENG, ESP, FIN, FRE, GRE, ITA, JPN, KOR, NOR, POL, POR, RUS, SWE, TUR
Power
Power consumption (typical)	430 W
Power consumption (off)	0.5 W
AC input voltage	100-240 V
AC input frequency	100-240 Hz
Computer system
Internal memory	16 GB
Weight & dimensions
Display width	2198 mm
Display depth	79.5 mm
Display height	1253 mm
Display weight	78000 g
Packaging data
Package width	2680 mm
Package depth	320 mm
Package height	1730 mm
Package weight	105000 g
Packaging content
Handheld remote control	Y
Cables included	Power
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 80 procent
Other features
USB connector type	USB Type-A
Display technology	LED
Power consumption (max)	560 W
