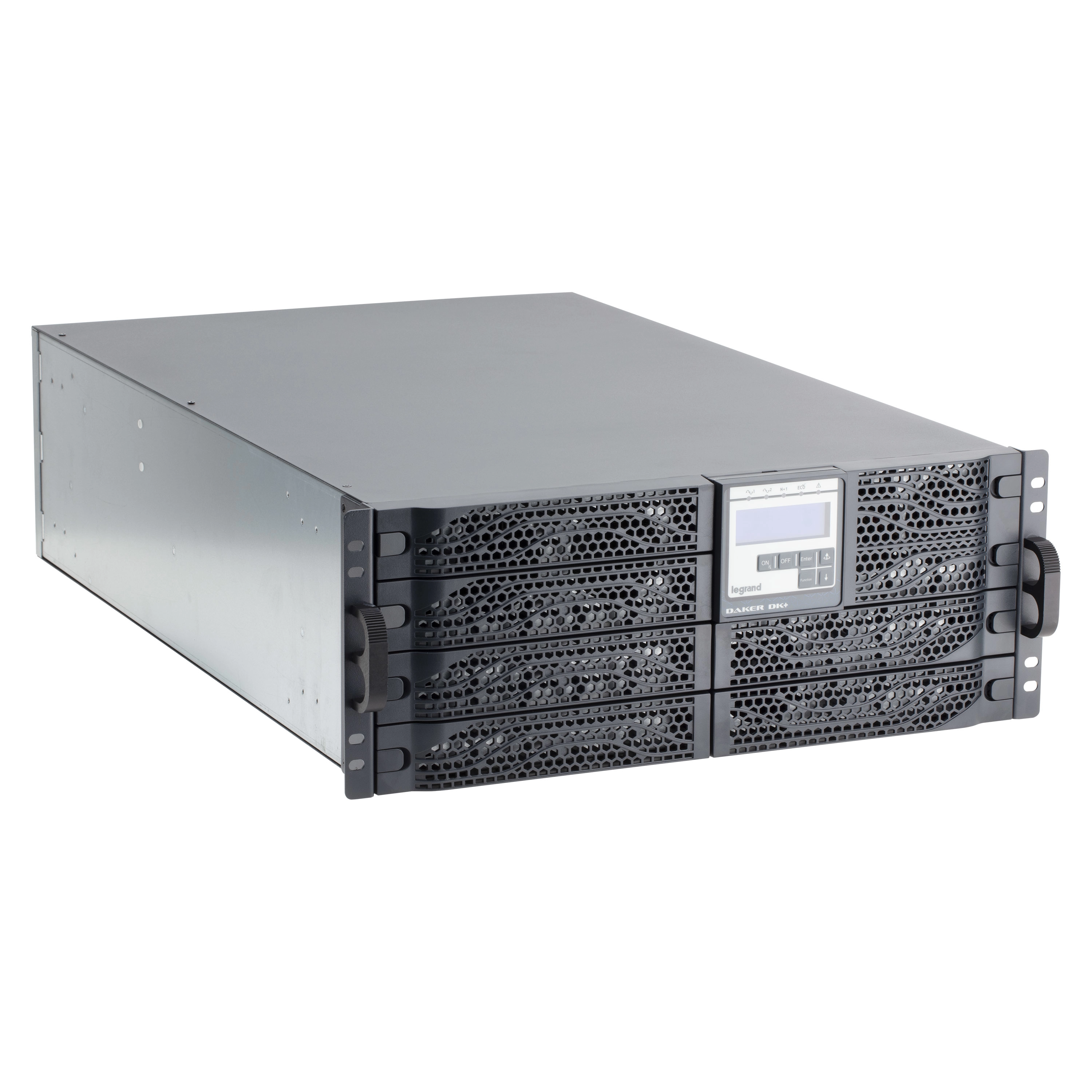

Daker DK UPS Plus is a single phase uninterruptible power supply with high frequency PWM technology, Double Conversion OnLine.

It delivers a rated power of 1000-2000-3000-5000-6000-10000VA, equipped with valve-regulated, hermetically-sealed accumulator batteries, contained in a specific compartment inside the UPS or in one or more external cabinets.

With the reversible screen, the Daker DK Plus UPS can be used in both tower and 19" rack configuration.

Specification

Product
Product id	973389
Brand	Legrand
Partnr	310174
EAN/UPC code	3414970826961
Power
Input frequency	47/63 Hz
Technical details
Pallet net weight	118200 g
Pallet net width	1200 mm
Pallet net depth	1000 mm
Pallet net height	480 mm
Features
UPS topology	Double-conversion (Online)
Output power capacity	6 VA
Output power	6000 W
Waveform	Sine
Input operation voltage (min)	176 V
Input operation voltage (max)	280 V
Output operation voltage (min)	228 V
Output operation voltage (max)	232 V
Output frequency	50/60 Hz
Output voltage regulation	1 procent
Surge energy rating	1900 J
Number of input phases	1
Number of output phases	1
Efficiency	94 procent
Efficiency (ECO mode)	97 procent
Power factor	1
Input power factor	0.99
Output power factor	1
Crest factor	3:1
Emergency Power Off (EPO)	Y
Output voltage Total Harmonic Distortion (THD)	3 procent
Input current Total Harmonic Distortion (THD)	3 procent
Noise level	50 dB
Management protocols	Network management, Simple Network Management Protocol (SNMP)
Potential-free output	N
Auto shut-off	N
Power source type	AC
Detachable power cord	Y
Ports & interfaces
AC outlet types	C13 coupler, C19 coupler
Power plug	Hardwire
AC outlets quantity	11 AC-uitgang(en)
USB port	Y
Serial interface	Y
Serial interface type	RS-232
Battery
Battery capacity	5 Ah
Battery voltage	12 V
Number of batteries supported	20
Design
Form factor	Rackmount
Product colour	Black
Rack capacity	4U
LED indicators	Status
International Protection (IP) code	IP20
Display type	LCD
Certification	EN 62040-1, EN 62040-2, EN 62040-3
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 95 procent
Packaging data
Package width	196 mm
Package depth	58.64 mm
Package height	440 mm
Package weight	56145 g
Weight & dimensions
Width	440 mm
Depth	680 mm
Height	196 mm
Weight	60000 g
Logistics data
Quantity per pallet	2 stuk(s)
Master (outer) case width	560 mm
Master (outer) case length	872 mm
Master (outer) case height	316 mm
Master (outer) case weight	59100 g
Quantity per master (outer) case	1 stuk(s)
