A MULTI-PURPOSE DOCK
Logi Dock Flex is a managed docking station that enables easy and personalized desk booking for employees and simple device management for IT.

DESK AVAILABILITY AT A GLANCE
Employees never have to guess which desk is free, occupied, or in between. The 8” screen clearly indicates desk status at a glance.

BOOK SHARED DESKS WITH EASE
Tap to book and claim the desk directly at the desk, whether pre-booked or adhoc.

MANAGE SPACES AND DEVICES WITH EASE
Ensure that desks are fully operational at all times from any location, using Logitech Sync.

LOGITECH DESK BOOKING
Enable employees to easily find and reserve desks, choose desks near coworkers, and notify colleagues when they’re coming to the office.

MICROSOFT TEAMS
Reserve a shared desk in advance through Teams, Outlook, or right from Logi Dock Flex for adhoc bookings.

ZOOM WORKSPACE RESERVATION
Logi Dock Flex works as a scheduling display to allow for easy check-in and adhoc or advanced booking of the shared desk.

A Secure and Reliable Connection

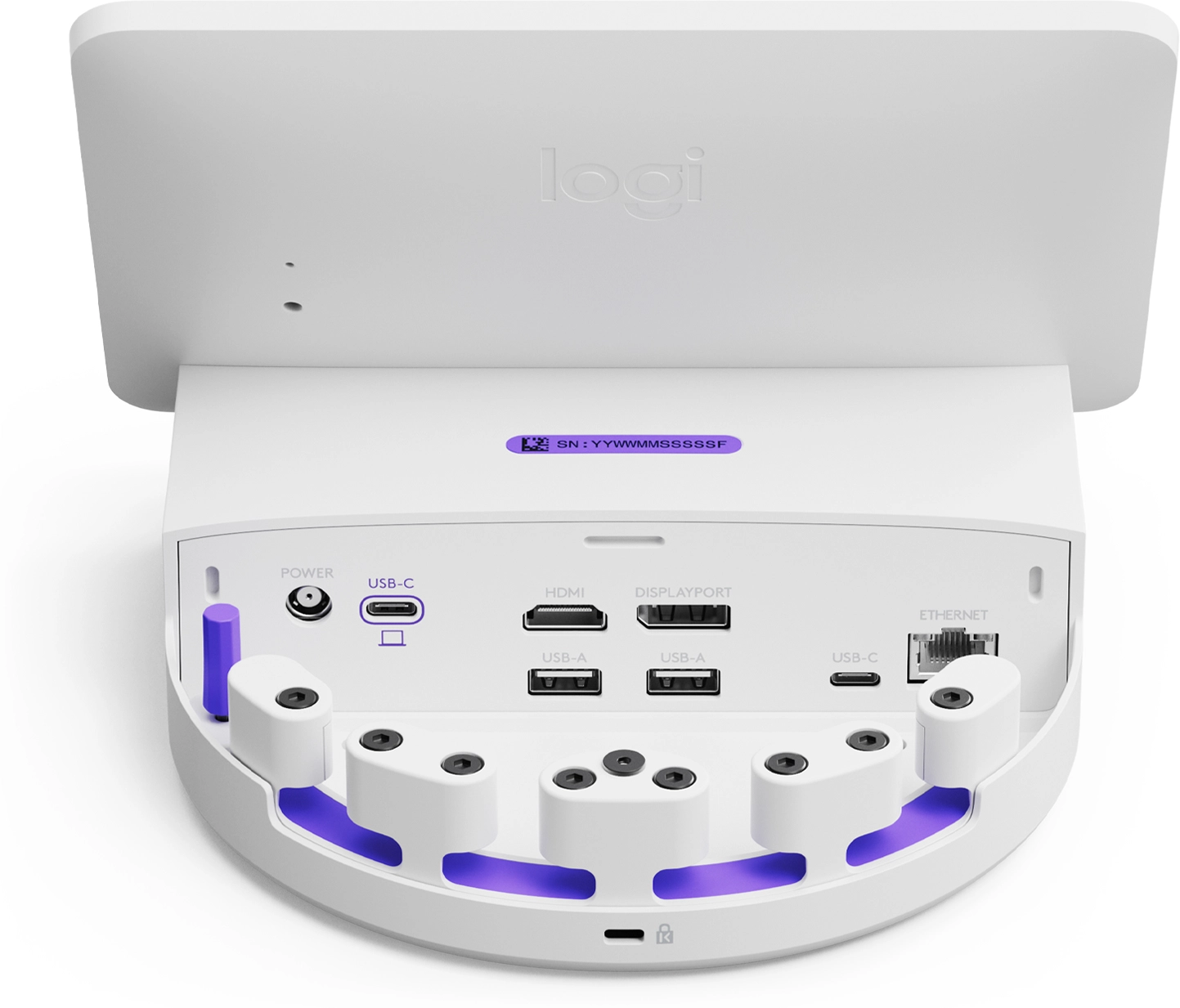

Attach up to two monitors with HDMI and DisplayPort. Attach peripherals with three IT-managed USB ports and Ethernet for security. There are also three front-facing USB ports for users.

Specification

Product
Product id	906449
Brand	Logitech
Partnr	939-002183
EAN/UPC code	5099206119062
Warranty (months)	2-year limited hardware warranty
Display
Display diagonal	8 inch
Display resolution	1280 x 800 Pixels
Display technology	IPS
LED backlight	Y
Viewing angle	85 °
Display brightness	300 cd/m²
Touchscreen technology	Capacitive
Number of simultaneous touchpoints	5
Fingerprint resistant	Y
Design
Housing colour	White
Cable lock slot	Y
Ambient light sensor	Y
Cable lock slot type	Kensington
Oleophobic coating	Y
Position angle	60 °
Network
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Wi-Fi	Y
Bluetooth	Y
Bluetooth version	5.0
Security algorithms	128-bit AES
Ethernet LAN	Y
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Power
Power source type	DC
Audio
Built-in speaker(s)	N
Built-in microphone	N
Operational conditions
Operating relative humidity (H-H)	10 - 90 procent
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 75 °C
Storage relative humidity (H-H)	0 - 95 procent
Camera
Built-in camera	N
Ports & interfaces
USB port	Y
RJ-45 ports quantity	1
USB Type-C ports quantity	4
USB 2.0 Type-A ports quantity	3
HDMI ports quantity	1
HDMI version	2.0
DisplayPorts quantity	1
DisplayPort version	1.4
Weight & dimensions
Width	201 mm
Depth	177 mm
Height	141 mm
Weight	1000 g
Packaging content
Cables included	USB Type-C, AC
