Connect hundreds of Logitech Spot sensors throughout an office, especially in areas without a Logitech CollabOS device like Tap Scheduler or Rally Bar.

ONE GATEWAY, EXTENDED COVERAGE

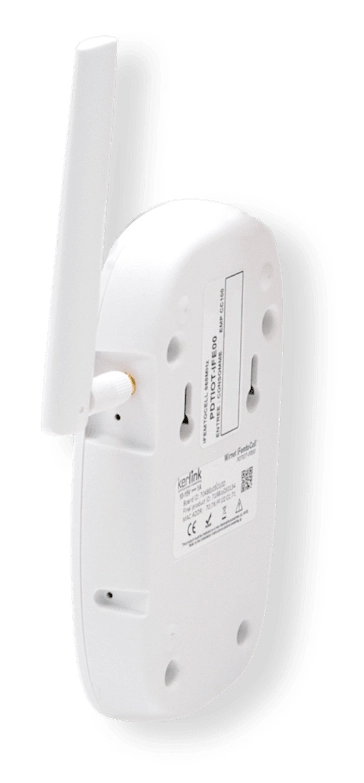

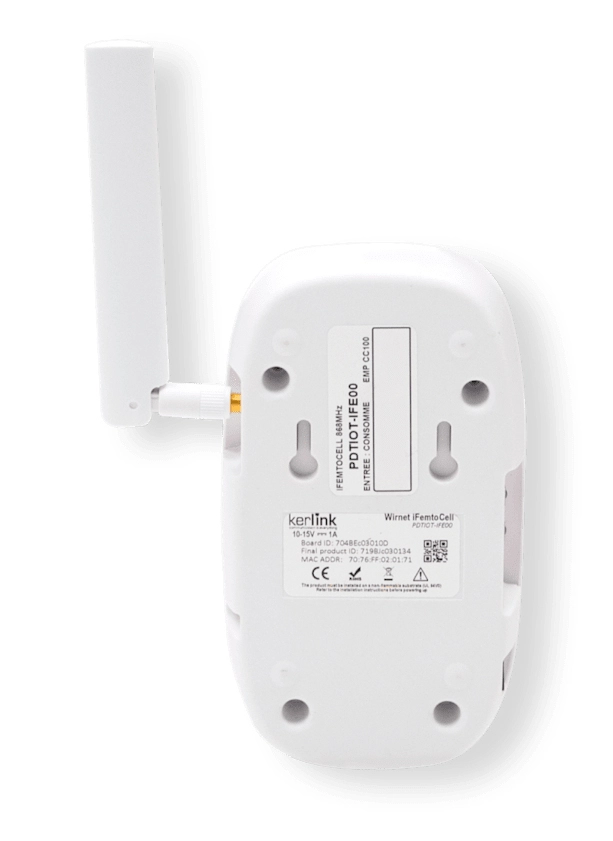

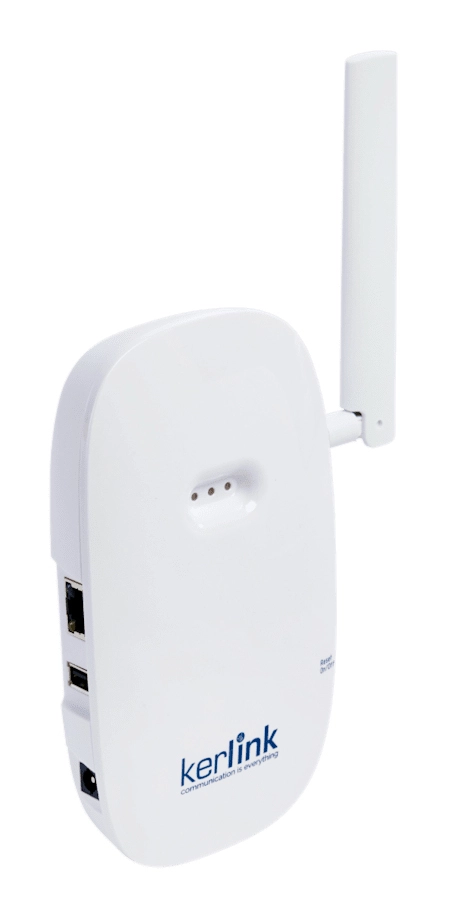

The Kerlink gateway is able to connect hundreds of sensors using a long-range, wide area network (LoRaWAN). No WiFi, no cabling needed between connections.

SIMPLE TO INSTALL

FIND THE BEST AREA
To maximize coverage, find a central place on the floor or building where the gateway would have the best, unblocked reception.

PROVISION VIA SYNC PORTAL
Remotely provision and configure your gateway via Sync Portal.

CONNECT SENSORS
Activate Spot sensors to ensure complete LoRaWAN connectivity.

POWERED BY LORAWAN
The Kerlink gateway connects to Spot sensors via the secure LoRaWAN protocol, ensuring end-to-end encryption, and is separate from your WiFi network. This enables it to be placed outside your corporate network and securely transmit all sensor data to the Sync platform for monitoring and management.

SIMPLE TO MANAGE
Monitor and manage the gateway and Spot sensors via Sync, the Logitech platform for managing all your collaboration devices and spaces.

Specification

Product
Product id	1008039
Brand	Logitech
Partnr	950-000124
EAN/UPC code	5099206135857
Warranty (months)	24 months
Network
Ethernet LAN data rates	10, 100 Mbit/s
Wi-Fi	Y
Frequency band	2.4 GHz
Management features
Reset button	Y

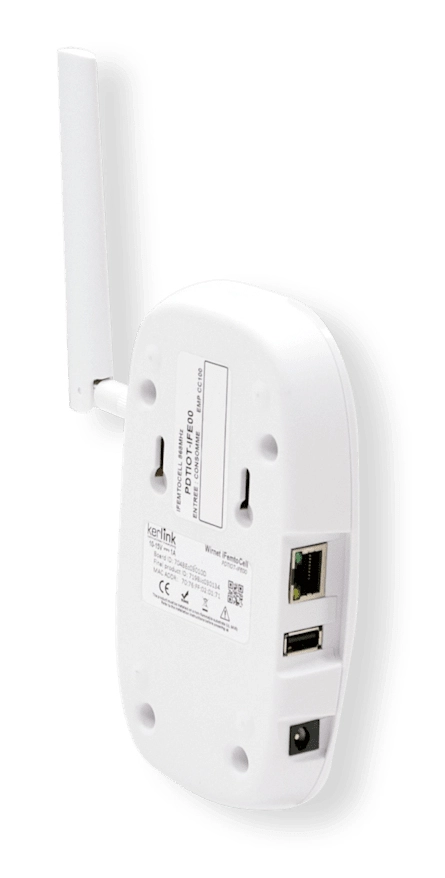

Ports & interfaces
USB 2.0 ports quantity	1
DC-in jack	Y
Ethernet LAN (RJ-45) ports	1
Weight & dimensions
Width	90 mm
Depth	35 mm
Height	160 mm
Weight	162 g
Power
Output voltage	12 V
Input voltage	230 V
Operational conditions
Operating temperature (T-T)	-20 - 55 °C
Operating relative humidity (H-H)	5 - 95 procent
Technical details
Built-in processor	Y
AC adapter included	Y
Features
Antenna gain level (max)	3 dBi
Design
Product colour	White
Mounting type	Desktop/Wall mounting
International Protection (IP) code	IP30
Antenna
Antenna type	External
Performance
Processor manufacturer	ARM
Processor family	ARM Cortex
Packaging content
Manual	Y
Memory
Internal memory	256 MB
Flash memory	8000 MB
