Logitech Rally Bar is the premier video bar for medium to large meeting rooms. Discover remarkably simple, all-in-one video conferencing with built-in AI technology, brilliant optics, and powerful audio.

ALL-IN-ONE VIDEO BAR FOR MEDIUM AND LARGE ROOMS
Discover a remarkably simple all-in-one video conferencing setup with brilliant optics, AI-based audio, remote management with Logitech Sync, and more.

EXPAND THE CONVERSATION
Add up to four Rally Mic Pods to extend the audio pick up range and provide convenient access to mute controls.

ENSURE EVERYONE IS SEEN AND HEARD
AI video intelligence, advanced sound pickup, noise suppression, and continuous software improvements provide a clear and natural meeting experience for remote workers.

MANAGE REMOTELY WITH SYNC
Monitor room and device health, deploy updates, and modify settings, all from a single cloud-based platform.

CERTIFIED FOR BUSINESS
Leverage the video conferencing platforms and features you already use. Rally Bar is certified for leading video platforms like Microsoft Teams, Zoom, and Google Meet.

A CHOICE YOU WILL FEEL GOOD ABOUT
Logitech is committed to creating a more sustainable world. We are actively working to minimize our environmental footprint and accelerate the pace of social change.

Made With Recycled Plastic
The plastic parts in the Graphite version of Rally Bar include 40% certified post-consumer recycled plastic. We’re giving a second life to plastic from consumer electronics to help reduce our carbon footprint.

ENSURE BUSINESS CONTINUITY WITH SELECT SERVICE PLAN
Remove barriers to collaboration and ensure conference rooms are ready for the next meeting. Select is a service plan beneficial for all room sizes and deployments. Optimize uptime with expert assistance within one hour, get fast product replacements, and take advantage of premium Sync functionality to proactively resolve issues before they impact your business. When you choose Select, we partner with you to reduce daily management, optimize performance, and help you maximize your investment.

UNLOCK A FULL SOLUTION

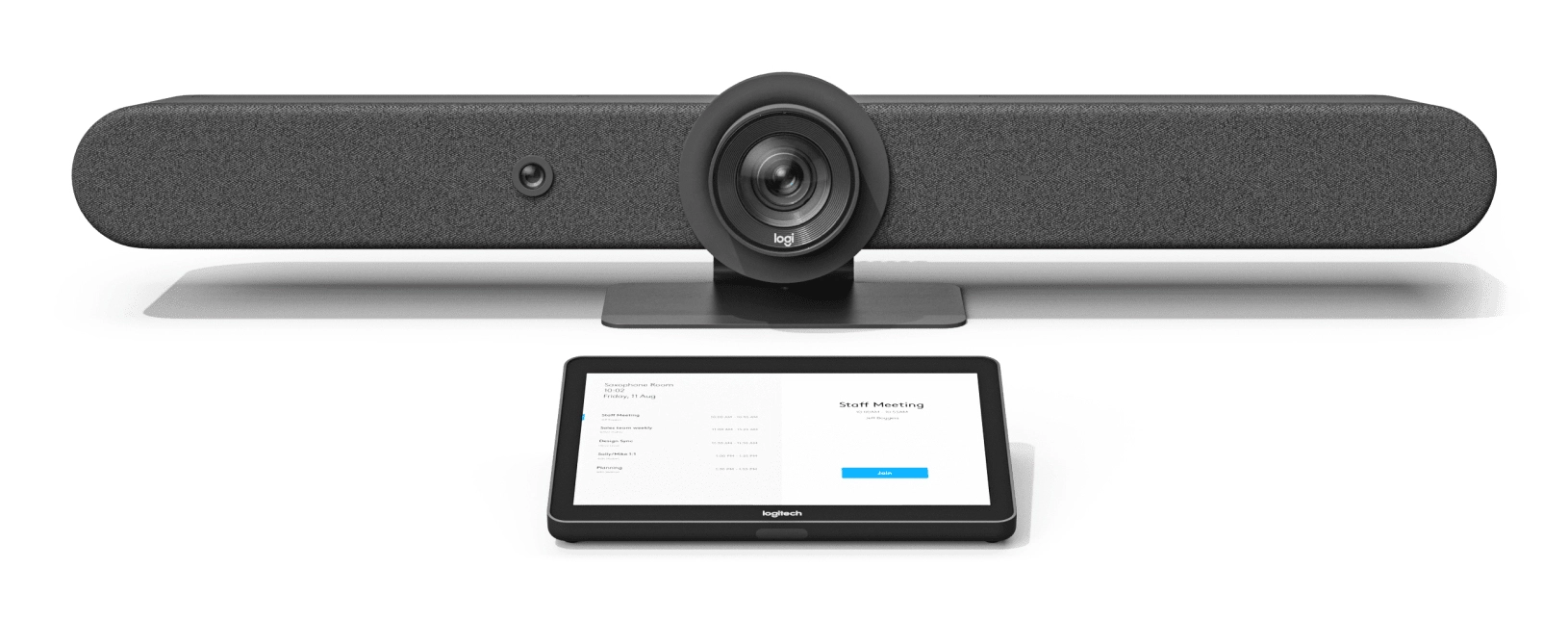

Discover a full solution including Rally Bar and Logitech Tap IP, a touch controller with PoE connectivity.

Specification

Product
Product id	1005839
Brand	Logitech
Partnr	960-001669
EAN/UPC code	097855197849
Technical details
Product type	Group video conferencing system
Bluetooth	N
Product colour	Graphite
Pan range	-25 - 25 °
Tilt angle range	-15 - 15 °
PTZ control	Y
Performance
Number of cameras	1
Video
HD type	4K Ultra HD
Optical zoom	5 x
Maximum video resolution	3840 x 2160 Pixels
Digital zoom	3 x
Supported video modes	720p, 900p, 1080p, 1440p, 2160p
Supported graphics resolutions	1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2560 x 1440, 3840 x 2160
Maximum frame rate	30 fps
Audio
Number of speakers	2
Line-out impedance	4 Ohm
Output voltage Total Harmonic Distortion (THD)	2 procent
Built-in speaker(s)	Y
Microphone pick-up range	7 m
Noise reduction	Y
Driver diameter	70 mm
Ports & interfaces
HDMI ports quantity	3
HDMI input ports quantity	1
USB 2.0 ports quantity	3
HDMI output ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
Microphone in	Y
Network
Ethernet LAN	Y
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Wi-Fi	Y
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Security algorithms	128-bit AES
Camera
Camera type	Single camera
Zoom capability	Y
Field of view (FOV) angle	90 °
Horizontal field of view	82.1 °
Combined zoom	15 x
Vertical field of view	52.2 °
Microphone
Microphone sensitivity	-36 dB
Microphone frequency	90 - 16000 Hz
Sound pressure level (max)	99 dB
Number of microphones	6
Features
Telepresence	N
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 95 procent
Storage temperature (T-T)	-40 - 70 °C
Heat dissipation	64 BTU/h
Power
Power source type	AC, DC
AC input voltage	100 - 240 V
DC output voltage	19 V
DC output current	4.74 A
Power plug type	Type C
Weight & dimensions
Width	910 mm
Depth	130.5 mm
Height	164 mm
Weight	7080 g
Packaging content
Cables included	AC, DC, HDMI, USB Type-A to USB Type-C
HDMI cable length	2 m
AC adapter included	Y
Manual	Y
Handheld remote control	N
