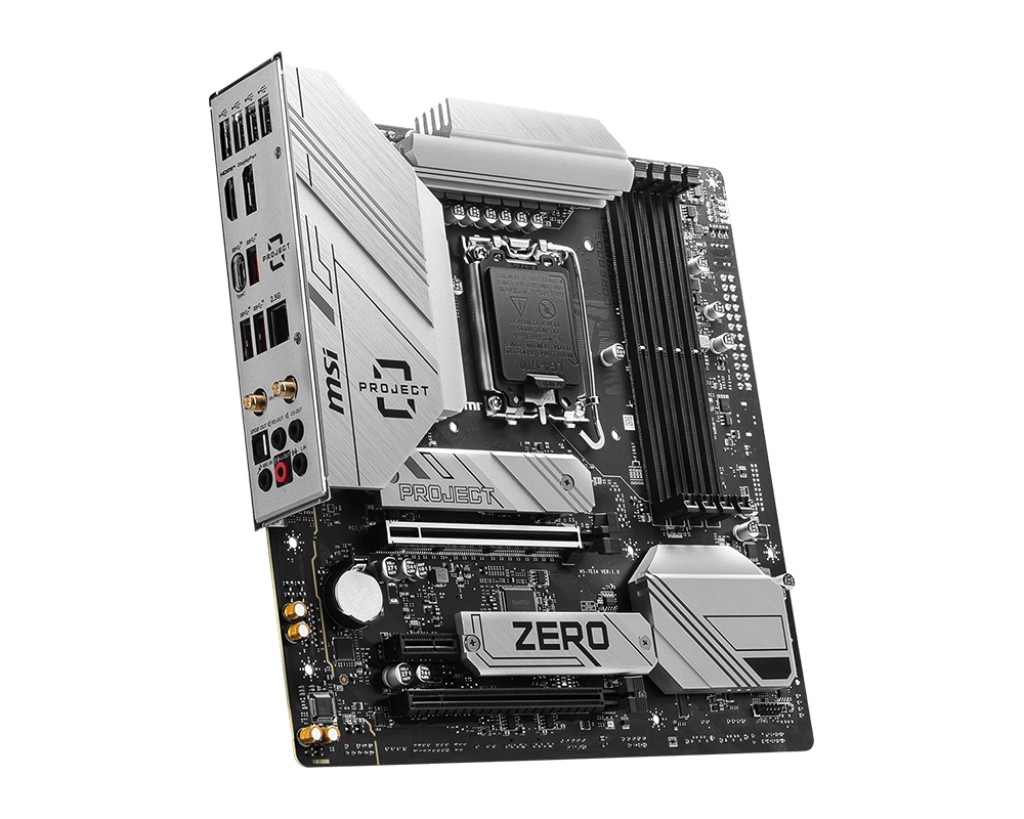

The B760M PROJECT ZERO features a unique back-connect design that reduces the complexity of cable management, resulting in a neater and more aesthetically pleasing appearance for the system. It’s compatible with Intel 14th/13th/12th Processors, supports DDR5, and comes equipped with a 2.5G LAN and Wi-Fi 6E solution. This makes it an excellent choice among mATX motherboards.

ABSOLUTE SIMPLICITY

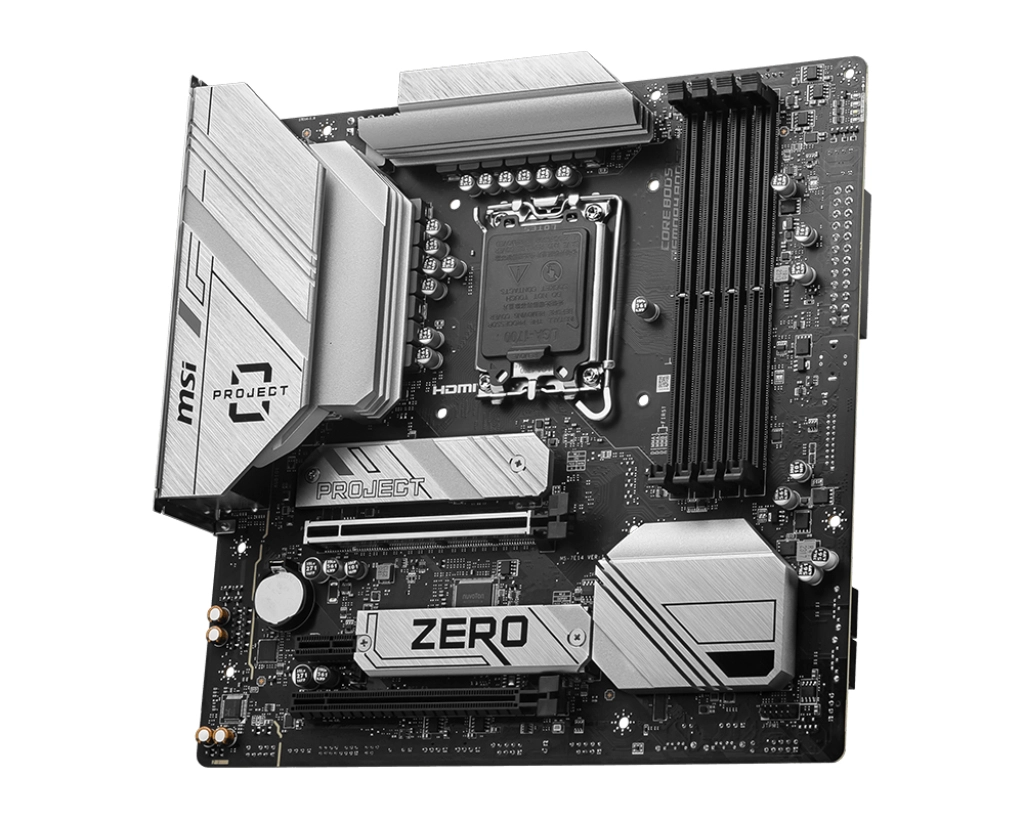

B760M PROJECT ZERO moves the power connectors, fan connectors, and other pin headers to the back of the motherboard. This provides a cleaner and neater front view, allowing the motherboard, liquid cooler, and graphics card's aesthetic design to be fully displayed.

LIGHTNING GEN 5 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.

SMT PCIE 5.0 SLOT
The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.

REINFORCED,
HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.

Specification

Product
Product id	944055
Brand	MSI Micro-Star International
Partnr	B760M PROJECT ZERO
EAN/UPC code	4711377143660
Processor
Processor manufacturer	Intel
Processor socket	LGA 1700
Compatible processor series	Intel Celeron, Intel Pentium Gold
Maximum number of SMP processors	1
Supported processor sockets	LGA 1700
Maximum internal memory supported by processor	192 GB
Memory
Supported memory types	DDR5-SDRAM
Number of memory slots	4
Memory slots type	DIMM
Memory channels	Dual-channel
Non-ECC	Y
Supported memory clock speeds	4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800 MHz
Maximum internal memory	192 GB
Supported memory clock speed (max)	7800 MHz
Storage controllers
Supported storage drive interfaces	M.2, SATA III
RAID levels	0, 1, 5, 10
RAID support	Y
Internal I/O
USB 2.0 connectors	4
USB 3.2 Gen 1 (3.1 Gen 1) connectors	4
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Number of SATA III connectors	4
Front panel audio connector	Y
Front panel connector	Y
ATX Power connector (24-pin)	Y
CPU fan connector	Y
TPM connector	Y
RGB LED pin header	Y

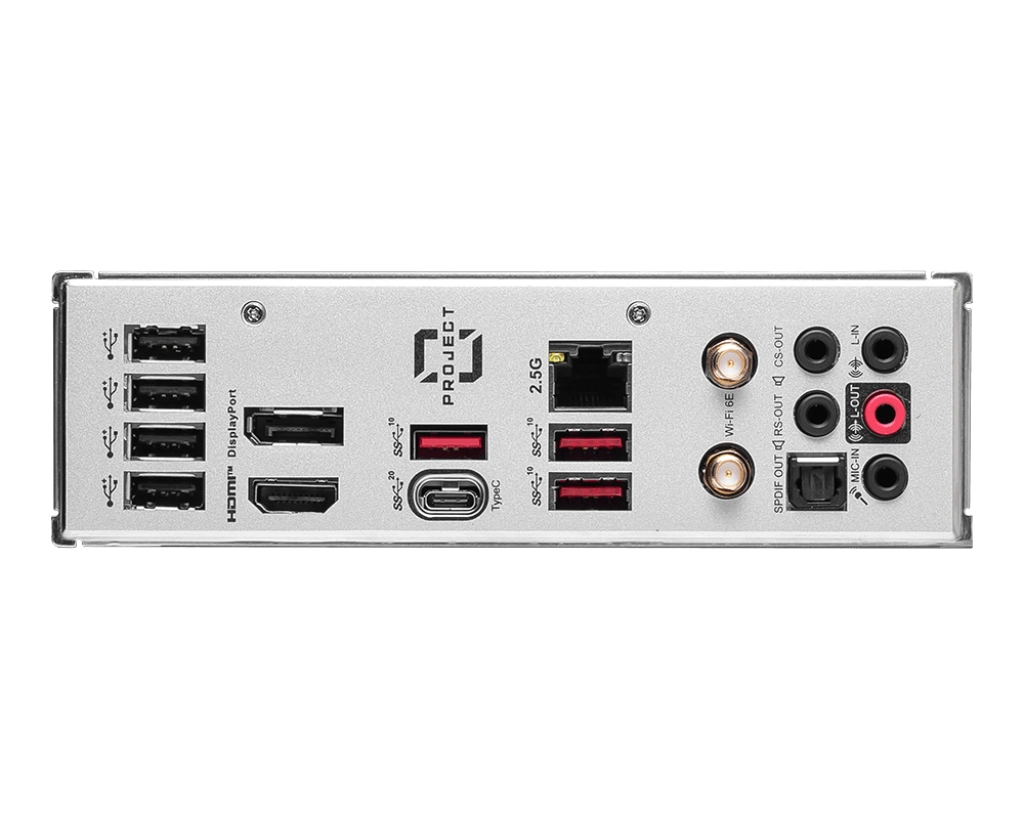

Rear panel I/O ports
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.1
DisplayPorts quantity	1
DisplayPort version	1.4
Network
Ethernet LAN	Y
Ethernet interface type	2.5 Gigabit Ethernet
Wi-Fi	Y
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth	Y
Bluetooth version	5.3
Features
Component for	PC
Motherboard form factor	Micro ATX
Motherboard chipset family	Intel
Motherboard chipset	Intel B760
Audio chip	Realtek ALC897
Audio output channels	7.1 kanalen
Product colour	Black, White
Power source type	ATX
Windows operating systems supported	Windows 10, Windows 11
Expansion slots
PCI Express x1 (Gen 3. x) slots	2
Number of M.2 (M) slots	2
BIOS
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
ACPI version	6.4
Clear CMOS jumper	Y
System Management BIOS (SMBIOS) version	3.5
Weight & dimensions
Width	243.84 mm
Depth	243.84 mm
