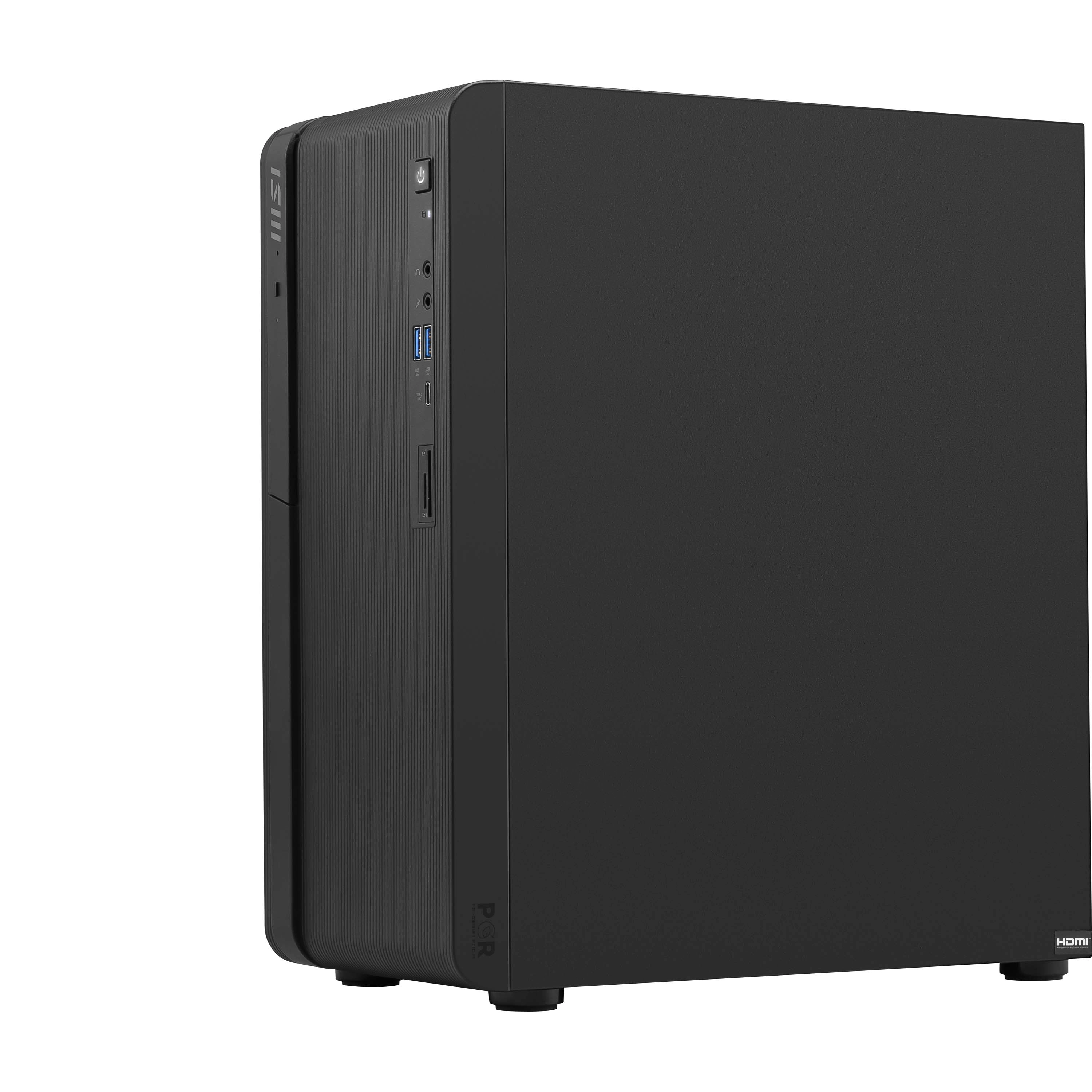

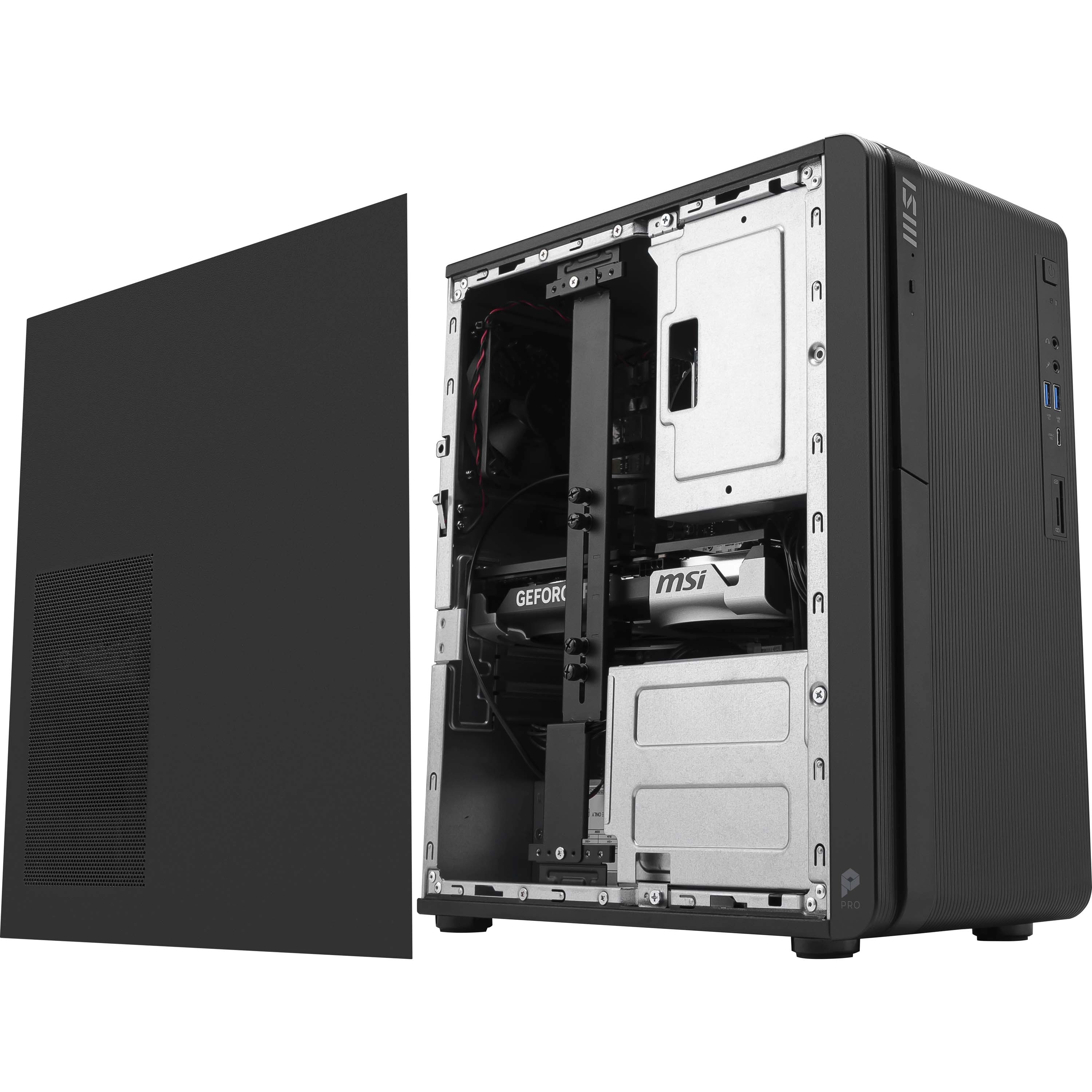

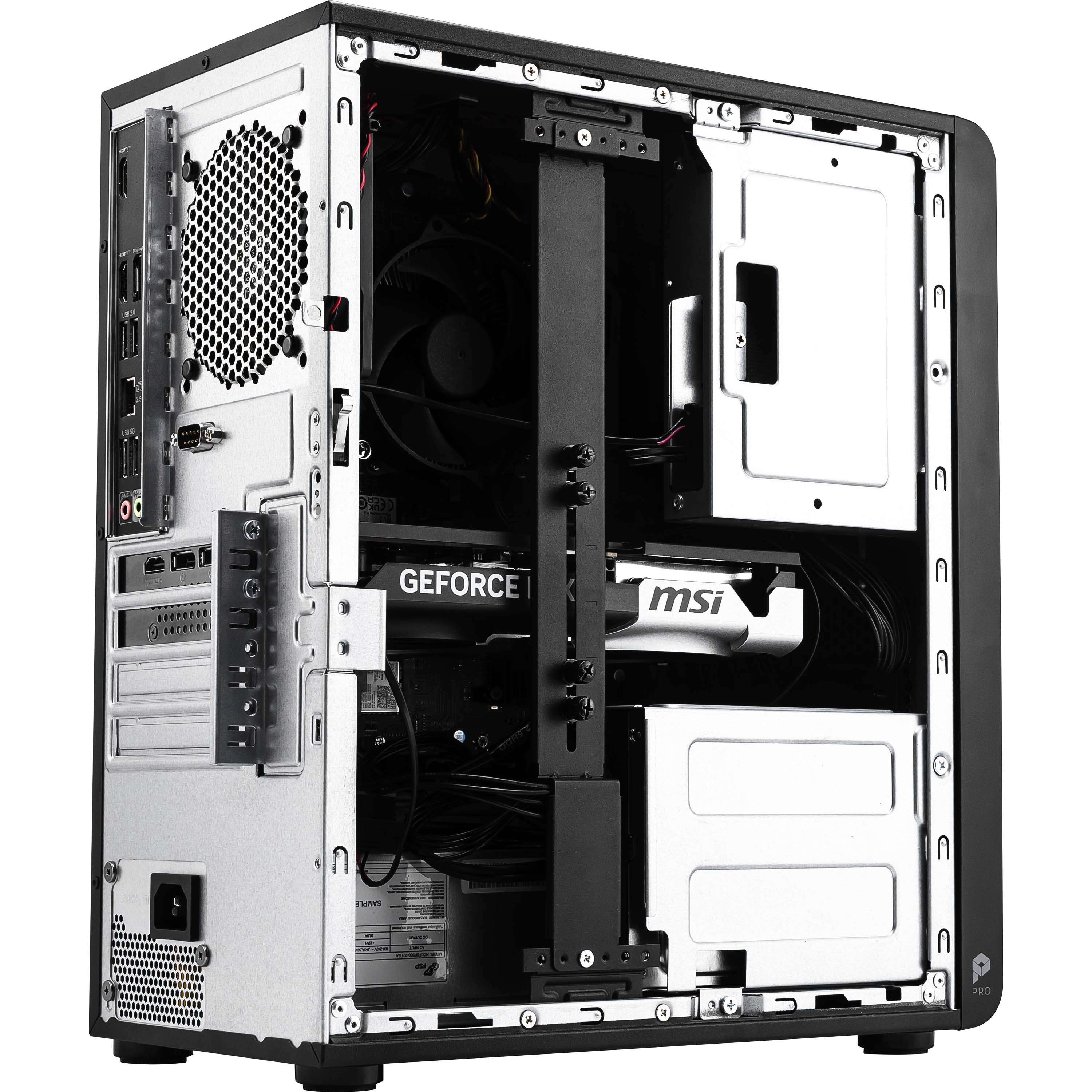

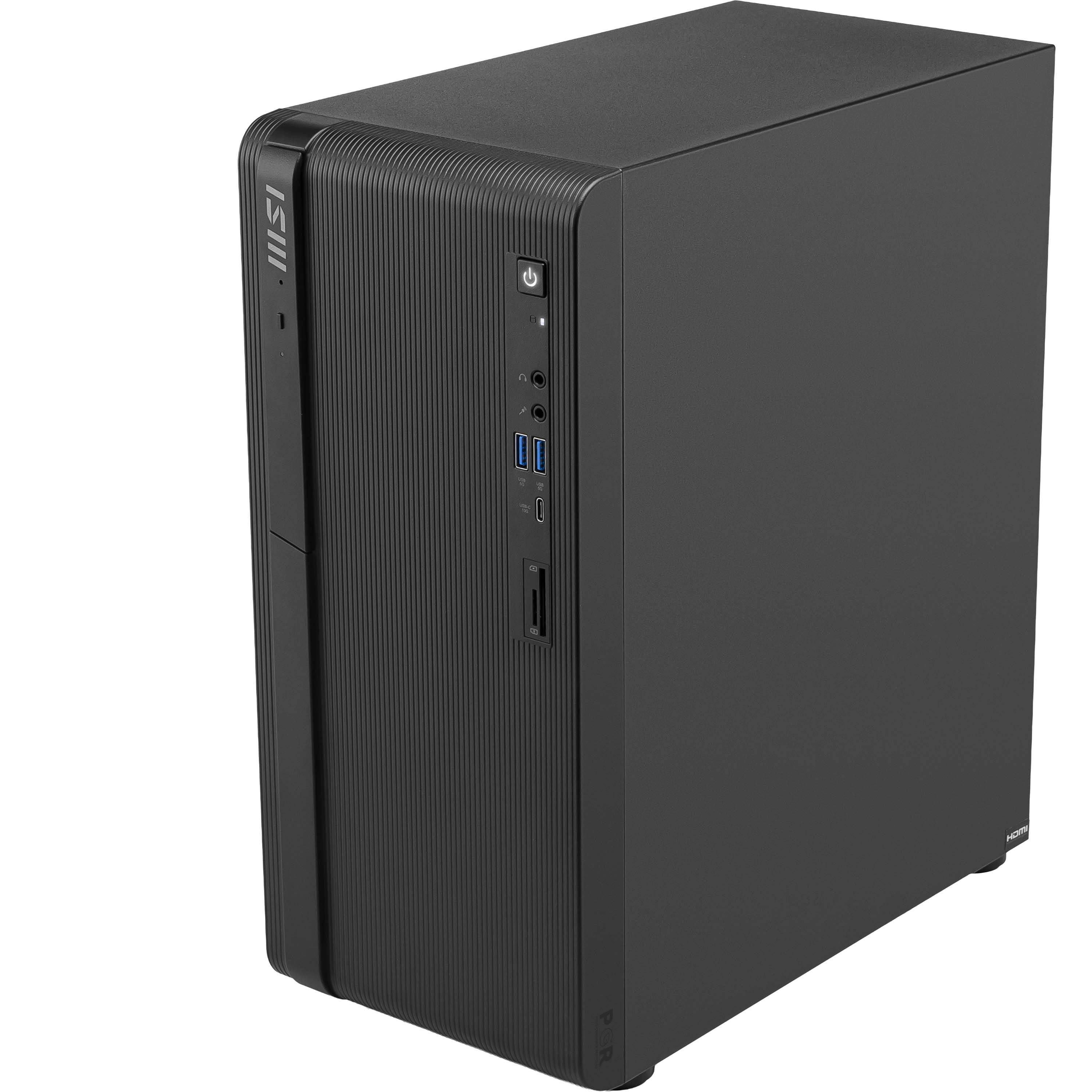

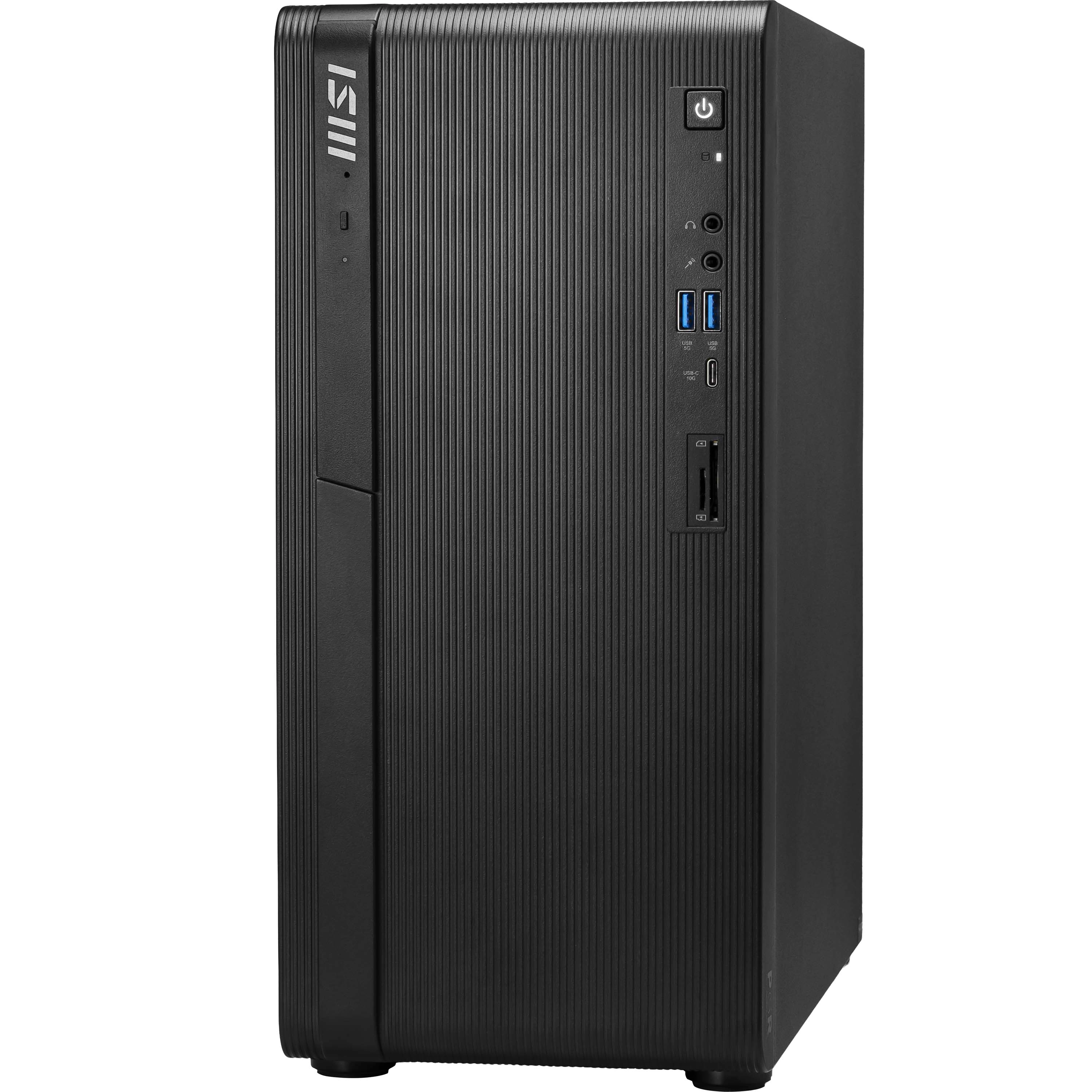

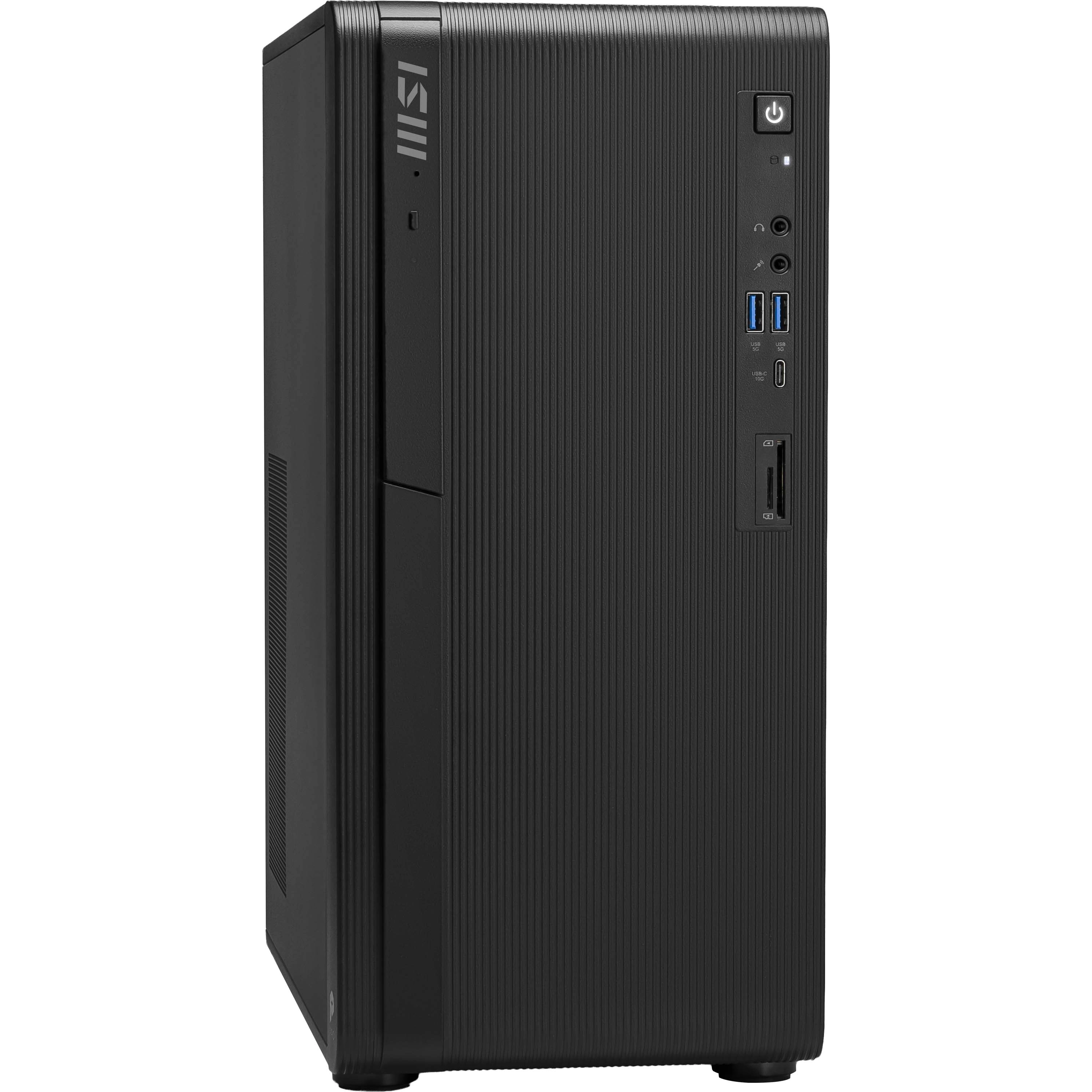

Modern. Reliable. Powerful.
Whether you're driving business productivity or managing multitasking, the PRO DP180 Series delivers reliable performance in a modern, professional design.

Specification

Product
Product id	1029122
Brand	MSI Micro-Star International
Partnr	PRO DP180 AI 8HG-1409XEU
EAN/UPC code	4711377445351
Warranty (months)	3 years
Processor
Processor manufacturer	Intel
Processor family	Intel Core Ultra 5
Processor generation	Intel Core Ultra (Series 2)
Processor model	225
Processor cores	10
Processor boost frequency	4.9 GHz
Performance cores	6
Processor socket	LGA 1851 (Socket V1)
Efficient cores	4
Processor cache	20 MB
Processor cache type	Smart Cache
Processor threads	10
Efficient-core Max Turbo Frequency	4.4 GHz
Processor base power	65 W
Maximum turbo power	121 W
Memory
Internal memory	16 GB
Internal memory type	DDR5-SDRAM
Maximum internal memory	64 GB
Memory layout (slots x size)	1 x 16 GB
Memory clock speed	5600 MHz
Neural processor unit (NPU)
Neural processor unit (NPU)	Intel AI Boost
Total processor performance (up to)	23 TOPs
NPU performance up to	13 TOPs
GPU performance up to	4 TOPs
Storage
Total storage capacity	512 GB
Optical drive type	N
Card reader integrated	Y
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	PCI Express 3.0
SSD form factor	M.2
Graphics
Discrete graphics adapter	N
On-board graphics adapter	Y
Discrete graphics adapter model	Not available
On-board graphics adapter family	Intel Graphics
On-board GPU manufacturer	Intel
On-board graphics adapter model	Intel Graphics
Network
Ethernet LAN	Y
Ethernet LAN data rates	10, 100, 1000, 2500 Mbit/s
LAN controller	Intel I226-V
Wi-Fi	Y
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
WLAN controller manufacturer	Intel
Wi-Fi standards	Wi-Fi 6E (802.11ax)
WLAN controller model	Intel Wi-Fi 6E AX211
Bluetooth	Y
Bluetooth version	5.3

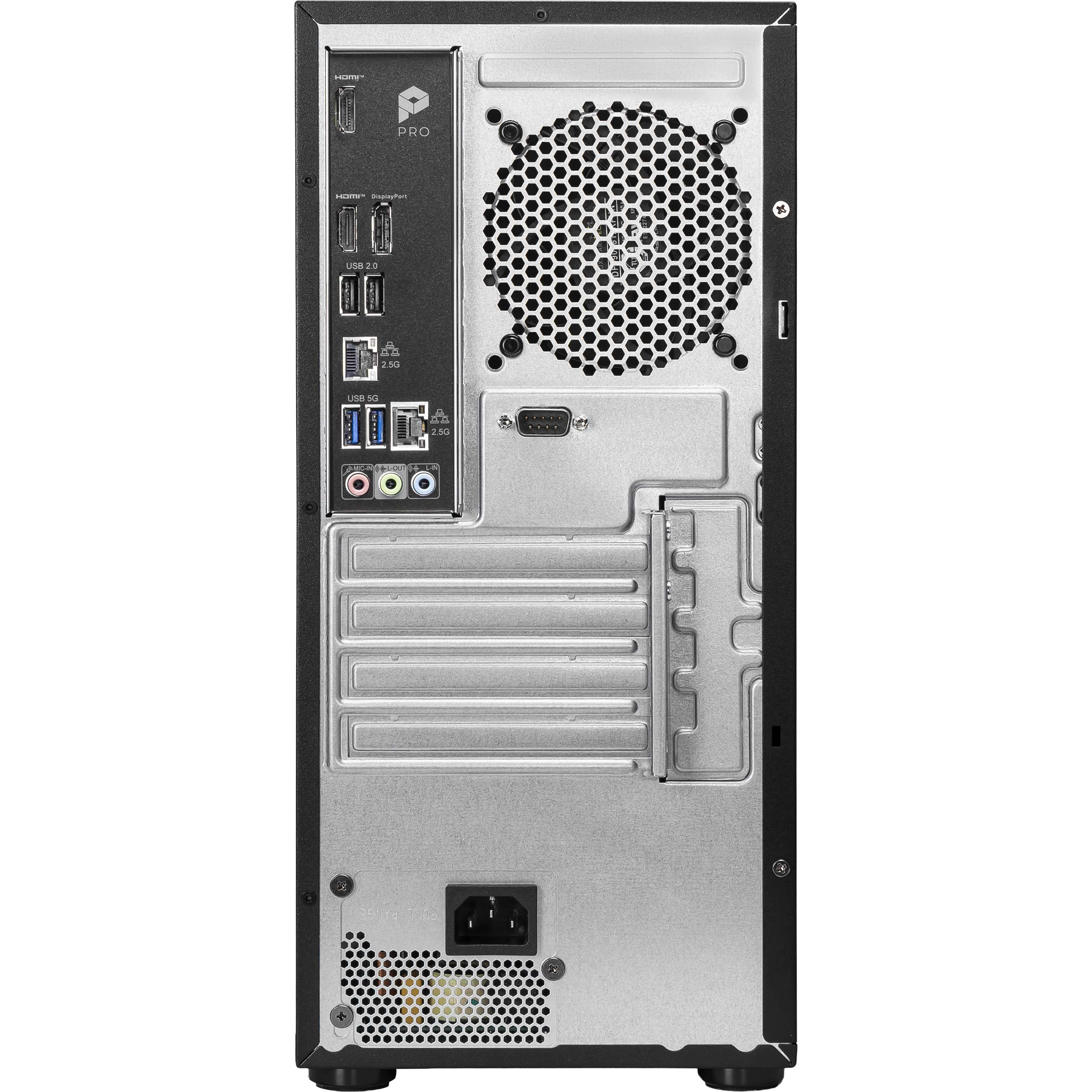

Ports & interfaces
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
HDMI ports quantity	1
HDMI version	2.1
PS/2 ports quantity	1
Ethernet LAN (RJ-45) ports	1
Microphone in	Y
Headphone outputs	1
Combo headphone/mic port	Y
Design
Chassis type	Desktop
Volume	18 l
Cable lock slot	Y
Cable lock slot type	Kensington
Product colour	Black
Performance
Product type	PC
Motherboard chipset	Intel H810
Audio chip	Realtek ALC897
Audio output channels	7.1 kanalen
Built-in speaker(s)	N
Software
Operating system installed	N
Power
Power supply	500 W
80 PLUS certification	80 PLUS Gold
Operational conditions
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 85 procent
Storage relative humidity (H-H)	0 - 90 procent
Certificates
Certification	BSMI, CB/CE, CEC, ERP lot 3, Energy Star, Epeat Sliver, RH, UL(CUL)
Weight & dimensions
Width	168 mm
Depth	355.05 mm
Height	369.4 mm
Weight	5690 g
Package width	455 mm
Package depth	240 mm
Package height	485 mm
Package weight	7890 g
Packaging content
Display included	N
Other features
Warranty period	3 jaar
