PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.

THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE

With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink with 7W/mK thermal pad ensures even high-end processors to run in full speed with MSI motherboards.

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK

2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.

14 + 1 +1 POWER DESIGN

Unleash and sustain maximum performance with an aggressive VRM design built with a total of 14 digital CPU power phases. Combining 2x 8-pin power connectors and exclusive Core Boost technology, PRO series motherboard is ready to sustain heavy daily work.

Specification

Product
Product id	808561
Brand	MSI Micro-Star International
Partnr	PROZ690-A WIFIDDR4
EAN/UPC code	4719072886615
Warranty (months)	36 months
Processor
Compatible processor series	Intel Celeron, Intel Core i5, Intel Core i7, Intel Core i9, Intel Pentium Gold
Supported processor sockets	LGA 1700
Memory
Supported memory types	DDR4-SDRAM
Number of memory slots	4
Memory slots type	DIMM
Memory channels	Dual-channel
Supported memory clock speeds	2133, 2400, 2666, 2933, 3200, 3333, 3400, 3466, 3600, 3733, 3800, 4000, 4200, 4266, 4400, 4600, 4800, 5000, 5066, 5200 MHz
Maximum internal memory	128 GB
Storage controllers
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
RAID levels	0, 1, 5, 10
RAID support	Y
Graphics
Parallel processing technology support	Crossfire
DirectX version	12.0
Internal I/O
Number of SATA III connectors	6
Total number of SATA connectors	6
Front panel audio connector	Y
TPM connector	Y

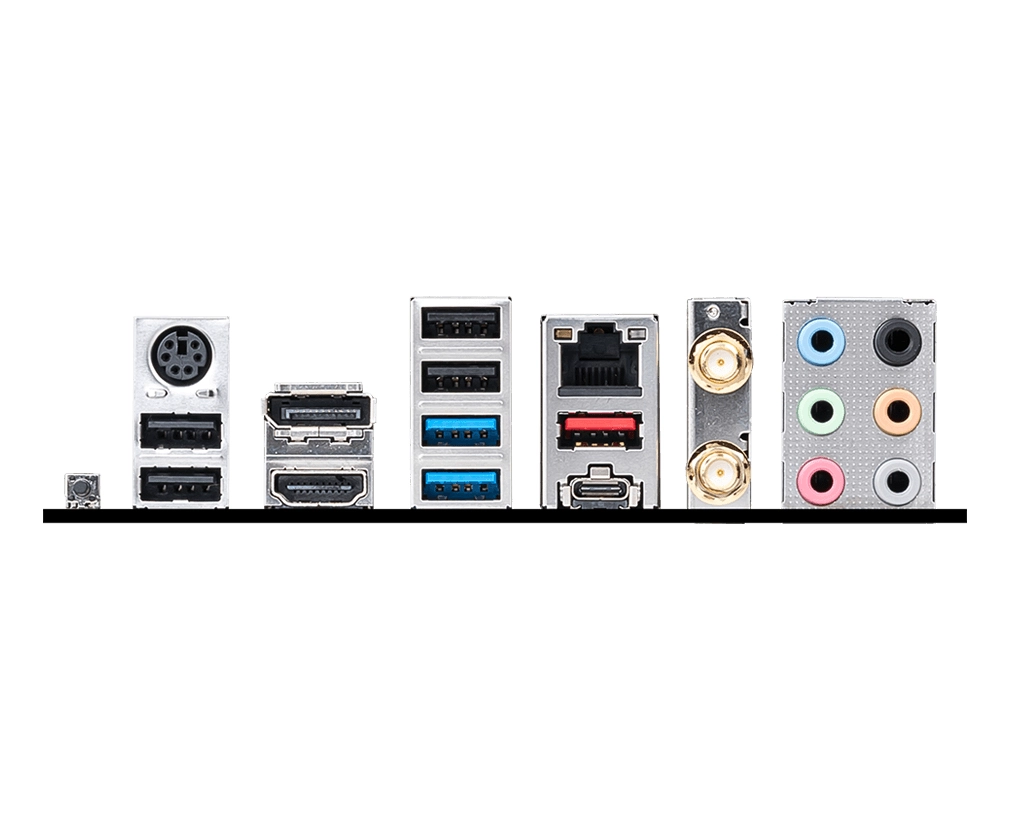

Rear panel I/O ports
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
Ethernet LAN (RJ-45) ports	1
USB 3.2 Gen 2x2 Type-C ports quantity	1
HDMI ports quantity	1
DisplayPorts quantity	1
Network
Ethernet LAN	Y
Ethernet interface type	2.5 Gigabit Ethernet
LAN controller	Intel I225-V
Wi-Fi	Y
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Bluetooth	Y
Bluetooth version	5.2
Features
Component for	PC
Motherboard form factor	ATX
Motherboard chipset family	Intel
Motherboard chipset	Intel Z690
Audio chip	Realtek ALC897
Audio output channels	7.1 kanalen
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Expansion slots
PCI Express x1 slots	1
PCI Express x16 slots	3
Number of M.2 (M) slots	4
