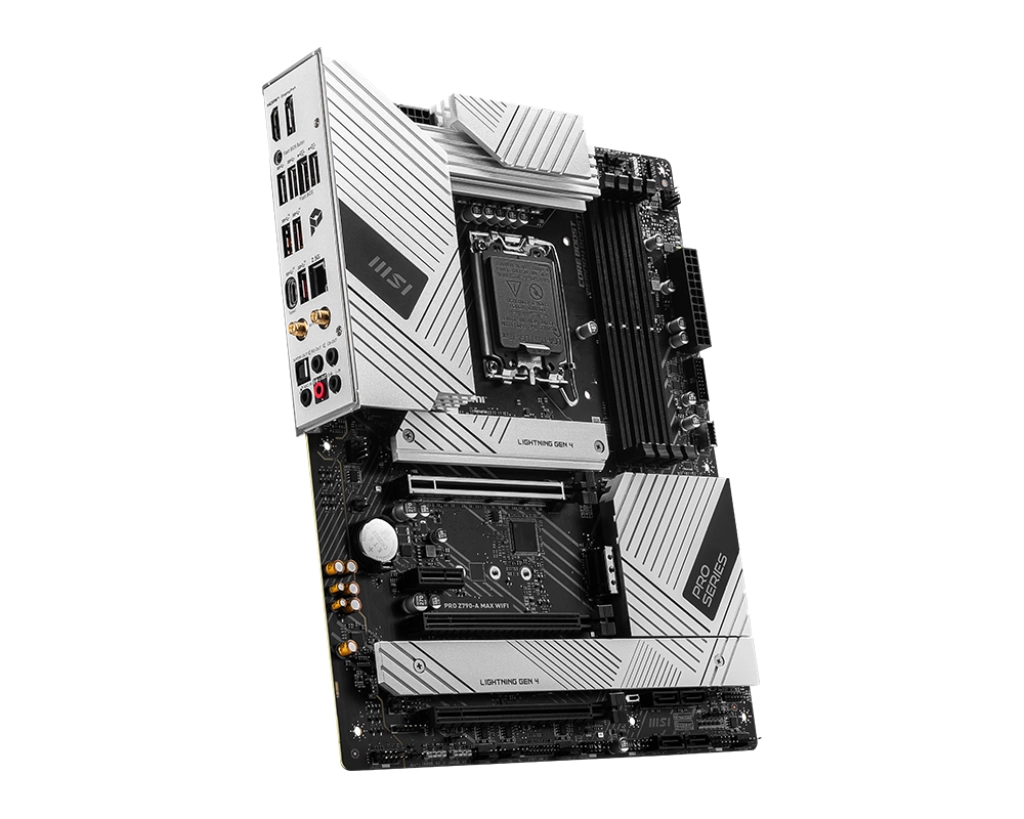

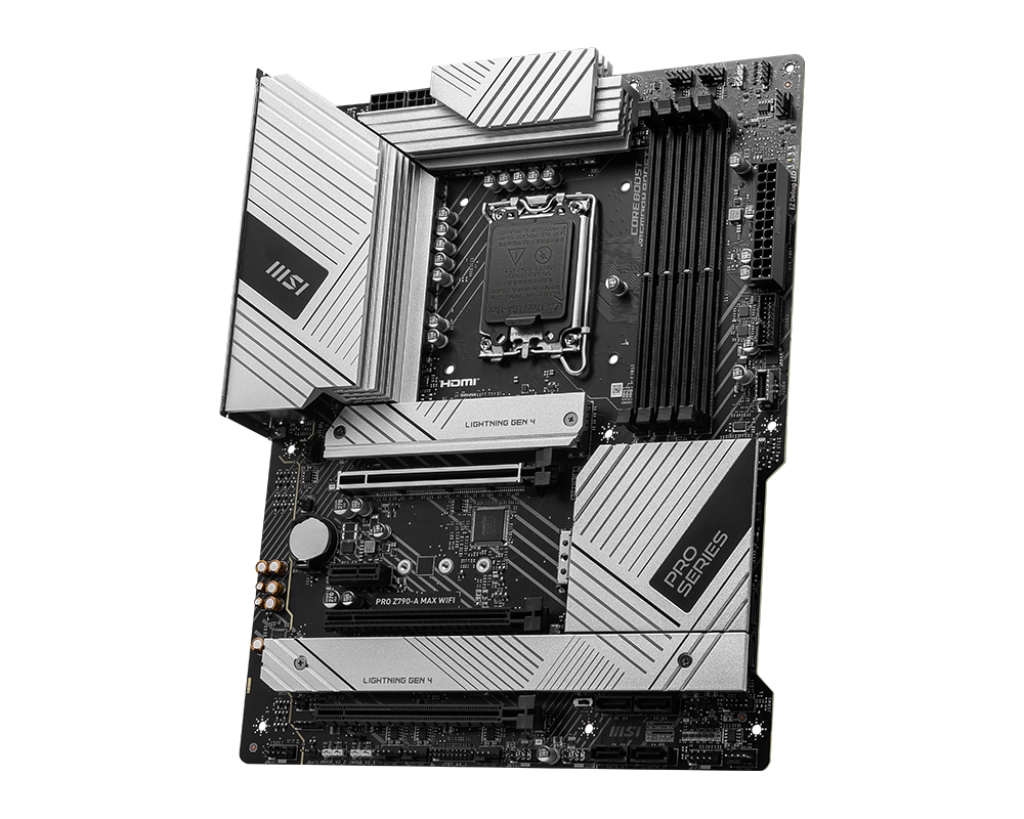

PRO Z790-A MAX WIFI offers a simple design with a harmonious silver color scheme that perfectly matches white and black PC builds. It is engineered with many exclusive features of MSI, a convenient Wi-Fi 7 solution, and DDR5 optimization for Intel® Core™ 14th Gen and 13th Gen processors.

Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.

M.2 Shield Frozr
Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.

Heavy Plated VRM Heatsink
The VRM heatsink covers the upper MOS and helps dissipate the heat.

7W/mK Thermal Pad & Additional Choke Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed.

Enlarged Chipset Heatsink
The enlarged heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation.

SMT PCIE 5.0 SLOT
The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.

THE ISOLATED ANALOGY STRUCTURE FOR AUDIO CONNECTORS
To provide clear voice, MSI develops a unique structure – Isolated Analogy Structure. The external metal framework of the audio connectors is separated from the internal layout, which ensures the sound quality crisp.

Specification

Product
Product id	909990
Brand	MSI Micro-Star International
Partnr	PRO Z790-A MAX WIFI
EAN/UPC code	4711377139939
Warranty (months)	36 months
Processor
Processor manufacturer	Intel
Processor socket	LGA 1700
Compatible processor series	Intel Celeron, Intel Pentium, Intel Pentium Gold
Supported processor sockets	LGA 1700
Memory
Supported memory types	DDR5-SDRAM
Number of memory slots	4
Memory channels	Dual-channel
Non-ECC	Y
Supported memory clock speeds	4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000 MHz
Maximum internal memory	128 GB
Supported memory clock speed (max)	7200 MHz
Unbuffered memory	Y
Storage controllers
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, PCI Express
Number of storage drives supported	10
RAID levels	0, 1, 5, 10
Internal I/O
USB 2.0 connectors	4
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Number of SATA III connectors	6
Front panel audio connector	Y
Front panel connector	Y
CPU fan connector	Y
Chassis intrusion connector	Y
TPM connector	Y
RGB LED pin header	Y

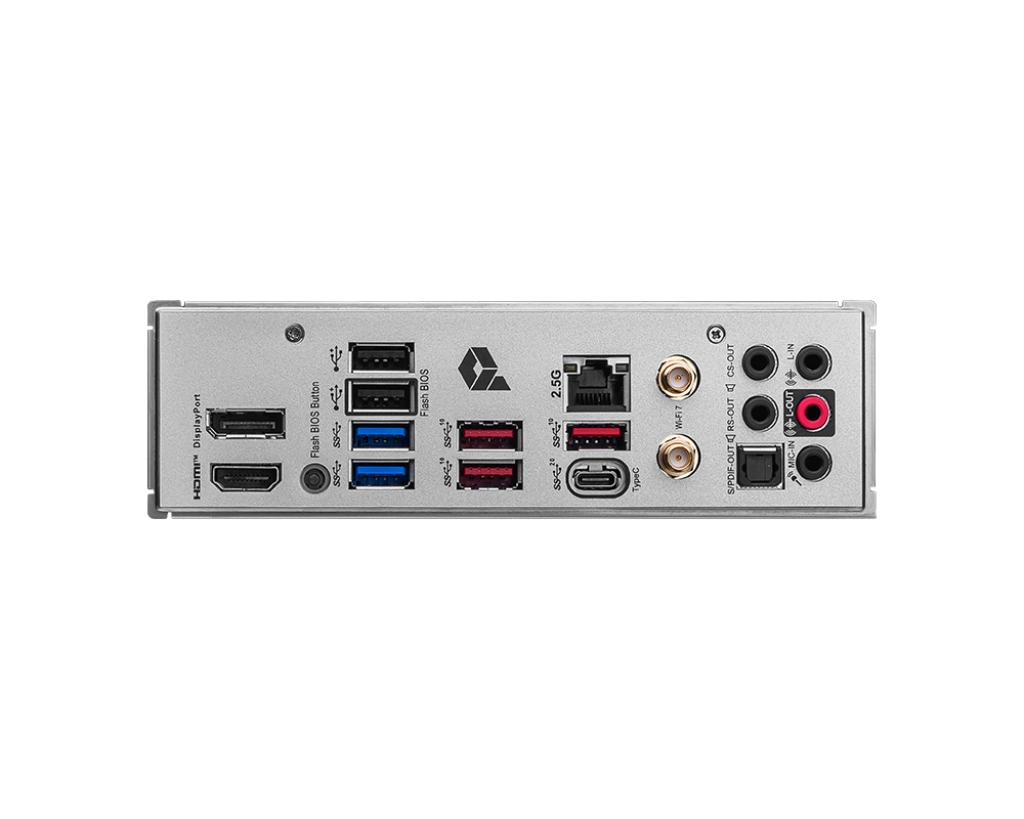

Rear panel I/O ports
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
Ethernet LAN (RJ-45) ports	1
USB 3.2 Gen 2x2 Type-C ports quantity	1
HDMI ports quantity	1
DisplayPorts quantity	1
S/PDIF out port	Y
Network
Ethernet LAN	Y
Ethernet interface type	2.5 Gigabit Ethernet
Wi-Fi	Y
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	802.11a, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth	Y
Bluetooth version	5.3
Features
Component for	PC
Motherboard form factor	ATX
Motherboard chipset family	Intel
Motherboard chipset	Intel Z790
Audio output channels	7.1 kanalen
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Expansion slots
Number of M.2 (M) slots	4
BIOS
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Desktop Management Interface (DMI) version	6.4
System Management BIOS (SMBIOS) version	3.5
Weight & dimensions
Width	304.8 mm
Depth	243.84 mm
Packaging content
Cables included	SATA
