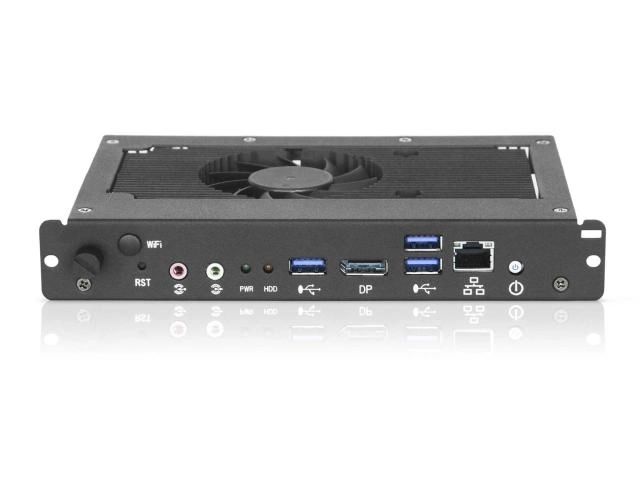

OPS Slot-In PCs make digital signage simpler and more flexible without additional cables or devices

The full line-up of OPS Slot-in PCs supports a wide variety of applications starting from static content playback and ranging to the most demanding interactive, high resolution or resource hungry applications. The 6th generation Intel® processors (Skylake) deliver a new class of computing to power the next generation of slot-in computing. The OPS concept provides a compact and fully embedded solution ensuring that all connectors are integrated including power, video & audio signals and RS-232. All NEC large format displays (except E series 32" to 65"), PX and PH installation projectors feature this option slot

- Powerful possibilities - the 6th generation Intel® processors deliver a new class of computing with a host of new features to power the next generation of embedded computing.
- Intel® HD graphics - provides Ultra HD resolution, intense detail and faster frame rates, giving you a remarkable visual experience.
- Industrial grade components - secure high reliability whilst withstanding extreme operating conditions.
- Seamless and fully embedded - as all connectors are inside the display including power, video, audio signals and RS-232, no external cables are required.
- High usage flexibility - thanks to wide connectivity such as 3 x USB, DisplayPort out, Gigabit ethernet and audio.
- Upgrade the power of your displays at any time - savings are possible by upgrading only your OPS device or your display with no need to change all hardware.
- A commitment to quality - tailored warranties available to best match long-term demands by extending standard warranty up to 5 years.
- Economical - enjoy more performance whilst consuming less power.

Specification

Product
Product id	569591
Brand	NEC
Partnr	100014257
EAN/UPC code	4712900434545
Processor
Processor family	Intel Core i3-6xxx
Processor model	i3-6100E
Processor cores	2
Processor frequency	2.7 GHz
Processor socket	BGA 1440
Processor cache	3 MB
Processor cache type	Smart Cache
Processor threads	4
System bus rate	8 GT/s
Bus type	DMI3
Processor lithography	14 nm
Processor operating modes	64-bit
Processor series	Intel Core i3-6100 series
Thermal Design Power (TDP)	35 W
Processor codename	Skylake
Tjunction	100 °C
Maximum number of PCI Express lanes	16
PCI Express slots version	3.0
PCI Express configurations	1x16, 1x8+2x4, 2x8
Number of processors installed	1
Stepping	R0
Maximum internal memory supported by processor	64 GB
Memory types supported by processor	DDR3L-SDRAM, DDR4-SDRAM, LPDDR3-SDRAM
Memory clock speeds supported by processor	1600, 1866, 2133 MHz
Memory bandwidth supported by processor (max)	34.1 GB/s
Memory channels supported by processor	Dual
ECC supported by processor	Y
Memory
Internal memory	4 GB
Internal memory type	DDR4-SDRAM
Maximum internal memory	16 GB
Memory slots	2x SO-DIMM
Memory clock speed	2133 MHz
Storage
Total storage capacity	64 GB
Optical drive type	N
Card reader integrated	Y
Storage media	SSD
Number of storage drives installed	1
Number of SSDs installed	1
SSD capacity	64 GB
SSD interface	Micro Serial ATA III
Compatible memory cards	SD
Graphics
On-board graphics adapter	Y
Discrete graphics adapter model	Not available
On-board graphics adapter family	Intel HD Graphics
On-board graphics adapter model	Intel HD Graphics 530
Maximum on-board graphics adapter memory	64 GB
Number of displays supported (on-board graphics)	3
On-board graphics adapter dynamic frequency (max)	950 MHz
On-board graphics adapter base frequency	350 MHz
On-board graphics adapter ID	0x191B
On-board graphics adapter DirectX version	12.0
On-board graphics adapter OpenGL version	4.4
Network
Ethernet LAN	Y
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Wi-Fi	N
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
DVI port	N
DisplayPorts quantity	1
Ethernet LAN (RJ-45) ports	1
Microphone in	Y
Headphone outputs	1
RS‐232/422 port	Y
Design
Product colour	Black
Performance
Product type	Embedded PC
Processor special features
Graphics & IMC lithography	14 nm
CPU configuration (max)	1
Processor code	SR2DV
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Processor package size	42 x 28 mm
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Y
Intel Software Guard Extensions (Intel SGX)	Y
Intel Enhanced Halt State	Y
Intel Virtualization Technology for Directed I/O (VT-d)	Y
Processor ARK ID	90611
Intel Virtualization Technology (VT-x)	Y
Enhanced Intel SpeedStep Technology	Y
Intel 64	Y
Intel® Wireless Display (Intel® WiDi)	Y
Intel® vPro™ Technology	N
Intel® InTru™ 3D Technology	Y
Intel® Insider™	Y
Intel® Clear Video HD Technology (Intel® CVT HD)	Y
Execute Disable Bit	Y
Intel Trusted Execution Technology	N
Intel® OS Guard	Y
Intel® Secure Key	Y
Intel® AES New Instructions (Intel® AES-NI)	Y
Thermal Monitoring Technologies	Y
Embedded options available	Y
Intel Clear Video Technology	Y
Intel VT-x with Extended Page Tables (EPT)	Y
Intel TSX-NI	Y
Idle States	Y
Intel® Turbo Boost Technology	N
Intel® Hyper Threading Technology (Intel® HT Technology)	Y
Intel® Quick Sync Video Technology	Y
Intel® Identity Protection Technology (Intel® IPT)	Y
Conflict-Free processor	Y
Power
Power consumption (typical)	35 W
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 90 procent
Certificates
Certification	CE / FCC class A
Weight & dimensions
Width	120 mm
Depth	200 mm
Height	30 mm
Weight	900 g
Package width	190 mm
Package depth	260 mm
Package height	70 mm
Package weight	1000 g
Packaging content
Display included	N
