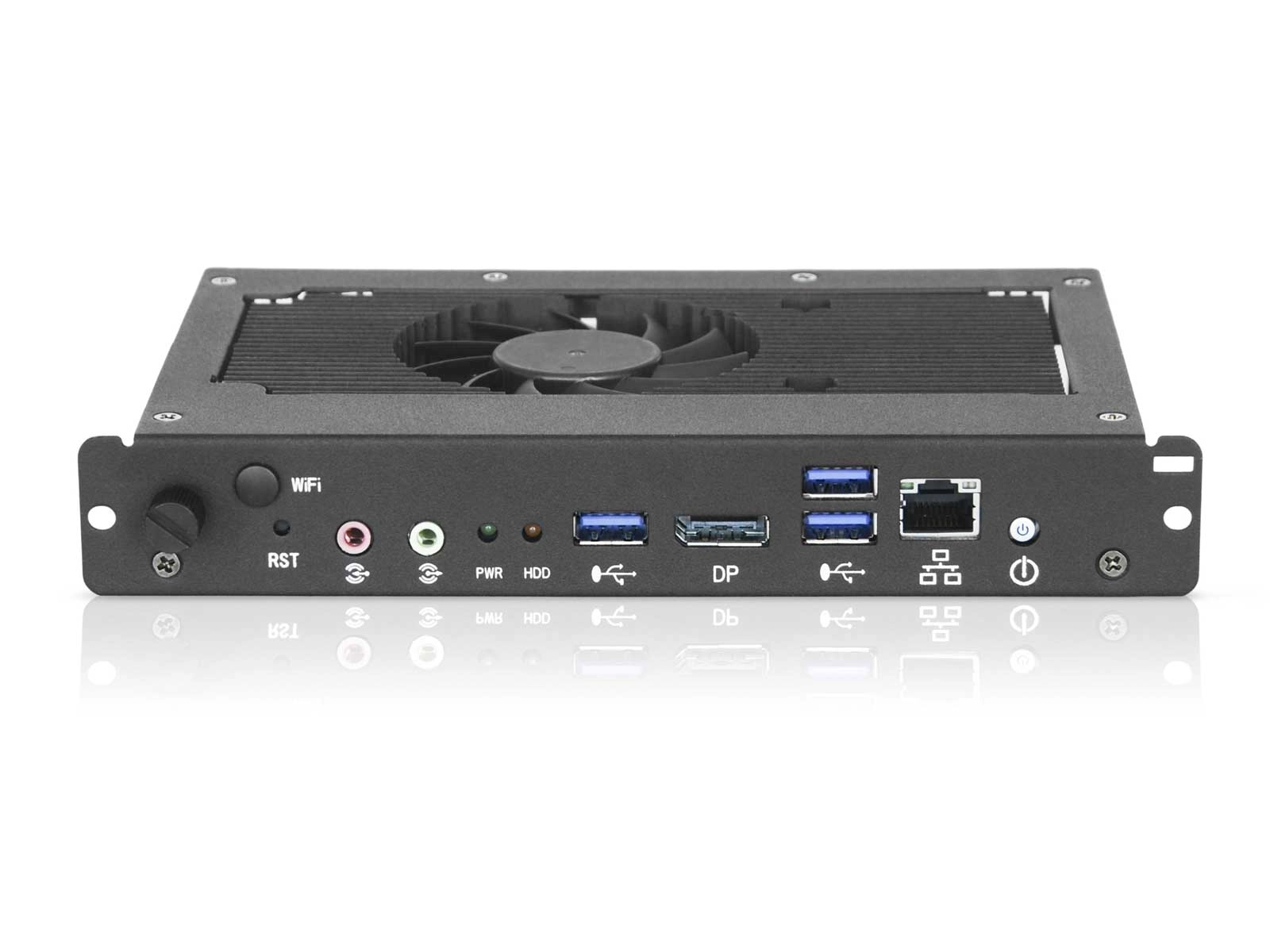

OPS Slot-In PCs make digital signage simpler and more flexible without additional cables or devices
The full line-up of OPS Slot-in PCs supports a wide variety of applications starting from static content playback and ranging to the most demanding interactive, high resolution or resource hungry applications. The 6th generation Intel® processors (Skylake) deliver a new class of computing to power the next generation of slot-in computing. The OPS concept provides a compact and fully embedded solution ensuring that all connectors are integrated including power, video & audio signals and RS-232. All NEC large format displays (except E series 32" to 65"), PX and PH installation projectors feature this option slot

- Powerful possibilities - the 6th generation Intel® processors deliver a new class of computing with a host of new features to power the next generation of embedded computing
- Intel® HD graphics - provides Ultra HD resolution, intense detail and faster frame rates, giving you a remarkable visual experience
- Industrial grade components - secure high reliability whilst withstanding extreme operating conditions
- Seamless and fully embedded - as all connectors are inside the display including power, video, audio signals and RS-232, no external cables are required
- High usage flexibility - thanks to wide connectivity such as 3 x USB, DisplayPort out, Gigabit ethernet and audio
- Upgrade the power of your displays at any time - savings are possible by upgrading only your OPS device or your display with no need to change all hardware
- A commitment to quality - tailored warranties available to best match long-term demands by extending standard warranty up to 5 years
- Economical - enjoy more performance whilst consuming less power

Specification

Product
Product id	569618
Brand	NEC
Partnr	100014588
EAN/UPC code	4719622274411
Processor
Processor frequency	2.7 GHz
Processor family	Intel Core i3-6xxx
Processor model	i3-6100E
Processor cores	2
Processor socket	BGA 1440
Processor cache	3 MB
Processor cache type	Smart Cache
System bus rate	8 GT/s
Processor threads	4
Processor lithography	14 nm
Thermal Design Power (TDP)	35 W
Memory
Internal memory	4 GB
Internal memory type	DDR4-SDRAM
Maximum internal memory	16 GB
Memory layout (slots x size)	2 x 2 GB
Memory slots	2x SO-DIMM
Storage
Total storage capacity	64 GB
Storage media	SSD
Number of storage drives installed	1
SSD capacity	64 GB
Graphics
On-board graphics adapter	Y
On-board graphics adapter model	Intel HD Graphics 530
Maximum on-board graphics adapter memory	64 GB
On-board graphics adapter base frequency	350 MHz
On-board graphics adapter dynamic frequency (max)	950 MHz
On-board graphics adapter DirectX version	12.0
On-board graphics adapter OpenGL version	4.4
Discrete graphics adapter	N
Number of displays supported (on-board graphics)	3
Network
Wi-Fi	N
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Wake-on-LAN ready	Y
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
DisplayPorts quantity	1
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Microphone in	Y
RS‐232/422 port	Y
Performance
Motherboard chipset	Intel HM170
BIOS memory size	128 Mbit
Product colour	Black
BIOS type	AMI
Audio chip	Realtek ALC887
Software
Operating system installed	Microsoft Windows 10 IoT Enterprise
Power
Power consumption (typical)	41 W
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 90 procent
Certificates
Certification	CE, FCC class A
Weight & dimensions
Width	200 mm
Depth	120 mm
Height	30 mm
Weight	900 g
Package width	260 mm
Package depth	190 mm
Package height	70 mm
Package weight	1000 g
Packaging content
Manual	Y
