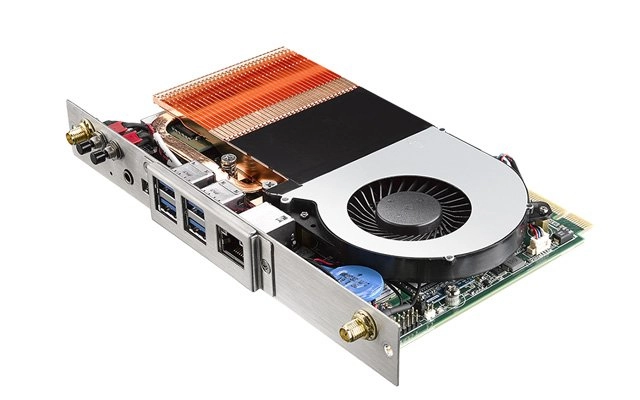

Intel Smart Display Module (SDM) 8th Generation - The Standard Celeron SDM

This Celeron powered Intel SDM Large Slot-in PC supports a wide variety of applications such as flight information controllers in airports, media players for retail or corporate signage, menu board play-out systems in restaurants and many more.

Tailor-made solutions can be provided with a wide choice of processors, solid-state drives, RAM and operating systems as well as Wi-Fi connectivity.


Versatile Performance - the G4930E Intel® Celeron processor with 8GB dual channel DDR4 RAM delivers fast data processing and is capable to run multiple operations and applications at the same time; powering the next generation of embedded computing.
Tailored for your needs - customer specific configurations for RAM, SSD, operating system and pre-installed software.
High usage flexibility -thanks to wide connectivity such as 4 x USB, MiniDP++, Gigabit Ethernet, Audio and optional WiFi; there’s no need to add additional adapters or signal splitters.
Seamless and fully embedded - the Intel® SDM form factor provides a compact and fully embedded solution ensuring that all connectors are integrated including Power, Video & Audio Signals and RS232.
100% compatibility and enhanced feature-set - in combination with supported NEC large format displays.
Built for business - the TPM chipset provides enhanced hardware security through integrated cryptographic keys.
High reliability - ideally suited for 24/7 operation due to the use of industrial grade components.

Specification

Product
Product id	901994
Brand	NEC
Partnr	100015585
EAN/UPC code	4719879820041
Processor
Processor manufacturer	Intel
Processor family	Intel Celeron
Processor model	G4930E
Processor cores	2
Processor frequency	2.4 GHz
Memory
Internal memory	8 GB
Internal memory type	DDR4-SDRAM
Storage
Total storage capacity	128 GB
Optical drive type	N
Card reader integrated	N
Storage media	SSD
Total SSDs capacity	128 GB
SSD capacity	128 GB
SSD interface	M.2
Graphics
Discrete graphics adapter	N
On-board graphics adapter	Y
Discrete graphics adapter model	Not available
On-board GPU manufacturer	Intel
On-board graphics adapter model	Intel HD Graphics 630
Network
Ethernet LAN	Y
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Wi-Fi	Y
Top Wi-Fi standard	802.11a
WLAN controller manufacturer	Intel
Wi-Fi standards	802.11a
WLAN controller model	Intel Dual Band Wireless-AC 9260
Antenna type	2x2
Ports & interfaces
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	4
Mini DisplayPorts quantity	1
Ethernet LAN (RJ-45) ports	1
Combo headphone/mic port	Y
Design
Product colour	Black, Bronze, Green, Silver
Software
Operating system installed	Windows 10 IoT
Operating system architecture	64-bit
Processor special features
CPU configuration (max)	1
Intel Software Guard Extensions (Intel SGX)	Y
Intel Virtualization Technology for Directed I/O (VT-d)	Y
Intel Virtualization Technology (VT-x)	Y
Enhanced Intel SpeedStep Technology	Y
Intel 64	Y
Execute Disable Bit	Y
Intel Trusted Execution Technology	N
Intel Stable Image Platform Program (SIPP)	N
Embedded options available	Y
Intel Clear Video Technology	Y
Intel VT-x with Extended Page Tables (EPT)	Y
Intel TSX-NI	N
Idle States	Y
Weight & dimensions
Width	175 mm
Depth	100 mm
Height	20 mm
Weight	1000 g
Package width	325 mm
Package depth	245 mm
Package height	75 mm
Package weight	1200 g
Packaging content
Display included	N
