Big enough for your biggest ideas

NEC’s InfinityBoard is a powerful and scalable workspace that is designed to fit any meeting scenario. Brainstorming, reviewing, video conferencing or collaborating, whatever the objectives of your meeting, the InfinityBoard is the modular solution that’s here to help create your ideal meeting space. With a large screen size of 86’’ it’s perfect for think tanks and anywhere creativity demands a big canvas.

The InfinityBoard comes with an ultra-high definition InGlass™ touch display and two passive pens. Its design also includes an ultra-wide angle Huddly video conferencing camera and high-end conference speakers. The combination of an open platform and Windows 10 Professional allows to tailor the solution according to the customers' requirements without restriction to any particular software, video conferencing app or infrastructure. Uniting all this, the InfinityBoard facilitates smart collaboration in modern meeting spaces.

- Natural writing experience – it’s like working on paper! Whether using finger, pen or palm erasing, the InGlass™ touch technology provides seamless interactive touch performance
- Simplify smart video conferencing – enjoy perfect audio and video quality with an integrated ultra-wide-angle camera with auto-framing and high-end conference speakers
- Future-proof PC option and reduced footprint – the integrated Slot-In PC using the integrated OPS option slot future-proofs your investment whilst reducing the product footprint and installation efforts

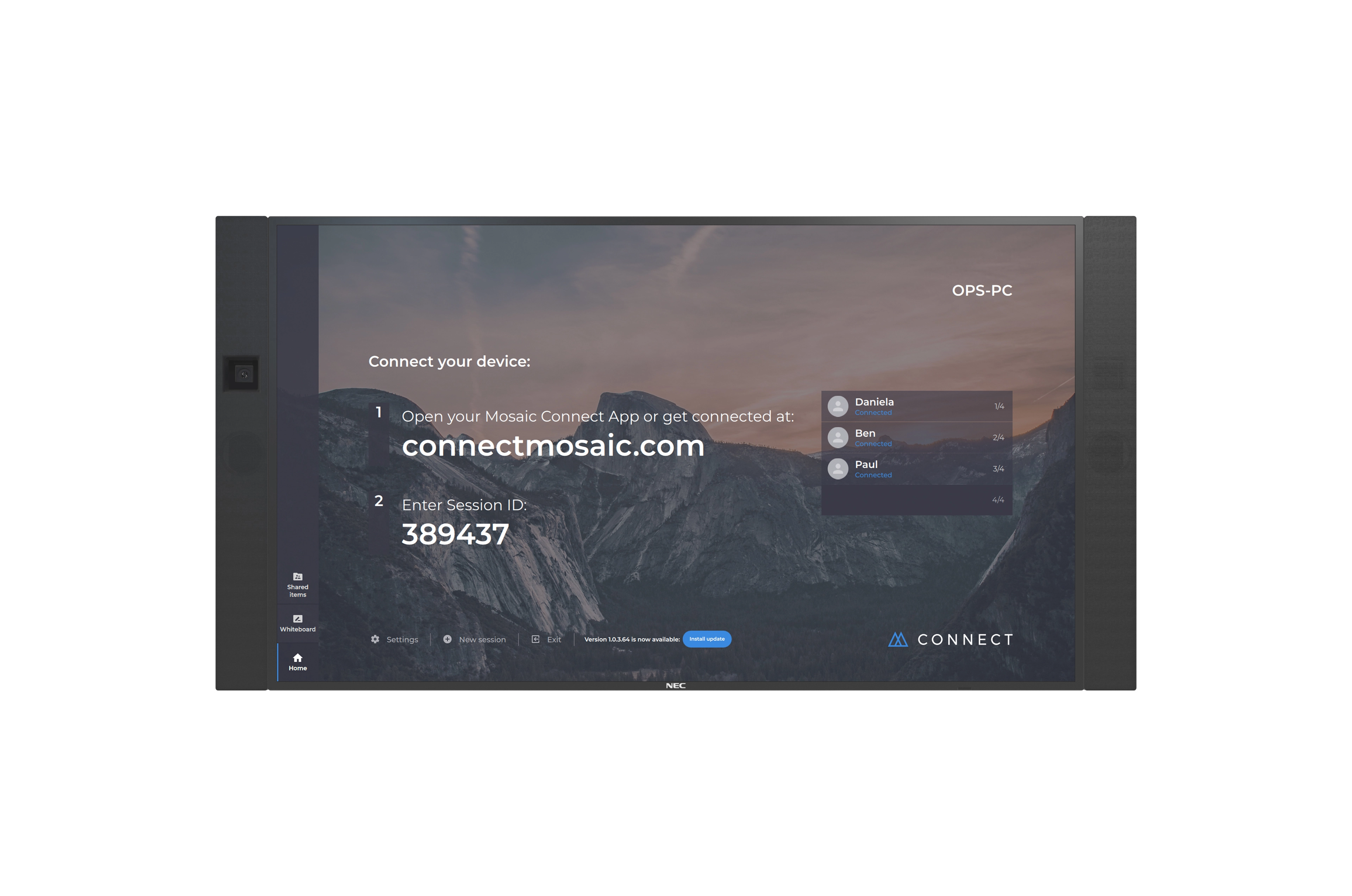

- Share without barriers – with Mosaic Connect multiple presenters can wirelessly present content from any device
- Custom fit to your application needs – Windows 10 Professional makes this a flexible solution that supports your staff by offering a familiar user-interface

Specification

Product
Product id	652503
Brand	NEC
Partnr	40001305
EAN/UPC code	5028695117525
Warranty (months)	3 years warranty incl. backlight; optional 4. + 5. year warranty extension
Display
Display diagonal	86 inch
Display type	LED
LED backlighting type	Edge-LED
Display resolution	3840 x 2160 Pixels
Display brightness	500 cd/m²
HD type	4K Ultra HD
Touchscreen	Y
Touch technology	Multi-touch
Number of simultaneous touchpoints	20
Native aspect ratio	16:9
Response time	8 ms
Contrast ratio (typical)	1200:1
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Display number of colours	1.073 billion colours
Active display area (W x H)	1895 x 1065.9 mm
Display diagonal (metric)	217 cm
Horizontal scan range	31.5 - 91.1 kHz
Vertical scan range	24 - 85 Hz
Ports & interfaces
HDMI ports quantity	3
HDMI in	3
DVI port	N
DisplayPorts quantity	3
USB port	Y
Ethernet LAN	Y
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10, 100 Mbit/s
Wi-Fi	Y
PC Audio in	Y
RS-232 interface	Y
Card reader integrated	Y
Compatible memory cards	MicroSD (TransFlash)
Audio
Built-in speaker(s)	Y
RMS rated power	40 W
Design
Design	Digital signage flat panel
Product colour	Black
Placement supported	Indoor
Orientation	Horizontal/Vertical
VESA mounting	Y
Panel mounting interface	400 x 400, 600 x 400 mm
Bezel width (top)	19.8 mm
Bezel width (side)	20.3 mm
Bezel width (bottom)	19.8 mm
Performance
Purpose	Universal
Operating hours (hours/days)	24/7
HDCP	Y
International Protection (IP) code	IP5x, IP2x
Power
Power consumption (typical)	267 W
Power consumption (standby)	0.5 W
Annual energy consumption	384 kWu
Computer system
Computer system	Y
Processor family	Intel Core i7
Processor model	i7-7820EQ
Processor frequency	3 GHz
Processor cores	4
Internal memory	8 GB
Internal storage capacity	128 GB
Operating system installed	Windows 10 Pro
Video formats supported	FLV, H.264, MOV, MP4, MPG
Audio formats supported	AAC, MP3, WAV
Image formats supported	JPG, PNG
Weight & dimensions
Width	2192 mm
Depth	86 mm
Height	1142 mm
Weight	91700 g
Packaging data
Package width	2157 mm
Package depth	320 mm
Package height	1290 mm
Packaging content
Cables included	USB
Operational conditions
Operating temperature (T-T)	0 - 35 °C
Operating relative humidity (H-H)	20 - 80 procent
Certificates
RoHS compliance	Y
Certification	CE; EAC; EMC B; FCC; RCM; REACH; UL/C-UL
Other features
Impedance	8 Ohm
Energy efficiency class	B
