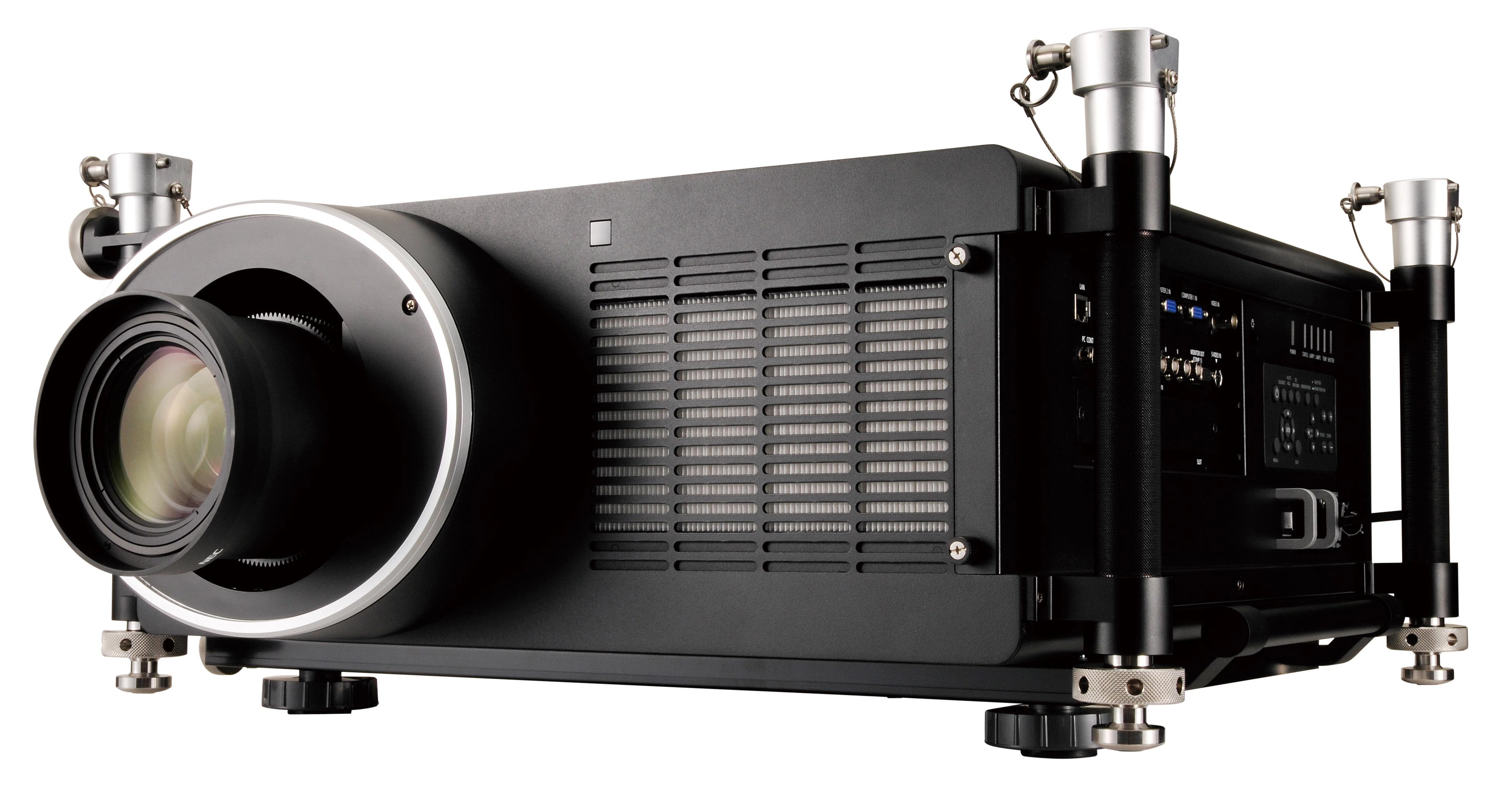

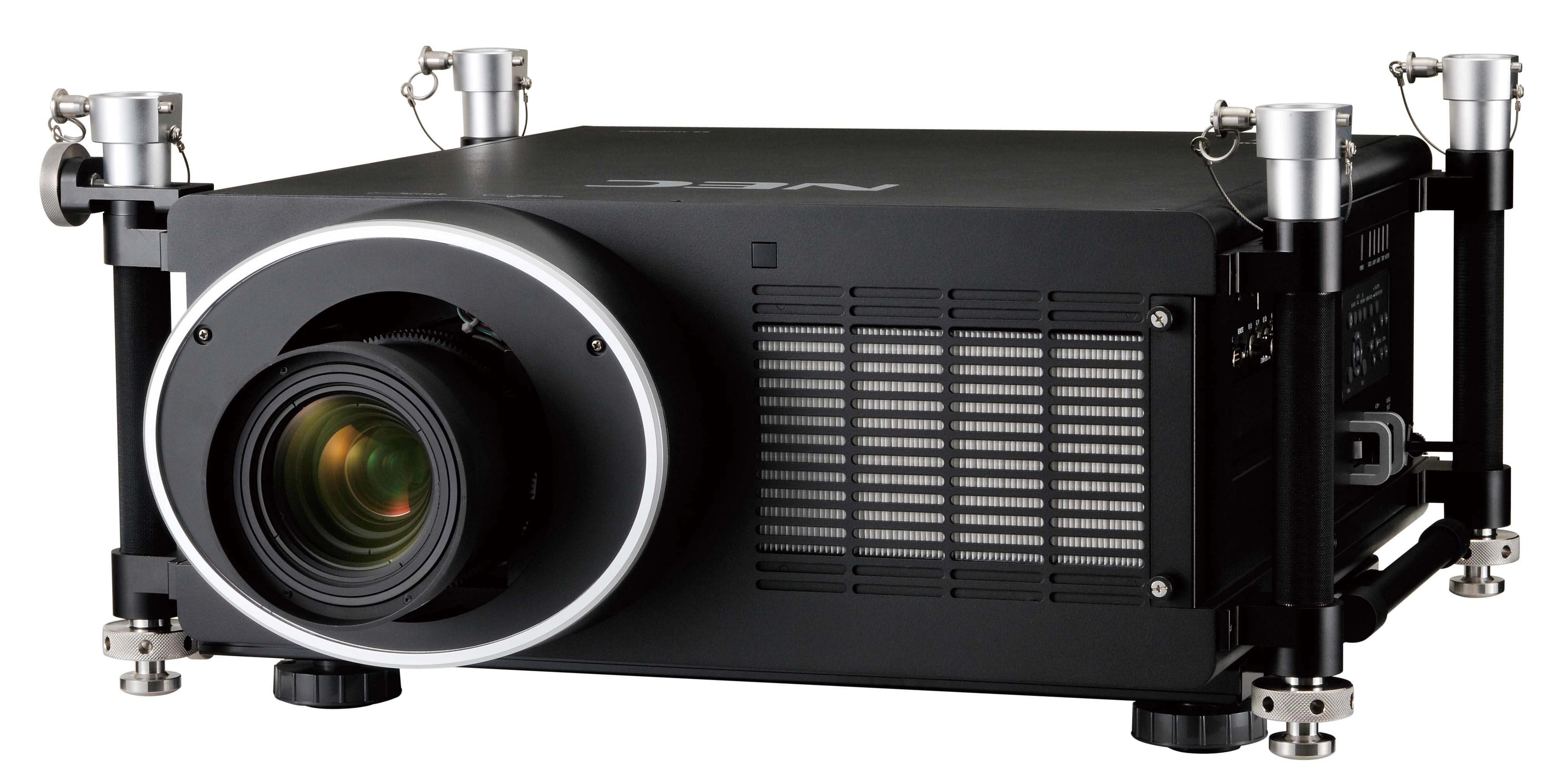

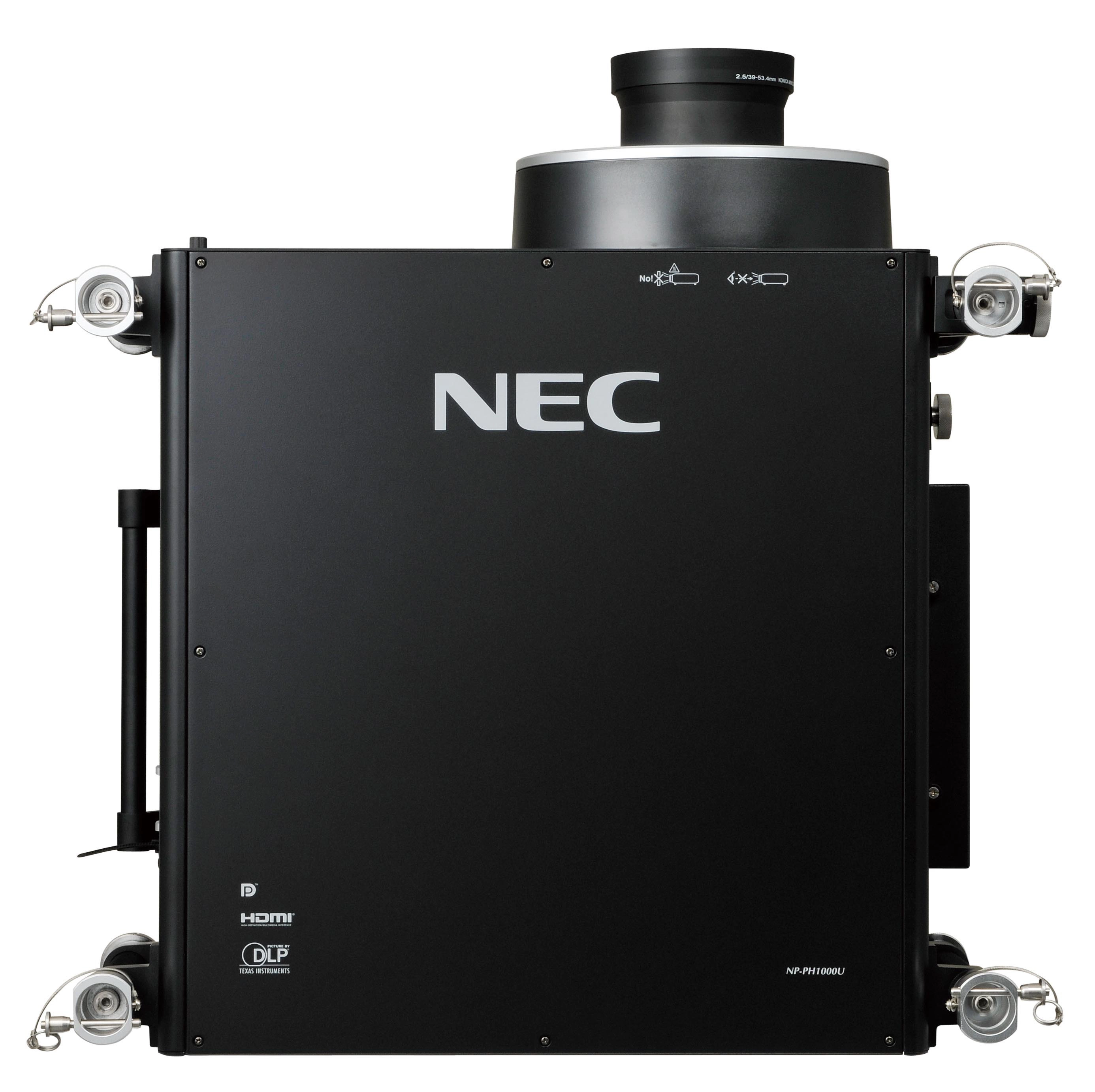

The PH1000U, a high end 3-Chip installation projector is ideal for installations that demand the highest levels of heavy duty usage and unique picture quality in highest resolution.

Five optional bayonet lenses and an integrated stacking/rigging frame make it ideal for Rental/Staging, Large Corporate, High Education, Conference Room, Museum and Signage.

- Display content that demands attention - with WUXGA resolution and superb brightness levels and colour ranges, your viewers will enjoy an outstanding visual experience.
- Installation is easy, even in challenging venues - motorized Lens Shift with vertical and horizontal adjustment and Lens Memory makes setting up the perfect installation image easy.

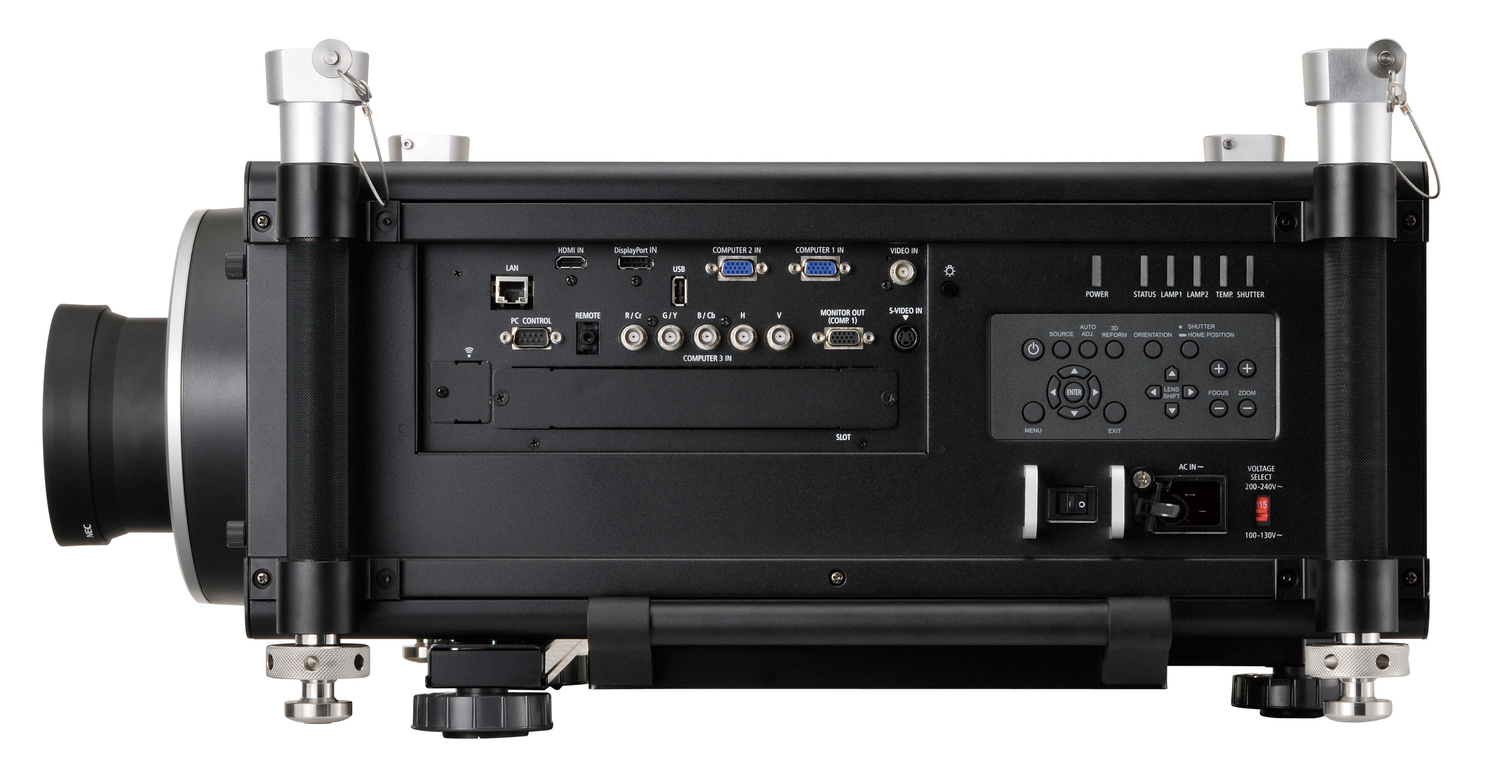

- Simple Connectivity - due to the vast number of connectors featured with this projector, including an innovative DisplayPort terminal and a host of networking, analog and digital connection terminals.
- Time saving network control - for cost saving convenient maintenance and management of content and scheduling.
- Special Characteristics - 3D Stacking; AMX Beacon; Blanking; Crestron RoomView; DICOM Simulation ; Digital 3D Reform™; Direct Power-Off Function; Edge Blending Function (03.2012); Free Tilt; Geometric Correction ; Help Function; Keystone Correction (H=±40°, V=±30°); LAN control; Lens Memory; Lens Shift (vertical -0.4 max/+0.55 max, horizontal ± 0.2 max. ); Lens Shutter; Metal Cabinet; OPS module support; Optional User Logo; OSD with 27 languages; Outstanding Multimedia and Network Functions; Password Security System; PJ LINK; Plug&Play W-LAN Option; Powerpoint, Movie, PDF and USB Picture Viewer; RS-232 Control; Seamless Switching; SNMP; Stacking Function; Test Pattern; Windows 7 Network Projector

Specification

Product
Product id	866181
Brand	NEC
Partnr	60003275
EAN/UPC code	5028695609358
Warranty (months)	3 year
Projector
Projector brightness	11000 ANSI lumens
Projection technology	DLP
Projector native resolution	WUXGA (1920x1200)
Contrast ratio (typical)	2000:1
Native aspect ratio	16:10
Supported aspect ratios	16:10, 16:9
Screen size compatibility	80 - 500 "
Projection distance	1.1 - 74 m
Aspect ratio	16:10
Horizontal scan range	15 - 108 kHz
Vertical scan range	48 - 120 Hz
Keystone correction, horizontal	-40 - 40 °
Keystone correction, vertical	-30 - 30 °
Maximum analog resolution	1920 x 1200 Pixels
Matrix size	0.96 "
Light source
Light source type	Lamp
Service life of light source	2000 uur
Service life of light source (economic mode)	2500 uur
Lamp type	AC HID
Lamp power	400 W
Lamps quantity	2 lampen
Lens system
Zoom capability	Y
Horizontal lens shift range	-0.2 - 0.2 °
Vertical lens shift range	-0.4 - 0.55 °
Number of optional lenses supported	6
Video
Analog signal format system	NTSC, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM
Full HD	Y
HD-Ready	Y
3D Ready	Y
Supported video modes	1080i, 480p, 720p
Supported graphics resolutions	720 x 480, 720 x 576, 832 x 624, 1152 x 870, 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1400 x 1050 (SXGA+), 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 640 x 480 (VGA), 800 x 600 (SVGA)
Ports & interfaces
VGA (D-Sub) ports quantity	3
HDMI ports quantity	1
HDMI connector type	Full-size
Component video (YPbPr/YCbCr) in	1
Composite video in	1
DVI port	N
DisplayPorts quantity	1
S-Video inputs quantity	1
USB 2.0 ports quantity	2
Serial interface type	RS-232
USB connector type	USB Type-A
BNC input ports	5
AC (power) in	Y
Network
Ethernet LAN	Y
Ethernet LAN (RJ-45) ports	1
Wi-Fi	N
Technical details
On Screen Display (OSD)	Y
Compliance certificates	RoHS
Features
Noise level	45 dB
HDCP	Y
Plug and Play	Y
Air filter	Y
Certification	CE; ErP; TÜV GS
TV tuner
TV tuner integrated	N
Multimedia
Image formats supported	JPG
Document formats supported	PDF
Design
Product colour	Black
Placement	Ceiling
Display
Built-in display	N
Power
Power source	AC
Power consumption (typical)	1050 W
Power consumption (standby)	90 W
Power consumption (PowerSave)	0.5 W
Power consumption (economy mode)	840 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Supplier features
Harmonized System (HS) code	85286200
Software
Windows operating systems supported	Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64
Weight & dimensions
Weight	39000 g
Width	558 mm
Depth	578 mm
Height	235 mm
Packaging content
Handheld remote control	Y
Remote control type	IR
Manual	Y
Quick start guide	Y
Other features
Connectivity technology	Wired
USB mass storage	Y
Maximum digital resolution	1920 x 1080 Pixels
RS-232 ports	1
