MultiSync X554UNV



NEC
Not in stock
€ 2.601,57
€ 3.147,89 incl 21% VAT

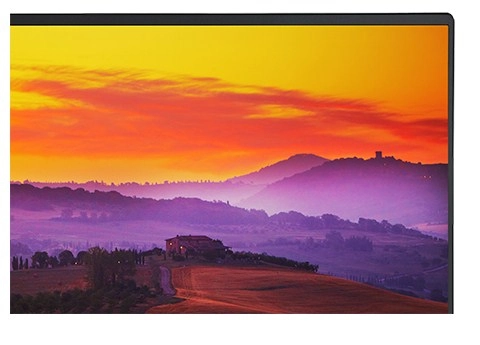

The 55” NEC X554UNV sets the standard for video walls. With perfect picture quality and high product reliability, these displays are designed for the rigors of 24/7 operation. Advanced technologies of this model include direct LED backlighting for improved uniformity, full high-definition resolution (1920 x 1080) and a 3.5mm distance bezel width. NEC's vast experience in the video wall market is evident in the design of this product with features that reduce cost, ease installations and improve the visual impact of content in control rooms, broadcast studios, retail installations and as digital signage.

- Auto ID feature reduces install time in the single press of a button
- Expanded daisy chain options with DP1.2 enables 4K resolution

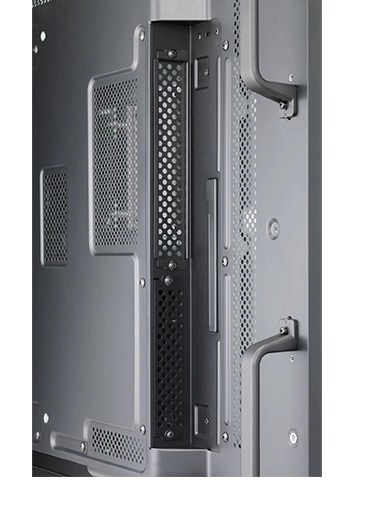

- Dual slot technology allows for the integration of single board computers and other option slot products with the need to stow additional external equipment
- 500cd/m² max brightness combined with full HD resolution will capture the attention of the audience
- Industrial-strength, premium-grade panel with additional thermal protection, internal temperature sensors with self-diagnostics and fan-based technology, allows for 24/7 operation
- Input Switching Speed minimizes downtime between source transitions
- Human Sensor Accessory ensures digital signage is directed at a targeted audience

Specification

Product
Product id 500616
Brand NEC
Partnr 60003723
EAN/UPC code 5028695112063
Warranty (months) 3 years
Display
Display diagonal 55 inch
Display type LCD
Display resolution 1920 x 1080 Pixels
Display brightness 350 cd/m²
HD type Full HD
Native aspect ratio 16:9
Response time 8 ms
Contrast ratio (typical) 4000:1
Viewing angle, horizontal 178 °
Viewing angle, vertical 178 °
Display number of colours 16.77 M
Pixel pitch 0.63 x 0.63 mm
Active display area (W x H) 1209.6 x 680.4 mm
Supported graphics resolutions 1920 x 1080 (HD 1080)
Horizontal scan range 31.5 - 91.1 kHz
Vertical scan range 50 - 85 Hz
Ports & interfaces
HDMI ports quantity 2
DVI port Y
DVI-D ports quantity 1
VGA (D-Sub) input ports 1
DisplayPorts quantity 1
Ethernet LAN Y
Ethernet LAN (RJ-45) ports 1
Audio (L/R) out 1
RS-232C Y
Audio
Built-in speaker(s) Y
RMS rated power 10 W
Design
Product colour Black
VESA mounting Y
Panel mounting interface 400 x 400 mm
Performance
TV tuner integrated N
HDCP Y
Power
Power consumption (typical) 125 W
Power consumption (standby) 0.5 W
Weight & dimensions
Width 1213.5 mm
Depth 100.4 mm
Height 684.3 mm
Weight 25900 g
Packaging content
Handheld remote control Y
Batteries included Y
Cables included AC, DisplayPort, LAN (RJ-45)
Operational conditions
Operating temperature (T-T) 5 - 40 °C
Operating relative humidity (H-H) 20 - 80 procent
Storage temperature (T-T) -20 - 60 °C
Storage relative humidity (H-H) 10 - -90 procent
Certificates
RoHS compliance Y
Thin Client
Thin client installed N
Other features
Manual Y
Energy efficiency class Unspecified
