The UM352Wi is the all-in-one solution for classrooms and meeting rooms. Thanks to the integrated whiteboard and DisplayNote function the projector can be part of an entire interactive solution or be used stand-alone without connecting to a PC. The integrated wireless capability allows the connection and display of multiple devices simultaneously. In addition an embedded Miracast receiver additionally allows full mirroring with your Android and Windows 8.1 mobile device without installing any software. Reduced shadow and glare gives the presenter more space to engage with the audience and enhances the experience when using the integrated interactive multi-pen solution or optional multi-touch solution.

BENEFITS
- Integrated interactivity - Multi-Pen support and auto-calibration.
- Get Great Performance - while not compromising on quality and ease of use.
- Less Shadow and Glare - not standing in the light beam gives you more space to engage with your audience when presenting.
- Wireless image sharing - thanks to powerful networking capabilities that allow multiple users to connect simultaneously, mirror an Android device with Miracast or simply share content using a web browser.
- Special Characteristics - AMX Beacon; Auto Eco Mode; Auto Power ON/OFF; Carbon Savings Meter; Colour Management; Content Transmission via Network; Crestron RoomView; DICOM Simulation; Direct Power-Off Function; High Altitude Mode; Including interactive module and pen; Kensington security slot; Keypad Lock; Magnify; NaViSet Administrator 2; OSD with 29 languages; Off-Timer; Optional User Logo; Optional WLAN; PJ LINK; Password Security System; Quick On/Off; Remote control and administration via LAN and RS232; Security Bar; Test Pattern; USB Display; USB Viewer for JPEG; Virtual Remote for direct PC control; Wall Colour Correction; 75 % AV mute function; Auto ECO Mode; ECO scheduler; Longer lamp life; Green one touch ECO and AV mute button; Intelligent Power Management; Reduced power consumption. Only 0.4W stand-by; Software scheduling.

Specification

Product
Product id	500635
Brand	NEC
Partnr	60003955
EAN/UPC code	5028695611870
Warranty (months)	3 years
Projector
Projector brightness	3500 ANSI lumens
Projection technology	3LCD
Projector native resolution	WXGA (1280x800)
Contrast ratio (typical)	6000:1
Native aspect ratio	16:10
Supported aspect ratios	16:10
Screen size compatibility	58 - 110 "
Projection distance	0.1 - 0.51 m
Horizontal scan range	15 - 100 kHz
Vertical scan range	50 - 120 Hz
Keystone correction, horizontal	-10 - 10 °
Keystone correction, vertical	-10 - 10 °
Light source
Lamps quantity	1 lampen
Lamps
Service life of lamp	5000 uur
Bulb power	200 W
Service life of lamp (economic mode)	6000 uur
Lamp power (economic mode)	160 W
Lens system
Focus	Manual
Focal length range	4.78 - 4.78 mm
Aperture range (F-F)	1.8 - 1.8
Zoom capability	Manual
Digital zoom	1.4 x
Throw ratio	0.36:1
Offset	81 procent
Video
Analog signal format system	NTSC, NTSC 3.58, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM
Full HD	N
HD-Ready	Y
3D	N
Supported video modes	480i, 480p, 576i, 576p, 720p, 1080i
Supported graphics resolutions	640 x 480 (VGA), 720 x 480, 720 x 576, 800 x 600 (SVGA), 832 x 624, 1152 x 864 (XGA+), 1152 x 870, 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1366 х 768, 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)

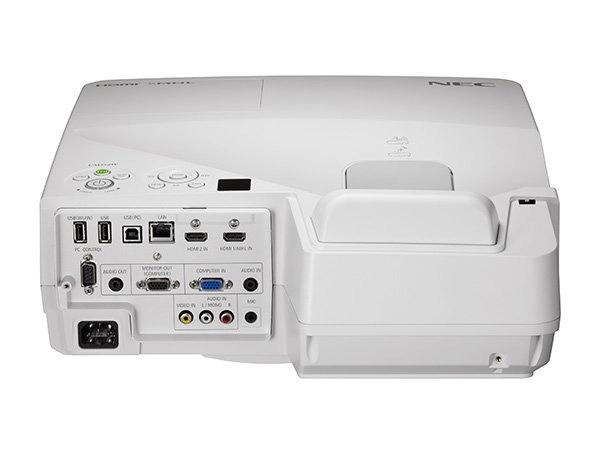

Ports & interfaces
VGA (D-Sub) ports quantity	2
HDMI ports quantity	2
HDMI connector type	Full-size
DVI port	N
USB 2.0 ports quantity	3
Audio (L/R) in	1
Audio (L/R) out	1
Microphone in	Y
USB connector type	USB Type-A, USB Type-B
AC (power) in	Y
Network
Ethernet LAN	Y
Ethernet LAN (RJ-45) ports	1
Wi-Fi	N
Storage
Card reader integrated	N
Technical details
On Screen Display (OSD)	Y
Features
Noise level	29 dB
Noise level (economic mode)	28 dB
RoHS compliance	Y
Multimedia
Built-in speaker(s)	Y
RMS rated power	20 W
Number of built-in speakers	1
Design
Form factor	Desktop
Product colour	White
Ceiling mounting supported	Y
LED indicators	Y
Display
Built-in display	N
Power
Power source	AC
Power consumption (typical)	261 W
Power consumption (standby)	0.5 W
Power consumption (max)	326 W
Power consumption (economy mode)	216 W
AC adapter input voltage	100 - 240 V
AC adapter frequency	50/60 Hz
Operational conditions
Operating temperature (T-T)	5 - 40 °C
Storage temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	20 - 80 procent
Storage relative humidity (H-H)	20 - 80 procent
Weight & dimensions
Weight	5800 g
Width	378 mm
Depth	428 mm
Height	112 mm
Packaging content
Handheld remote control	Y
Other features
RS-232 ports	1
