The PX1004UL – simply “install & forget”. First grade high end blue laser diode light source, combined with an unique quality Phosphor wheel technology and no filter replacement required, results in an up to 20, 000 hours hassle free operation. These features, bundled with a low overall power consumption, provide exceptional reliability and an attractive total cost of ownership addressing long lasting Signage installations or Museums.

Superior cinema picture quality, especially on large screens is provided by 4k signal processing performance. Enhanced by an optional new ultra-short throw lens, this projector is also perfectly suited for Rental/Staging, Higher Education and large Corporate installations.

All in all a perfect custom-tailored solution, saving you valuable time and money for a secure investment into a brighter future.

- Resource-saving - up to 20, 000 h maintenance-free operation thanks to Laser Light Source technology, filter less dust shielded design & integrated liquid cooling system.
- Hassle-free Installation - wide zoom bayonet lens portfolio & support of third party lenses (ask your local trusted NEC partner) enables customised installations and easy replacement of current installation projectors.
- Outstanding Picture Quality - whole new visualisation experience with high brightness, up to 4K input signal and unique picture & colour processing technology based on the latest NEC scaler chip.
- Easy Way to Large Viewing - use the OPS slot for built-in players, HDMI-out signal loop-through, built-in signal splitter and edge blending capability to provide large presentation pictures.
- Maximum Flexibility - 360 degree installation in any direction, unique geometric adjustment, Picture in Picture and 3D support offer unrivalled installation capabilities for any application.
- Cost Saving Device Management - save effort whilst administrating all connected NEC devices from a centralised location by using the NaViSet Administrator 2 software tool.

Specification

Product
Product id	557170
Brand	NEC
Partnr	60004235
EAN/UPC code
Warranty (months)	3 years
Projector
Projector brightness	10000 ANSI lumens
Projection technology	DLP
Projector native resolution	WUXGA (1920x1200)
Contrast ratio (typical)	10000:1
Native aspect ratio	16:10
Supported aspect ratios	16:10
Screen size compatibility	40 - 500 "
Projection distance	0.86 - 118 m
Horizontal scan range	15 - 153 kHz
Vertical scan range	24 - 120 Hz
Keystone correction, horizontal	-40 - 40 °
Keystone correction, vertical	-40 - 40 °
Light source
Lamp type	Laser diode
Lamps quantity	1 lampen
Lamps
Service life of lamp	20000 uur
Lens system
Focus	Auto
Zoom capability	Auto
Horizontal lens shift range	-0.15 - 0.15 °
Vertical lens shift range	-0.3 - 0.5 °
Number of optional lenses supported	8
Video
Analog signal format system	NTSC, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM
Full HD	Y
3D Ready	Y
Supported video modes	480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Supported graphics resolutions	640 x 480 (VGA), 1920 x 1200 (WUXGA), 2048 x 1080, 2560 x 1600 (WQXGA), 4096 x 2160

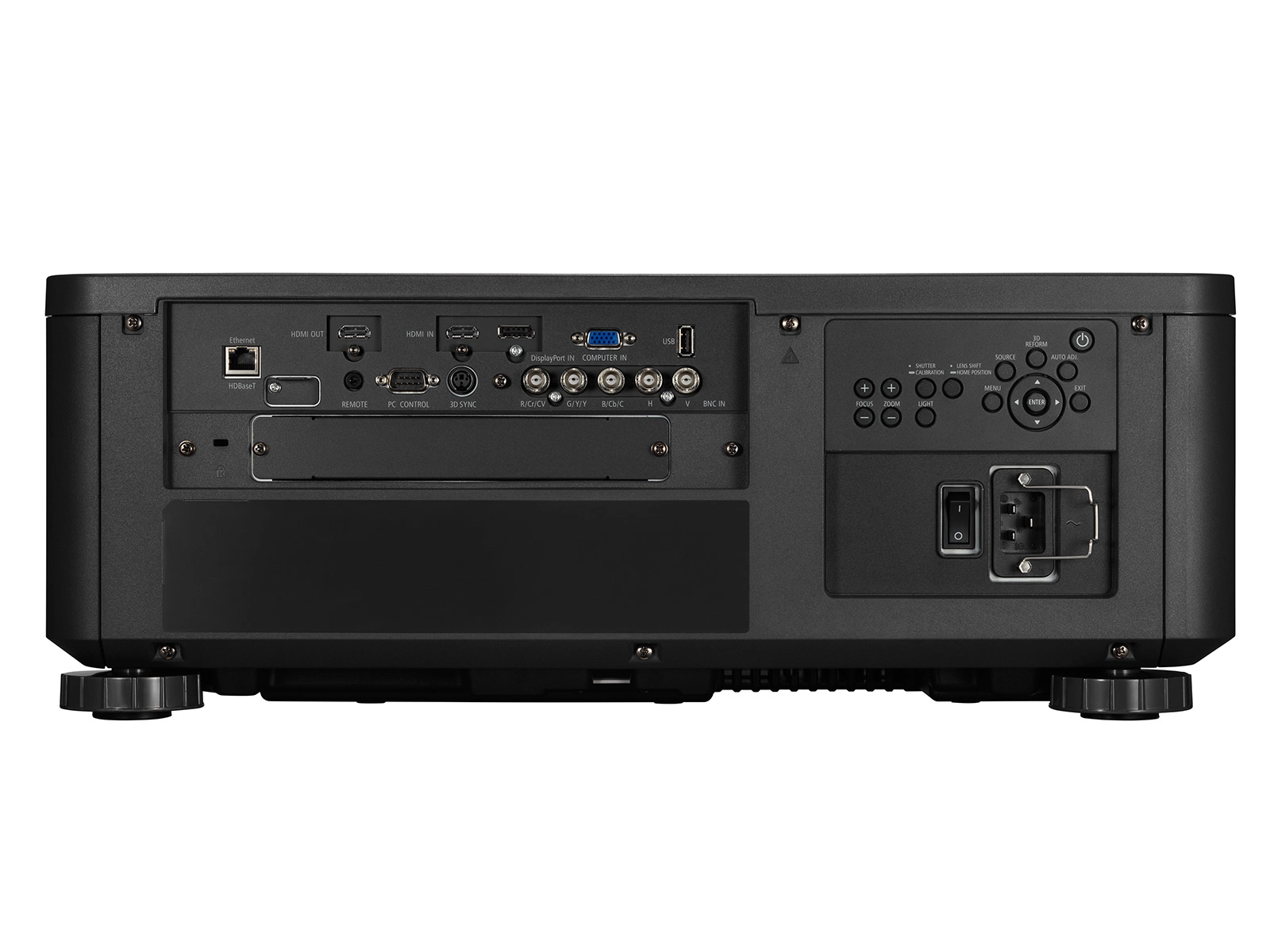

Ports & interfaces
VGA (D-Sub) ports quantity	2
HDMI ports quantity	2
HDMI connector type	Full-size
Component video (YPbPr/YCbCr) in	1
DVI port	N
DisplayPorts quantity	1
USB 2.0 ports quantity	1
Audio (L/R) in	1
Headphone outputs	1
Microphone in	Y
Serial interface type	RS-232
BNC input ports	1
AC (power) in	Y
Network
Ethernet LAN	Y
Ethernet LAN (RJ-45) ports	1
Wi-Fi	N
Storage
Card reader integrated	N
Technical details
On Screen Display (OSD)	Y
Features
Noise level	40 dB
Noise level (economic mode)	35 dB
HDCP	Y
Password protection	Y
RoHS compliance	Y
Certification	CE; ErP; RoHS; TUEV
Design
Product type	Desktop projector
Product colour	Black
LED indicators	Y
Display
Built-in display	N
Power
Power source	AC
Power consumption (typical)	1400 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Auto power off	Y
Operational conditions
Operating temperature (T-T)	5 - 40 °C
Storage temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	0 - 80 procent
Storage relative humidity (H-H)	0 - 90 procent
Weight & dimensions
Weight	28000 g
Width	500 mm
Depth	577 mm
Height	211 mm
Packaging content
Handheld remote control	Y
Remote control type	IR
Manual	Y
Quick start guide	Y
Cables included	AC
Other features
Maximum digital resolution	4096 x 2160 Pixels
RS-232 ports	1
