Boosting the viewing experience for digital signage and presentation

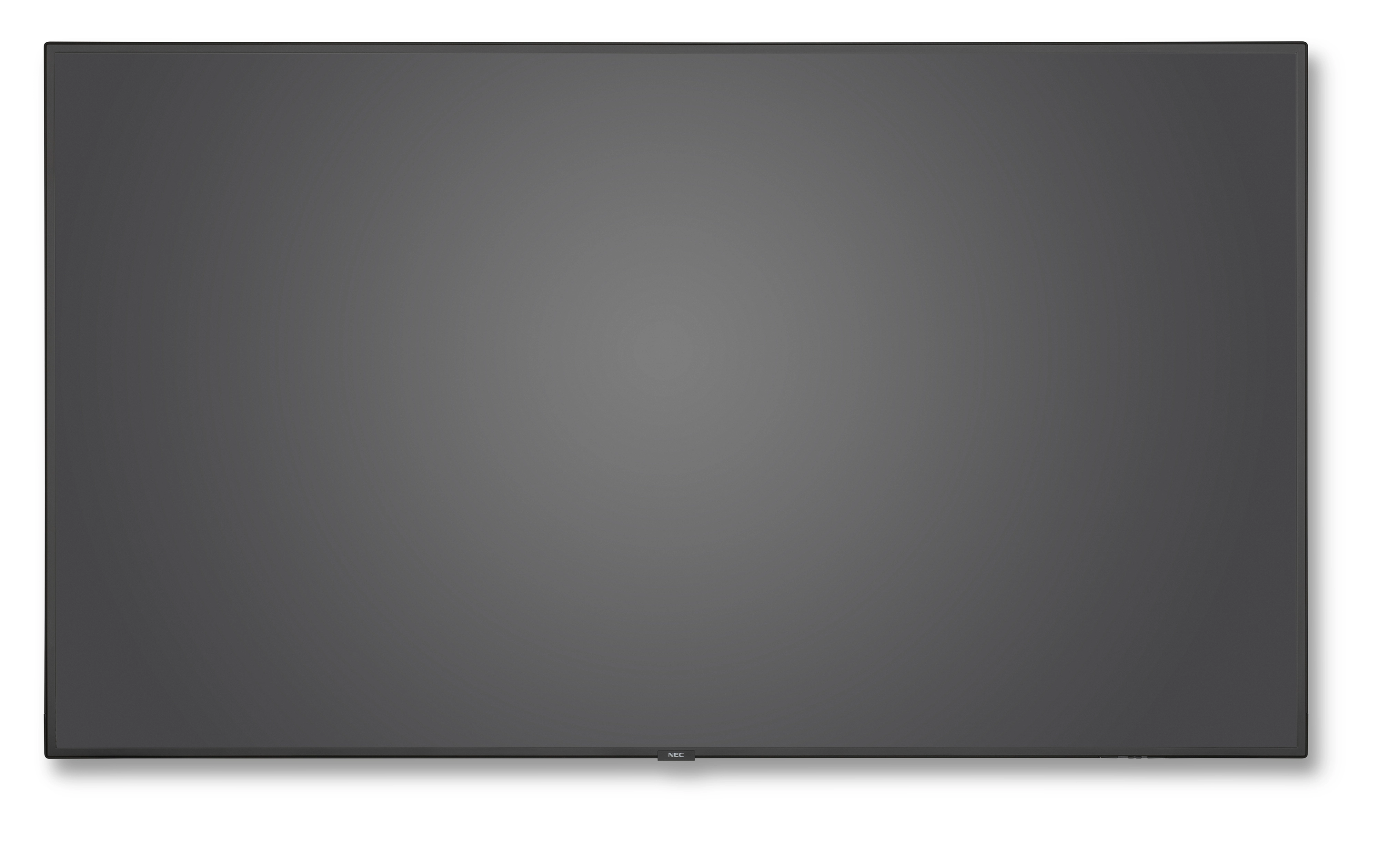

For compelling visualisation, NEC’s MultiSync® V984Q couples the best UHD viewing experience with worry free operation, yet at the lowest operational investment.

Stunning "pixel-free" ergonomic viewing is smartly merged with reliable colour reproduction for the most realistic and thrilling images with expanded contrast ratios. Eye-pleasing readability under common light conditions is guaranteed thanks to the combination of a brightness output of 500 cd/m² with an anti-glare surface. The modern and slim design is the perfect fit to complement the surrounding architecture as well as for integration into any application and environment. Open Modular Intelligence (OMI) is the smartest way to deliver tailor-made signage solutions, where scalable computing power is seamlessly embedded into the display.

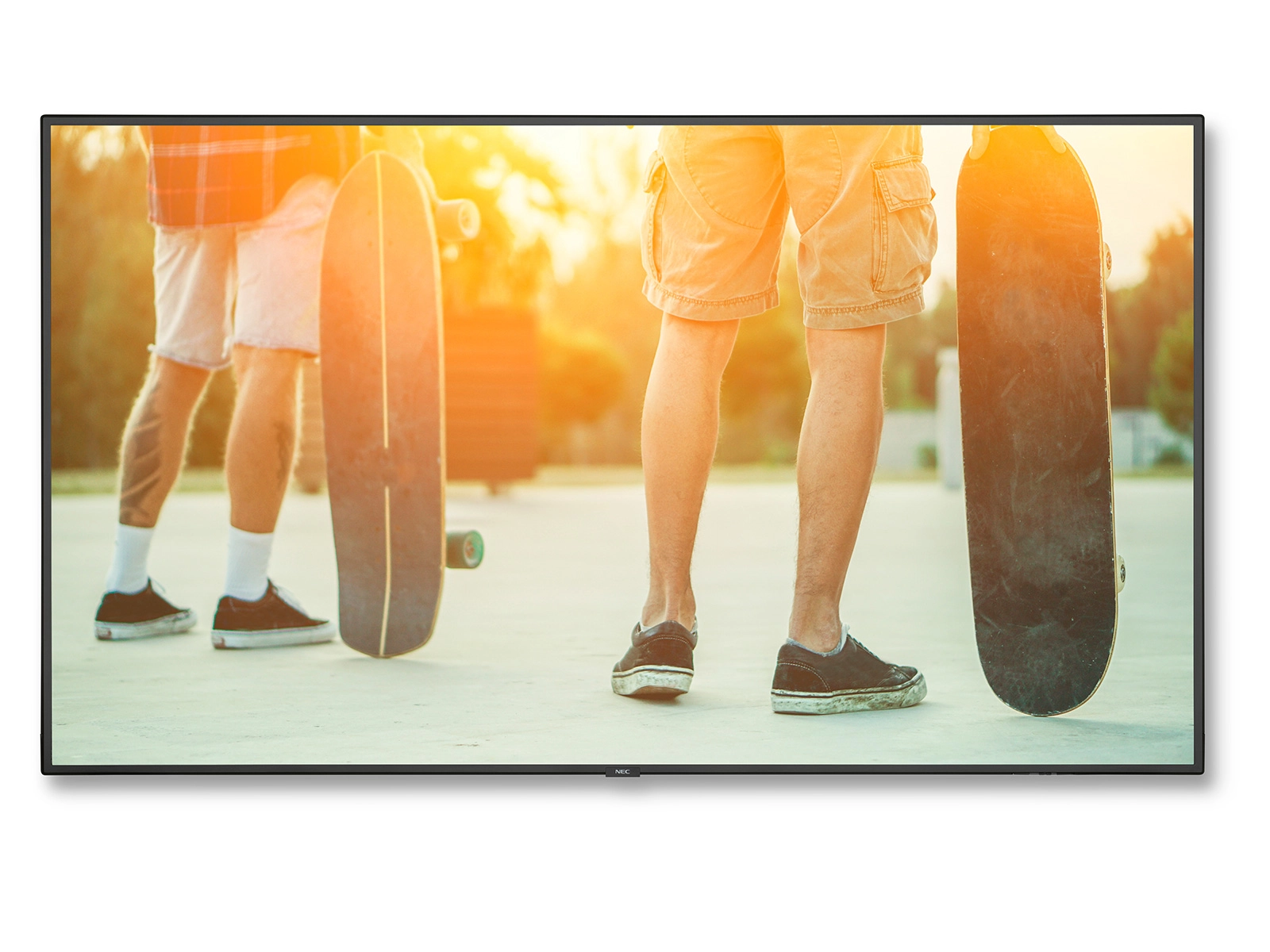

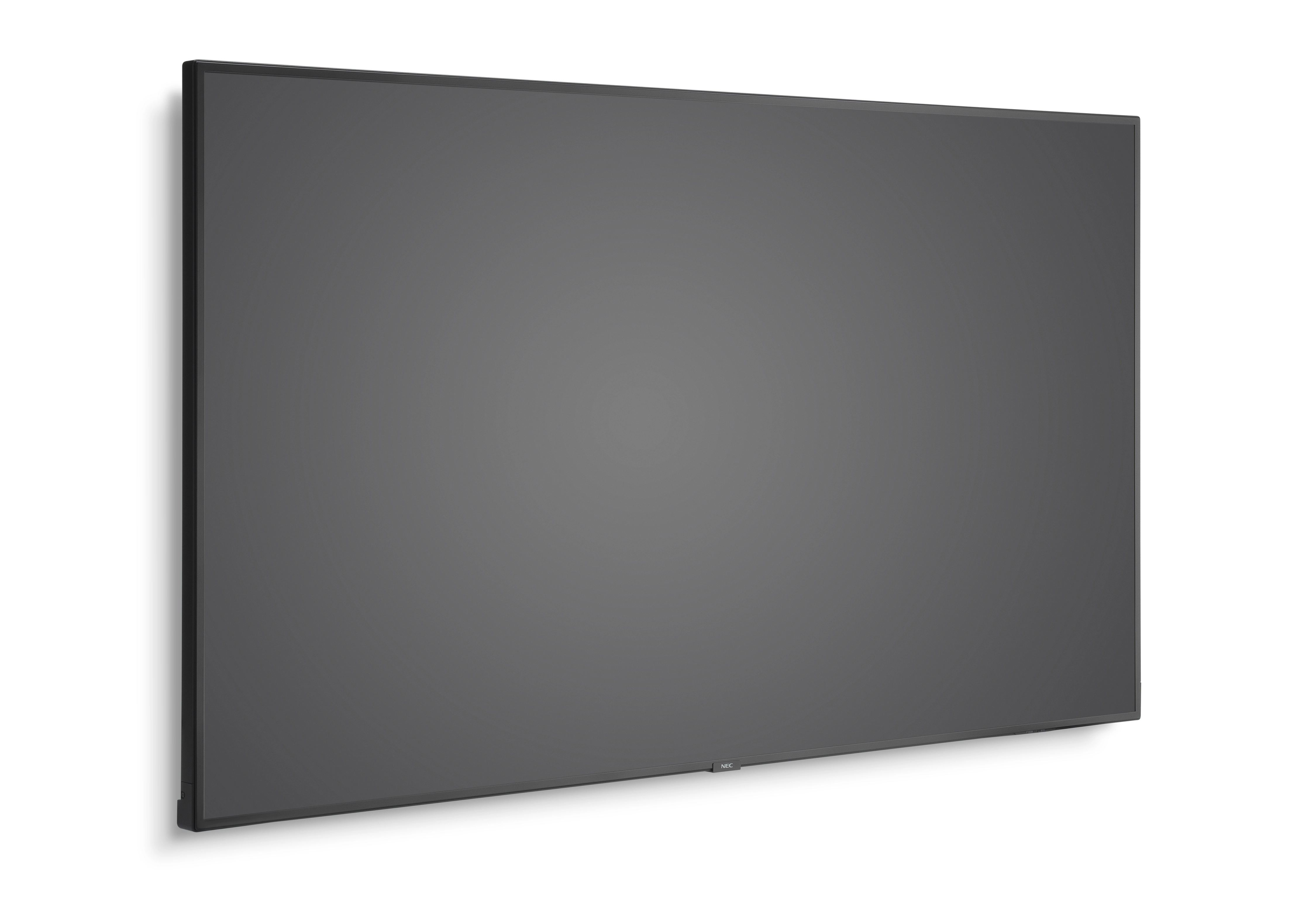

The 98” MultiSync® V984Q is the ultimate expansive choice for life-size advertising in retail stores, leisure and museum environments, hospitality areas and corporate welcome boards as well as for presentations in meeting and board room facilities.
Mission-critical 24/7 ready operation –
the meticulous selection of industrial-grade components and careful design focused on demanding usage scenarios accompany an impressive and continuous viewer experience.

Enhanced imaging performance –
advanced settings of all relevant visual parameters allow full control of brightness, colour, gamma and uniformity via the SpectraView Engine for precise, natural images.

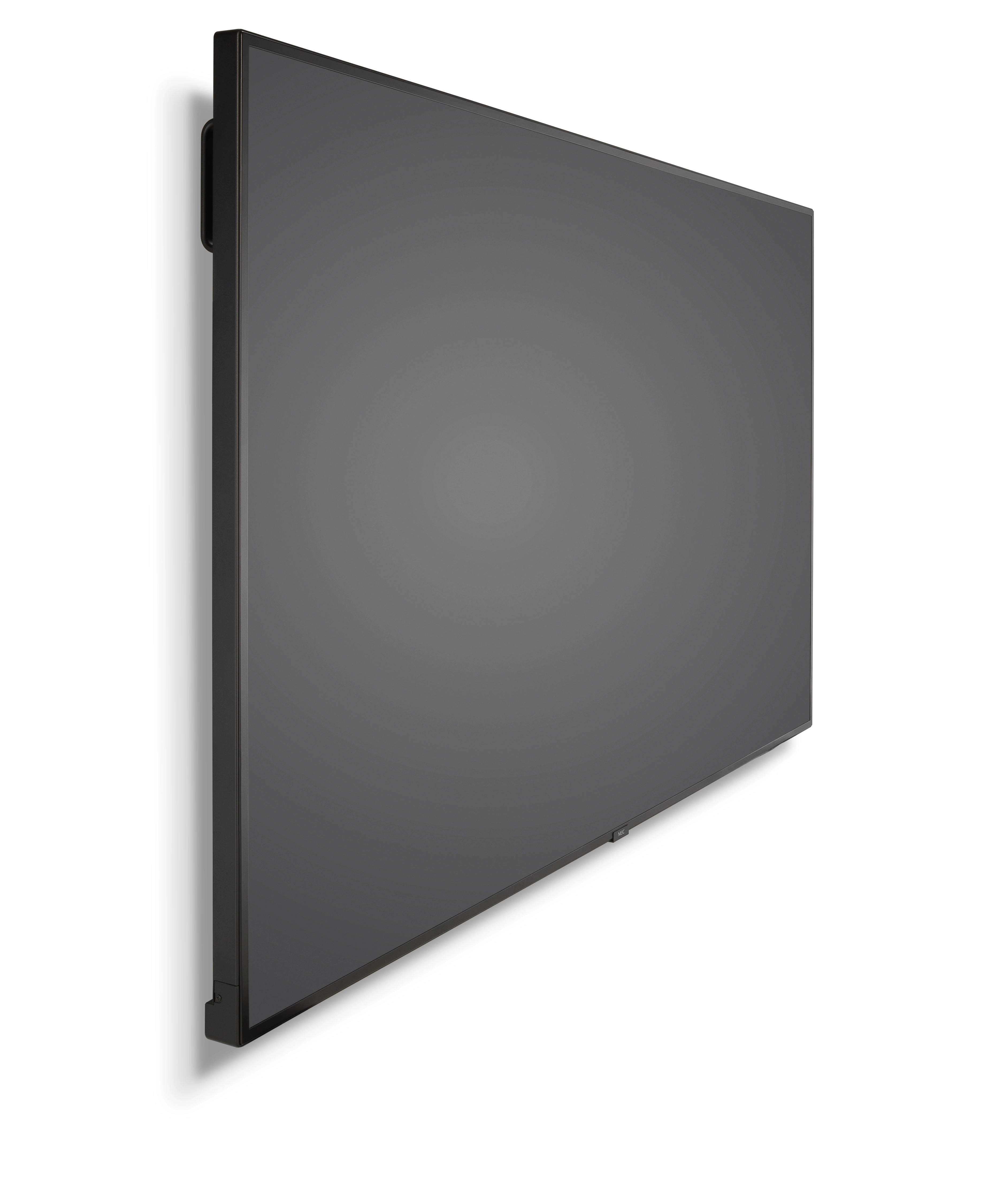

Modern and slim design –
robust yet elegant allowing for an unobtrusive integration into any application and environment.

Ease of use and operation –
smart installation, operation and maintenance functionality ensures accurate performance over the entire lifetime of the display saving time, effort and resources.

Future-proof signal connectivity and processing –
numerous native UHD resolution inputs with 60Hz refresh rate including DisplayPort, HDMI and an option slot for OPS Slot-in PCs, plus automatic upscaling to UHD for other signals, provide “pixel-free viewing“ on a large scale.

Future Ready with Open Modular Intelligence Expansion –
upgrade the power of your display at any time by seamlessly integrating one of NEC’s options for OPS Slot-in PCs, Raspberry Pi compute modules or signal interfaces for content feed and computing.

Cost Saving Device Management –
save effort whilst managing all connected NEC devices from a centralised location by using the NaViSet Administrator 2 software tool.

Specification

Product
Product id	666968
Brand	NEC
Partnr	60004318
EAN/UPC code	5028695114920
Display
Display diagonal	98 inch
LED backlighting type	Direct-LED
Display resolution	3840 x 2160 Pixels
Display brightness	350 cd/m²
HD type	4K Ultra HD
Touchscreen	N
Response time	8 ms
Contrast ratio (typical)	1300:1
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Display number of colours	1.073 billion colours
Active display area (W x H)	2158.9 x 1214.4 mm
Display diagonal (metric)	247.82 cm
Supported graphics resolutions	1920 x 1080 (HD 1080), 1920 x 2160, 3840 x 2160, 4096 x 2160
Horizontal scan range	31.5 - 91.1 kHz
Vertical scan range	24 - 85 Hz
Ports & interfaces
HDMI ports quantity	3
DVI port	N
DisplayPorts quantity	3
USB port	Y
USB ports quantity	5
USB version	2.0
Ethernet LAN	Y
Ethernet LAN (RJ-45) ports	2
Ethernet LAN data rates	100 Mbit/s
PC Audio in	Y
RS-232 interface	Y
Card reader integrated	Y
Compatible memory cards	MicroSD (TransFlash), MicroSDHC
Audio
Built-in speaker(s)	Y
Number of built-in speakers	2
RMS rated power	20 W
Design
Design	Digital signage flat panel
Placement supported	Indoor

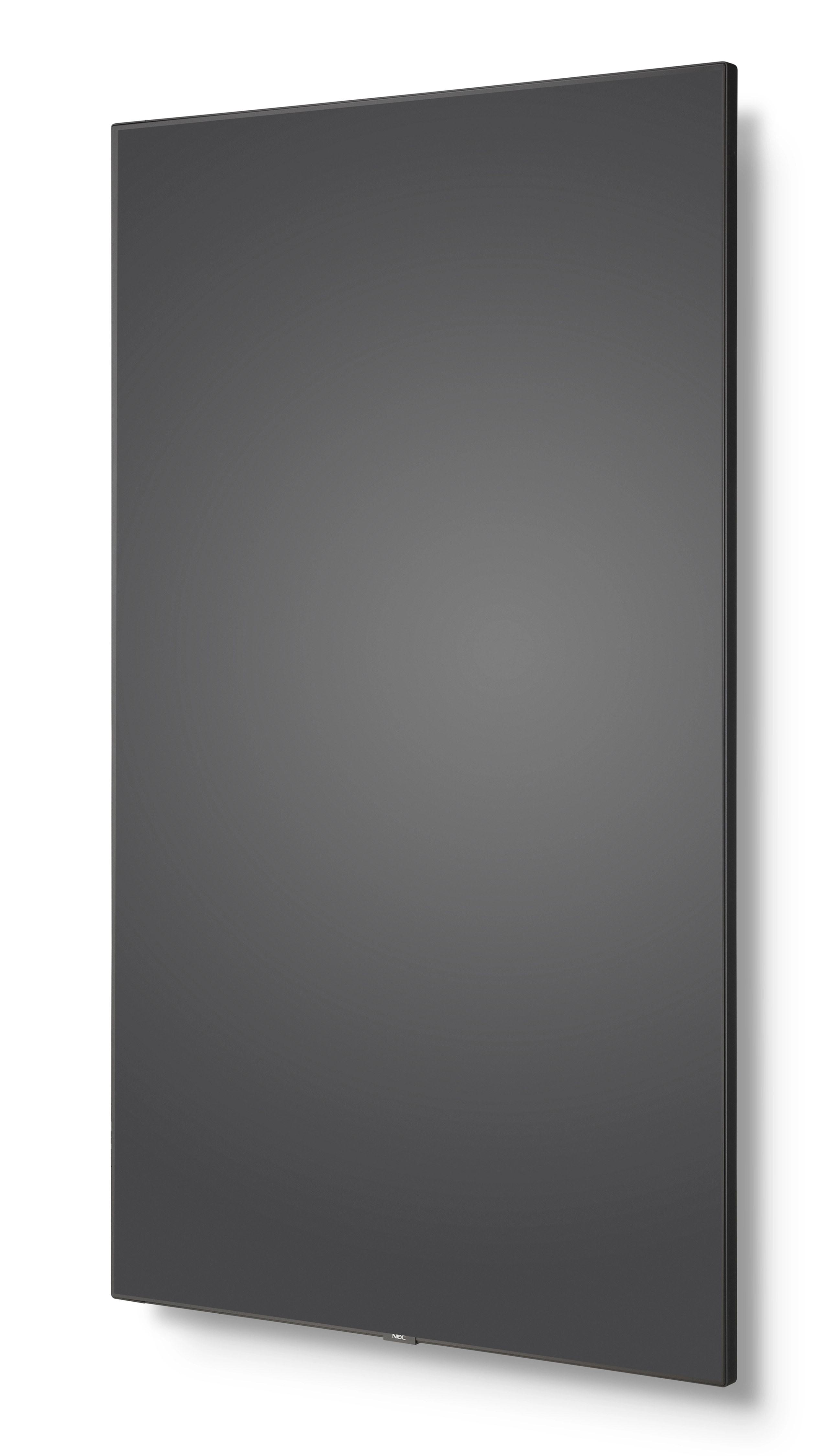

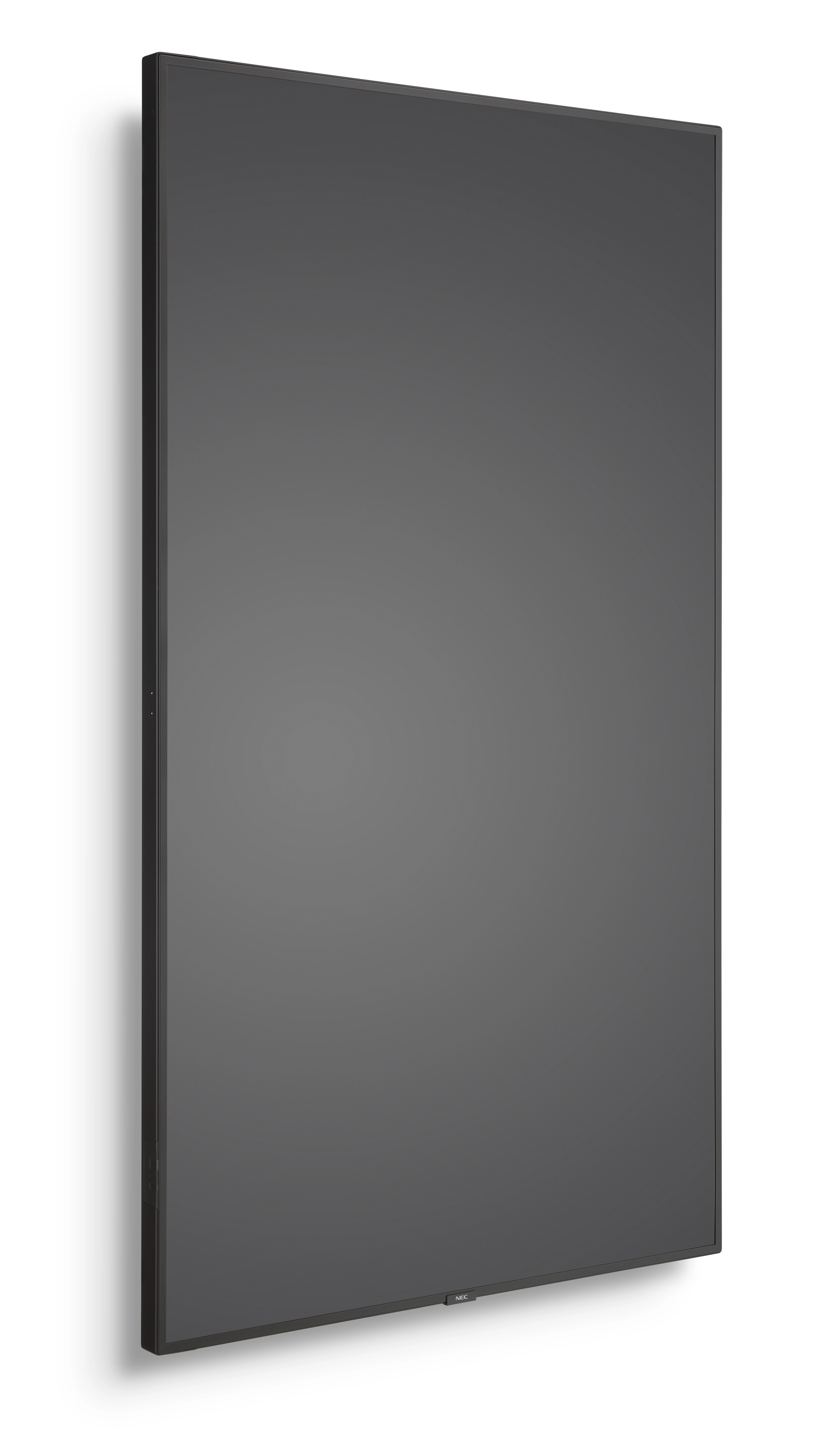

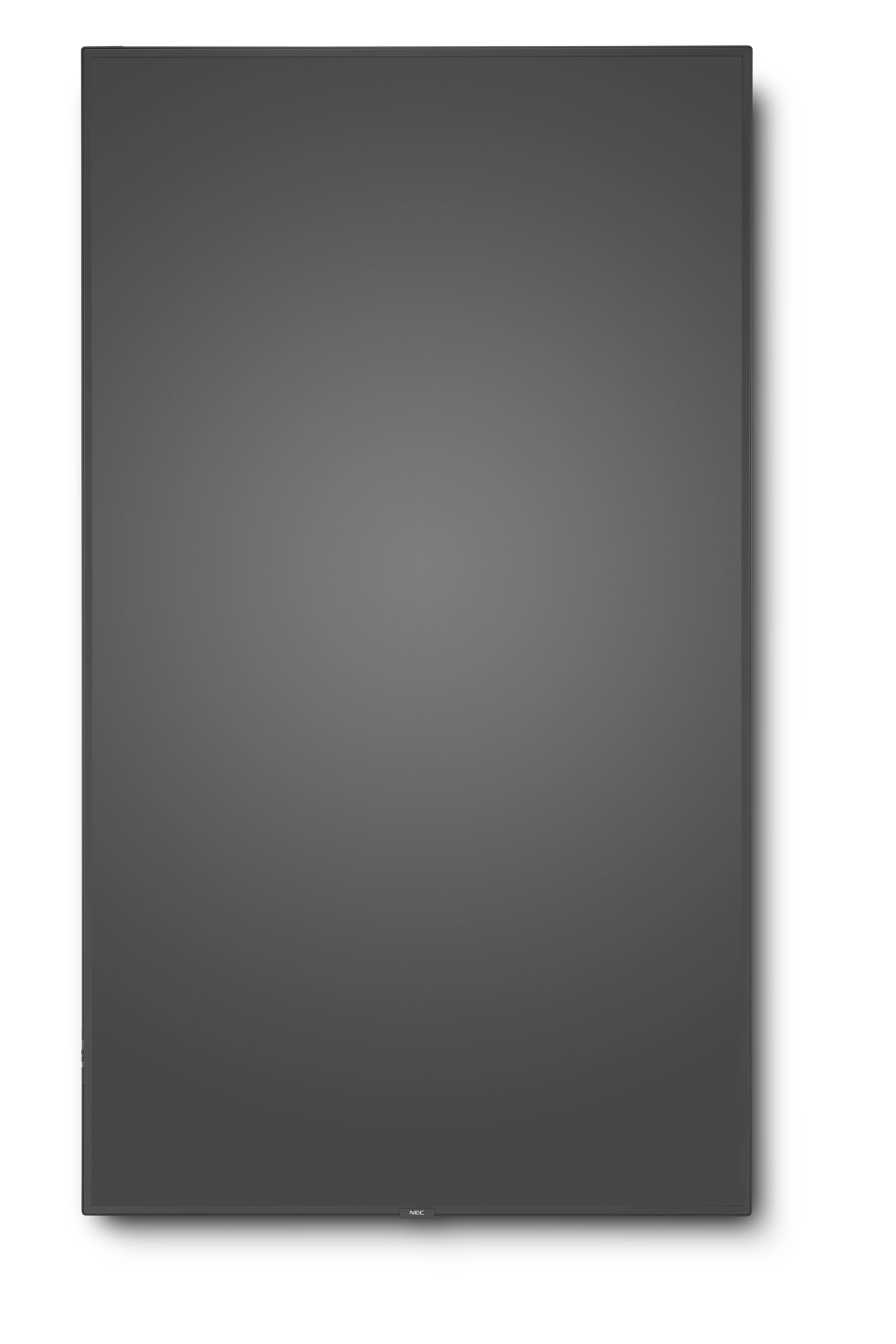

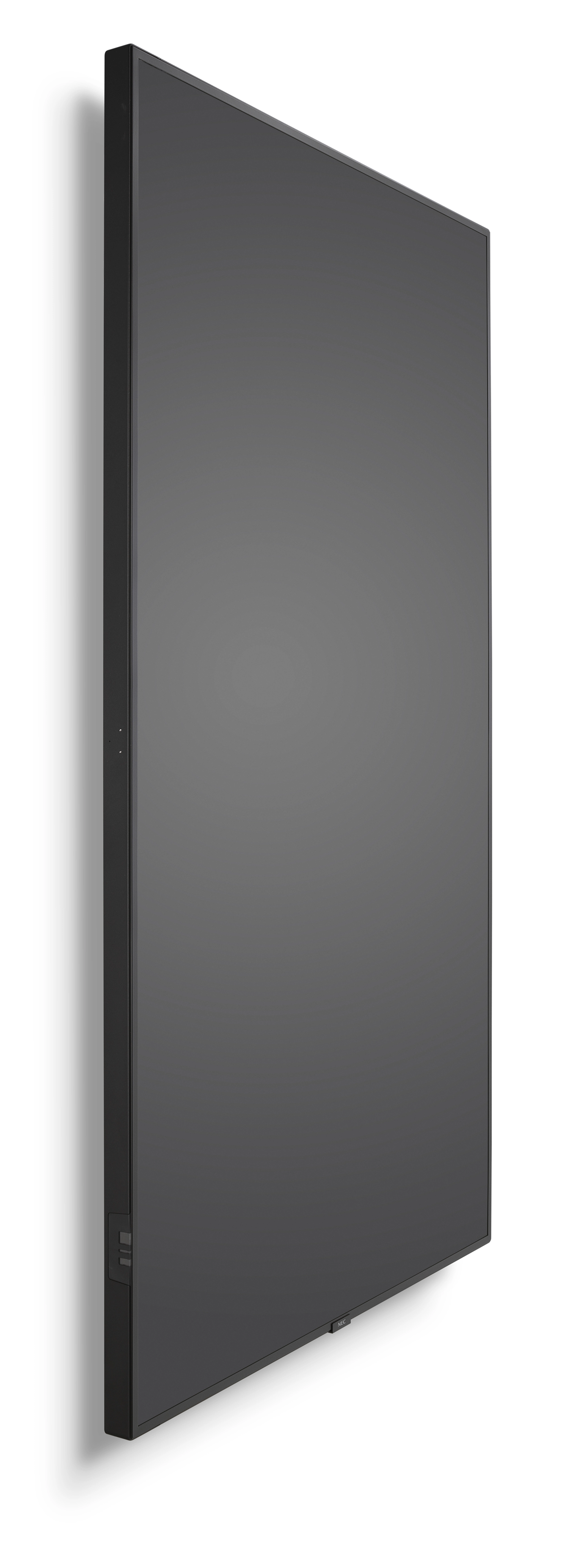

Orientation	Horizontal/Vertical
VESA mounting	Y
Panel mounting interface	400 x 400, 600 x 400 mm
Bezel width (top)	15.9 mm
Bezel width (side)	15.9 mm
Bezel width (bottom)	15.9 mm
Performance
Purpose	Universal
Ambient light sensor	Y
Operating hours (hours/days)	24/7
HDCP	Y
International Protection (IP) code	IP5X
Power
Power consumption (typical)	380 W
Power consumption (standby)	0.5 W
Weight & dimensions
Width	2194 mm
Depth	93 mm
Height	1249 mm
Weight	90000 g
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80 procent
Certificates
Certification	CE; EAC; EMC B; FCC; SASO; TÜV GS; UL/C-UL, CSA; VCCI
Features
Harmonized System (HS) code	85285210
Other features
Display technology	LED
Energy efficiency class (old)	B
