Your first choice for digital signage

Present impactful messaging with NEC’s MultiSync ® V554, a professional Digital Signage solution for worry free operation yet achieving the lowest operational investment.

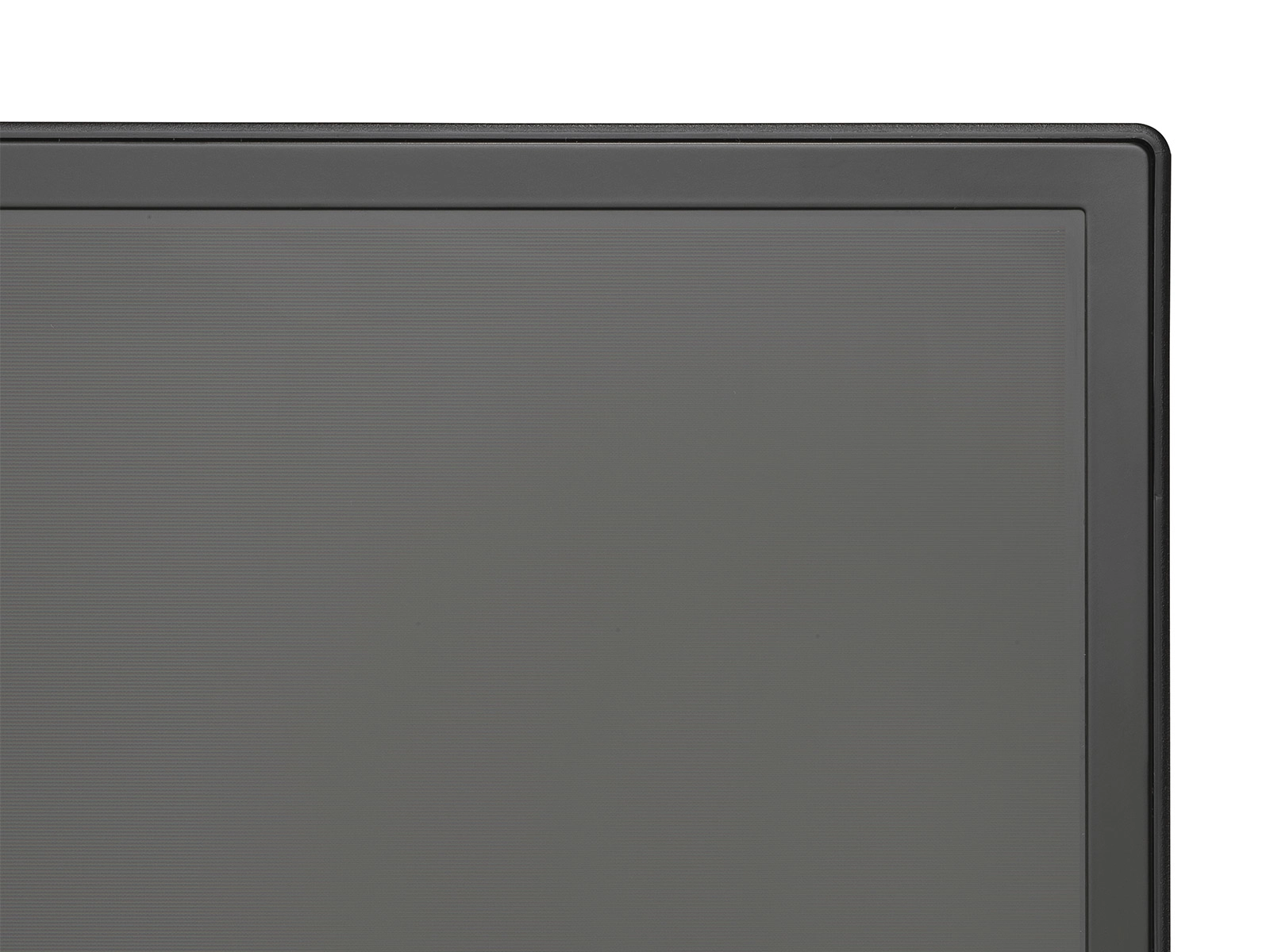

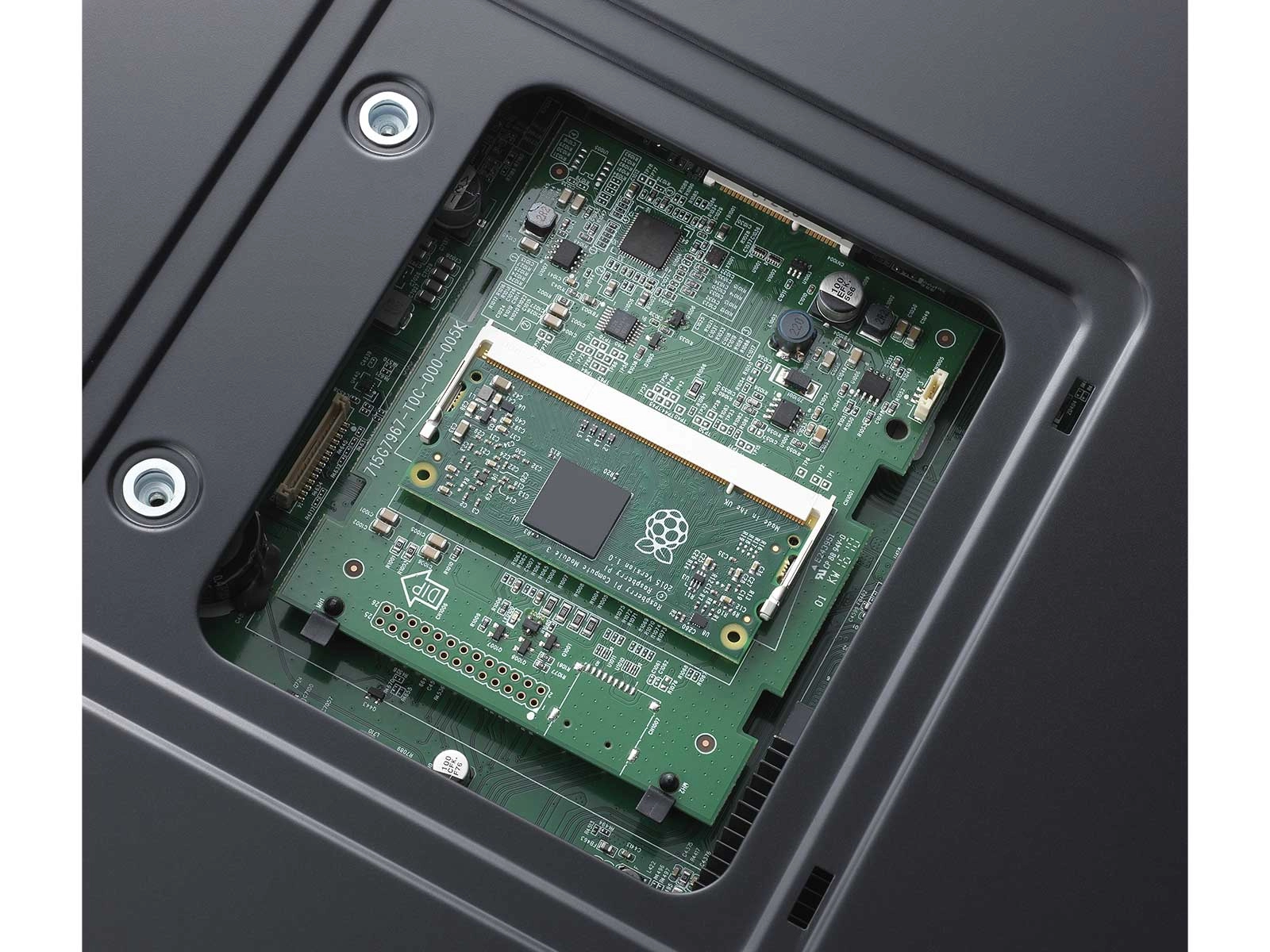

Perfect readability under common light conditions is guaranteed thanks to the combination of a brightness output of 500 cd/m² with an anti-glare surface. The modern and slim design is the perfect fit to complement the surrounding architecture as well as for integration into any application and environment. The wide range of connectivity options and compatibility with high resolution signals up to 4K/60Hz secure a futureproof investment providing a long-lasting success story. The Open Modular Intelligence (OMI) approach is the smartest way to deliver tailor-made Signage Solutions, where scalable computing power such as Raspberry Pi compute modules or OPS Slot-in PCs are seamlessly embedded into the display.

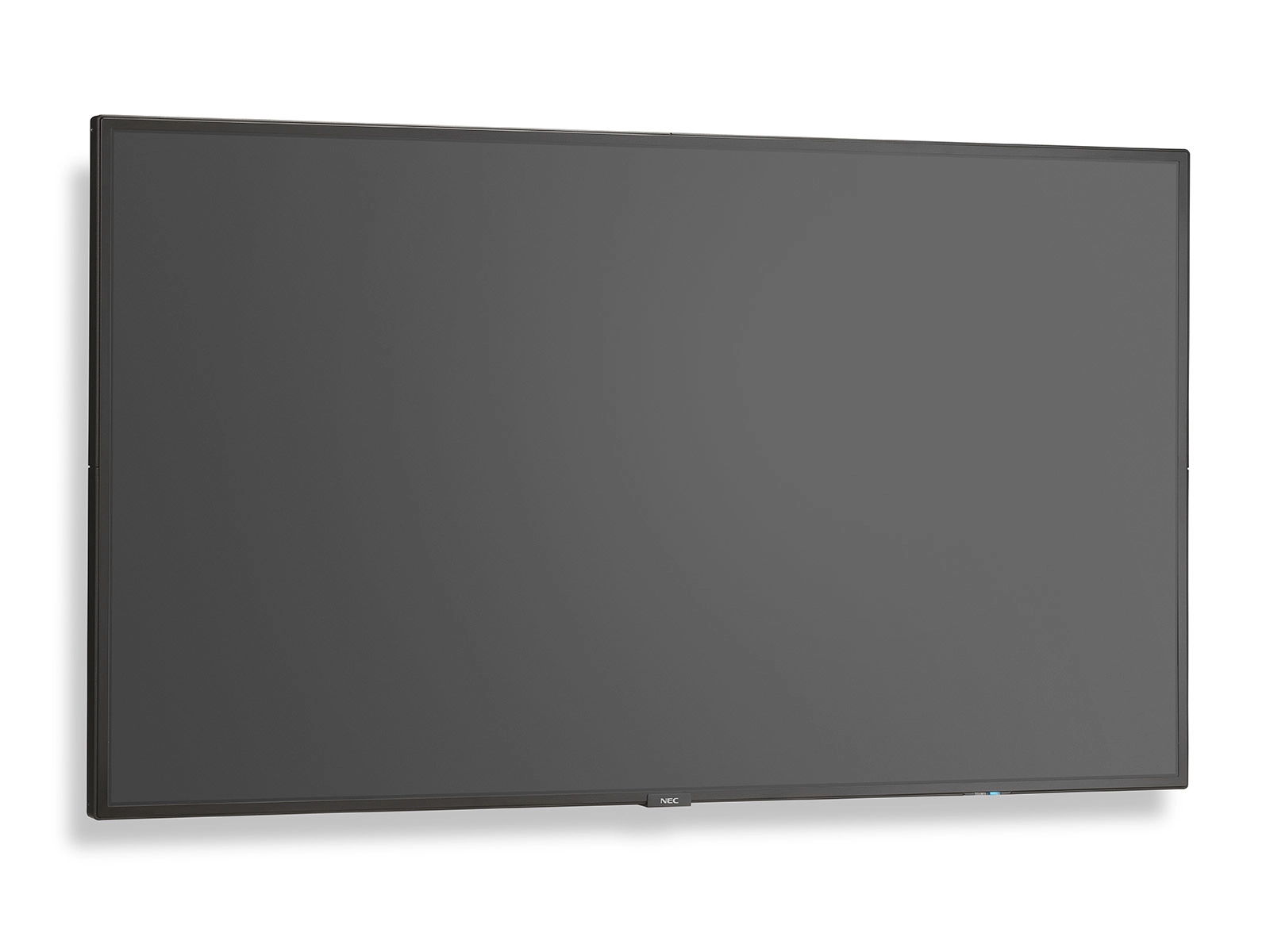

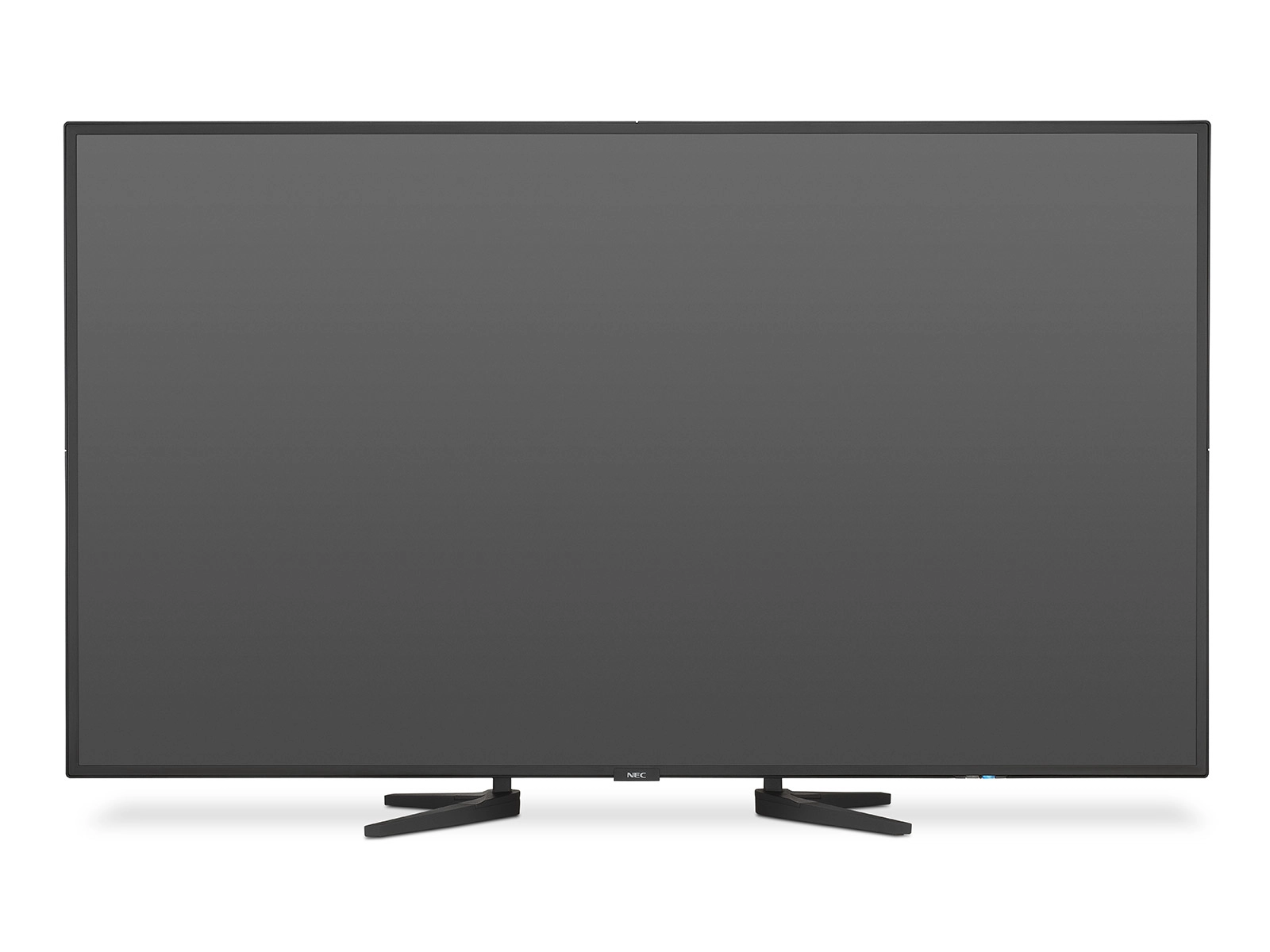

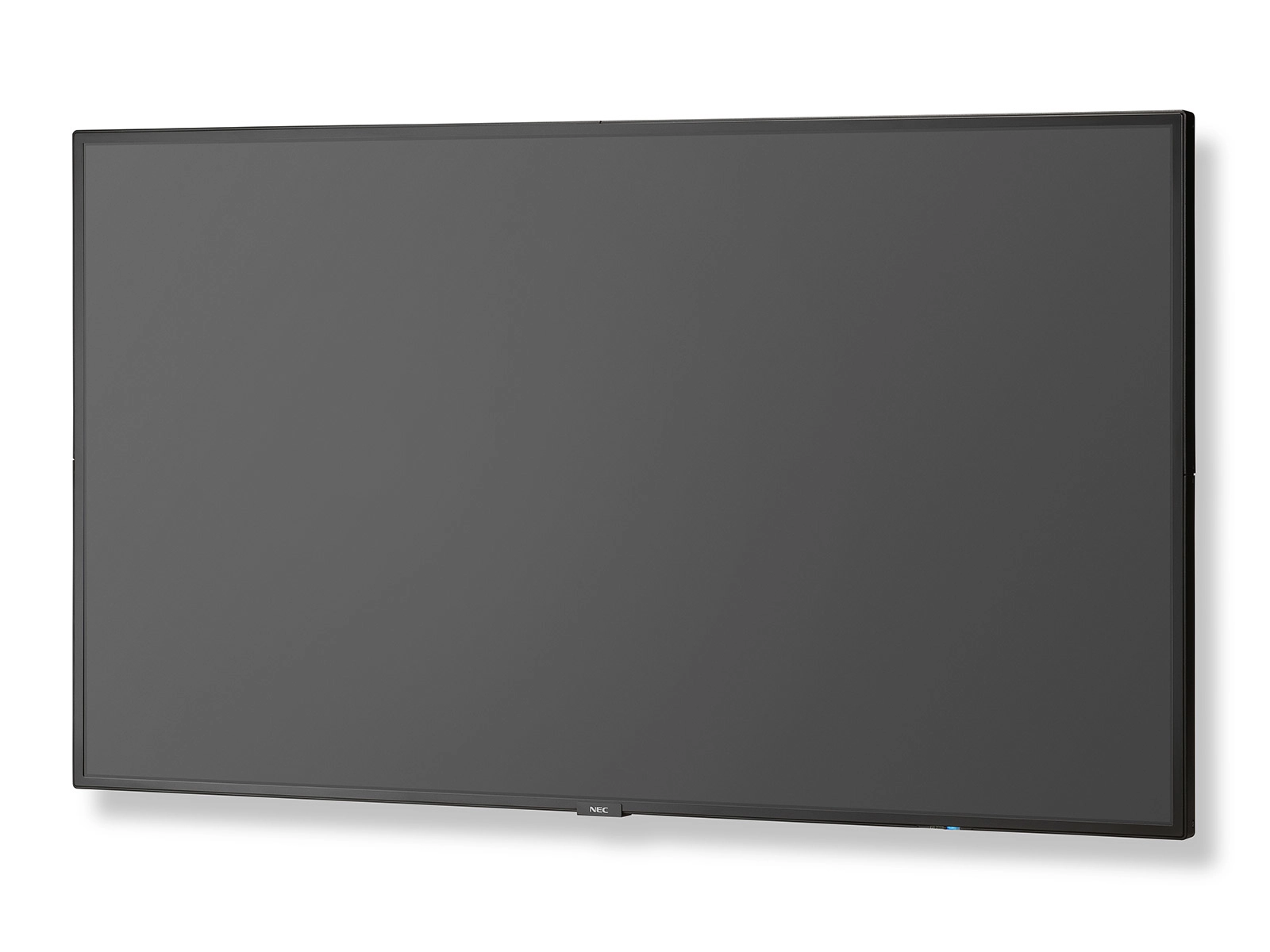

The 55” MultiSync ® V554 is the perfect choice for big and lasting impressions in retail environments, leisure and museum environments, quick service restaurants and corporate signage solutions as well as for smaller meeting facilities.

Specification

Product
Product id	573718
Brand	NEC
Partnr	60004356
EAN/UPC code	5028695114272
Warranty (months)	3 years warranty incl. backlight; additional services available; optional 4. + 5. year warranty extension
Display
Display diagonal	55 inch
Display type	LED
LED backlighting type	Edge-LED
Display resolution	1920 x 1080 Pixels
Display brightness	440 cd/m²
HD type	Full HD
Touchscreen	Y
Touch technology	Multi-touch
Number of simultaneous touchpoints	10
Response time	8 ms
Contrast ratio (typical)	1200:1
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Display number of colours	1.073 billion colours
Display diagonal (metric)	138.8 cm
Supported graphics resolutions	640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1280 x 960, 1360 x 768 (WXGA), 1366 x 768, 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 1920 x 2160, 3840 x 2160, 4096 x 2160
Horizontal scan range	31.5 - 91.1 kHz
Panel type	S-IPS
Vertical scan range	24 - 85 Hz
Supported video modes	1080p

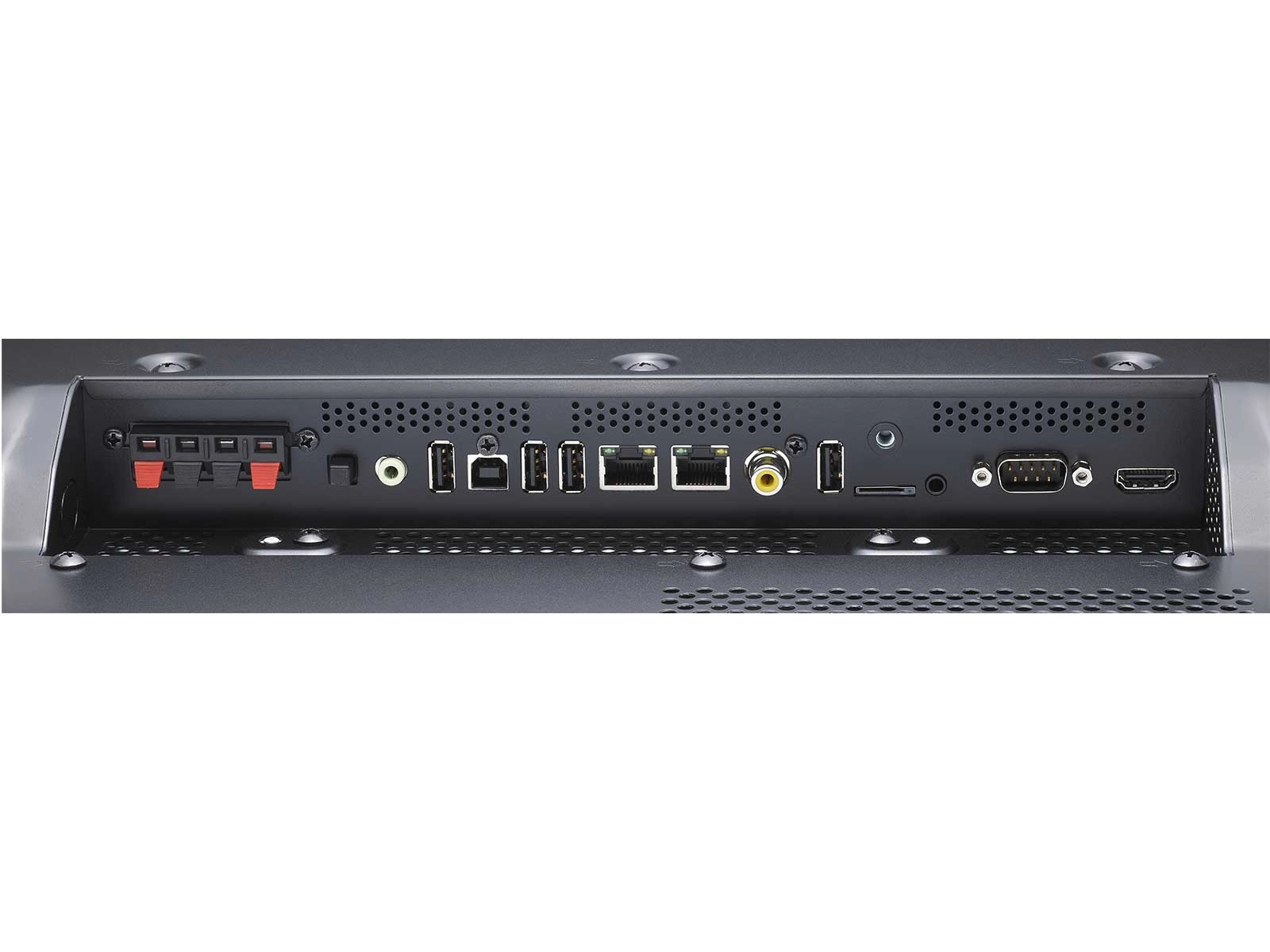

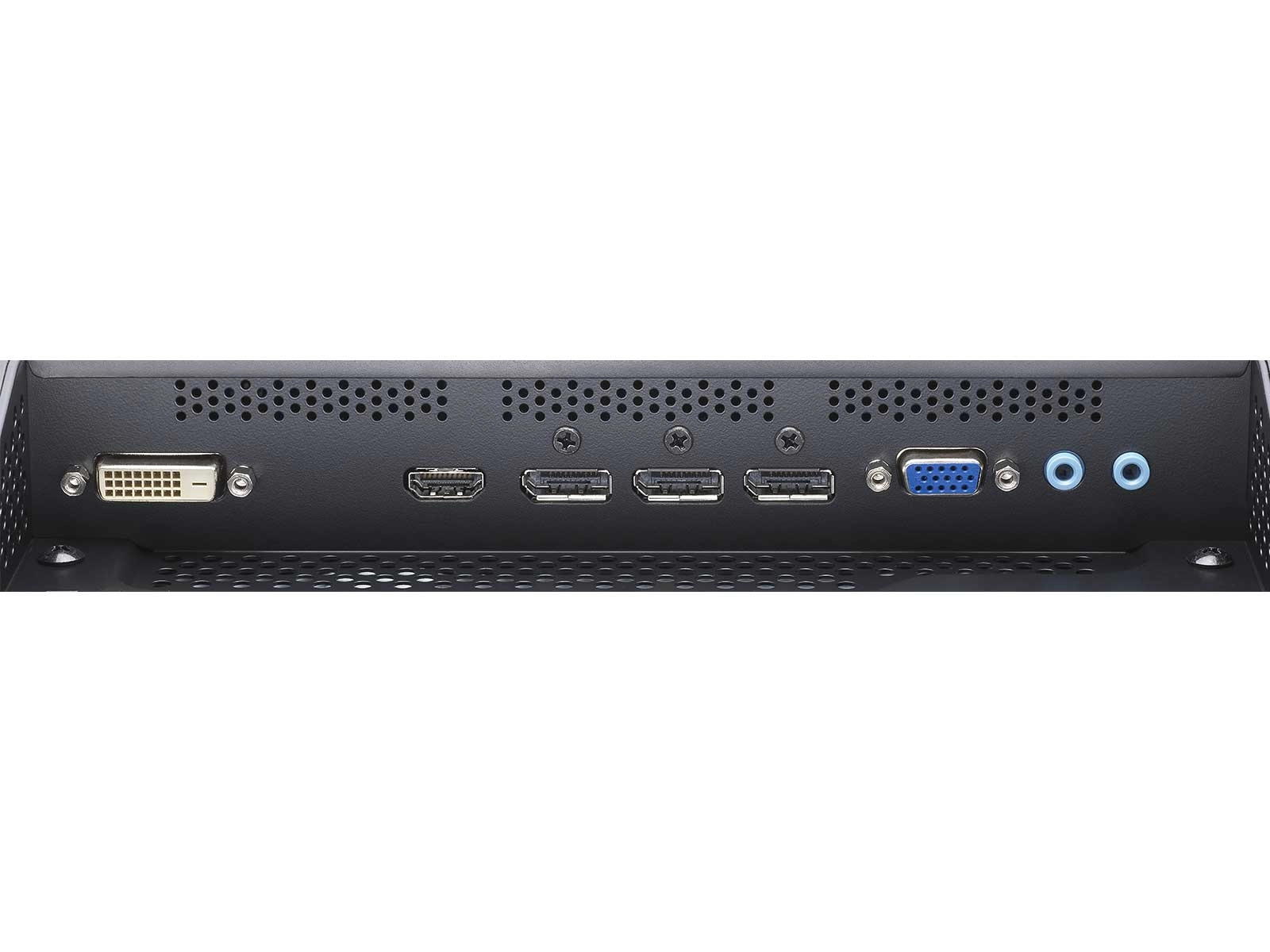

Ports & interfaces
HDMI ports quantity	2
HDMI in	2
DVI port	Y
DVI-D ports quantity	1
VGA (D-Sub) input ports	1
DisplayPorts quantity	3
DisplayPorts out	1
USB port	Y
USB ports quantity	5
USB version	2.0
Ethernet LAN	Y
Ethernet LAN (RJ-45) ports	2
Ethernet LAN data rates	100 Mbit/s
RS-232 interface	Y
Card reader integrated	Y
Compatible memory cards	MicroSD (TransFlash), MicroSDHC
Audio
Built-in speaker(s)	Y
Number of built-in speakers	2
RMS rated power	20 W
Design
Design	Digital signage flat panel
Product colour	Black

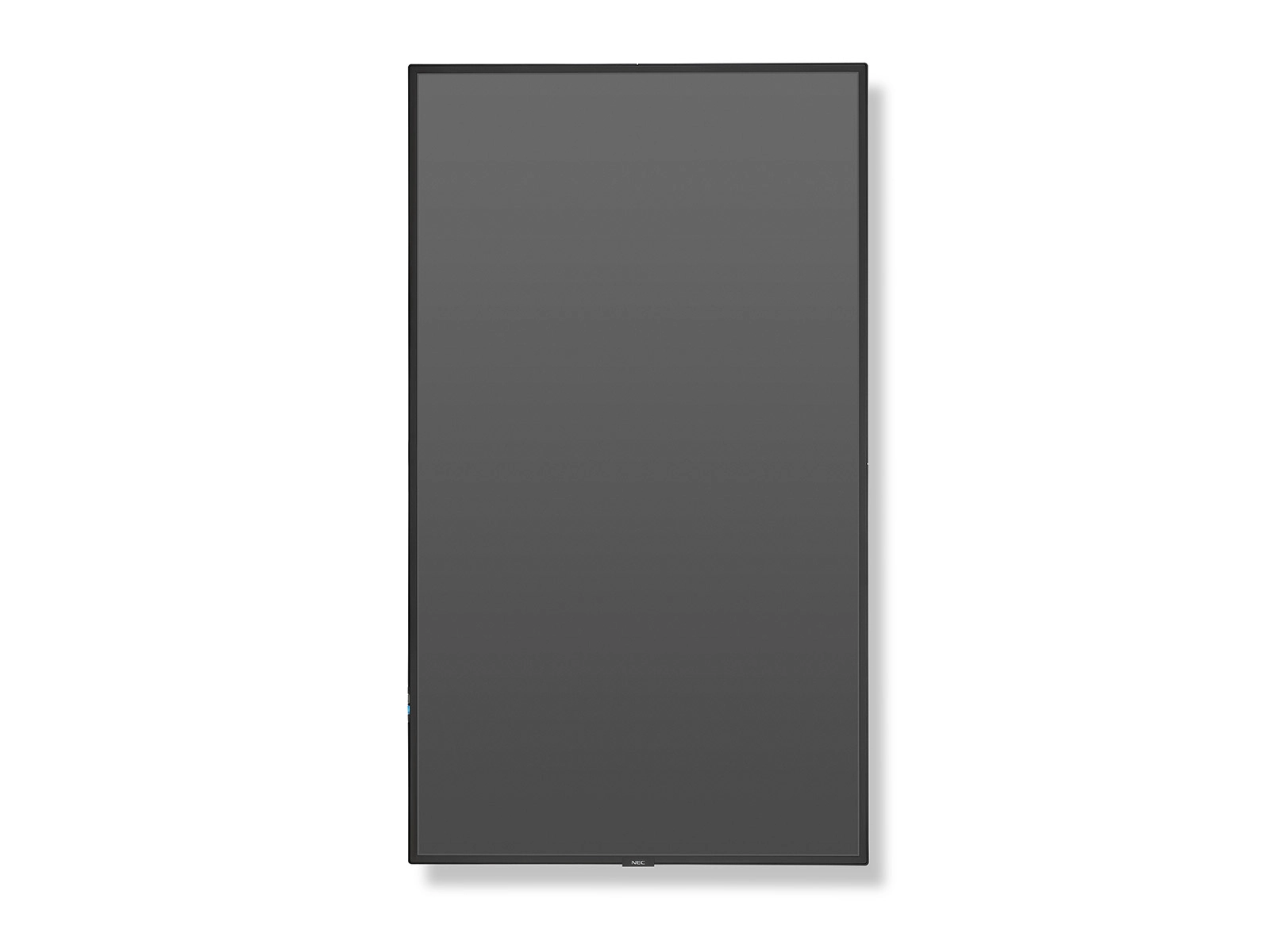

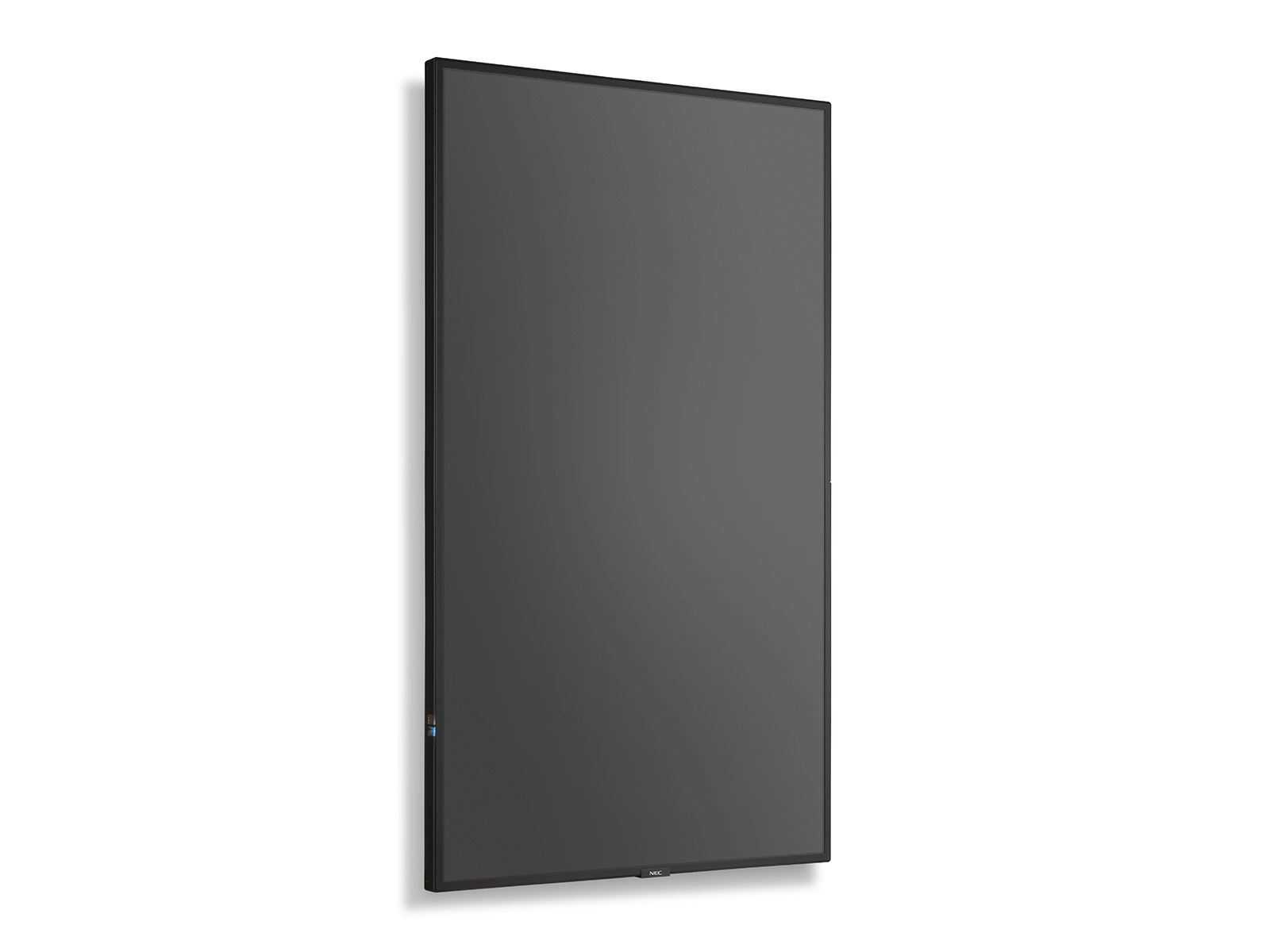

Orientation	Horizontal/Vertical
VESA mounting	Y
Panel mounting interface	300 x 300 mm
Bezel width (top)	33.4 mm
Bezel width (side)	33.4 mm
Bezel width (bottom)	33.4 mm
Performance
Purpose	Retail
Multi-display supported	Y
Ambient light sensor	Y
Operating hours (hours/days)	24/7
HDCP	Y
International Protection (IP) code	IP5X
Power
Power consumption (typical)	110 W
Power consumption (standby)	0.5 W
Energy Star certified	Y
Computer system
Computer system	N
Video formats supported	FLV, H.264, MOV, MP4
Audio formats supported	AAC, LC-AAC, LPCM, MP3, WAV
Image formats supported	JPG, PNG
Weight & dimensions
Width	1279 mm
Depth	86 mm
Height	750 mm
Weight	39000 g
Packaging content
Handheld remote control	Y
Remote control type	IR
Cables included	AC, DVI
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80 procent
Certificates
RoHS compliance	Y
Certification	C-tick; CE; EMC Class B; FCC; PSB; TÜV GS; UL/C-UL; CSA; VCCI
Technical details
Temperature indicator	Y
Power management	Y
Other features
RJ-45 output ports	1
RJ-45 input ports	1
RS-232 input ports	1
DVI input ports	1
USB connector type	USB Type-A, USB Type-B
Manual	Y
Quick start guide	Y
Energy efficiency class	B
