MultiSync UN552VS 55' UN-Series



NEC
Not in stock
€ 3.533,90
€ 4.276,01 incl 21% VAT
Bring your walls to life
For the most engaging and creative visual experiences, the 55” Multisync® UN552VS video wall display offers better image quality, easier installation and a reliable longer-lasting performance.

Installation and operation becomes so simple as powerful calibration capabilities provide compelling picture performance throughout the display’s entire lifetime. Tune picture attributes according to your specific application needs and create a single image across multiple displays. With a combined adjoining bezel of just 0.88mm, the holistic video wall experience offers an expansive digital canvas with barely noticeable interruption. The 500cd/m² display brightness and an anti-glare surface delivers best readability with no annoying reflections under common light conditions.

Attracting shoppers in retail malls, entertaining museum-goers or presenting menu choices, these large modular displays, in different shapes and formations, get your content noticed.

- Easy installation – effortlessly set up you wall display with Auto TileMatrix and out-of-the-box calibrations. Save time by plugging in ready-to-use image presets for predefined application scenarios
- Enhanced imaging performance – advanced settings of all relevant visual parameters allow full control of brightness, colour, gamma and uniformity via the SpectraView Engine for precise, natural images
- Lifelike and consistent colour – expect colour reproduction that feels true to life with IPS panel technology, the top choice when it comes to colour consistency. The S-IPS panel ensures that perfect visibility is maintained in landscape and portrait mode and at extreme viewing angles as viewers pass by
- Secure Reliability and Longevity of Video Walls – unique NEC heat management system enables the user to monitor and control the heat inside the display
- Cost Saving Device Management – save effort whilst managing all connected NEC devices from a centralised location by using the NaViSet Administrator 2 software tool

Specification

Product
Product id 649612
Brand NEC
Partnr 60004524
EAN/UPC code 5028695115521
Warranty (months) 3 years warranty incl. backlight; additional services available; optional 4. + 5. year warranty extension
Display
Display diagonal 55 inch
Display type LED
Display resolution 1920 x 1080 Pixels
Display brightness 500 cd/m²
HD type Full HD
Touchscreen N
Native aspect ratio 16:9
Response time 8 ms
Contrast ratio (typical) 1700:1
Viewing angle, horizontal 178 °
Viewing angle, vertical 178 °
Pixel pitch 0.63 x 0.63 mm
Active display area (W x H) 1209.63 x 680.34 mm
Display diagonal (metric) 138.78 cm
Horizontal scan range 26 - 134 kHz
Vertical scan range 23 - 86 Hz

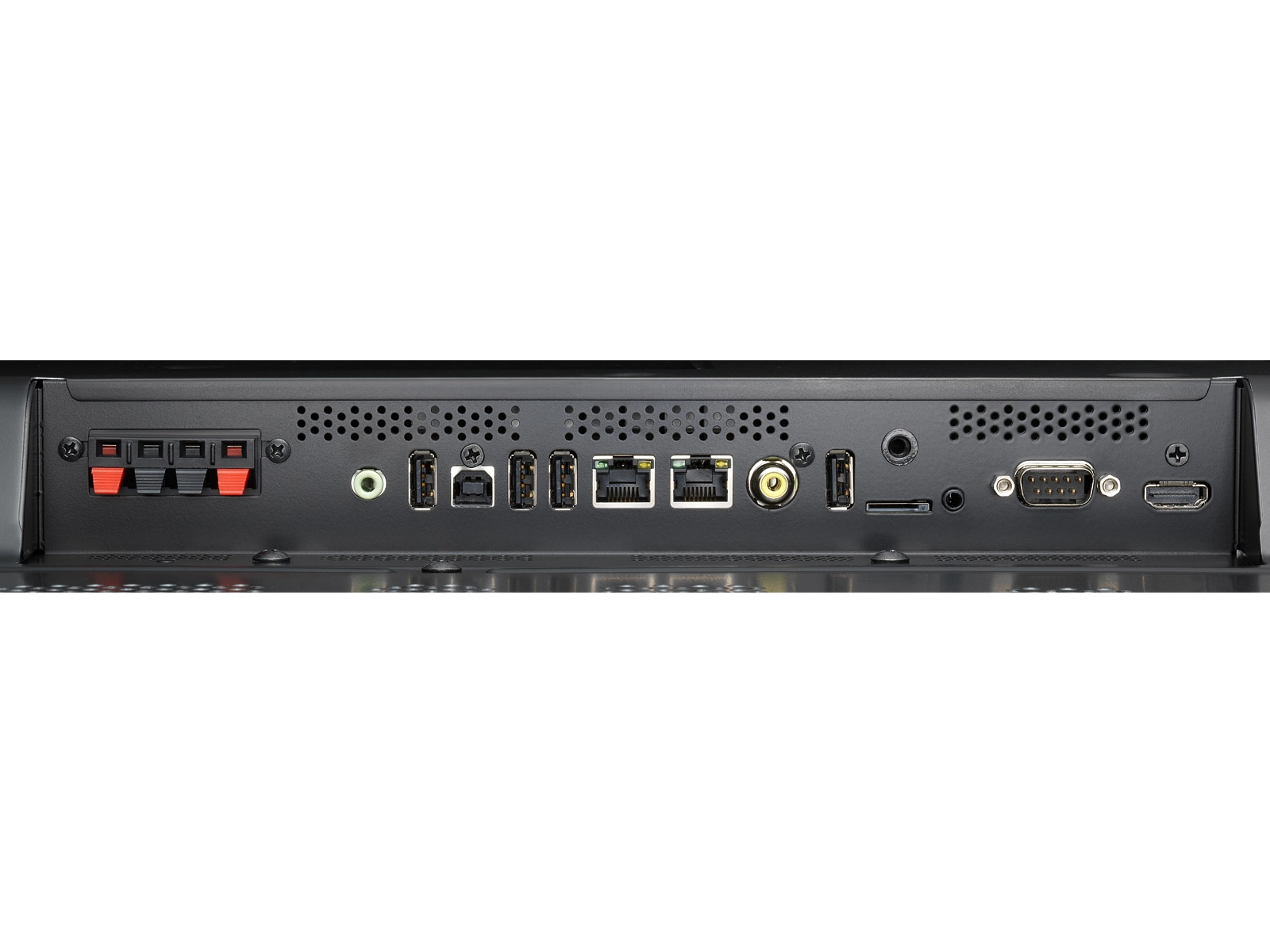

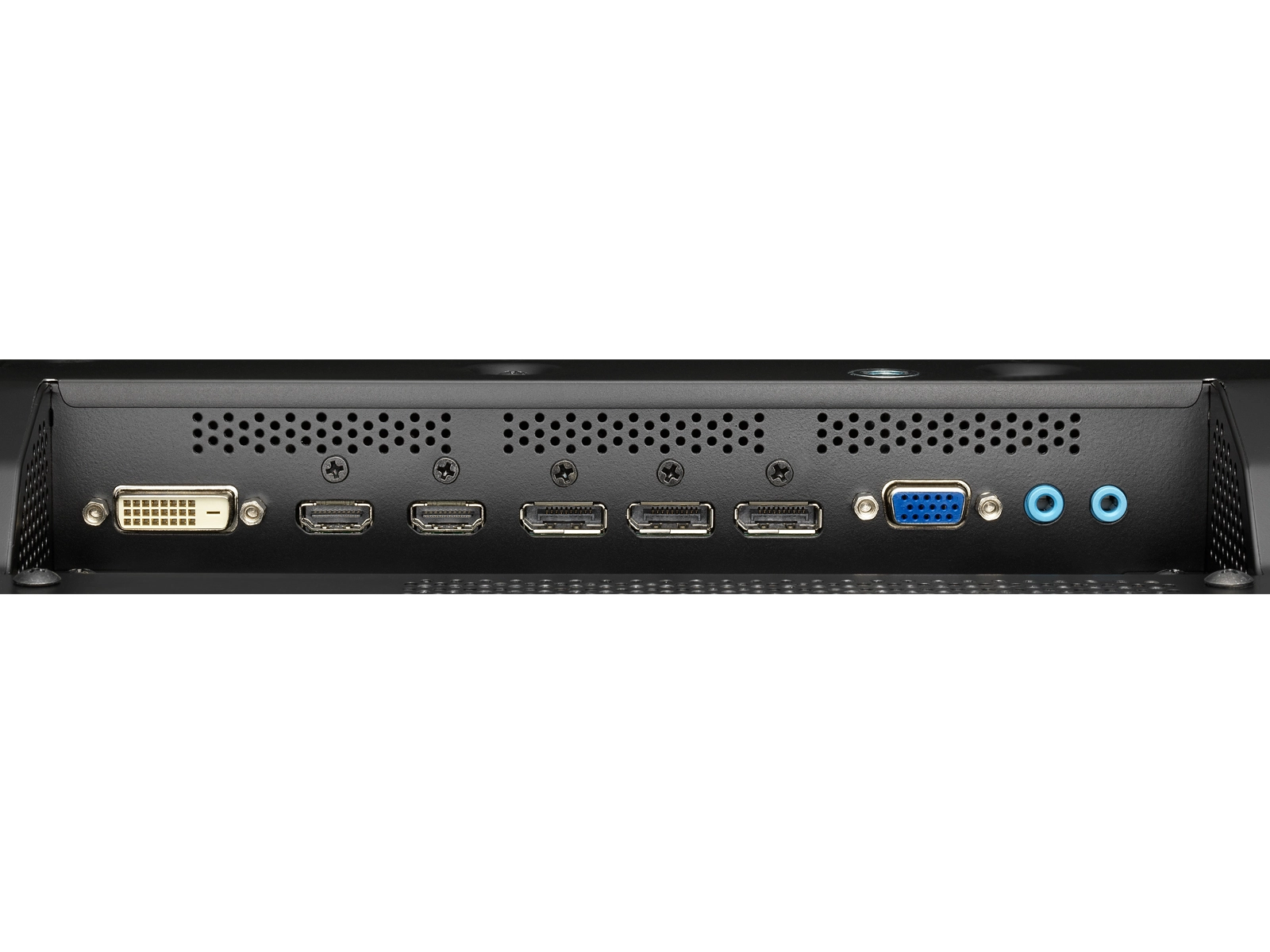

Ports & interfaces
HDMI ports quantity 3
HDMI in 2
Number of HDMI outputs 1
DVI port Y
DVI-D ports quantity 1
VGA (D-Sub) input ports 1
DisplayPorts quantity 3
USB port Y
USB ports quantity 5
Ethernet LAN Y
Ethernet LAN (RJ-45) ports 1
Ethernet LAN data rates 10, 100 Mbit/s
Wi-Fi N
Composite video in 1
PC Audio in Y
RS-232 interface Y
Card reader integrated Y
Compatible memory cards MicroSD (TransFlash)
Audio
Built-in speaker(s) N
Design
Design Video wall
Product colour Black
Placement supported Indoor

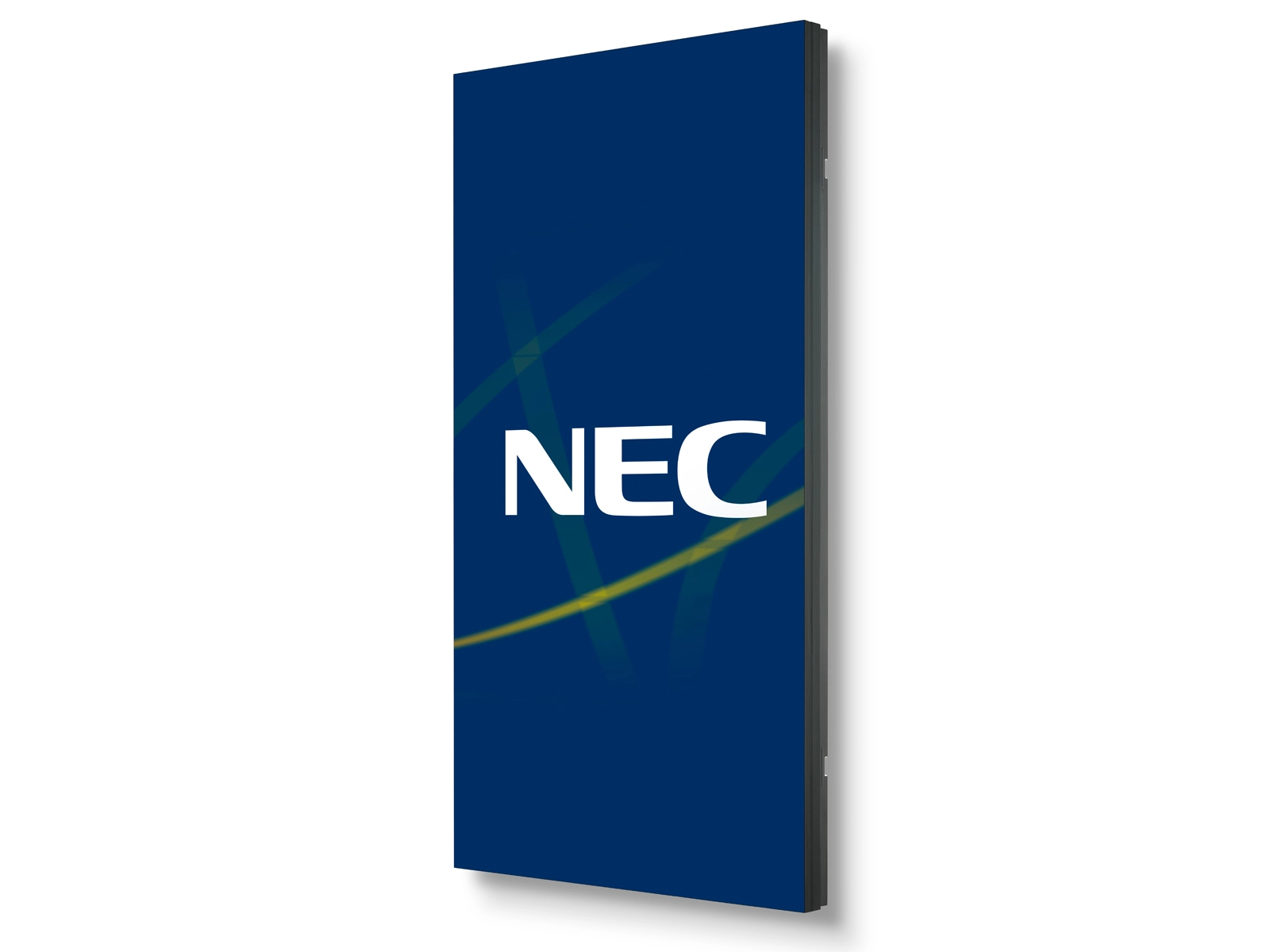

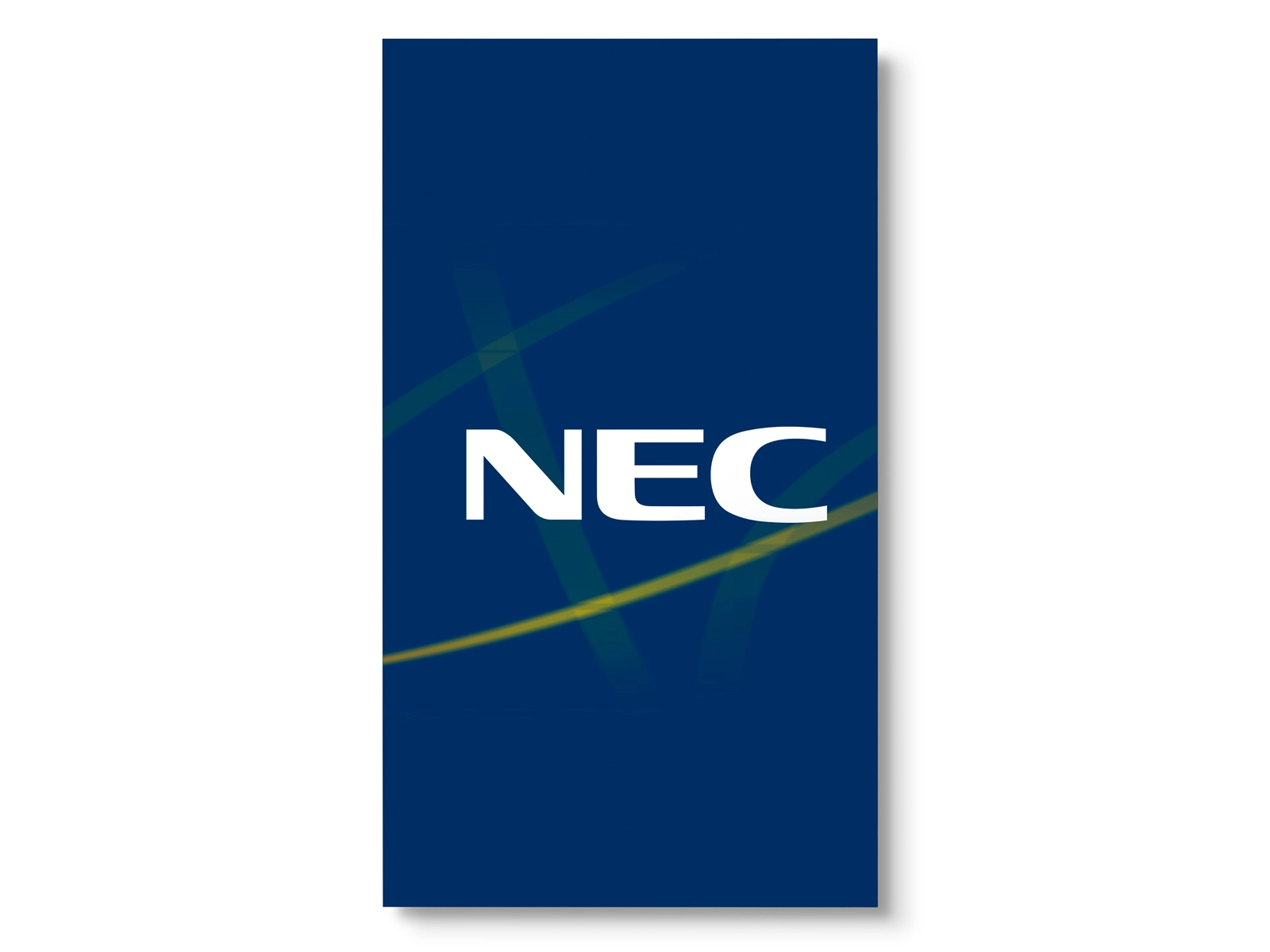

Orientation Horizontal/Vertical
VESA mounting Y
Panel mounting interface 400 x 400 mm
Bezel width (top) 0.44 mm
Bezel width (side) 0.44 mm
Bezel width (bottom) 0.44 mm
Performance
Purpose Universal
Operating hours (hours/days) 24/7
HDCP Y
Power
Power consumption (typical) 225 W
Power consumption (standby) 0.5 W
Annual energy consumption 328 kWu
Computer system
Computer system N
Video formats supported FLV, H.264, MOV, MP4, MPG, WMV
Audio formats supported AAC, MP3, WAV
Image formats supported JPG, PNG
Weight & dimensions
Width 1210.5 mm

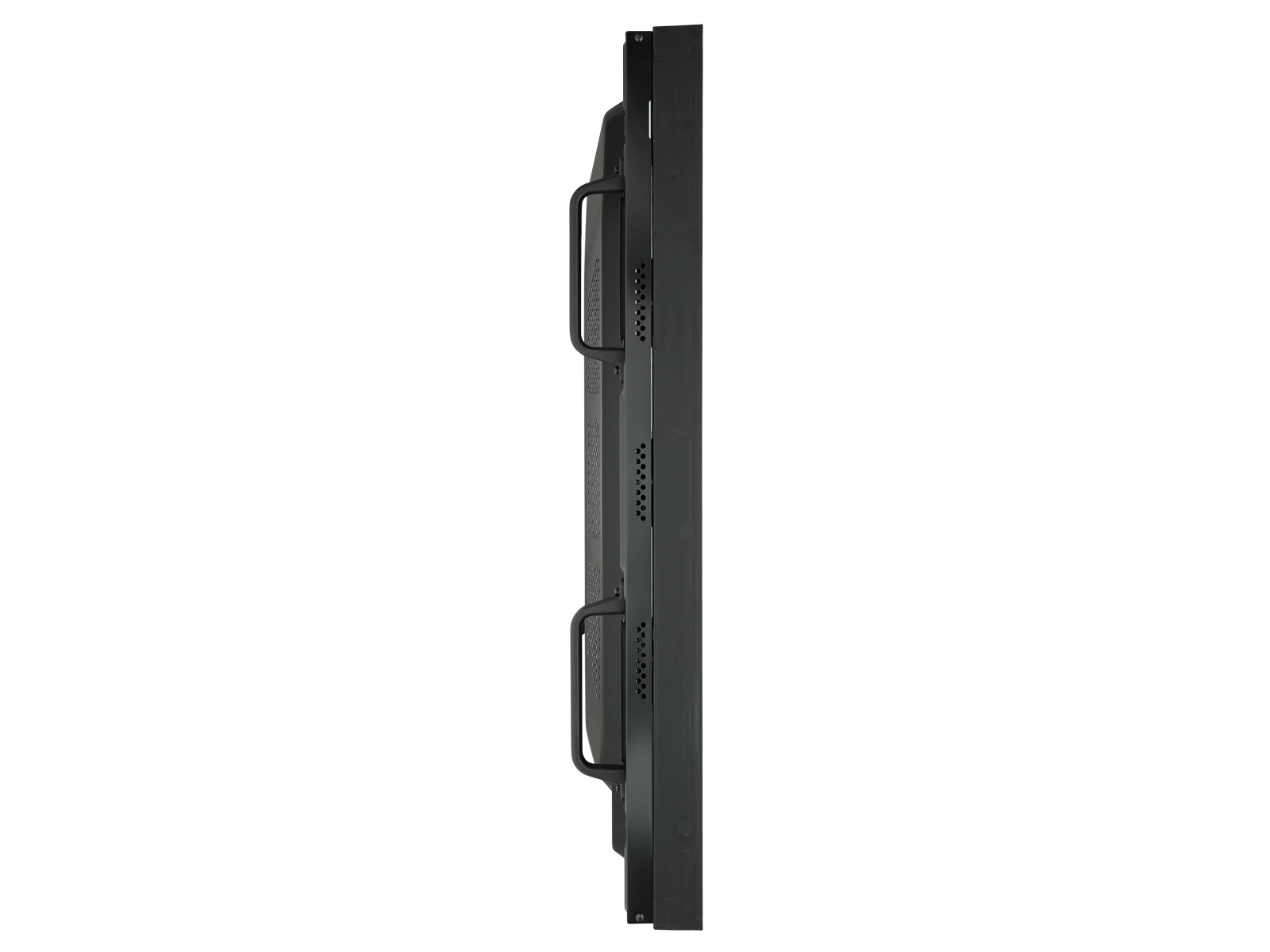

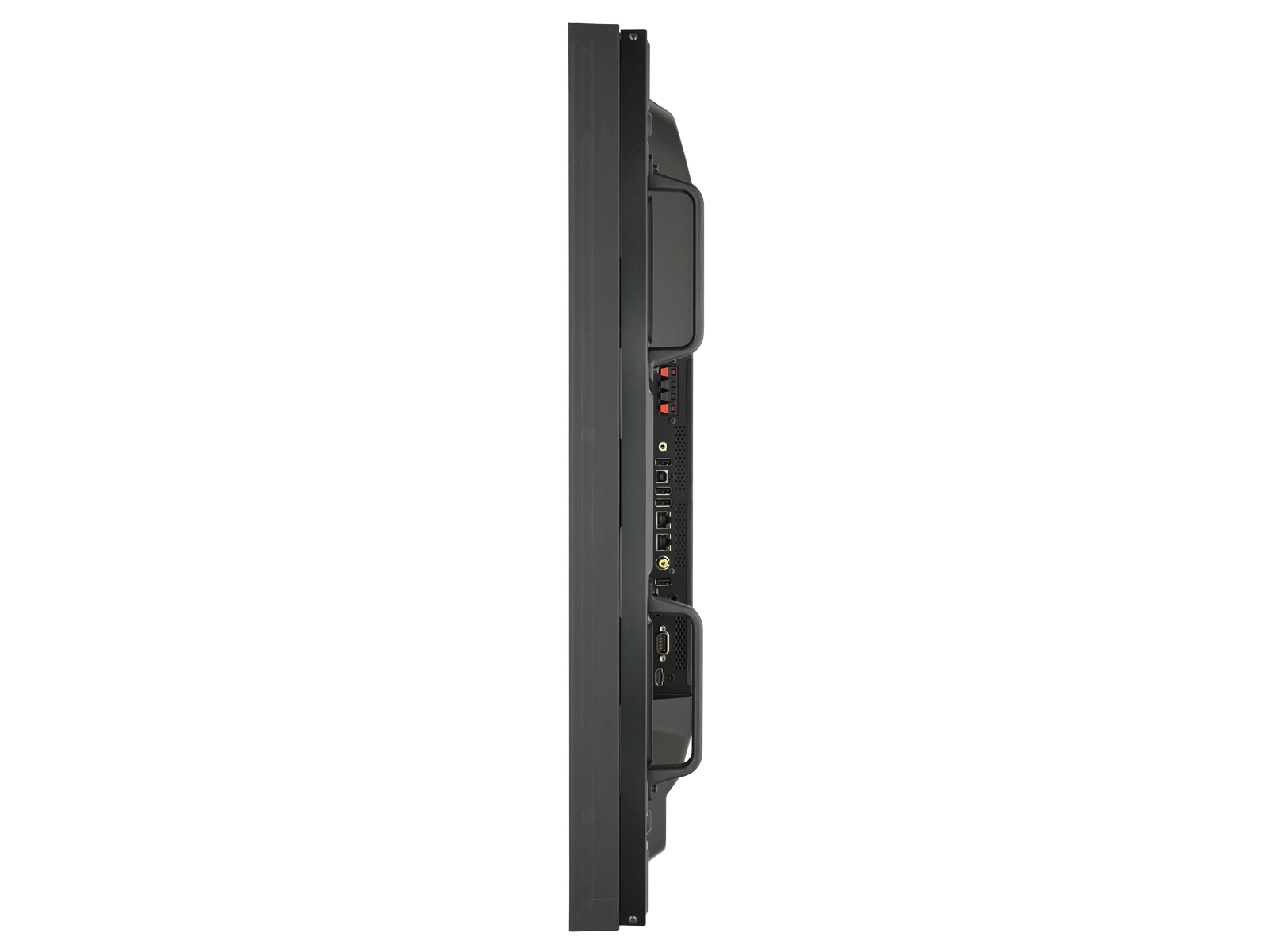

Depth 98.6 mm
Height 681.2 mm
Weight 25800 g
Packaging content
Cables included AC, DisplayPort, HDMI
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Operating relative humidity (H-H) 20 - 80 procent
Storage temperature (T-T) -20 - 60 °C
Storage relative humidity (H-H) 10 - 90 procent
Certificates
RoHS compliance Y
Certification BSMI; CE; EAC; EMC B; FCC; PSB; RCM; REACH; RoHS; SASO; TÜV GS; TÜV S; UL/C-UL; VCCI
Other features
Maximum refresh rate 60 Hz
Energy efficiency class D
