Functionality you need for presentations and digital signage

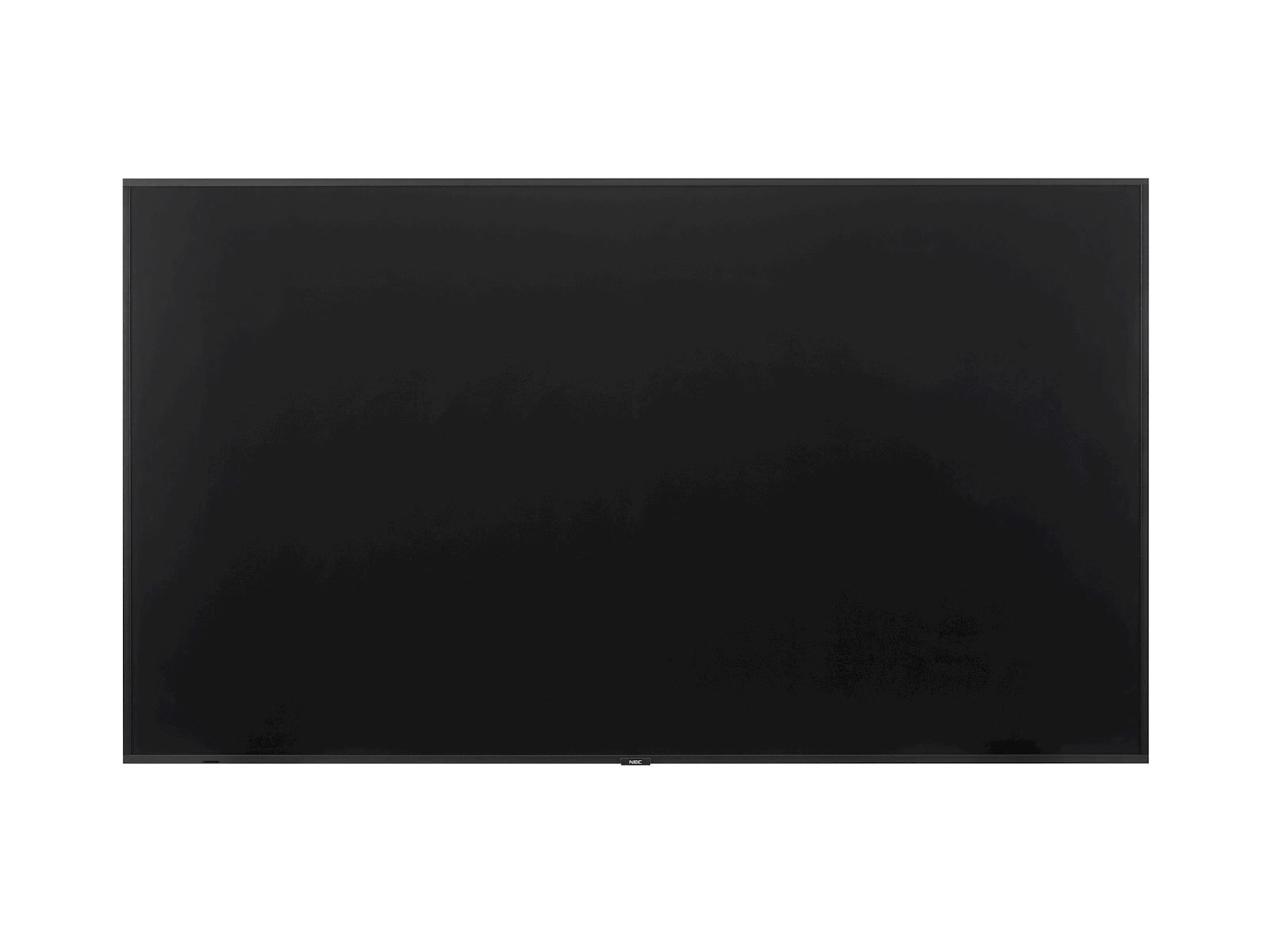

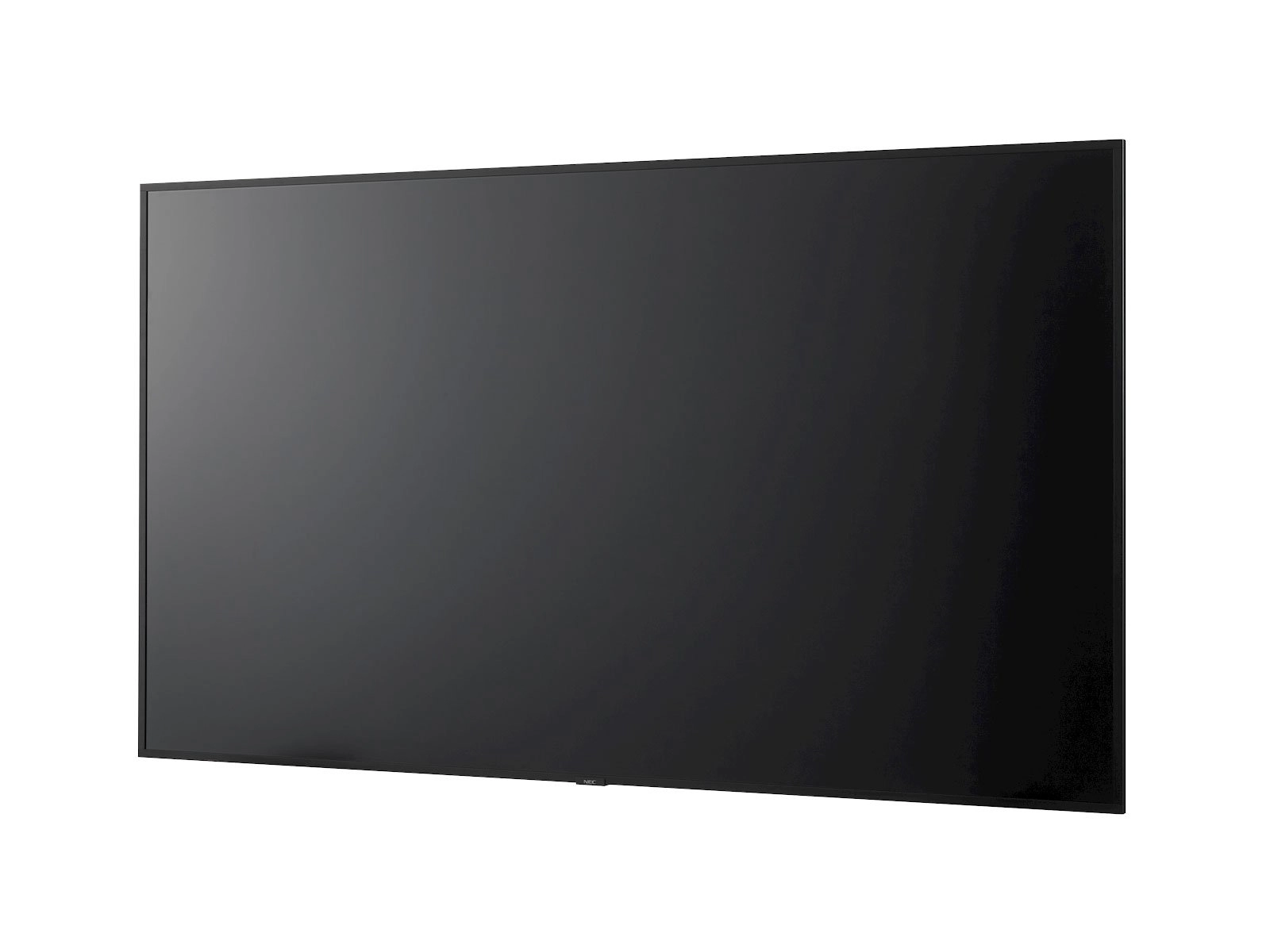

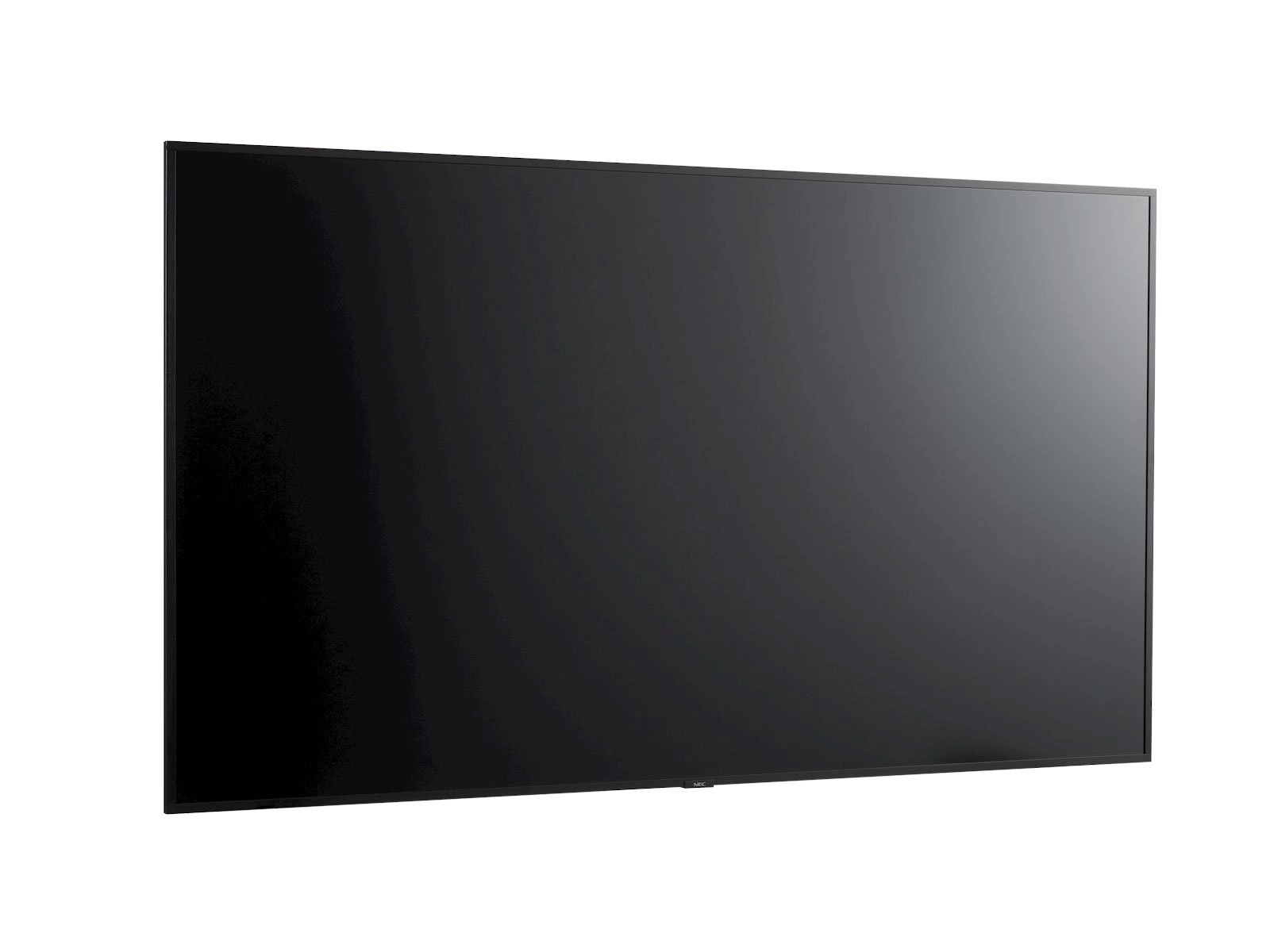

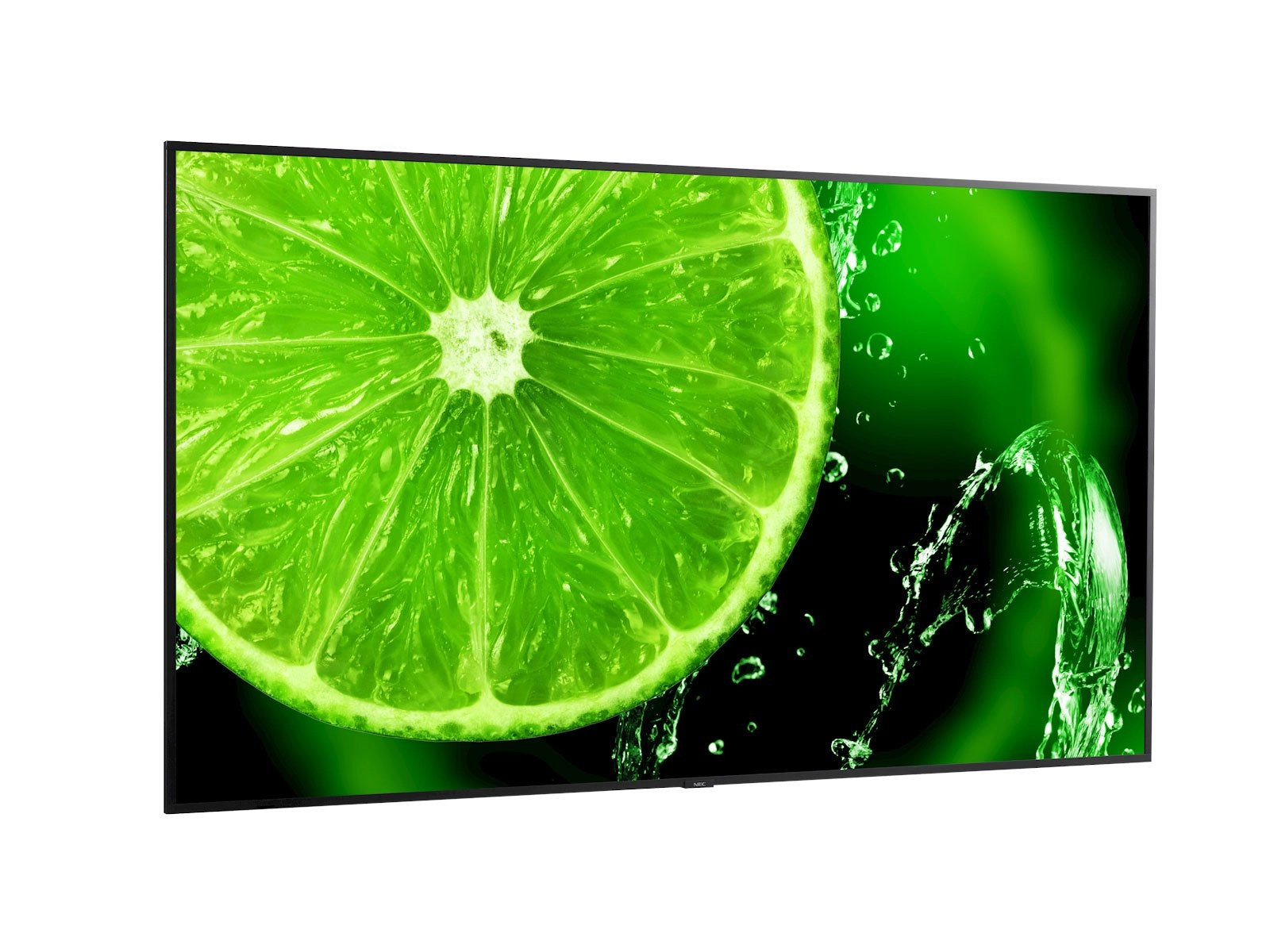

Designed for the rigours of commercial usage, yet at an impressively low total cost of ownership, with 18/7 operating hours the 75-inch MultiSync® E758 Large Format Display delivers the functionality and reliability you need for large meeting rooms and digital signage. The robust metal chassis which naturally dissipates heat is safeguarding long life performance, fire safety and sustainable waste management.

A professional haze level (Pro 28) supports excellent visibility without distracting reflections; combined with brightness of up to 400 cd/m², the E758 meets the demands of today’s meeting room environments. Presenters can feel confident, benefiting from instant meeting start-up, thanks to auto input detection and easy switching between HDMI sources.

An integrated MediaPlayer supports native UHD resolution and High Dynamic Range (HDR) for deep contrasts and natural looking content playback with auto-play function. Requiring no additional cables, external devices or signage software, the USB MediaPlayer enables a simple seamless professional signage solution.

Facilities managers will welcome the ability to remotely control their digital estate via the network thanks to the integrated LAN and NEC NaViSet Administrator 2 functionality making this display the perfect choice for corporate meeting rooms and entry level digital signage.

Specification

Product
Product id	859354
Brand	NEC
Partnr	60005157
EAN/UPC code	5028695125216
Warranty (months)	3 years warranty incl. backlight
Display
Display diagonal	74.5 inch
LED backlight	Y
LED backlighting type	Direct-LED
Display resolution	3840 x 2160 Pixels
Display brightness	400 cd/m²
HD type	4K Ultra HD
Native aspect ratio	16:9
Response time	8 ms
Contrast ratio (typical)	8000:1
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Display number of colours	1.07 billion colours
Pixel pitch	0.43 x 0.43 mm
Active display area (W x H)	1649.7 x 927.9 mm
Display diagonal (metric)	189.3 cm
Native refresh rate	60 Hz
High Dynamic Range (HDR) technology	Hybrid Log-Gamma (HLG)
High Dynamic Range (HDR) supported	Y
Haze rate	25 procent
Horizontal scan range	15 - 136 kHz
Panel type	IPS
Vertical scan range	24 - 75 Hz
Ports & interfaces
HDMI ports quantity	3
DVI port	N
VGA (D-Sub) input ports	1
USB port	Y
USB ports quantity	2
USB version	2.0
Ethernet LAN	Y
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10, 100 Mbit/s
Wi-Fi	N
PC Audio in	Y
RS-232C	Y
PC Audio out	Y
Audio
Built-in speaker(s)	Y
Number of built-in speakers	2
RMS rated power	20 W
Design
Design	Digital signage flat panel
Product colour	Black
Placement supported	Indoor

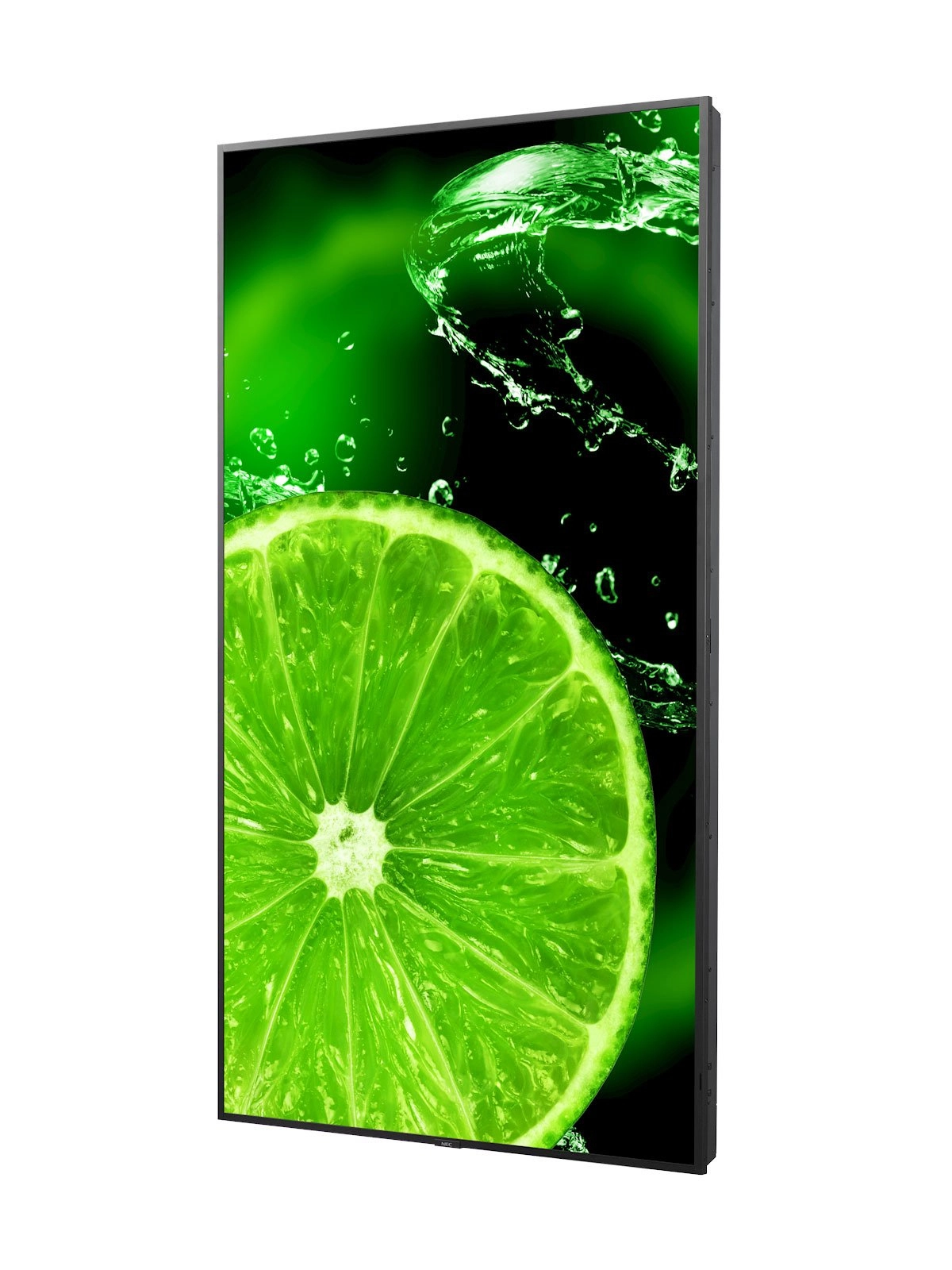

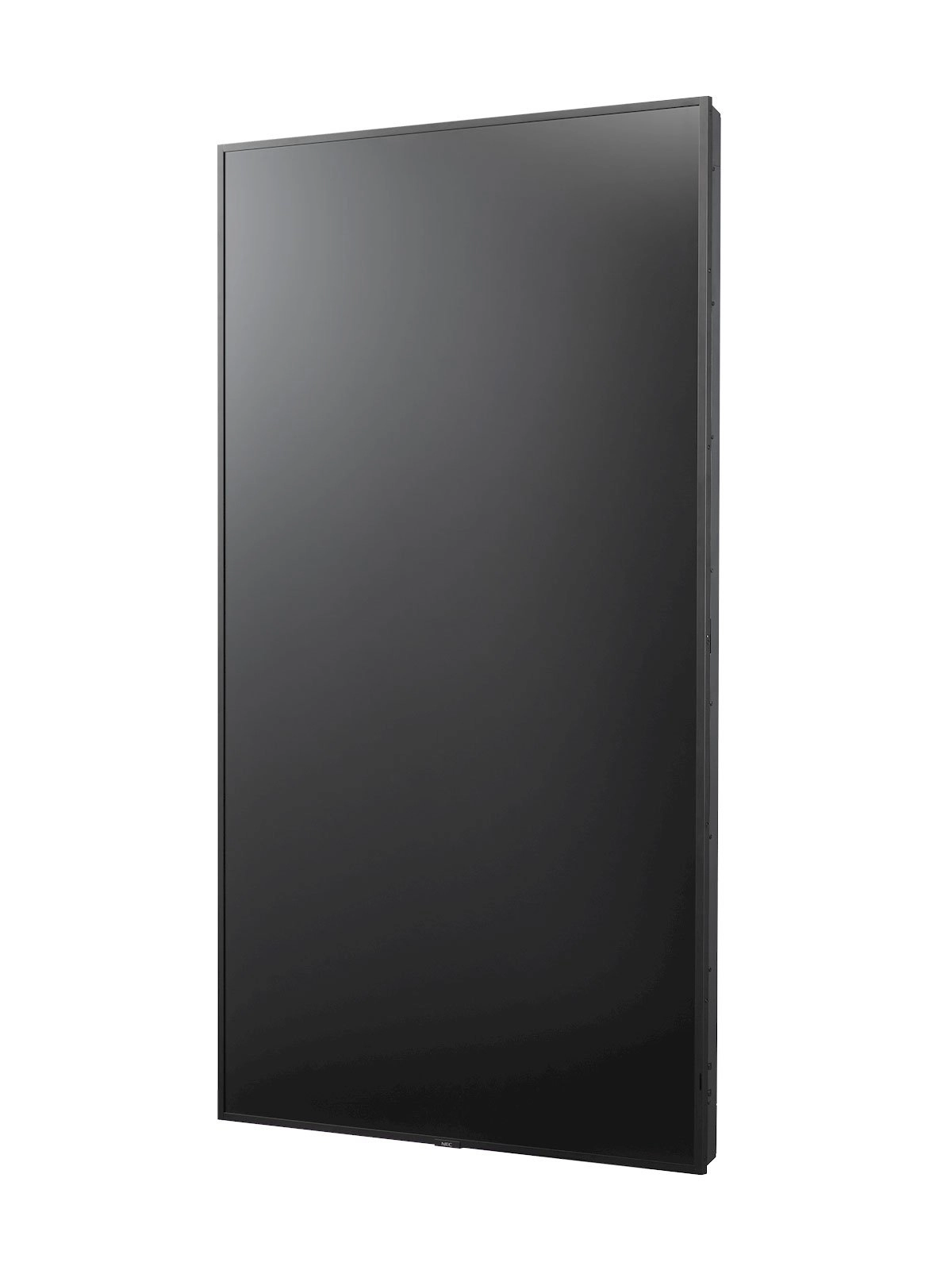

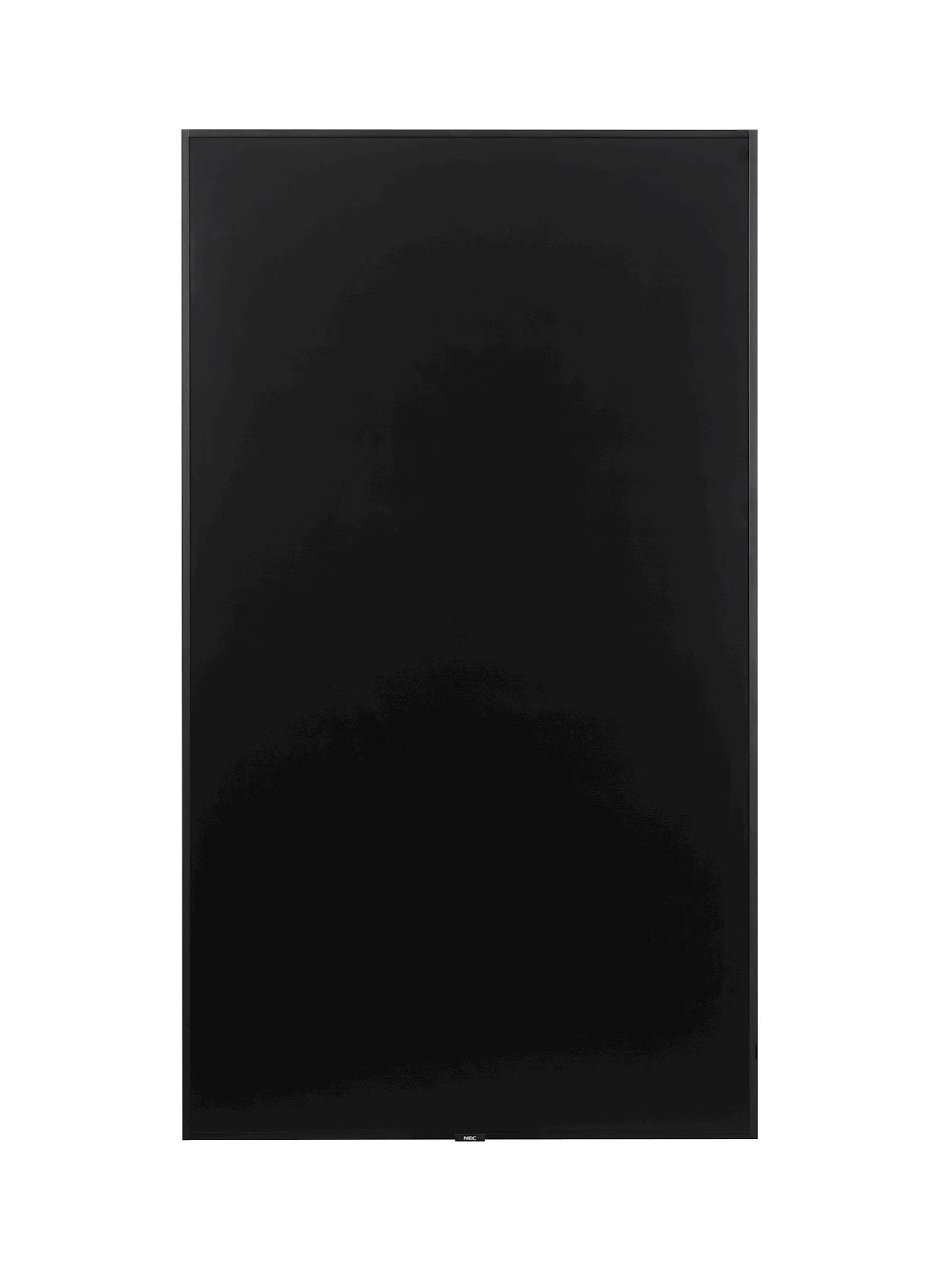

Orientation	Horizontal/Vertical
VESA mounting	Y

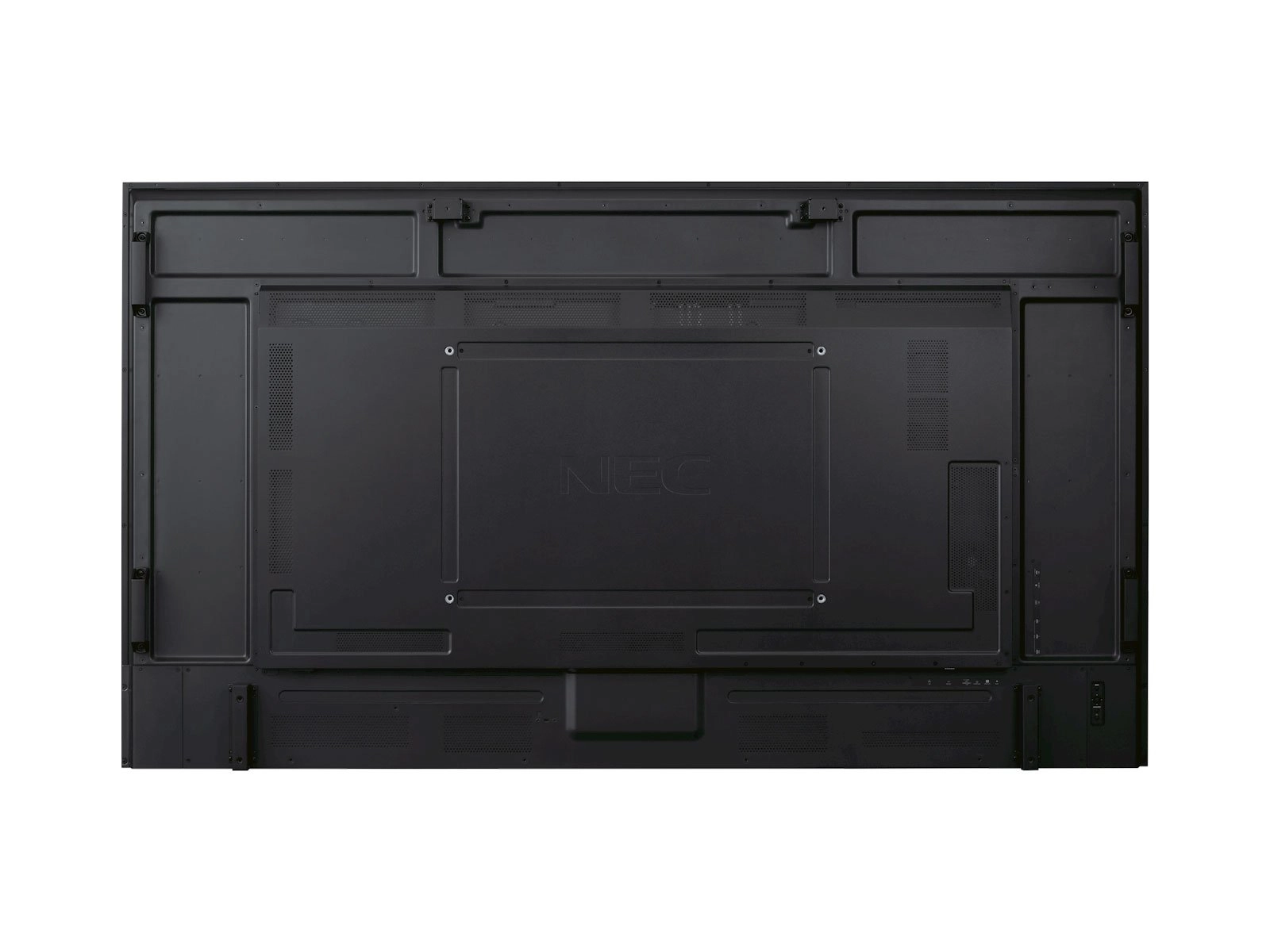

Panel mounting interface	600 x 400 mm
Bezel width (top)	14.3 mm
Bezel width (side)	14.3 mm
Bezel width (bottom)	14.8 mm
Performance
Ambient light sensor	Y
Operating hours (hours/days)	18/7
Power
Power consumption (typical)	145 W
Power consumption (standby)	2 W
Energy efficiency class (SDR)	G
AC input voltage	100-240 V
Energy efficiency class (HDR)	F
AC input frequency	50 - 60 Hz
Energy consumption (SDR) per 1000 hours	128 kWu
Energy consumption (HDR) per 1000 hours	123 kWu
Weight & dimensions
Display width	1682.3 mm

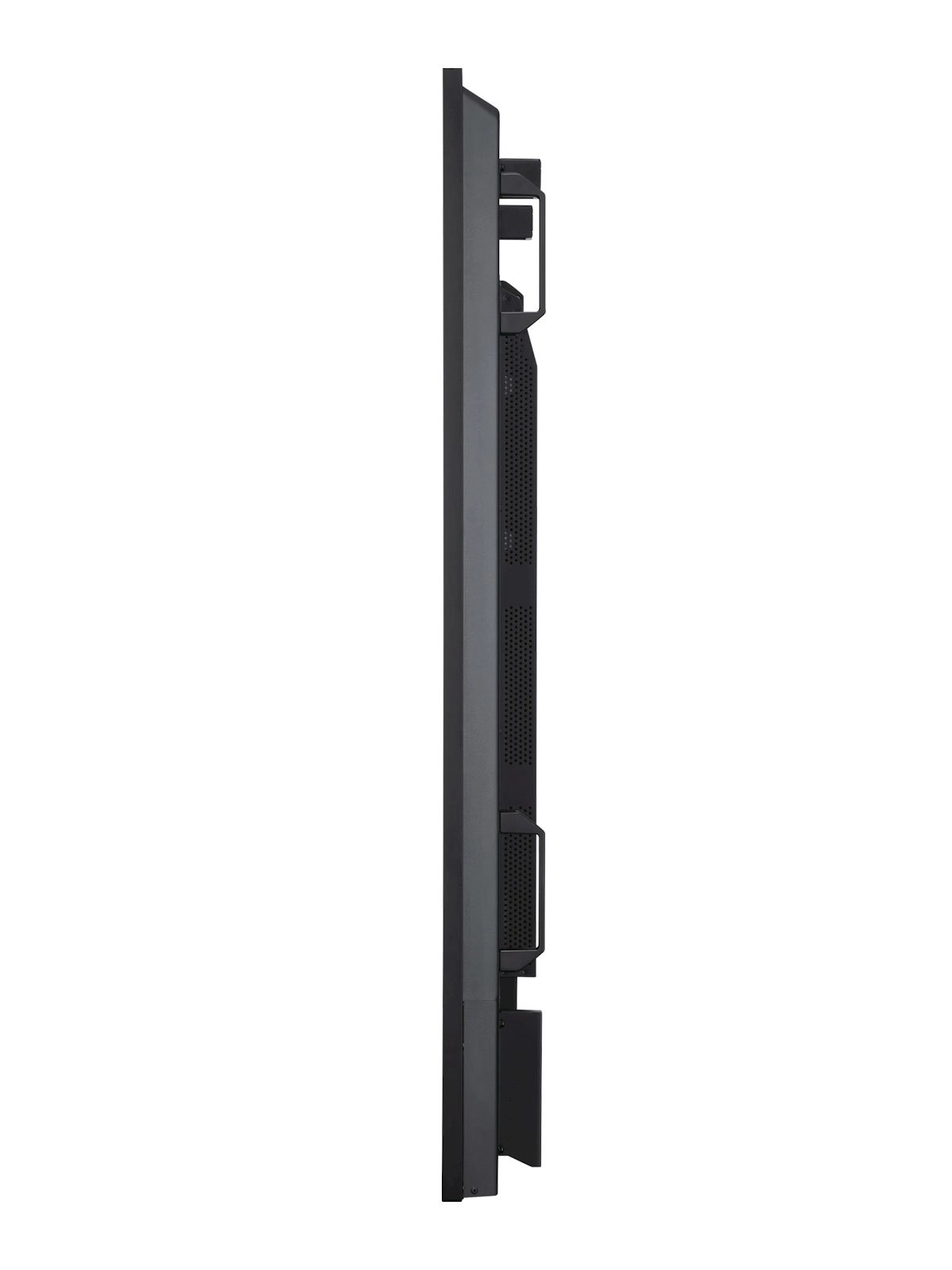

Display depth	83.2 mm
Display height	961.1 mm
Display weight	36300 g
Packaging content
Handheld remote control	Y
Batteries included	Y
Cables included	AC, HDMI
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80 procent
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	10 - 90 procent
Operating altitude	0 - 3000 m
Non-operating altitude	3000 - 12192 m
Technical details
Tuner type	SB-11TM
Dimensions (W x D x H) with stand	1587 x 956.8 x 606 mm
Sustainability certificates	ENERGY STAR
Other features
USB connector type	USB Type-A, USB Type-C
Screws included	Y
Digital tuner	Y
Manual	Y
Digital audio optical out	1
Display technology	LED
Power consumption (max)	145 W
