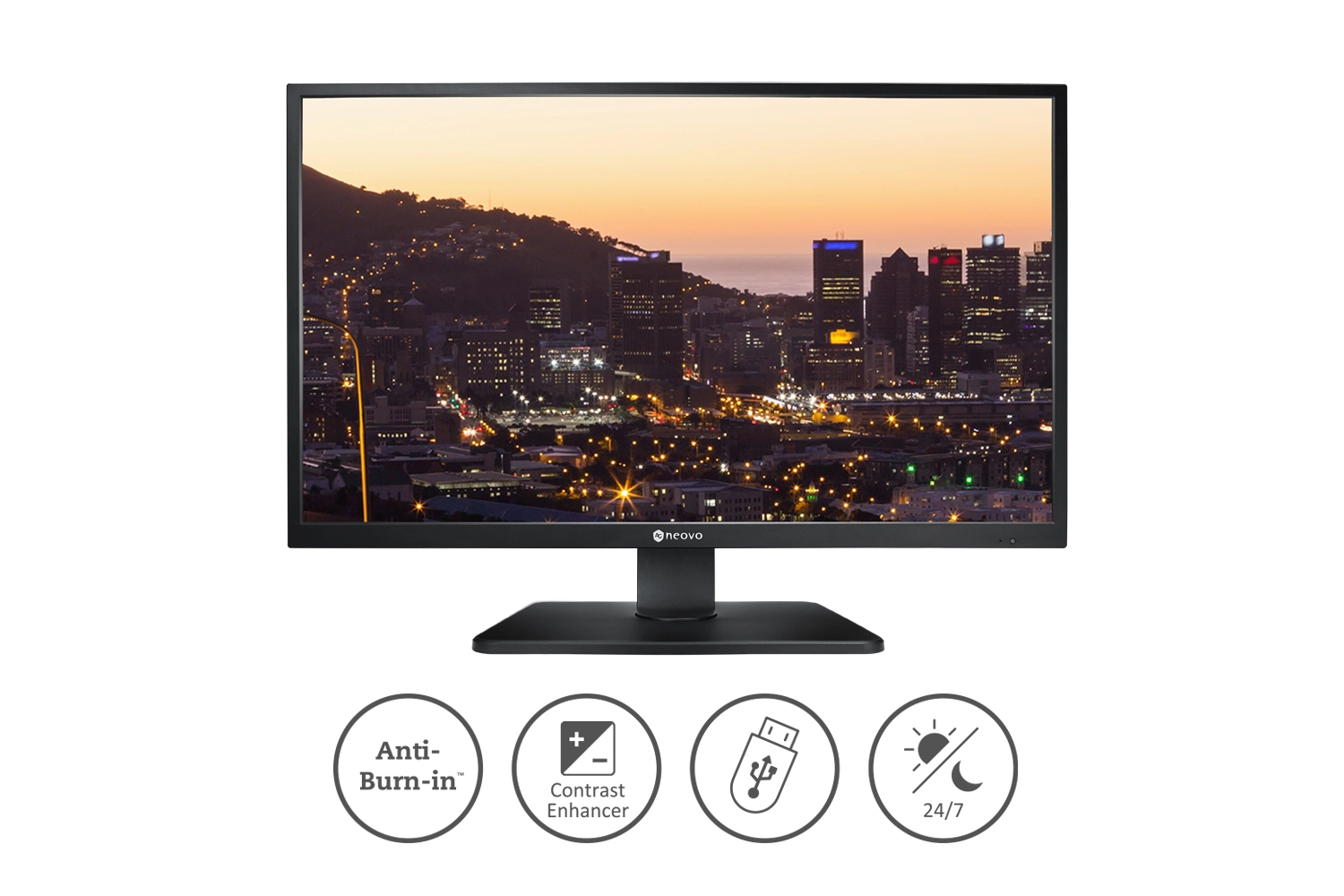

The SC-Series surveillance & security displays designed for 24/7 operation feature Anti-Burn-in™ technology which prevents image retention while performing nonstop in security and surveillance environments. The series also includes enhanced image quality and settings control such as gamma curve selection*, black-level adjustment*, contrast enhancer* and CCTV mode that help create richer images even under unfavourable lighting conditions coming from low light surveillance footage.

ndustry-leading Reliability

The SC-Series is specially designed to transcend the challenge of enduring 24/7 operations. AG Neovo’s Anti-Burn-in™ technology also prevents image ghosting while performing continuous mission-critical operations.

Enhanced Image Clarity

Displays with exceptionally clear images with cutting-edge gamma curve selection*, black-level adjustability*, and high dynamic contrast ratio 20, 000, 000:1; the SC-Series can capture darker details and deliver premium images, thereby enhancing image detail quality. A pre-configured CCTV mode has been geared specifically for surveillance control rooms to adjust the display’s video settings such as sharpness, colour temperature, and brightness to maximise image clarity especially in low light surveillance footage at night.


Adaptable to Your Environment Needs

With adaptability in mind, the SC-Series provides an array of configurations designed to help you tailor the display to your surveillance needs. This includes on/off toggles for the blue screen or the power LED* and selectable aspect ratios including 16:9, 4:3, 1:1* or even a custom zoom mode which helps accommodate the display to the conditions of your control room regardless of the input signal.

Specification

Product
Product id	663629
Brand	AG Neovo
Partnr	SC32E
EAN/UPC code	4710739595796
Design
Product colour	Black
Product type	CCTV monitor
Certification	CE, LVD, WEEE, RoHS, REACH, FCC
Mounting type	Freestanding
Display
Display diagonal	31.5 inch
Display resolution	1920 x 1080 Pixels
Viewing angle, horizontal	178 °
Display type	LCD
Viewing angle, vertical	178 °
Display brightness	300 cd/m²
Display number of colours	16.78 million colours
Pixel pitch	0.364 x 0.364 mm
Horizontal scan range	30 - 85 kHz
Vertical scan range	48 - 75 Hz
Contrast ratio (typical)	20000000:1
Response time	5 ms
Performance
Built-in speaker(s)	Y
Number of built-in speakers	2
VESA mounting	Y
Speaker power	3 W
Panel mounting interface	100 x 100 mm
Cable lock slot	Y
Cable lock slot type	Kensington

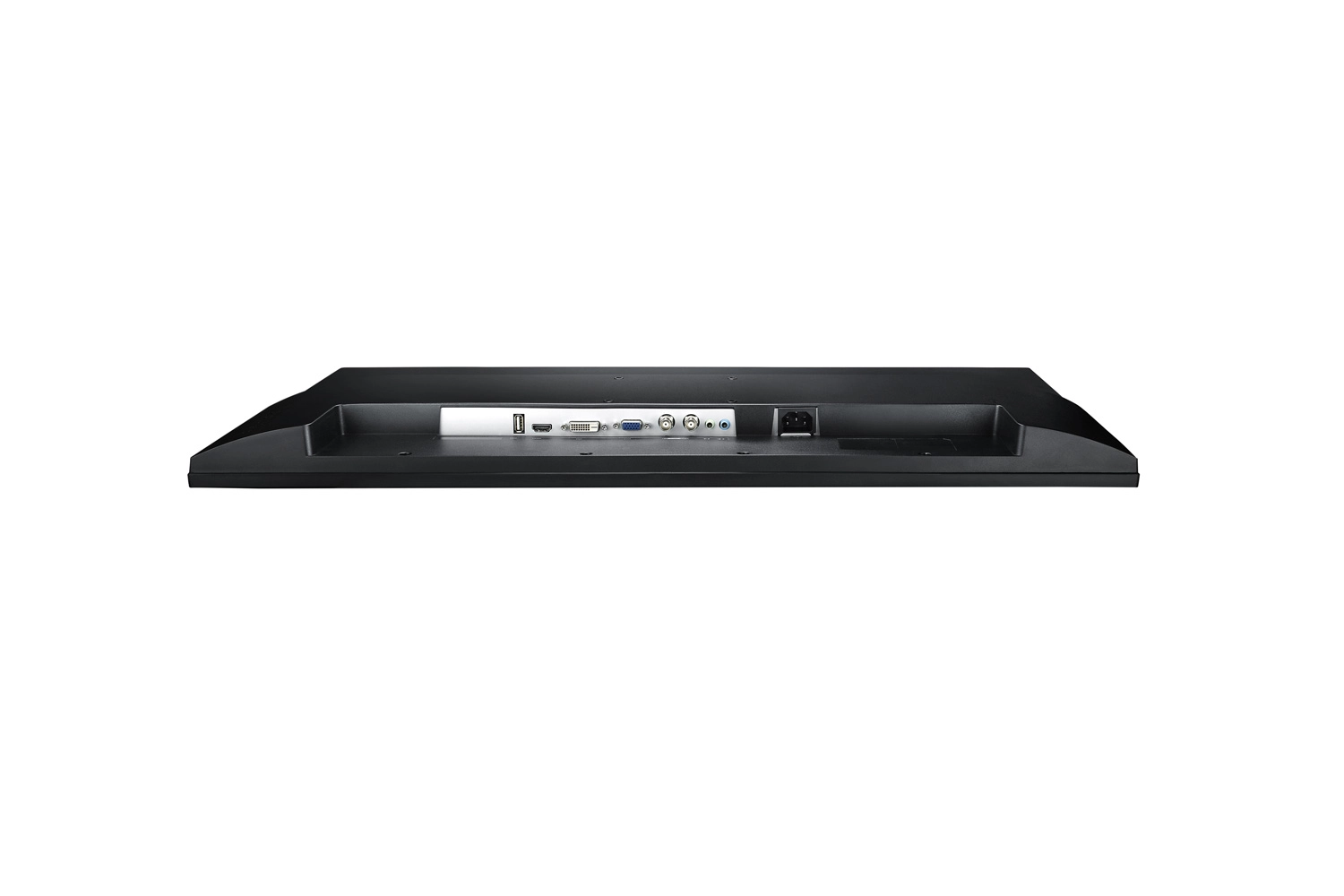

Ports & interfaces
HDMI ports quantity	1
VGA (D-Sub) ports quantity	1
HDMI version	1.4
DVI-D ports quantity	1
Composite video in	1
USB 2.0 ports quantity	1
Composite video out	1
3.5 mm (1/8-inch) in	Y
3.5 mm (1/8-inch) out	Y
Power
Power consumption (standby)	0.5 W
Power source type	AC
Power consumption (typical)	46 W
Power consumption (off)	0.5 W
AC adapter output voltage	100 - 240 V
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 85 procent
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	5 - 85 procent
Weight & dimensions
Weight	5600 g
Height	540 mm
Depth	51 mm
Width	728.8 mm
Package width	810 mm
Package depth	210 mm
Package height	528 mm
Package weight	10500 g
Packaging content
Quantity	1
