Enhanced Gamma Selection
Selectable gamma curves visually optimise different kinds of images. The AG Neovo specialised image settings enhance colour, brightness, sharpness and contrast ratio, allowing the X-Series to improve the light, shadows and colour balance of videos.

Versatility, Productivity and Compatibility
Visualize critical data and engage with multiple video sources and PC applications with versatile connectivity options, including DisplayPort and HDMI, and PiP/PbP to increase productivity and efficiency. Selectable aspect ratio and zoom functions provide compatibility with different video sources.

High Reliability
Designed for 24/7 operation, these durable metal-housed displays protected with NeoV™ Optical Glass take advantage of superior components to ensure a long product lifetime.

Specification

Product
Product id	601961
Brand	AG Neovo
Partnr	X-17E
EAN/UPC code	4710739594898
Display
Display diagonal	17 inch
Display resolution	1280 x 1024 Pixels
Native aspect ratio	5:4
Panel type	TFT
Display brightness (typical)	250 cd/m²
Response time	3 ms
HD type	SXGA
Display technology	LED
Backlight type	LED
Screen shape	Flat screen
Supported graphics resolutions	1280 x 1024 (SXGA)
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	170 °
Viewing angle, vertical	160 °
Display number of colours	16.78 million colours
3D	N
Pixel pitch	0.264 x 0.264 mm
Horizontal scan range	15 - 81 kHz
Vertical scan range	50 - 85 Hz
Performance
Flicker-free technology	Y
Multimedia
Built-in speaker(s)	Y
Built-in camera	N
Number of speakers	2
RMS rated power	4 W
Design
Market positioning	Medical
Product colour	Black
Certification	CB, CE, RoHS, WEEE, REACH, EuP/Erp
Ports & interfaces
Built-in USB hub	N
VGA (D-Sub) ports quantity	1
DVI port	Y
DVI-D ports quantity	1
HDMI	Y
HDMI ports quantity	1
HDMI version	1.4
DisplayPorts quantity	1
DisplayPort version	1.2a
Audio input	Y
Ergonomics

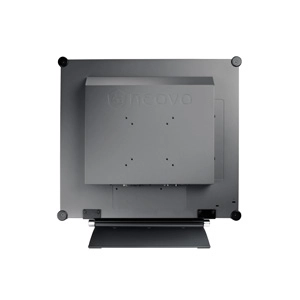

VESA mounting	Y
Panel mounting interface	75 x 75, 100 x 100 mm
Cable lock slot	Y
Cable lock slot type	Kensington
Height adjustment	N
Tilt angle range	0 - 20 °
Picture-in-Picture	Y
Tilt adjustment	Y
Packaging data
Stand included	Y
Cables included	AC, Audio (3.5mm), VGA
Quick start guide	Y
Package width	506 mm
Package depth	225 mm
Package height	506 mm
Package weight	7500 g
Power
Energy efficiency class (SDR)	E
Energy consumption (SDR) per 1000 hours	13 kWu
Power consumption (typical)	19 W
Power consumption (standby)	0.5 W
Energy efficiency scale	A to G
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	10 - 90 procent
Storage relative humidity (H-H)	5 - 95 procent
Weight & dimensions
Width (with stand)	409.4 mm
Depth (with stand)	175 mm
Height (with stand)	398.2 mm
Weight (with stand)	5200 g
Logistics data
Harmonized System (HS) code	85285210
Other features
AC adapter included	Y
Touchscreen	N
