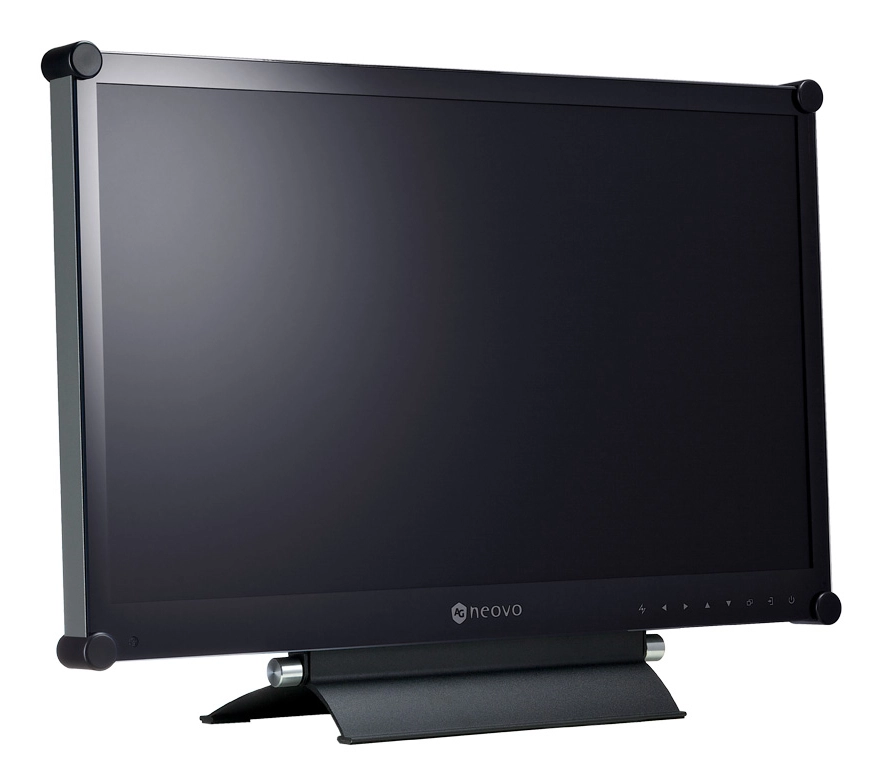

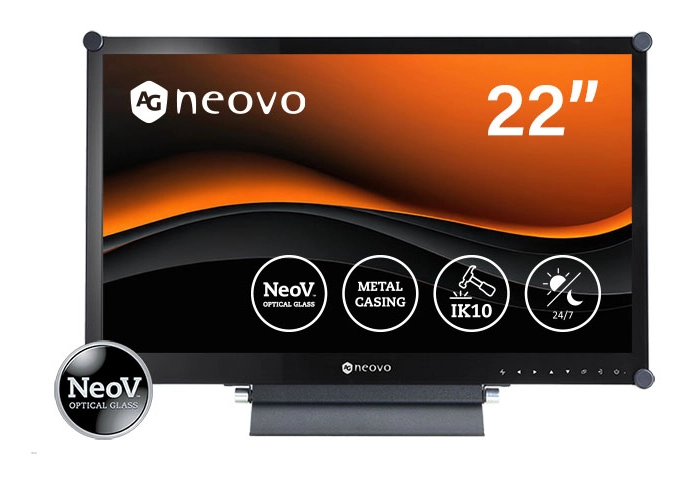

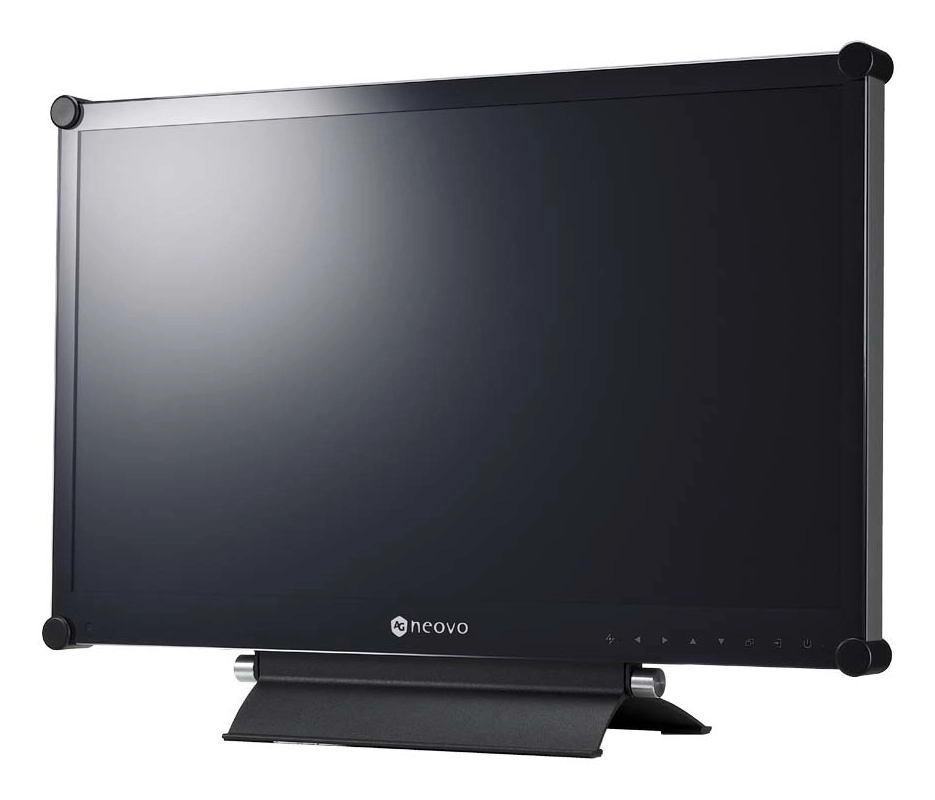

The X-2202 semi-industrial monitor with the metal casing is designed for reliable 24/7 operation in demanding environments. With selectable gamma curves and versatile connectivity, this monitor provides an optimal visual experience with excellent colour, brightness, and contrast ratio. NeoV Optical Glass screen and corrosion-resistant metal casing shield it from scratches and chemical exposure which make it ideal for public, laboratory, and light industrial applications.

Protective Glass to Withstand Chemical Exposure
The NeoV Optical Glass attached to the X-2202 screen is scratch-resistant with anti-acid and anti-alkali coating treatment and tough enough to withstand repeated cleaning.

Durable in Light Industrial Environment

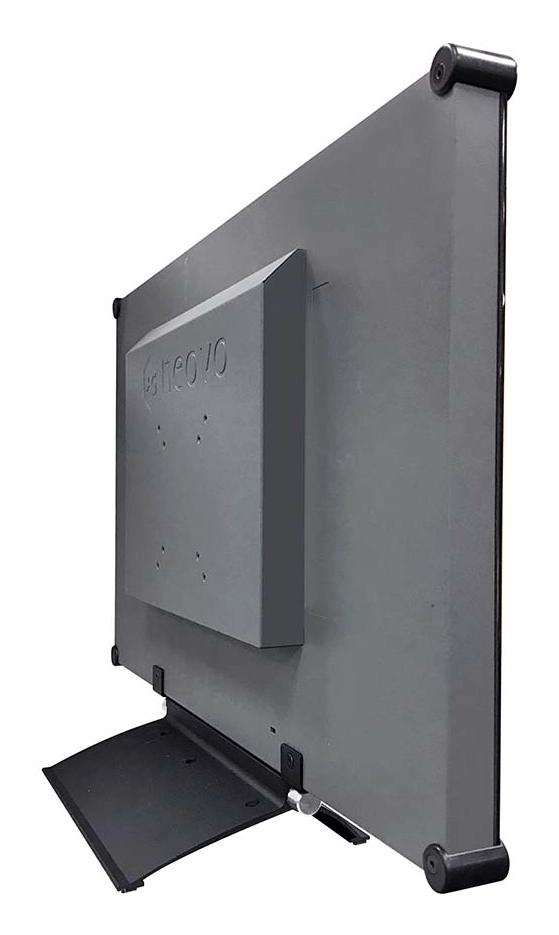

Its corrosion-resistant metal casing provides enhanced heat dissipation, making the X-2202 semi-industrial monitor durable for demanding environments.

Versatility, Productivity and Compatibility

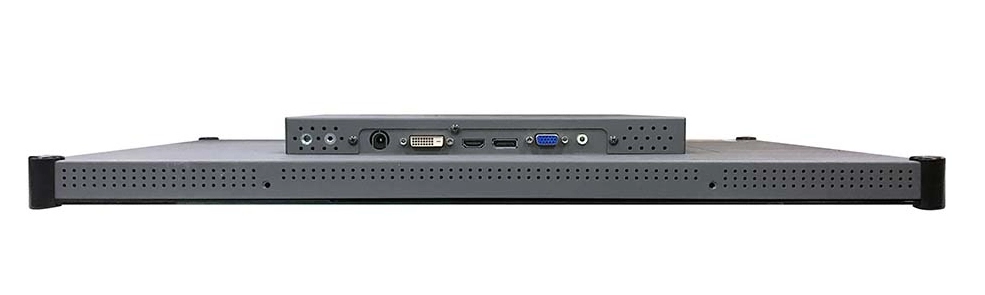

The X-2202 allows viewing critical data and engaging multiple video sources with versatile connectivity, including DisplayPort, HDMI, DVI, and VGA. The PIP/PBP option allows for increased productivity and efficiency. Selectable aspect ratio and zoom functions provide compatibility with different video sources.

Patented Anti-Burn-In Technology
AG Neovo’s patented Anti-Burn-in technology tackles the LCD monitor burn-in effect, otherwise known as a ghost image on the screen. Burn-in images result in the polarisation of the liquid crystal material contained within the TFT LCD panel. The Anti-Burn-in technology prolongs the lifetime of AG Neovo monitors featuring this technology to secure user’s investment.

Consistent Design with A Longer Lifetime
Replacing AG Neovo semi-industrial monitors never requires users to change their whole infrastructure. This is because AG Neovo offers a consistent form factor and long product life cycles. Even as technology advances, no change is made to exterior dimensions or design.

Enhanced Gamma Correction
Selectable gamma curves visually optimise different kinds of images. The AG Neovo specialised image settings enhance colour, brightness, sharpness and contrast ratio, allowing the X-2202 semi-industrial monitor with a metal casing to improve the light, shadows and colour balance of videos.

Specification

Product
Product id	1029557
Brand	AG Neovo
Partnr	X2202
EAN/UPC code
Network
Wi-Fi	N
Bluetooth	N
Display
Display diagonal	21.5 inch
Display resolution	1920 x 1080 Pixels
Native aspect ratio	16:9
Panel type	IPS
Display brightness (typical)	250 cd/m²
Response time	5 ms
HD type	Full HD
Display technology	LCD
Anti-glare screen	Y
Screen shape	Flat screen
Contrast ratio (typical)	1000:1
Contrast ratio (dynamic)	20000000:1
Maximum refresh rate	75 Hz
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Display number of colours	16.7 million colours
Horizontal scan range	24 - 83 kHz
Vertical scan range	50 - 75 Hz
DDC/CI	Y
Surface hardness	9H
NTSC coverage (typical)	72 procent
Performance
NVIDIA G-SYNC	N
AMD FreeSync	N
Multimedia
Built-in speaker(s)	Y
Built-in camera	N
Number of speakers	2
RMS rated power	2 W
Built-in microphone	N
Design
Market positioning	Office
Product colour	Black
Housing material	Plastic
Refurbished	N
Front bezel colour	Black
Detachable stand	Y
Feet colour	Black
Ports & interfaces
Built-in USB hub	N
VGA (D-Sub) ports quantity	1
DVI port	Y
DVI-D ports quantity	1
HDMI	Y
HDMI ports quantity	1
HDMI version	1.4
DisplayPorts quantity	1
Audio input	Y
PC Audio in	Y
Ergonomics
VESA mounting	Y
Panel mounting interface	100 x 100, 75 x 75 mm
Cable lock slot	Y
Cable lock slot type	Kensington
Height adjustment	N
Swivelling	N
Pivot	N
Wall mountable	Y
Tilt angle range	0 - 15 °
Picture-in-Picture	Y
Tilt adjustment	Y
On Screen Display (OSD)	Y
Plug and Play	Y
Packaging data
Stand included	Y
Cables included	Audio, Power, VGA
Power adapter included	Y
Quick start guide	Y
Package width	614 mm
Package depth	204 mm
Package height	477 mm
Power
Energy efficiency class (SDR)	E
Energy consumption (SDR) per 1000 hours	15 kWu
Power consumption (typical)	15 W
Energy efficiency class (HDR)	Not available
Power consumption (standby)	0.5 W
Power consumption (off)	0.3 W
Input current	3.33 A
AC adapter output voltage	12 V
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 85 procent
Storage relative humidity (H-H)	5 - 95 procent
Weight & dimensions
Width (with stand)	513.2 mm
Depth (with stand)	155 mm
Height (with stand)	368.5 mm
Weight (with stand)	6800 g
Width (without stand)	513.2 mm
Depth (without stand)	56.2 mm
Height (without stand)	324.3 mm
Other features
Power supply type	External
Touchscreen	N
Ethernet LAN	N
