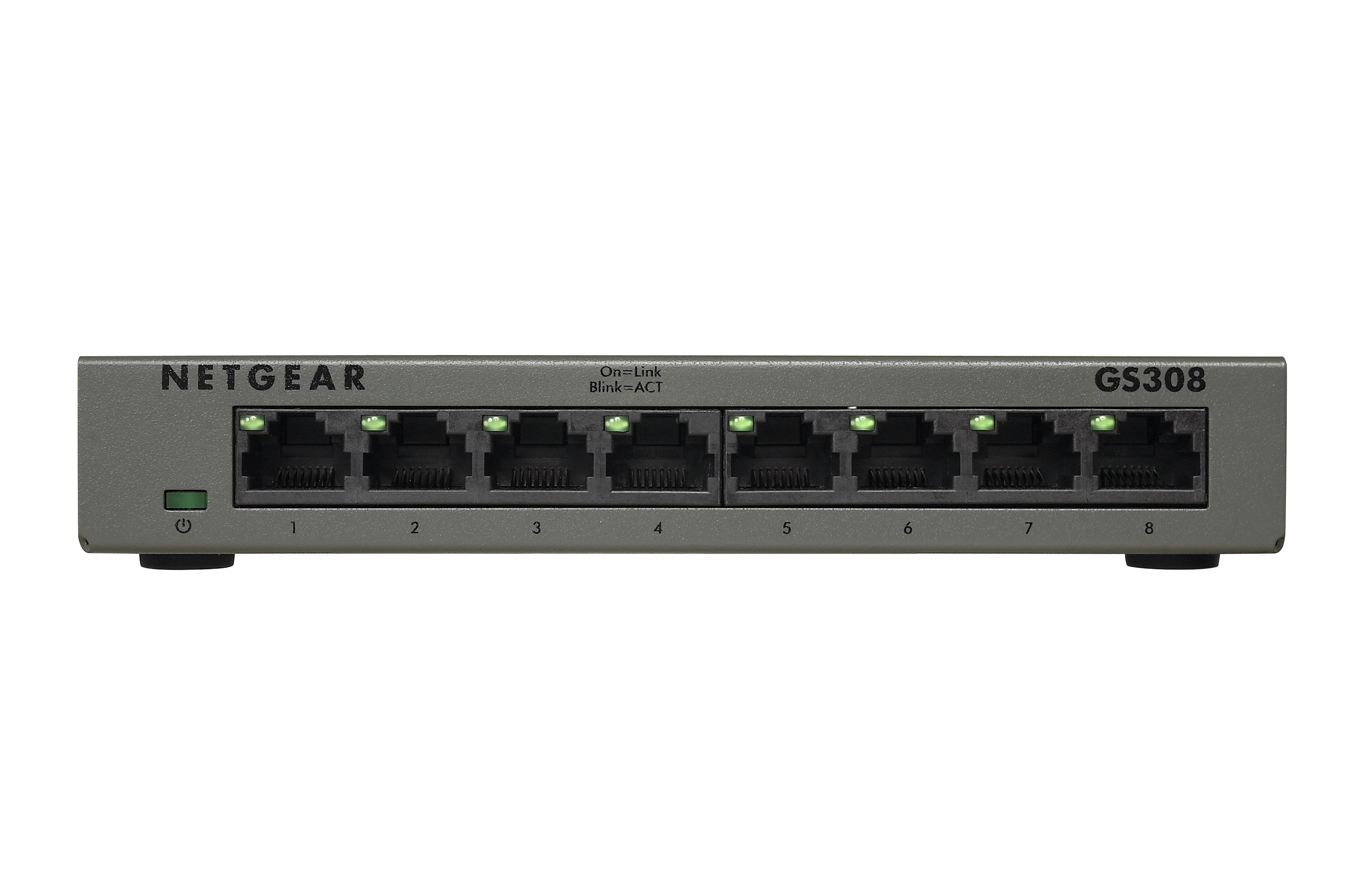

SOHO Ethernet Switch Series
Expanding Wired Connectivity for SOHO Networks

The NETGEAR SOHO Ethernet Unmanaged Switches provide easy and affordable network connectivity to small offices and home/offices. They are easy to use, reliable, and rugged with metal enclosures. Power-over-Ethernet (PoE) support is also available for supplying both power and data across a single CAT-5 ethernet cable to devices such as IP security cameras, VoIP phones, wireless access points, etc. With these Plug-and-Play switches, you can quickly and easily expand your network connections to multiple devices, with no configuration required. Available with 5 ports to 48 ports, these switches also support energy saving technologies to help you save power and money.

Specification

Product
Product id	653113
Brand	Netgear
Partnr	GS308-300UKS
EAN/UPC code	606449140156
Data transmission
MAC address table	2000 entries
Switching capacity	16 Gbit/s
Latency (1 Gbps)	2.6 µs
Jumbo frames support	Y
Jumbo frames	9216
Packet forwarding rate (1 Gbps)	1448000 pps
Packet buffer memory	0.128 MB
Network
Networking standards	IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
10G support	Y
Full duplex	Y
Auto MDI/MDI-X	Y
Management features
Switch type	Unmanaged
Quality of Service (QoS) support	Y
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	8
Security
Queue scheduling algorithms	Weighted Round Robin (WRR)
Weight & dimensions
Width	158 mm
Depth	101 mm
Height	29 mm
Weight	390 g
Packaging data
Package weight	648 g
Package width	192 mm
Package depth	228 mm
Package height	60 mm
Power
DC input voltage	12 V
Input current	0.5 A
Power consumption (max)	3.04 W
Endurance
Mean time between failures (MTBF)	3711898 uur
Design
Rack mounting	N
Stackable	N
Product colour	Black
Housing material	Metal
LED indicators	Activity, Link, Power
Wall mountable	Y
Certification	CE Mark, FCC Part 15 Class B, IC Class B, RCM, CCC, VCCI, KC, CB, CE LVD
Operational conditions
Operating altitude	0 - 3000 m
Heat dissipation	10.4 BTU/h
Storage temperature (T-T)	-20 - 70 °C
Storage relative humidity (H-H)	0 - 95 procent
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 90 procent
Performance
Fanless	Y
Power over Ethernet (PoE)
Power over Ethernet (PoE)	N
