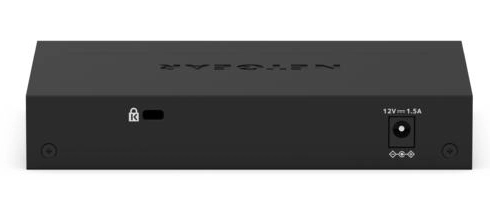

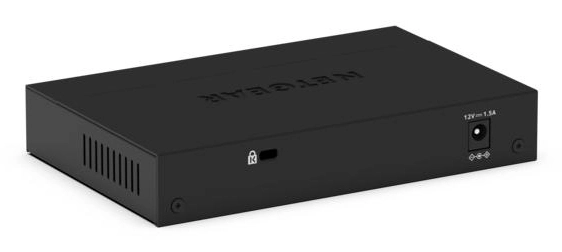

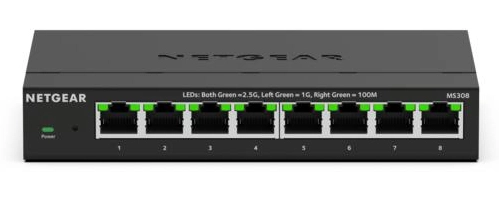

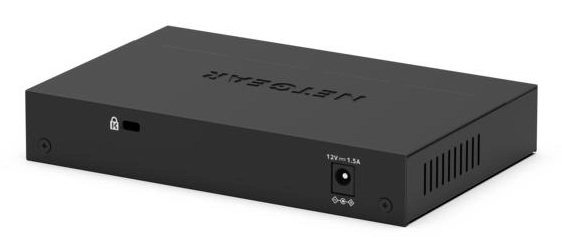

NETGEAR 8-port 2.5G Multi-Gigabit Ethernet Plus Switch

MULTI-GIGABIT ETHERNET
8 ports provide up to 2.5 Gbps of dedicated, non-blocking bandwidth each

NON-BLOCKING SWITCHING
40Gbps (10/100/1000 Mbps) line rate fabric ensures congestion-free connectivity to your devices

AUTO-NEGOTIATION
Automatic connection at the highest common speed between the switch and an end device

FANLESS DESIGN
Silent operation makes this switch perfect for noise-sensitive environments

VERSITILE MOUNTING OPTIONS
Install your switch on your desktop or mount it to your wall with the hardware provided in the box

ENERGY EFFICIENT
Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected

Specification

Product
Product id	969452
Brand	Netgear
Partnr	MS308E-100EUS
EAN/UPC code	606449170658
Warranty (months)	5 years
Data transmission
MAC address table	16000 entries
Switching capacity	40 Gbit/s
Forwarding rate	3.72 Mpps
Latency (1 Gbps)	4.9 µs
Jumbo frames support	Y
Jumbo frames	12288
Packet buffer memory	1 MB
Network
Networking standards	IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
10G support	N
Half duplex	Y
Full duplex	Y
Cable length detection	Y
Auto MDI/MDI-X	Y
Head-of-line (HOL) blocking	Y
Ethernet LAN data rates	100, 1000, 2500 Mbit/s
Management features
Switch type	Unmanaged
Quality of Service (QoS) support	Y
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	2.5G Ethernet (100/1000/2500)
Weight & dimensions
Width	158 mm
Depth	101 mm
Height	27 mm
Weight	430 g
Power
Power source	DC
Power supply included	Y
DC input voltage	12 V
Input current	1 A
Power consumption (max)	8.1 W
Endurance
Mean time between failures (MTBF)	3309911 uur
Design
Rack mounting	N
Stackable	N
Product colour	Black
Housing material	Metal
LED indicators	Y
Wall mountable	Y
Operational conditions
Operating altitude	0 - 3000 m
Heat dissipation	8.27 BTU/h
Storage temperature (T-T)	-20 - 70 °C
Storage relative humidity (H-H)	0 - 95 procent
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 90 procent
Performance
Fanless	Y
Technical details
Warranty period	5 jaar
Compliance certificates	CCC, Low Voltage Directive (LVD)
Power over Ethernet (PoE)
Power over Ethernet (PoE)	N
Other features
Input voltage	12 V
