NETGEAR Smart Managed Pro Switches with Optional Remote/Cloud Management

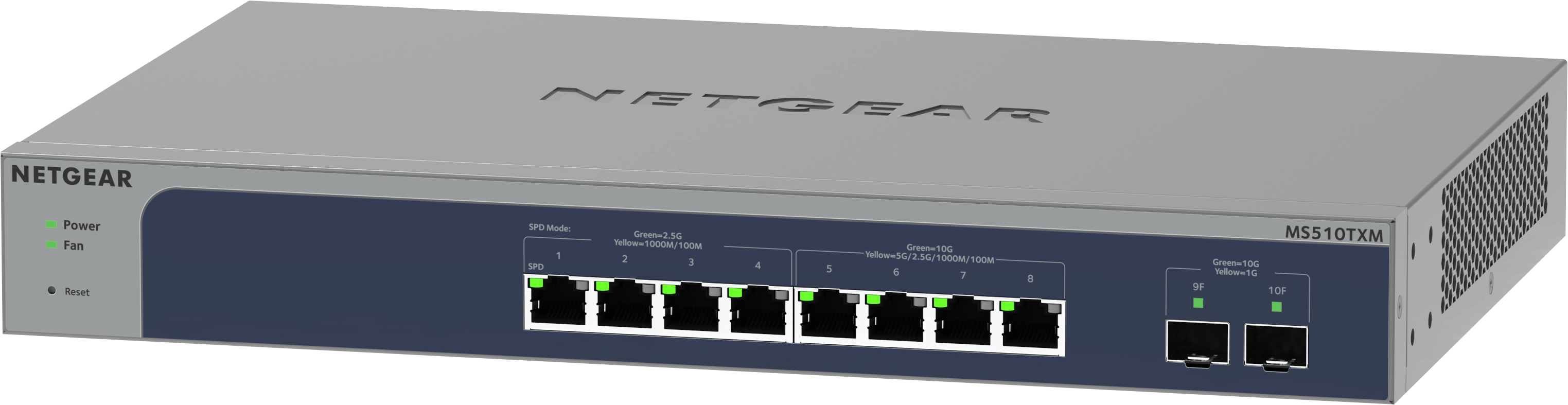

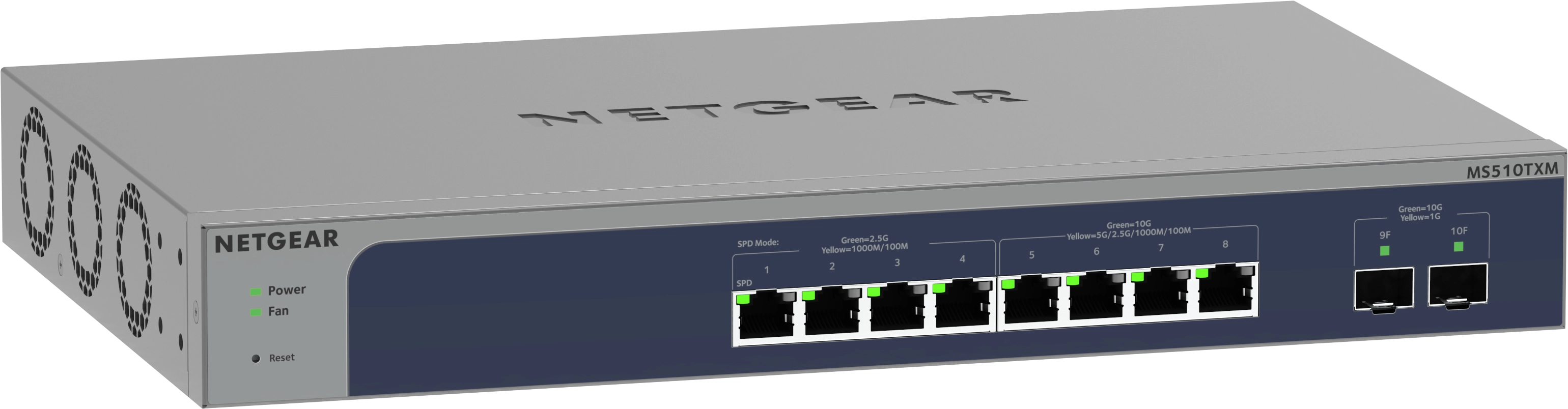

The NETGEAR® MS510TXM 8-Port Multi-Gigabit/10G Smart Managed Pro Switch offers 4 ports 1G/2.5G and 4 ports multi-gig/10G with 2 dedicated 10 Gigabit fiber ports for WiFi 6 AP connectivity, IP surveillance and mobility. MS510TXM can be managed remotely by NETGEAR Insight and includes 1-year of Insight Premium or Pro subscription with purchase.

- Multi-speed Ethernet ports for flexible and auto-adaptive wired connectivity of multi-Gigabit devices.
- 2-port 10G SFP+ Fiber uplinks (1G/10GBASE-X fiber SFP+).
- Quiet desktop operation or rack mounting.
- Layer 3 static routing with 32 routes (IPv4 and IPv6).
- Easy-to-use Web browser-based management GUI.
- NETGEAR Insight Cloud management activation (1-Year Insight subscription is included).
- Energy Efficient Ethernet (IEEE 802.3az) for maximum power savings.

Specification

Product
Product id	707126
Brand	Netgear
Partnr	MS510TXM-100EUS
EAN/UPC code	606449152364
Warranty (months)	Limited Lifetime
Data transmission
MAC address table	32000 entries
Switching capacity	140 Gbit/s
Number of queues	8
Jumbo frames support	Y
Jumbo frames	10000
Packet buffer memory	2 MB
Network
Networking standards	IEEE 802.1D, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x
10G support	Y
Port mirroring	Y
Broadcast storm control	Y
VLAN support	Y
Number of VLANs	256
Management features
Switch type	Managed
Switch layer	L2+
Quality of Service (QoS) support	Y
Cloud-managed	Y
Web-based management	Y
System event log	Y
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	10G Ethernet (100/1000/10000)
Installed SFP+ modules quantity	2
Security
DHCP features	DHCPv6 snooping
Access Control List (ACL)	Y
IGMP snooping	Y
Queue scheduling algorithms	WRR+SP
Password protection	Y
Weight & dimensions
Width	330 mm
Depth	206 mm
Height	43 mm
Weight	2080 g
Packaging data
Cables included	AC
Rack rails	Y
User guide	Y
Power
Power supply included	Y
Power consumption (max)	47 W
Multicast features
Multicast support	Y
Number of multicast groups filtered	256
Endurance
Mean time between failures (MTBF)	1059519 uur
Design
Rack mounting	Y
Product colour	Grey
LED indicators	Activity, Fan fail, Link, Power, Speed

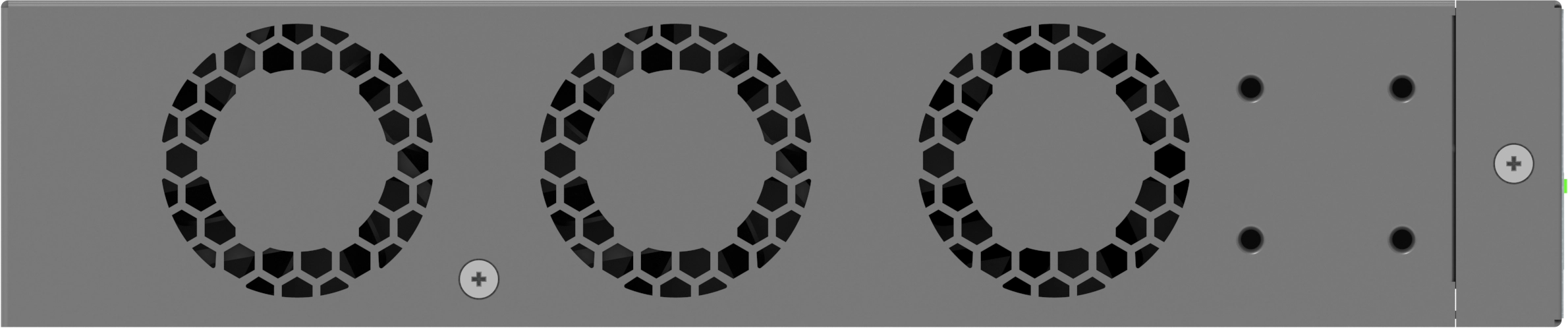

Number of fans	2 ventilator(en)
Operational conditions
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 3000 m
Heat dissipation	160.458 BTU/h
Storage temperature (T-T)	-20 - 70 °C
Storage relative humidity (H-H)	0 - 95 procent
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 95 procent
Performance
Built-in processor	Y
Processor frequency	1000 MHz
Internal memory	256 MB
Flash memory	64 MB
Firmware upgradeable	Y
Noise level	25 dB
Power over Ethernet (PoE)
Power over Ethernet (PoE)	N
