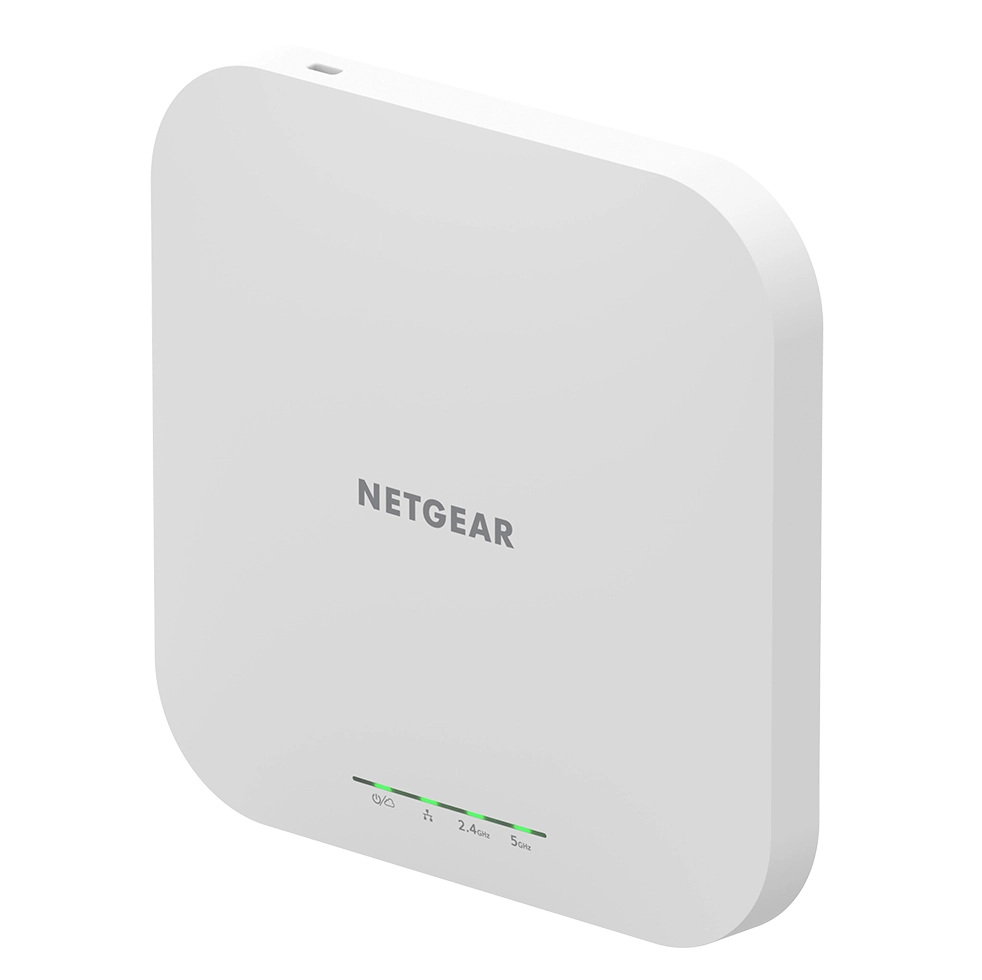

Equipped with the latest and fastest WiFi 6 (802.11 AX) technology, WAX610 is a wireless access point built to provide your small and medium business with next-level coverage and connection capacity for a high-performance business-grade WiFi experience, today and tomorrow. WAX610 empowers businesses to provide up to 40% higher throughput, larger device connection capacity, more network reliability and resiliency, and greatly enhanced security features, with a SMB IT budget and ease-of-use requirements. WAX610 is compatible with all existing WiFi 6 devices, together with current WiFi 5 and below Access Points and end-users devices, making it the best investment today for years to come.

The WAX610 is managed by NETGEAR Insight, for a fully centralized Cloud real-time remote monitoring, with no need for extra management hardware. WAX610 also comes with an intuitive local management GUI as one of the choices. The WAX610 features 2x2 Multi-User MIMO (MU-MIMO) to achieve aggregate speeds up to 1.8 Gbps, superior WiFi roaming, automatic channel and power management, airtime fairness, beamforming, OFDMA, 1024-QAM, and comes with one Power-over-Ethernet (PoE) 2.5Gb / 1Gb /100Mb LAN port.

Package Contents

- WAX610 Insight Managed Wireless Access Point
- Wall/ceiling mount kit
- Installation guide

Specification

Product
Product id	688483
Brand	Netgear
Partnr	WAX610-100EUS
EAN/UPC code	606449149227
Warranty (months)	5 years
Packaging data
Number of products included	1 stuk(s)
Mounting kit	Y
Package width	220 mm
Package depth	455 mm
Package height	235 mm
Package weight	3980 g
Features
2.4 GHz	Y
5 GHz	Y
Maximum data transfer rate	1800 Mbit/s
Maximum data transfer rate (2.4 GHz)	600 Mbit/s
Maximum data transfer rate (5 GHz)	1200 Mbit/s
Ethernet LAN data rates	100, 1000, 2500 Mbit/s
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Number of users	200 gebruiker(s)
MIMO	Y
MIMO type	Multi User MIMO
Spread spectrum method	OFDM, OFDMA
Wi-Fi Multimedia (WMM)/(WME)	Y
VLAN support	Y
Security
Security algorithms	EAP-PEAP, EAP-TLS, EAP-TTLS, PEAP, WPA, WPA2, WPA2-Enterprise, WPA3
MAC address filtering	Y
Service Set Identifier (SSID) features	SSID broadcast, SSID broadcast on/off
Auto Wireless Distribution System (WDS)	Y
Remote Authentication Dial-In User Service (RADIUS)	Y
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
DC-in jack	Y
Power
Power over Ethernet (PoE)	Y
Design
Placement	Ceiling, Wall
Product colour	White
Reset button	Y
LED indicators	Y
Antenna
Antenna type	Internal
Antenna gain level (max)	4.5 dBi
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Weight & dimensions
Width	160.9 mm
Depth	160.9 mm
Height	33.25 mm
Weight	412 g
