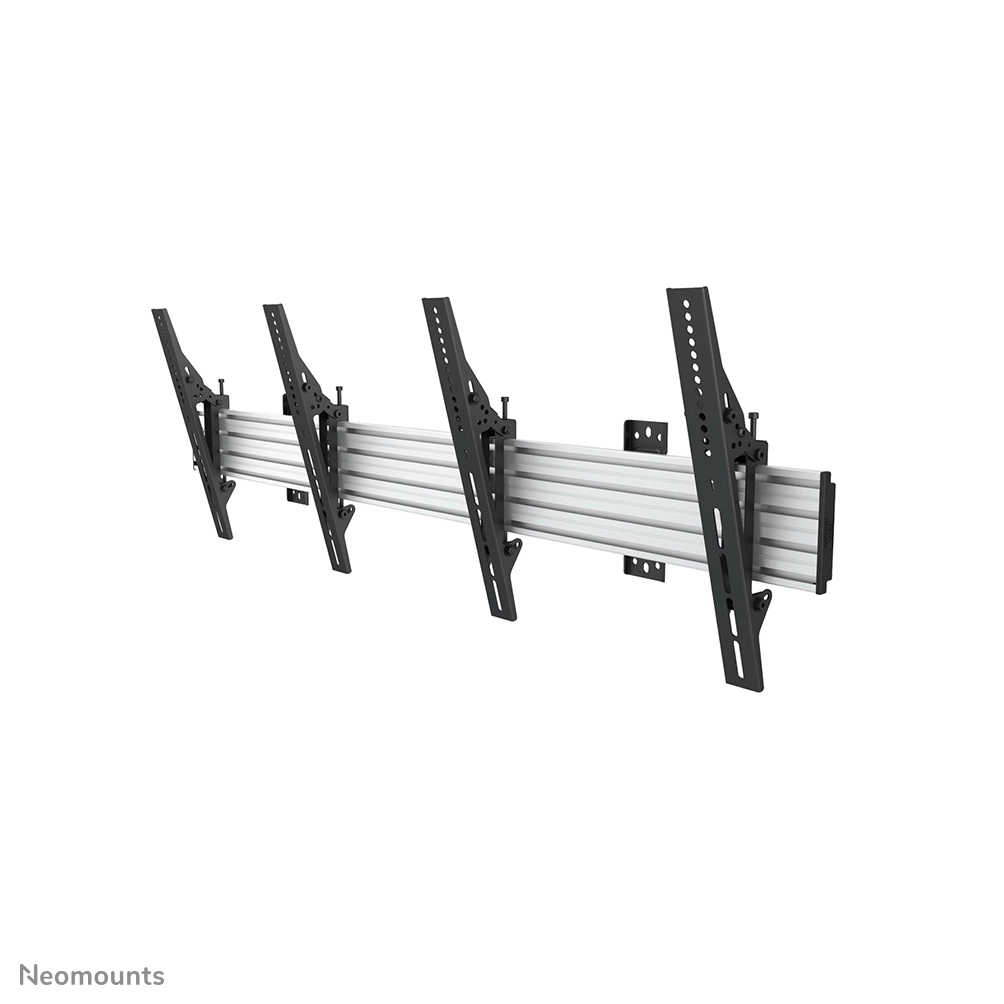

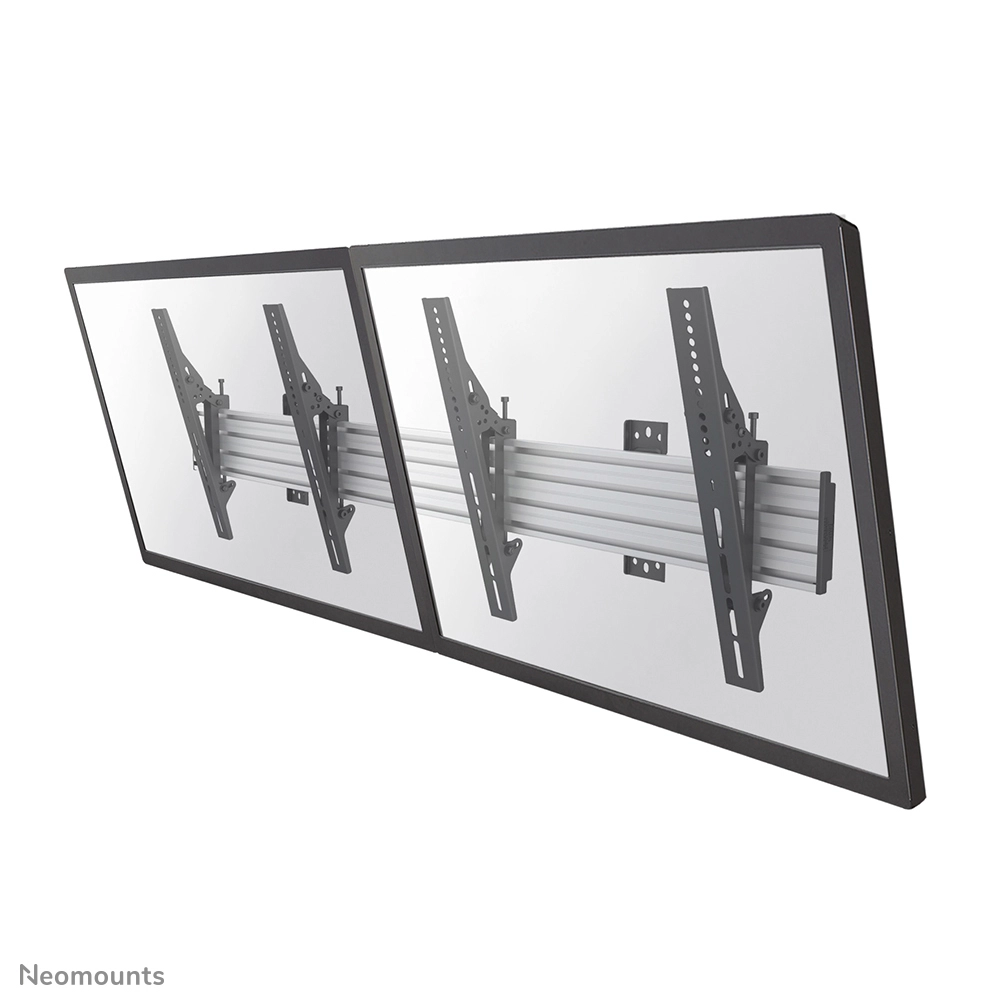

The Neomounts Pro menuboard wall mount, model NMPRO-WMB2, is a tiltable wall mount for two flat screens up to 55"/65". This mount is a great choice when you want the ultimate viewing flexibility with your flat screen. The Neomounts Pro tilt (0°/-6°/+15°) technology allows the mount to change to the best suitable viewing angle.

Neomounts Pro NMPRO WMB-series is suitable for 1 to 4 screens. The weight capacity of this product is 30 kg each screen. The wall mount is suitable for screens that meet VESA 100x100 to 400x400mm (65") or VESA 100x100 to 600x400mm (55"). Depth of this mount is 5, 6 centimetres.

* All installation material is included with the product.

Specification

Product
Product id	672660
Brand	Neomounts
Partnr	NMPRO-WMB2
EAN/UPC code	8717371447540
Warranty (months)	5 year
Mounting
Maximum weight capacity	30 kg
Minimum screen size compatibility	32 "
Maximum weight capacity (per display)	30 kg
Mounting type	Wall
Maximum screen size	55
Minimum VESA mount	100 x 100 mm
Maximum VESA mount	600 x 400 mm
Panel mounting interface	100 x 100, 600 x 400 mm
Ergonomics
Tilt angle range	0 - 21 °
Cable management	Y
Height adjustment	440 mm
Tilt adjustment	Y
Depth adjustment	60 mm
Tilt angle	21 °
Width adjustment	1970 mm
Design
Type	Fixed floor stand
Product colour	Black
Housing material	Aluminium
Weight & dimensions
Width	197 mm
Depth	60 mm
Height	44 mm
Package width	185 mm
Package depth	105 mm
Package height	1120 mm
Packaging data
Package weight	11700 g
Technical details
Number of displays supported	2
Package net weight	11700 g
Other features
Country of origin	China
Logistics data
Quantity per master (outer) case	1 stuk(s)
Master (outer) case net weight	11700 g
Harmonized System (HS) code	HS85299049
Quantity per EUR-pallet	52 stuk(s)
Master (outer) case width	185 mm
Master (outer) case length	105 mm
Master (outer) case height	1120 mm
Master (outer) case weight	11700 g
Quantity per master (outer) case	1 stuk(s)
