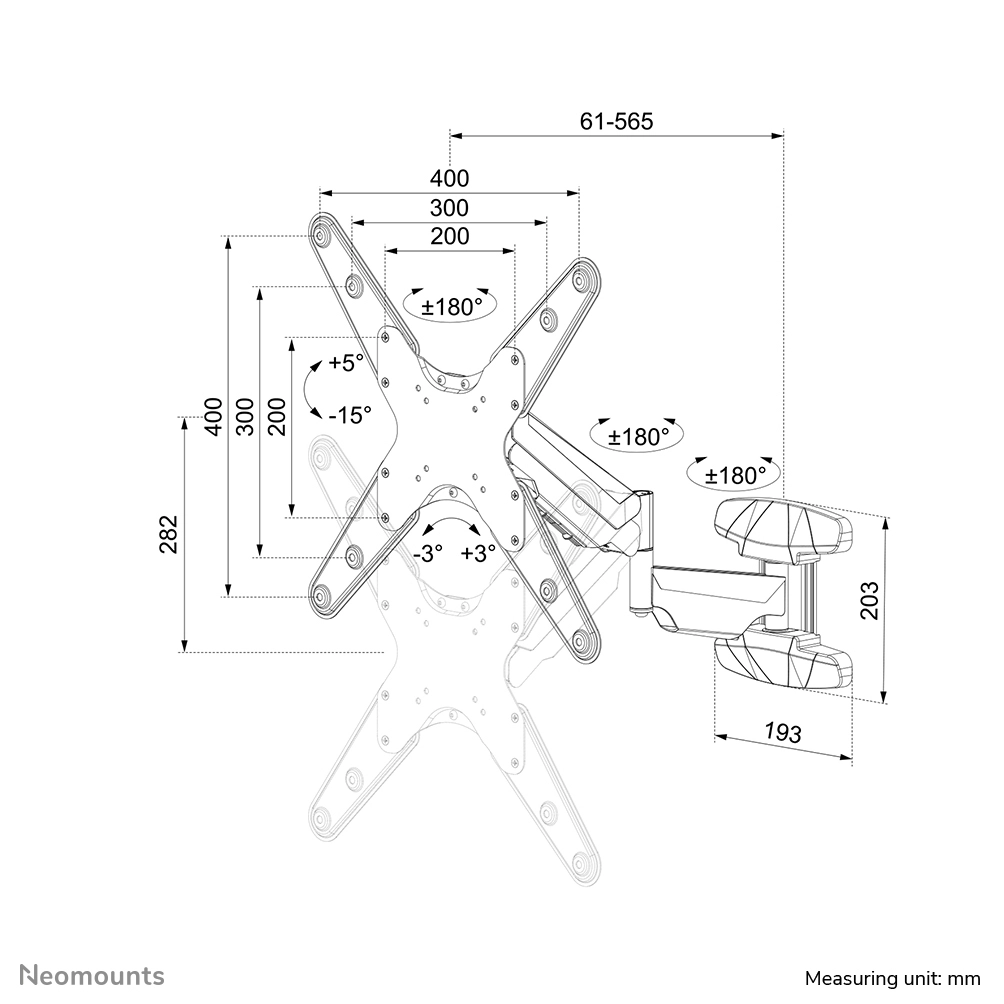

The Neomounts by Newstar WL70-550BL14 is a full motion wall mount for flat screens up to 55" with a maximum weight capacity of 30 kg. The versatile tilt (20°) and swivel (180°) technology allows you to create the optimum viewing angle. The mount can be levelled for the perfect installation.

The WL70-550BL14 has a depth of 6, 1-56, 5 cm and is suitable for screens that meet VESA hole pattern 75x75 to 400x400 mm.

The mount can be easily adjusted in height using the gas spring. The cable management system allows you to route and secure any loose cables at the back of the screen. Additionally, the mount features an Easy-release VESA, that allows you to attach the TV in a wink of an eye.

Specification

Product
Product id	815235
Brand	Neomounts
Partnr	WL70-550BL14
EAN/UPC code	8717371449063
Warranty (months)	5 year
Mounting
Maximum weight capacity	30 kg
Minimum screen size compatibility	32 "
Maximum screen size	55
Mounting type	Wall
Mounting	Screws
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	400 x 400 mm
Panel mounting interface	75 x 75, 100 x 100, 200 x 100, 200 x 200, 300 x 300, 400 x 200, 400 x 400, 400 x 300 mm
Number of displays supported	1
Distance to the wall (min)	61 mm
Distance to the wall (max)	565 mm
Ergonomics
Height adjustment	Y
Height adjustment type	Gas spring
Height adjustment range	0 - 282 mm
Tiltable	Y
Tilt angle range	-15 - 5 °
Swivelling	Y
Swivel angle	180 °
Angle of rotation	3 °
Cable management	Y
Rotating	Y
Tilt adjustment	Y
Design
Product colour	Black
Housing material	Steel
Weight & dimensions
Width	450 mm
Depth	565 mm
Height	450 mm
Weight	4530 g
Package width	365 mm
Package depth	505 mm
Package height	75 mm
Package weight	5500 g
Package net weight	5500 g
Packaging data
Quantity per pack	1 stuk(s)
Logistics data
Master (outer) case width	380 mm
Master (outer) case length	520 mm
Master (outer) case height	345 mm
Master (outer) case weight	17500 g
Quantity per master (outer) case	3 stuk(s)
Master (outer) case net weight	13800 g
Harmonized System (HS) code	85299097
Quantity per EUR-pallet	72 stuk(s)
Other features
Minimum weight	5 kg
Country of origin	China
