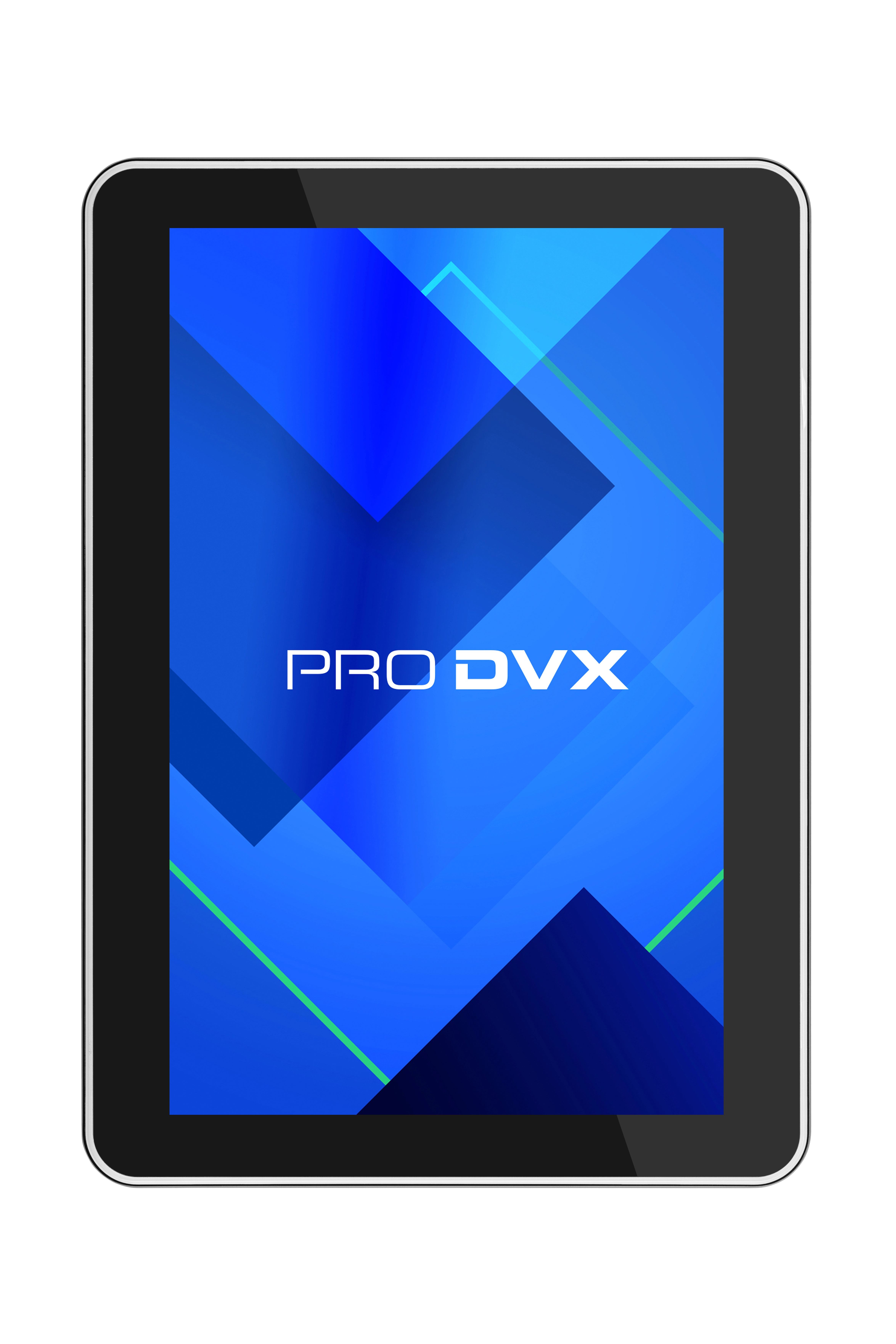

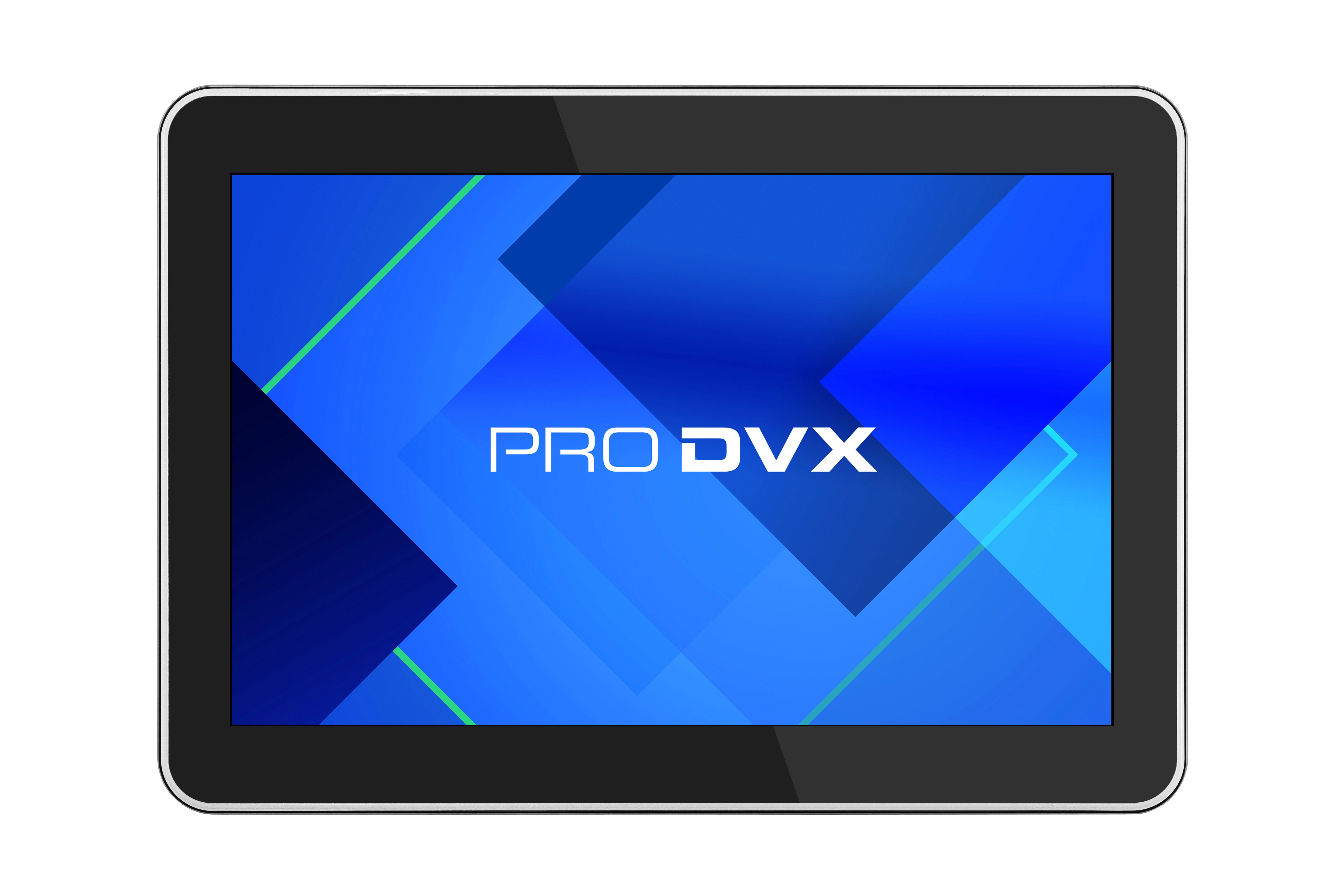

The APPC-10SLBe (R24-7701) is a 10.1 inch Android Panel PC running Android 13 with GMS. It includes essential Google apps like Google Play Store, Chrome, YouTube, and more. With Google Play Store, you can remotely manage content and updates via an MDM tool. Zero Touch Deployment simplifies device configuration with your organization’s policies. Google Play Protect ensures automatic security updates, enhancing security. The APPC-10SLBe (R24-7701) features a robust RK3399 CPU and 4GB RAM for multitasking. It accommodates multiple background apps while ensuring smooth front-end operation. Notable features include an RGB surround LED bar, non-glare coating, up to 500cd/m2 brightness, an internal NFC module, and Power over Ethernet+ connectivity. Additionally, it comes with a 5-year warranty, making it our most secure and high-performance device to date.

Specification

Product
Product id	970128
Brand	ProDVX
Partnr	5010825
EAN/UPC code	5010825
Warranty (months)	5 years
Display
Display diagonal	10.1 inch
Display resolution	1280 x 800 Pixels
Touchscreen	Y
LED backlight	Y
Touch technology	Multi-touch
Native aspect ratio	16:10
Display brightness	500 cd/m²
Panel type	IPS
Anti-glare screen	Y
Contrast ratio (typical)	800:1
Multi-touch	Y
Viewing angle, vertical	160 °
Viewing angle, horizontal	160 °
Processor
Processor manufacturer	Rockchip
Processor family	Rockchip
Processor model	RK3399
Processor cores	6
Memory
Internal memory	4 GB
Internal memory type	DDR4-SDRAM
Storage
Total storage capacity	16 GB
Storage media	eMMC
Card reader integrated	Y
Compatible memory cards	SD
Graphics
Discrete graphics adapter	N
Discrete graphics adapter model	Not available
On-board graphics adapter	Y
On-board graphics adapter family	ARM Mali
On-board GPU manufacturer	ARM
On-board graphics adapter model	ARM Mali-T860 MP4
Audio
Built-in speaker(s)	Y
Number of speakers	2
RMS rated power	4 W
Built-in microphone	Y
Audio formats supported	AAC, ASF, MP2, OGG, WAV, WMA
Camera
Built-in camera	N
Network
Wi-Fi	Y
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n), 802.11a
Ethernet LAN	Y
Ethernet LAN data rates	1000, 100, 10 Mbit/s
Bluetooth	Y
Bluetooth version	4.2
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	1
HDMI output ports quantity	1
HDMI ports quantity	1
DisplayPorts quantity	1
Audio output	Y
DC-in jack	Y
Micro-USB ports quantity	1
Design
Product colour	Black
Wall mountable	Y
Housing material	ABS synthetics
VESA mounting	Y
Panel mounting interface	75 x 75 mm
Performance
Product type	All-in-One tablet PC
Software
Operating system installed	Android 13
Power
AC adapter output voltage	12 V
Power consumption (typical)	20 W
Weight & dimensions
Width (without stand)	255.3 mm
Depth (without stand)	26.7 mm
Height (without stand)	181 mm
Weight (without stand)	650 g
Weight	650 g
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 procent
Storage relative humidity (H-H)	10 - 90 procent
Certificates
Certification	FCC, CE, RoHS
Compliance certificates	Federal Communications Commission (FCC), CE, RoHS, REACH, UKCA
Packaging content
AC adapter included	N
Cables included	No
Other features
AC adapter output current	2 A
Mean time between failures (MTBF)	45000 uur
Video formats supported	3GP, ASF, AVI, DAT, FLV, MKV, MOV, MP4, MPG, RM, TS, VOB, WMV
Backlight	Y
Near Field Communication (NFC)	Y
Backlight type	Edge LED
Harmonized System (HS) code	84713000
Battery type	CR1220 Lithium metal, non rechargeable
