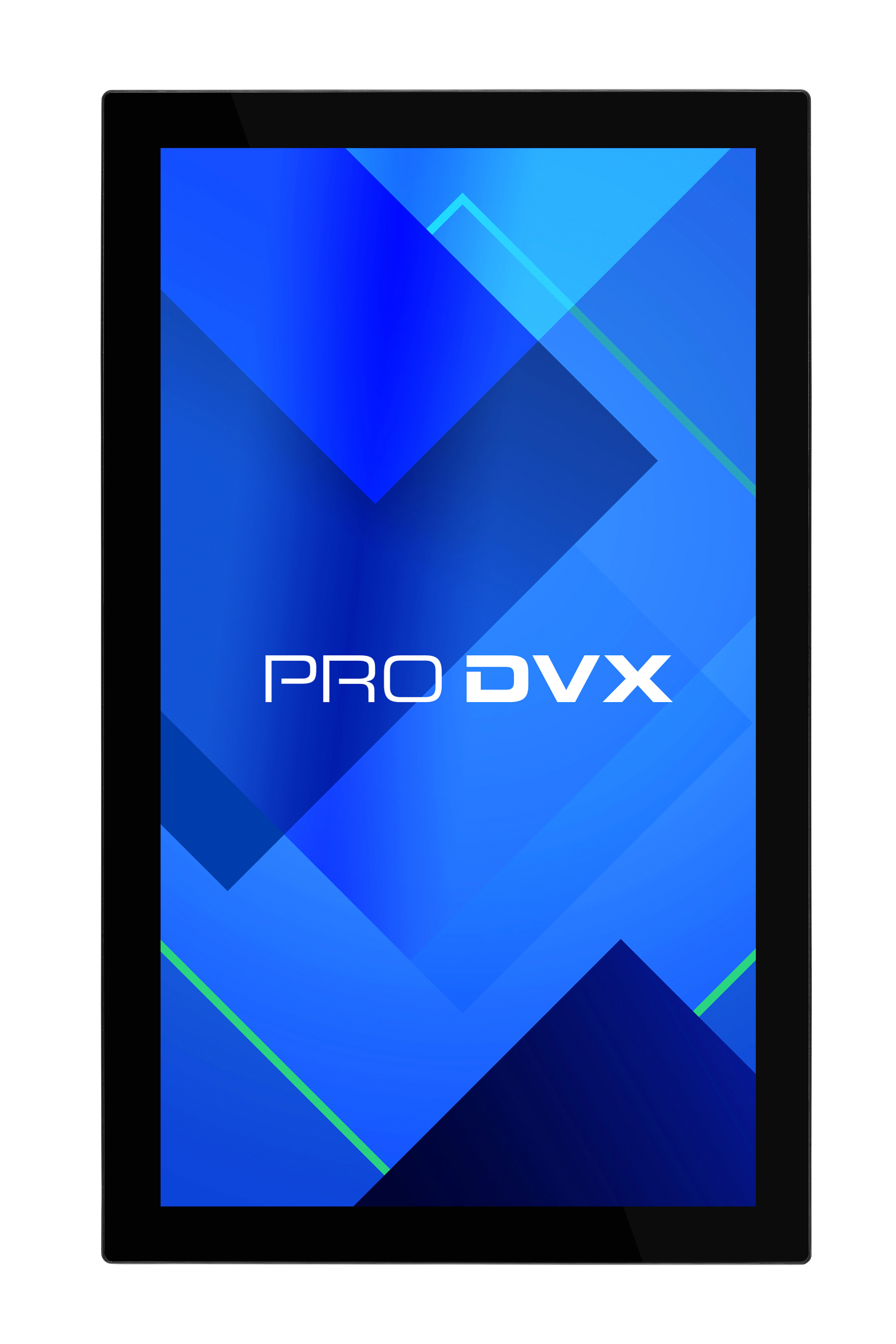

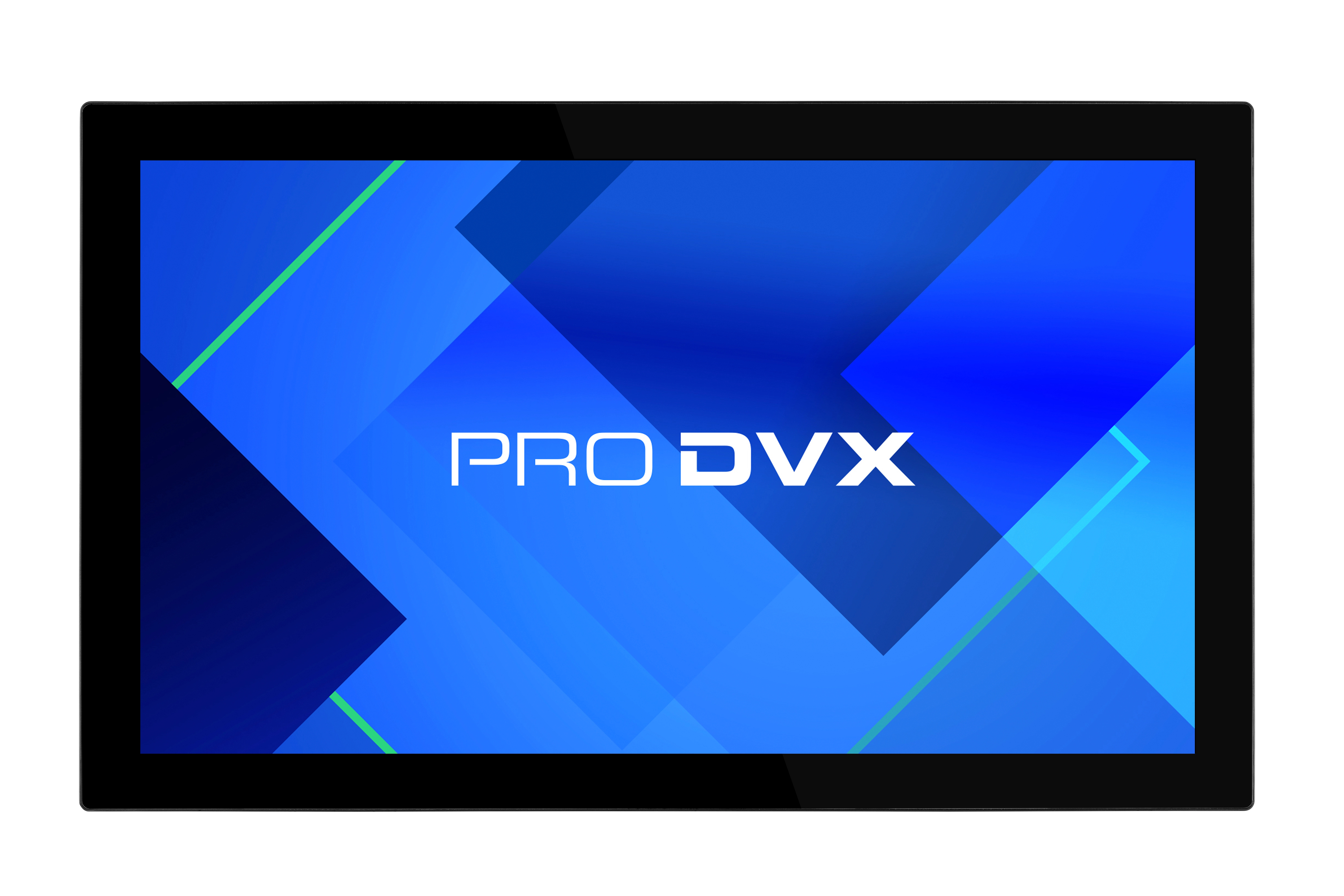

The APPC-22XP (R23-7223) is a 22-inch Android-based Panel PC, ready to improve your digital communication with its cutting-edge features. Featuring a high-performance Rockchip dual-processor and Mali-T860 GPU, it delivers a seamless user experience. Enhanced RAM and storage ensure multitasking capability, while Android 13 provides the APPC-22XP (R23-7223) with a soft ware agnostic operating system. In addition, the APPC-22XP (R23-7223) is easily installable thanks to its VESA mounting frame and PoE++ capability, eliminating the requirement for extra power cables. Its durable touch panel supports 10-point touch functionality, up to 250 cd/m2 and is treated for non-glare to provide the most optimal user experience. Moreover, the APPC-22XP (R23-7223) showcases a broad range of I/O ports, granting unmatched flexibility for various applications. Whether utilized for interactive kiosks, self-service, or interactive wayfinding, the APPC-22XP (R23-7223) effortlessly handles any solution.

Specification

Product
Product id	943423
Brand	ProDVX
Partnr	5022300
EAN/UPC code	5022300
Warranty (months)	3 years
Display
Display diagonal	21.5 inch
Display resolution	1920 x 1080 Pixels
Touchscreen	Y
HD type	Full HD
Full HD	Y
LED backlight	Y
Touch technology	Multi-touch
Native aspect ratio	16:9
Display brightness	250 cd/m²
Display surface	Matt
Panel type	IPS
Anti-glare screen	Y
Contrast ratio (typical)	3000:1
Multi-touch	Y
Viewing angle, vertical	178 °
Viewing angle, horizontal	178 °
Processor
Processor manufacturer	Rockchip
Processor family	Rockchip
Processor model	RK3399
Processor frequency	1.8 GHz
Processor cores	6
Memory
Internal memory	4 GB
Internal memory type	LPDDR4-SDRAM
Storage
Total storage capacity	32 GB
Storage media	eMMC
Optical drive type	N
Card reader integrated	Y
Compatible memory cards	SD
Graphics
Discrete graphics adapter	N
Discrete graphics adapter model	Not available
On-board graphics adapter	Y
On-board graphics adapter family	ARM Mali
On-board GPU manufacturer	ARM
On-board graphics adapter model	AMD Radeon 860M
Audio
Built-in speaker(s)	Y
Number of speakers	2
RMS rated power	6 W
Built-in microphone	Y
Audio formats supported	AAC, ASF, MP2, OGG, WAV, WMA
Camera
Built-in camera	N
Network
Wi-Fi	Y
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n), 802.11a
Ethernet LAN	Y
Ethernet LAN data rates	1000, 100, 10 Mbit/s
Bluetooth	Y
Bluetooth version	5.0
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
DisplayPorts quantity	1
Audio output	Y
DC-in jack	Y
S/PDIF out port	Y
Design
Product colour	Black
Wall mountable	Y
Housing material	ABS synthetics
VESA mounting	Y
Panel mounting interface	100 x 100 mm
Performance
Product type	All-in-One tablet PC
Software
Operating system installed	Android 13
Power
AC adapter output voltage	12 V
Power consumption (typical)	45 W
Weight & dimensions
Width (without stand)	530.5 mm
Depth (without stand)	35 mm
Height (without stand)	321.22 mm
Weight (without stand)	3500 g
Weight	3500 g
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 procent
Storage relative humidity (H-H)	10 - 90 procent
Certificates
Certification	FCC, CE, RoHS
Compliance certificates	Federal Communications Commission (FCC), CE, RoHS, REACH, UKCA
Packaging content
AC adapter included	Y
Cables included	No
Technical details
Warranty period	3 jaar
Other features
AC adapter output current	5 A
Mean time between failures (MTBF)	50000 uur
Video formats supported	3GP, ASF, AVI, DAT, FLV, MKV, MOV, MP4, MPG, RM, TS, VOB, WMV
USB connector type	USB Type-A, USB Type-C
Backlight	Y
Backlight type	Edge LED
Mini HDMI ports quantity	1
Security features	Cable lock on power cable, IEEE 802.1X PEAP/TLS/TTLS support on LAN and WiFi
COM ports quantity	2
Battery type	CR1220 Lithium metal, non rechargeable
Audio input	3.5 mm
