The APPC-24X-R23, featuring the latest Rockchip dual-processor and Mali-T860 GPU, is set to redefine performance standards. With 4GB of RAM and 16GB of storage, multitasking becomes a breeze. Operating on Android 11, it boasts one of the most flexible and secure operating systems available. The APPC-24X-R23 achieves a maximum brightness of 250 cd/m2. Paired with a 10-point touch-enabled panel treated for anti-glare, this Android Panel PC ensures an optimal user experience. Tailored for interactive kiosks, the APPC-24X-R23 comes with a VESA mounting frame for easy installation. Its array of I/O ports ensures compatibility with a wide range of peripheral devices, making it a versatile solution for your needs.

Specification

Product
Product id	949636
Brand	ProDVX
Partnr	5024200
EAN/UPC code
Display
Display diagonal	23.6 inch
Display resolution	1920 x 1080 Pixels
Touchscreen	Y
HD type	Full HD
Touch technology	Multi-touch
Native aspect ratio	16:9
Display brightness	250 cd/m²
Display surface	Matt
Panel type	IPS
Anti-glare screen	Y
Contrast ratio (typical)	1000:1
Multi-touch	Y
Viewing angle, vertical	178 °
Viewing angle, horizontal	178 °
Processor
Processor manufacturer	Rockchip
Processor family	Rockchip
Processor model	RK3399
Processor cores	4
Memory
Internal memory	4 GB
Internal memory type	LPDDR4-SDRAM
Storage
Total storage capacity	16 GB
Storage media	eMMC
Optical drive type	N
Card reader integrated	Y
Compatible memory cards	SD
Graphics
Discrete graphics adapter	N
Discrete graphics adapter model	Not available
On-board graphics adapter	Y
On-board GPU manufacturer	ARM
On-board graphics adapter model	ARM Mali-G52 2EE MC2
Audio
Built-in speaker(s)	Y
Number of speakers	2
RMS rated power	6 W
Network
Wi-Fi	Y
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	Y
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Bluetooth	Y
Bluetooth version	5.2

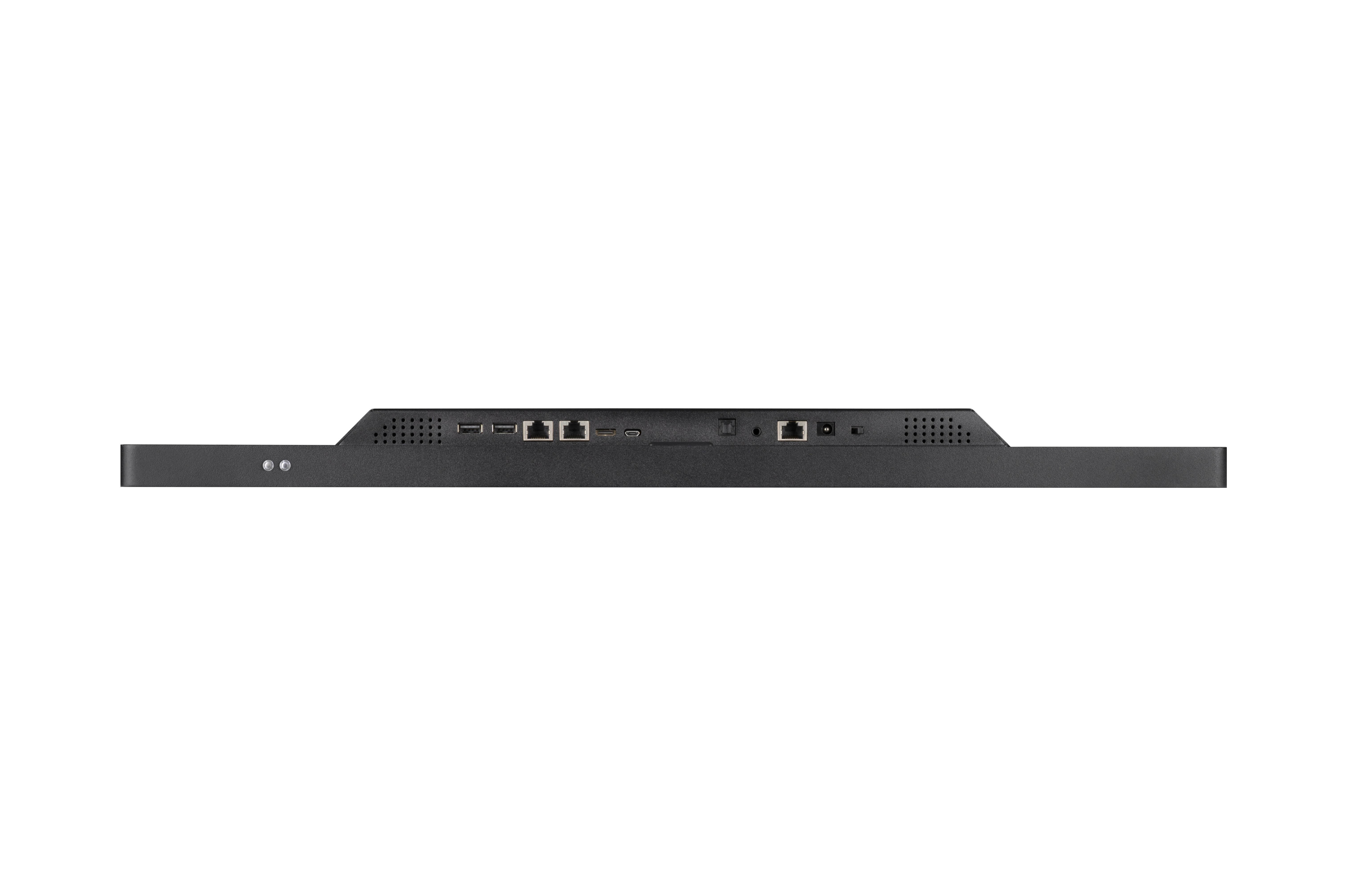

Ports & interfaces
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	2
HDMI output ports quantity	1
Audio output	Y
DC-in jack	Y
Micro-USB ports quantity	1
S/PDIF out port	Y
Design
Product colour	Black
Cable lock slot type	Kensington
Wall mountable	Y
Housing material	Metal

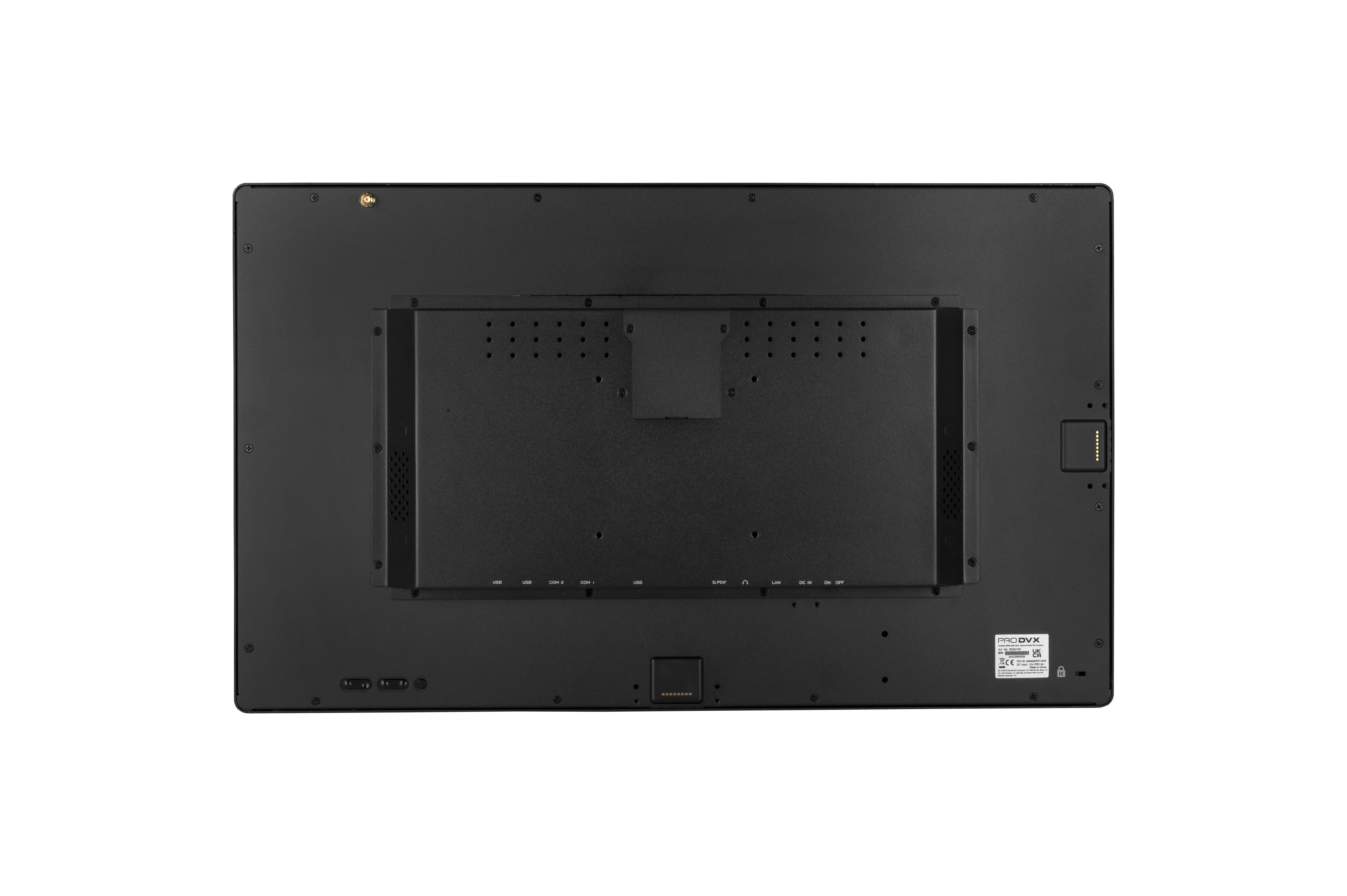

VESA mounting	Y
Panel mounting interface	100 x 100 mm
Performance
Product type	All-in-One tablet PC
Software
Operating system installed	Android 11
Power
AC adapter output voltage	12 V
Weight & dimensions
Width (without stand)	575.8 mm
Depth (without stand)	44 mm
Height (without stand)	344.8 mm
Weight (without stand)	7210 g
Weight	7210 g
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 procent
Storage relative humidity (H-H)	10 - 90 procent
Certificates
Certification	FCC, CE, RoHS
Technical details
Sustainability certificates	Federal Communications Commission (FCC), UKCA, CE, REACH, RoHS
Other features
Mean time between failures (MTBF)	50000 uur
Backlight	Y
Backlight type	Edge LED
Mini HDMI ports quantity	1
COM ports quantity	2
Harmonized System (HS) code	84713000
