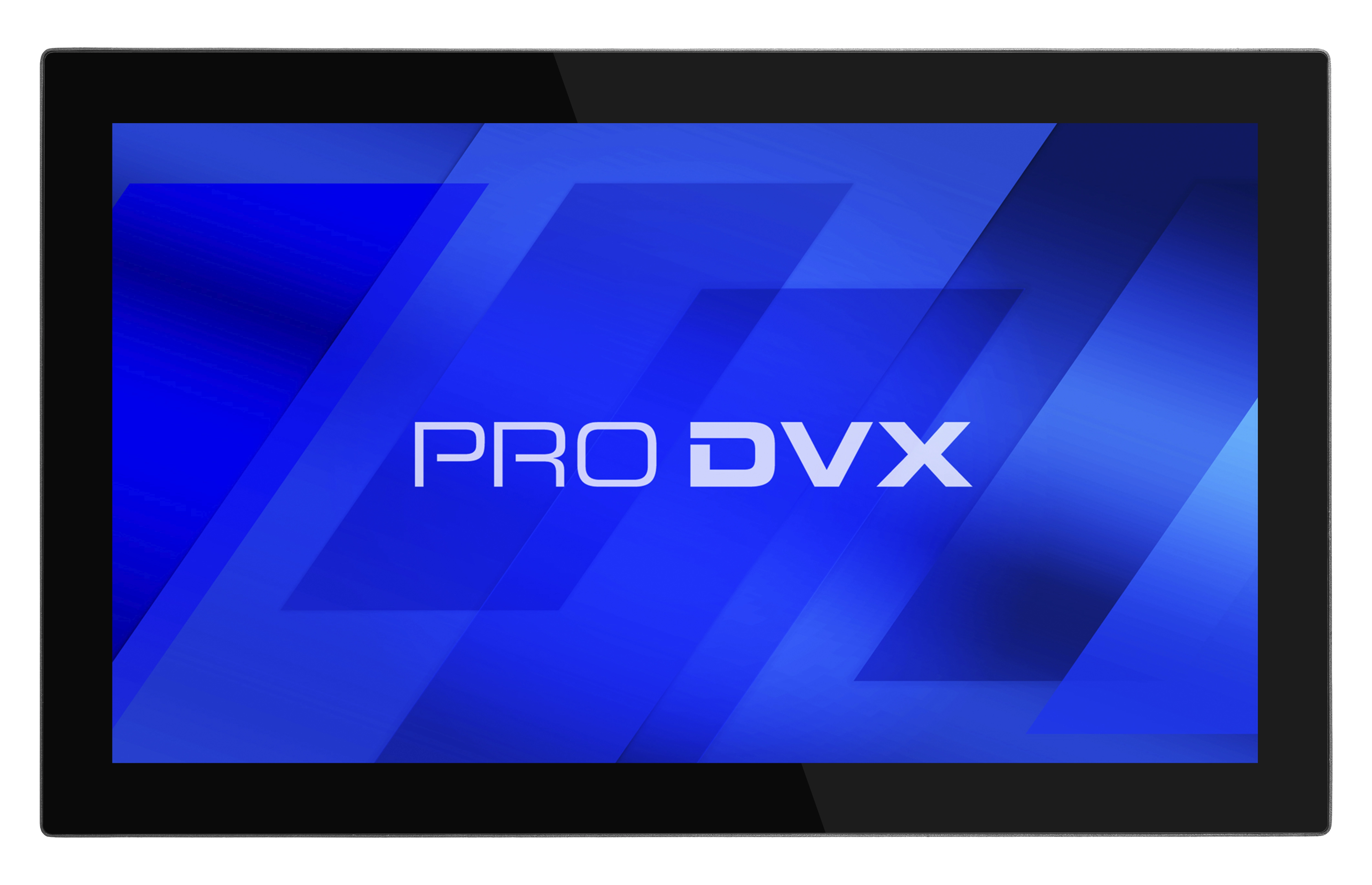

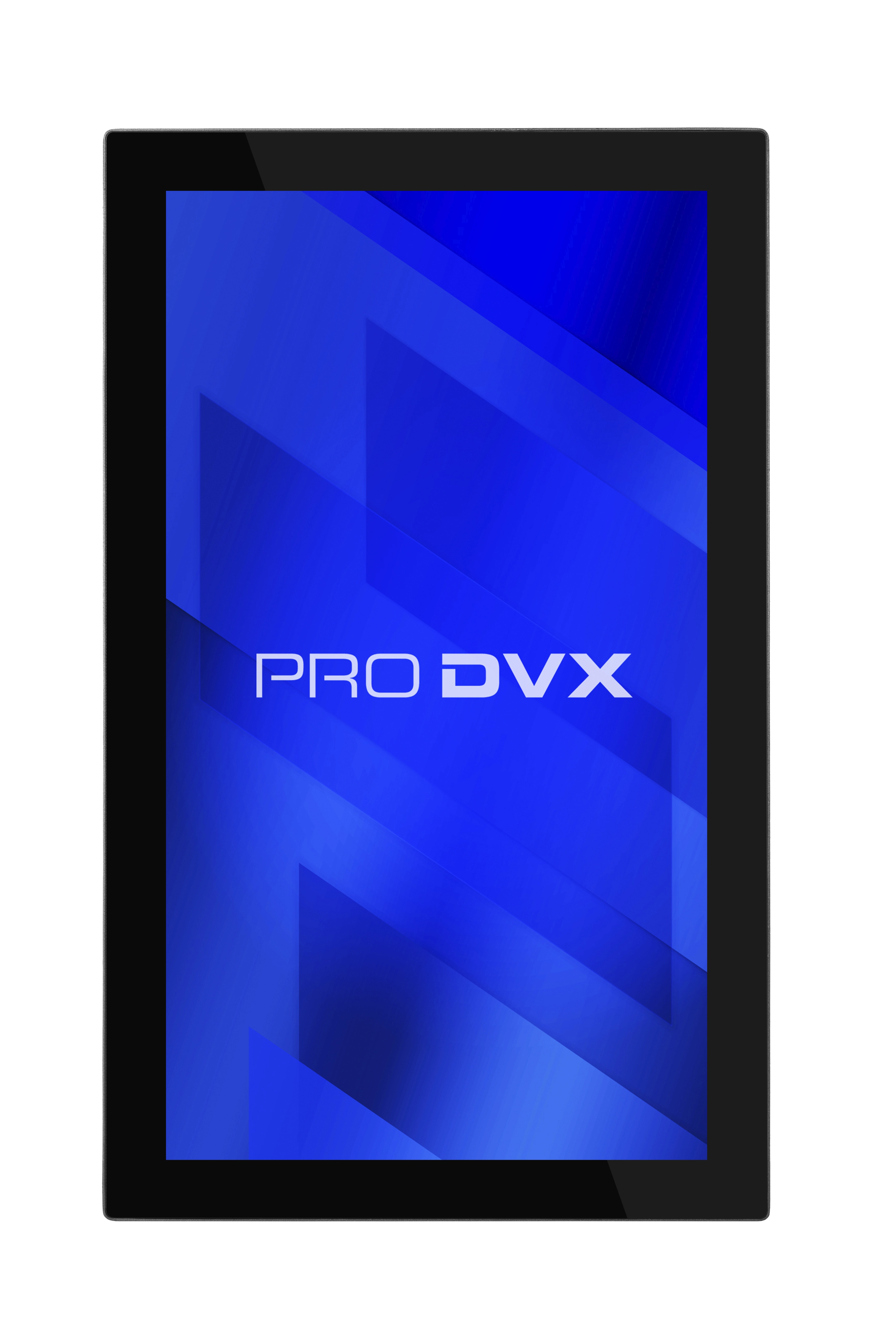

The ProDVX IPPC-22 is a high-performance 22-inch Intel Panel PC designed for professional applications requiring strong performance, exceptional display quality, and flexible operation. With its sleek black metal housing and edge-to-edge TFT LCD IPS touchscreen, the IPPC-22 offers a premium combination of durability, style, and functionality, making it an ideal solution for retail, industrial, and business environments.

Specification

Product
Product id	880352
Brand	ProDVX
Partnr	IPPC-22-6200
EAN/UPC code	06022150
Warranty (months)	3 years
Display
Display diagonal	21.5 inch
Display resolution	1920 x 1080 Pixels
Touchscreen	Y
HD type	Full HD
LED backlight	Y
Touch technology	Multi-touch
Native aspect ratio	16:9
Display brightness	250 cd/m²
Panel type	IPS
Anti-glare screen	N
Contrast ratio (typical)	3000:1
Viewing angle, vertical	178 °
Viewing angle, horizontal	178 °
Processor
Processor manufacturer	Intel
Processor family	Intel Core i5
Processor model	i5-8500T
Processor frequency	2.1 GHz
Processor boost frequency	3.5 GHz
Processor cores	6
Processor cache	9 MB
Processor cache type	Smart Cache
Configurable TDP-down frequency	1.6 GHz
Configurable TDP-down	25 W
Bus type	DMI3
Conflict-Free processor	Y
Memory
Internal memory	4 GB
Internal memory type	DDR4L-SDRAM
Storage
Total storage capacity	128 GB
Storage media	SSD
SSD interface	SATA
SSD form factor	2.5"
Card reader integrated	Y
Graphics
Discrete graphics adapter	N
Discrete graphics adapter model	Not available
On-board graphics adapter	Y
On-board graphics adapter family	Intel UHD Graphics
On-board GPU manufacturer	Intel
On-board graphics adapter model	Intel UHD Graphics 630
Audio
Built-in speaker(s)	Y
Number of speakers	2
RMS rated power	6 W
Audio formats supported	MP3, WMA
Camera
Built-in camera	N
Network
Wi-Fi	Y
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Ethernet LAN	Y
Ethernet LAN data rates	1000, 100, 10 Mbit/s
Bluetooth	Y
Bluetooth version	4.2
Ports & interfaces
Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
HDMI output ports quantity	1
HDMI ports quantity	1
DisplayPorts quantity	1
Audio output	Y
DC-in jack	Y
Design
Product colour	Black
Wall mountable	Y
Housing material	Metal
VESA mounting	Y
Panel mounting interface	100 x 100 mm
Introduction year	2022
Performance
Product type	All-in-One PC
Software
Operating system installed	Windows 10
Processor special features
Intel Virtualization Technology for Directed I/O (VT-d)	Y
Embedded options available	Y
CPU configuration (max)	1
Idle States	Y
Execute Disable Bit	Y
Intel TSX-NI version	1.00
Intel Virtualization Technology (VT-x)	Y
Intel Secure Key Technology version	1.00
Intel Stable Image Platform Program (SIPP) version	1.00
Intel Identity Protection Technology version	1.00
Intel 64	Y
Intel Software Guard Extensions (Intel SGX)	Y
Enhanced Intel SpeedStep Technology	Y
Intel Clear Video Technology	Y
Intel Stable Image Platform Program (SIPP)	Y
Intel TSX-NI	Y
Intel VT-x with Extended Page Tables (EPT)	Y
Intel Enhanced Halt State	Y
Intel Trusted Execution Technology	Y
Power
AC adapter output voltage	12 V
Power consumption (typical)	70 W
Weight & dimensions
Width (without stand)	535.5 mm
Depth (without stand)	62.5 mm
Height (without stand)	328.6 mm
Weight (without stand)	7225 g
Weight	7225 g
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 procent
Storage relative humidity (H-H)	10 - 90 procent
Certificates
Certification	FCC, CE, RoHS
Compliance certificates	Federal Communications Commission (FCC), CE, RoHS
Packaging content
AC adapter included	Y
Other features
AC adapter output current	8.33 A
Mean time between failures (MTBF)	50000 uur
Video formats supported	MKV, MP4
Backlight	Y
Backlight type	Edge LED
COM ports quantity	2
Harmonized System (HS) code	84713000
Battery type	CR2032 - Lithium‐metal non‐rechargeable coin
Audio input	3.5 mm
