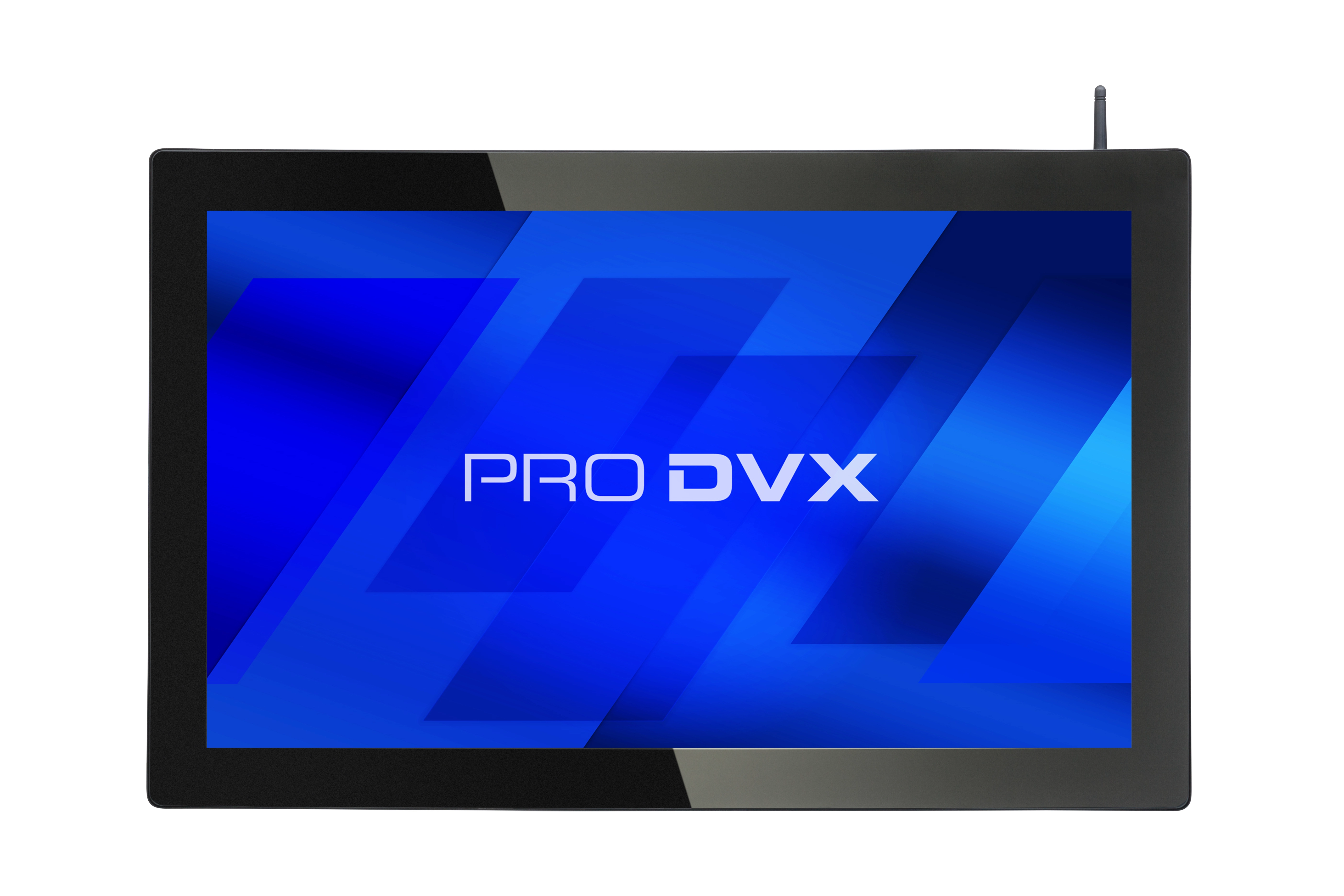

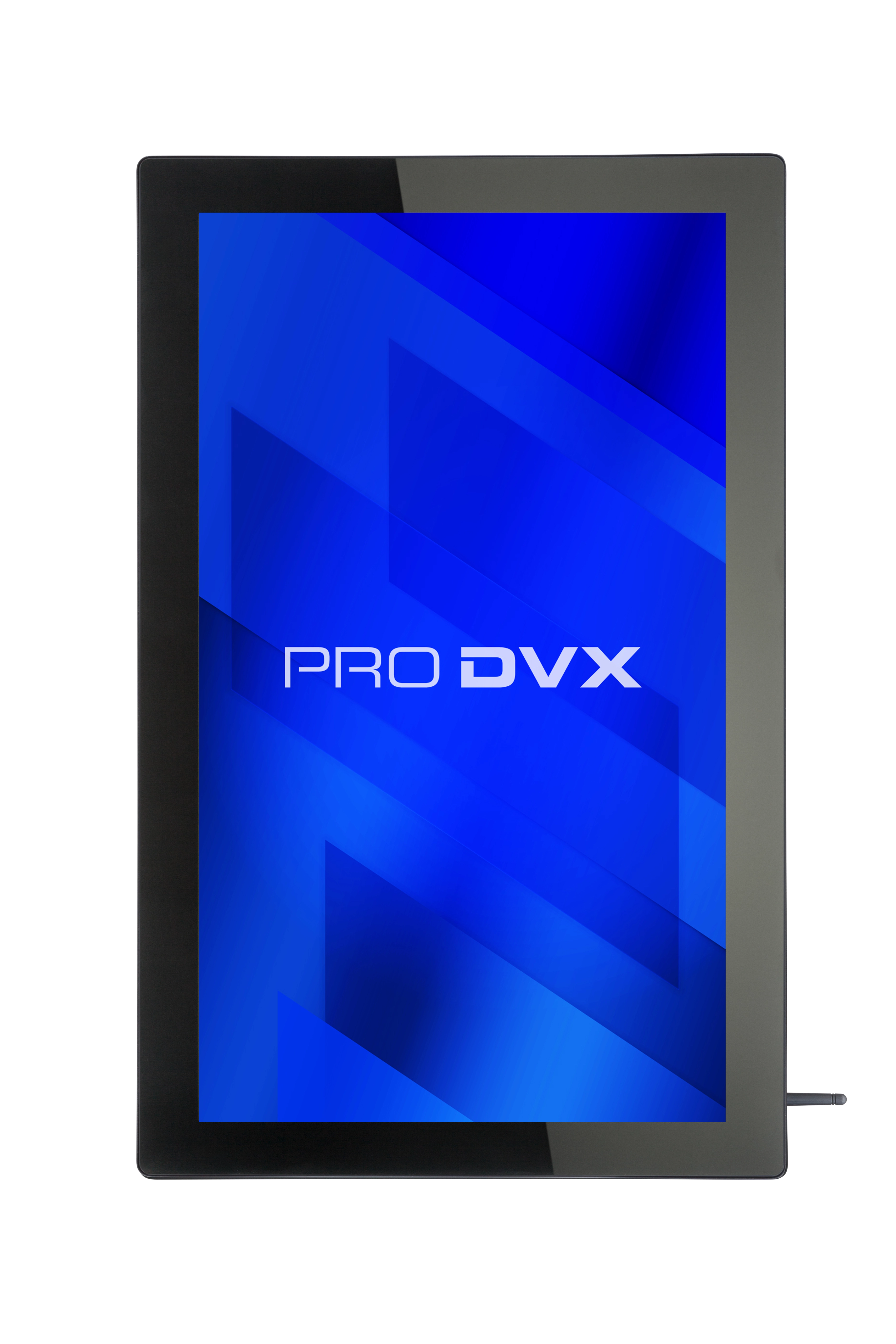

The ProDVX IPPC-24 is an Intel Panel PC with a 23.6" Touch Display. The ProDVX IPPC-24 standard comes with an Intel Pentium N3710. This device can be connected through RJ45 LAN, WiFi, Bluetooth and is fanless due to passive cooling. This Intel SOC Touch Display has a projected capacitive touch display in metal housing. It can be mounted using the VESA 100 brackets. Optional Pogo pin accessories include a 1D-2D Barcode Scanner, NFC Module and Camera. This product requires an additional Windows 10 IoT Enterprise LTSC license.

Specification

Product
Product id	881504
Brand	ProDVX
Partnr	IPPC-24
EAN/UPC code	6024101
Warranty (months)	2 years
Display
Display diagonal	23.6 inch
Display resolution	1920 x 1080 Pixels
Touchscreen	Y
HD type	Full HD
LED backlight	Y
Touch technology	Multi-touch
Native aspect ratio	16:9
Display brightness	250 cd/m²
Panel type	IPS
Contrast ratio (typical)	1000:1
Multi-touch	Y
Viewing angle, vertical	178 °
Viewing angle, horizontal	178 °
Processor
Processor manufacturer	Intel
Processor family	Intel Pentium
Processor model	N3710
Processor frequency	1.6 GHz
Processor boost frequency	2.56 GHz
Processor cores	4
Processor cache	2 MB
Processor cache type	L2
Integrated 4G WiMAX	N
Conflict-Free processor	Y
Memory
Internal memory	4 GB
Internal memory type	DDR3L-SDRAM
Storage
Total storage capacity	64 GB
Storage media	SSD
Total SSDs capacity	64 GB
Number of SSDs installed	1
SSD capacity	64 GB
SSD interface	M.2
SSD form factor	M.2
Optical drive type	N
Card reader integrated	Y
Compatible memory cards	SD
Graphics
Discrete graphics adapter	N
Discrete graphics adapter model	Not available
On-board graphics adapter	Y
On-board graphics adapter family	Intel HD Graphics
On-board GPU manufacturer	Intel
On-board graphics adapter model	Intel HD Graphics
Audio
Built-in speaker(s)	Y
Number of speakers	2
RMS rated power	6 W
Camera
Built-in camera	N
Network
Wi-Fi	Y
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	Y
Ethernet LAN data rates	1000, 100, 10 Mbit/s
Bluetooth	Y
Bluetooth version	4.0
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
DisplayPorts quantity	1
Headphone outputs	1
Audio output	Y
DC-in jack	Y
Micro-USB ports quantity	1
S/PDIF out port	Y
Design
Product colour	Black
Cable lock slot	Y
Cable lock slot type	Kensington
Wall mountable	Y
Housing material	Metal
VESA mounting	Y
Panel mounting interface	100 x 100 mm
Performance
Product type	All-in-One tablet PC
Software
Operating system installed	Windows 10
Processor special features
Intel Virtualization Technology for Directed I/O (VT-d)	N
Embedded options available	Y
CPU configuration (max)	1
Idle States	Y
Execute Disable Bit	Y
Intel Secure Boot	Y
Intel Rapid Storage Technology	N
Intel Small Business Advantage (SBA) version	0.00
Intel Virtualization Technology (VT-x)	Y
Intel Secure Key Technology version	1.00
Intel Stable Image Platform Program (SIPP) version	0.00
Intel Secure Boot Technology version	1.00
Intel Smart Response Technology version	0.00
Intel Identity Protection Technology version	1.00
Intel Smart Connect Technology version	0.00
Intel 64	Y
Enhanced Intel SpeedStep Technology	Y
Intel Smart Connect Technology	N
Intel Clear Video Technology	Y
Intel Stable Image Platform Program (SIPP)	N
Intel VT-x with Extended Page Tables (EPT)	Y
Intel Enhanced Halt State	Y
Intel Trusted Execution Technology	N
Power
AC adapter output voltage	12 V
Power consumption (typical)	26 W
Weight & dimensions
Width (without stand)	575.8 mm
Depth (without stand)	43 mm
Height (without stand)	344.8 mm
Weight (without stand)	7500 g
Weight	7500 g
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 procent
Storage relative humidity (H-H)	10 - 90 procent
Certificates
Certification	FCC, CE, RoHS
Compliance certificates	Federal Communications Commission (FCC), CE, RoHS
Packaging content
AC adapter included	Y
Other features
AC adapter output current	5 A
Mean time between failures (MTBF)	50000 uur
Backlight	Y
Backlight type	Edge LED
Mini HDMI ports quantity	1
COM ports quantity	2
Battery type	CR2032 - Lithium‐metal non‐rechargeable coin
