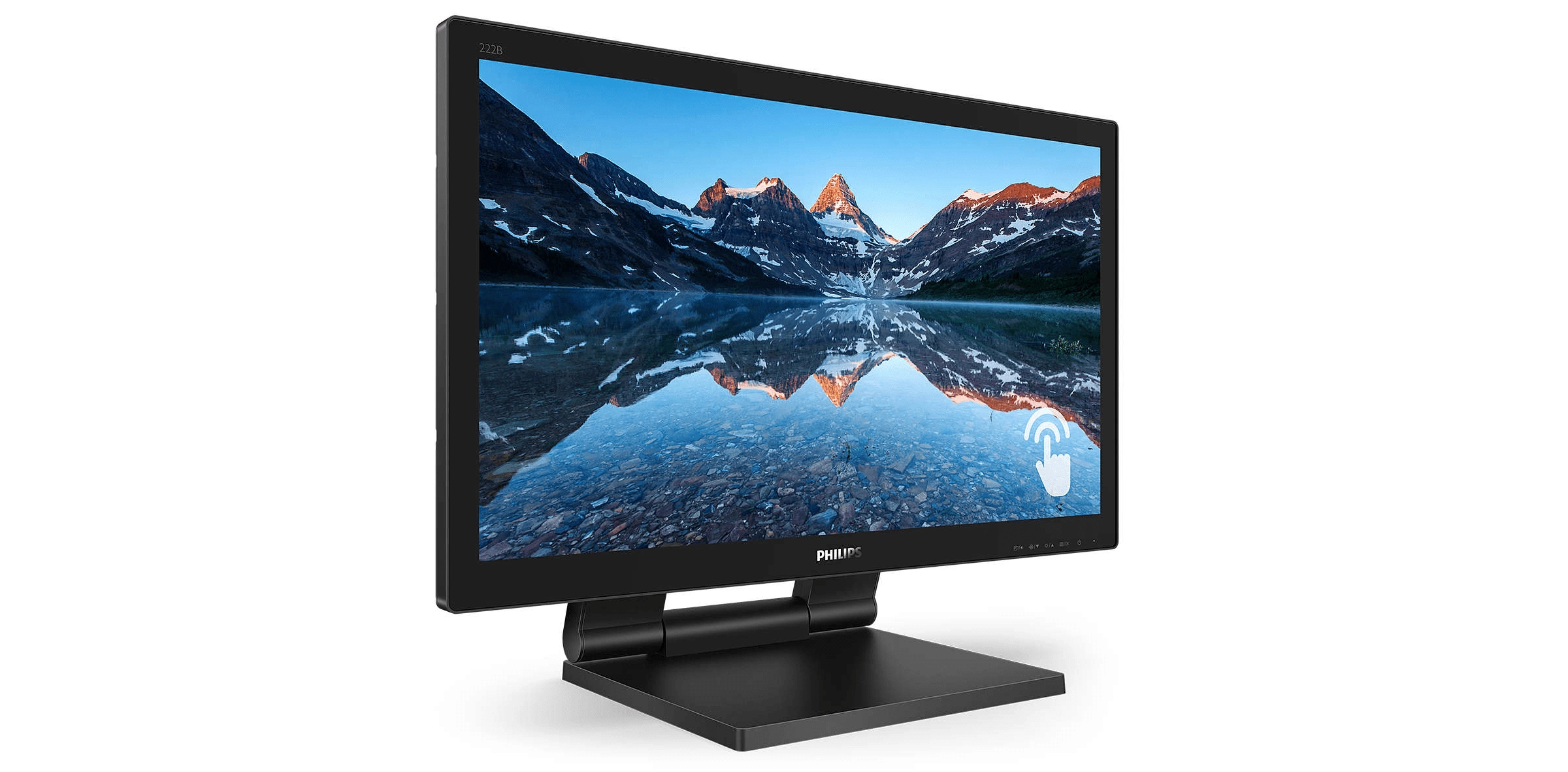

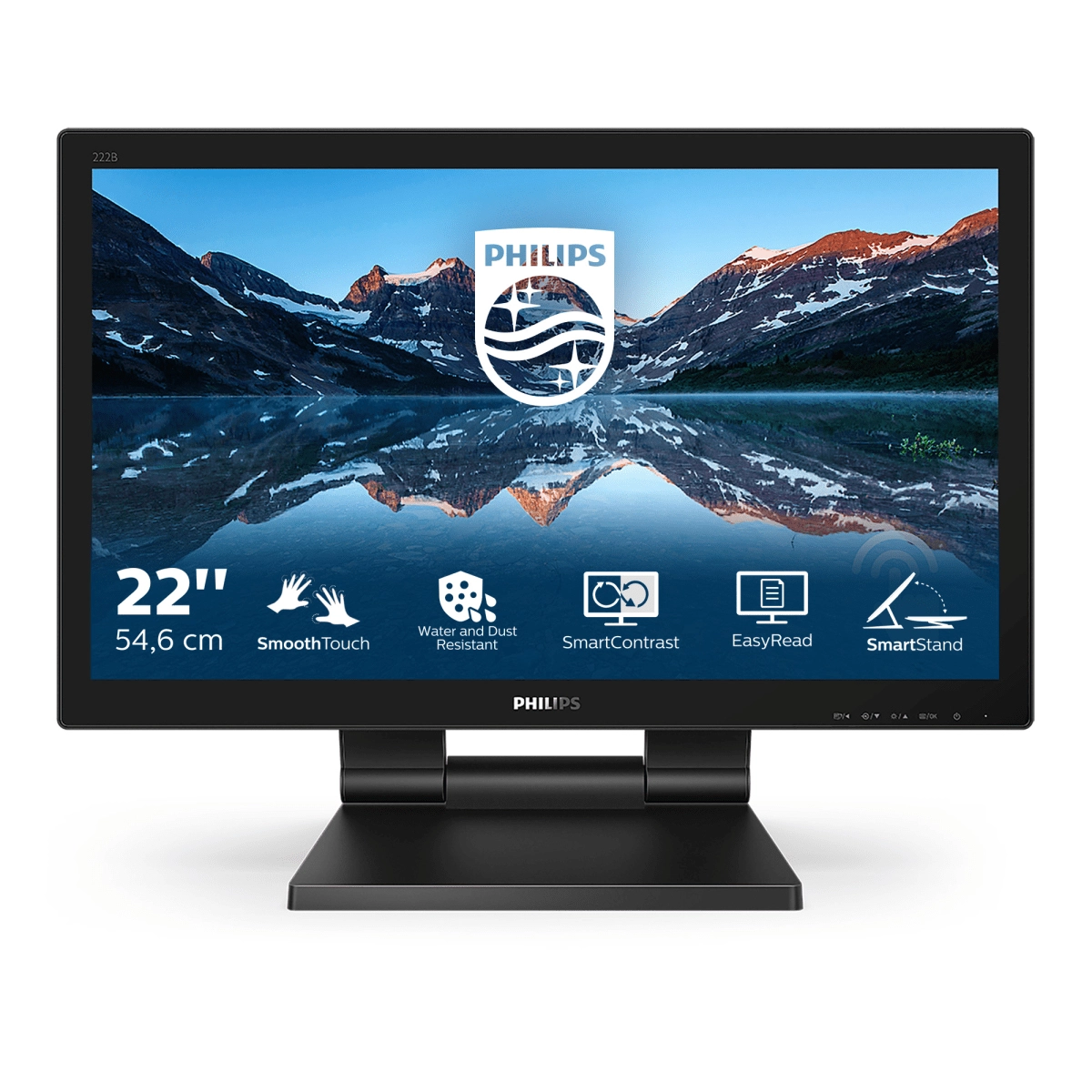

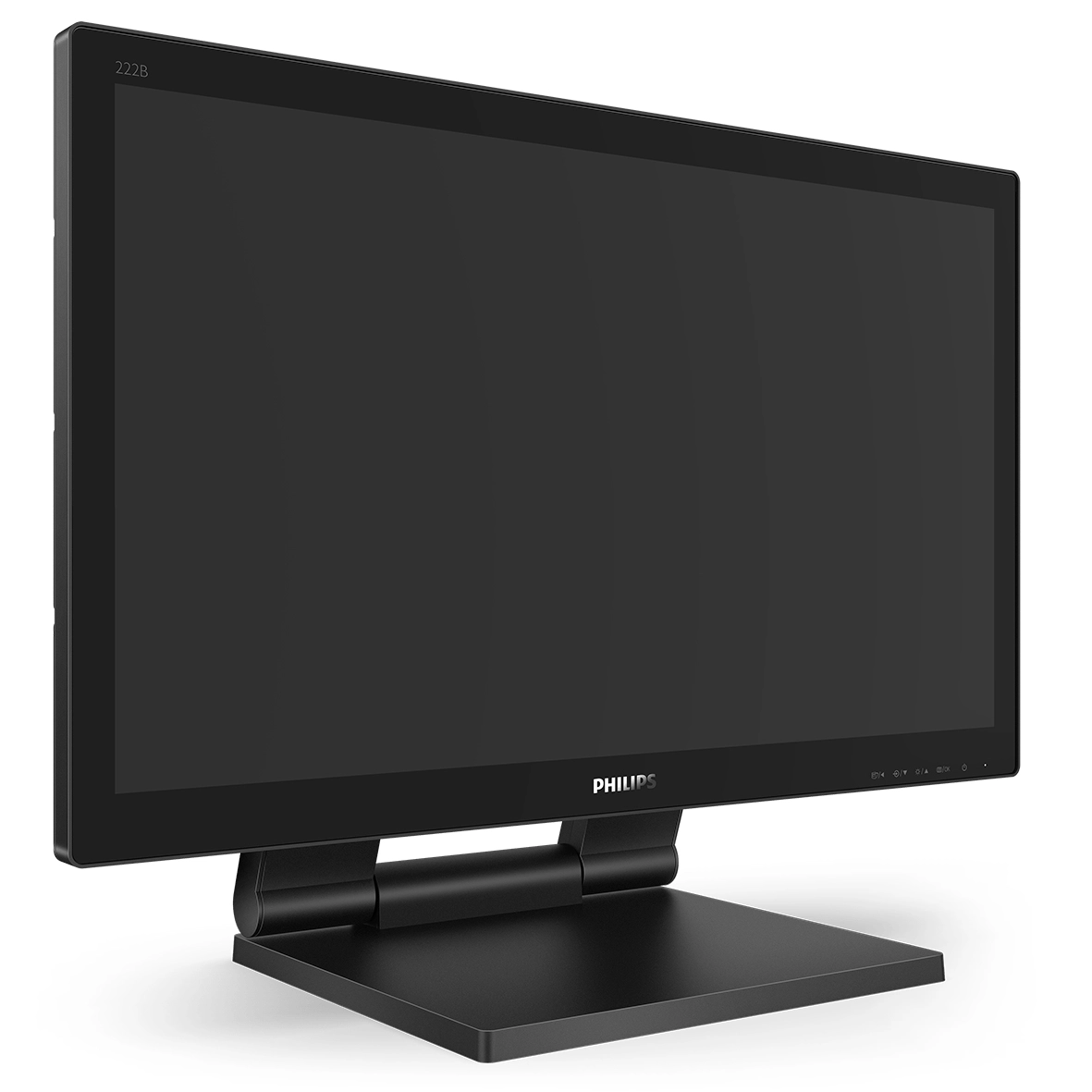

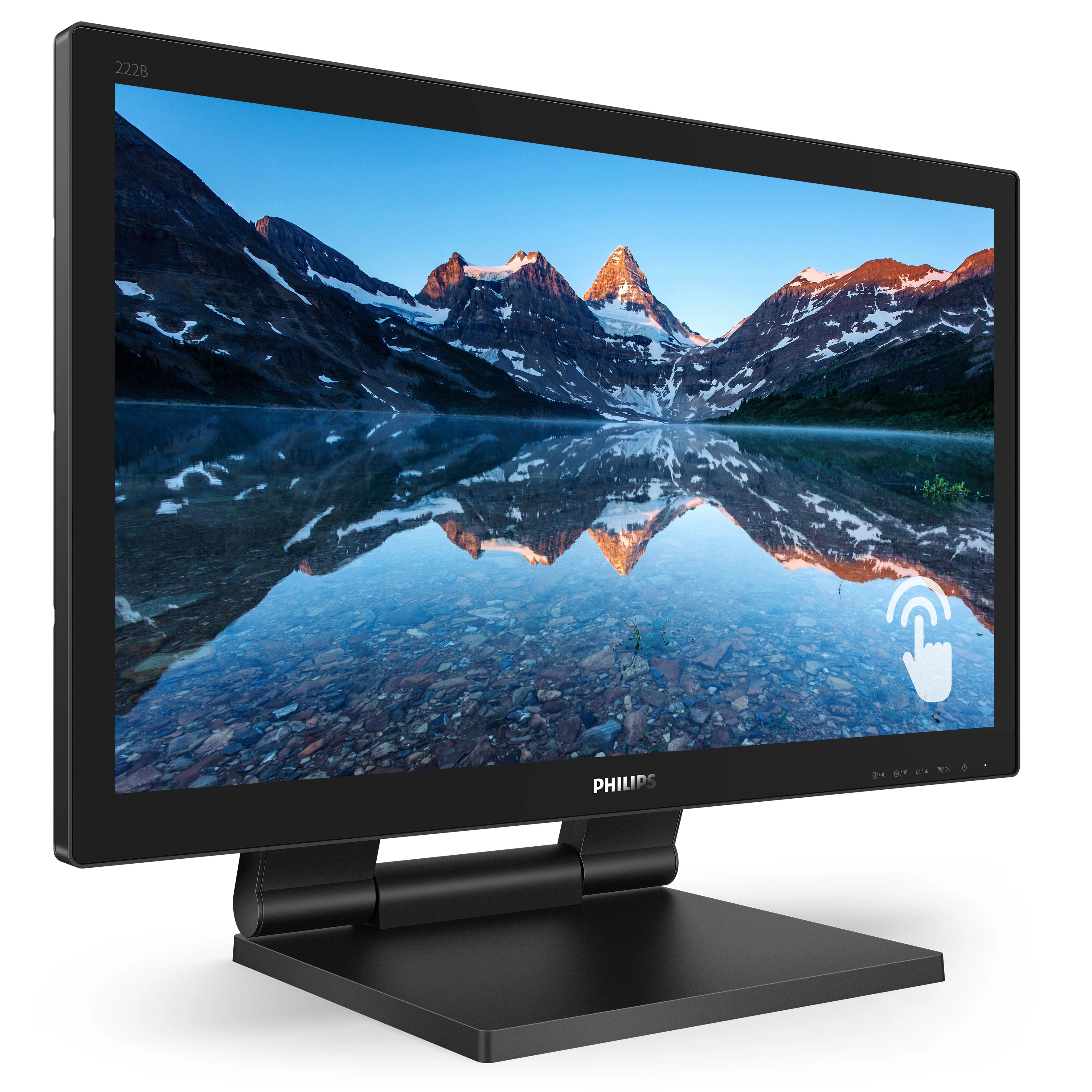

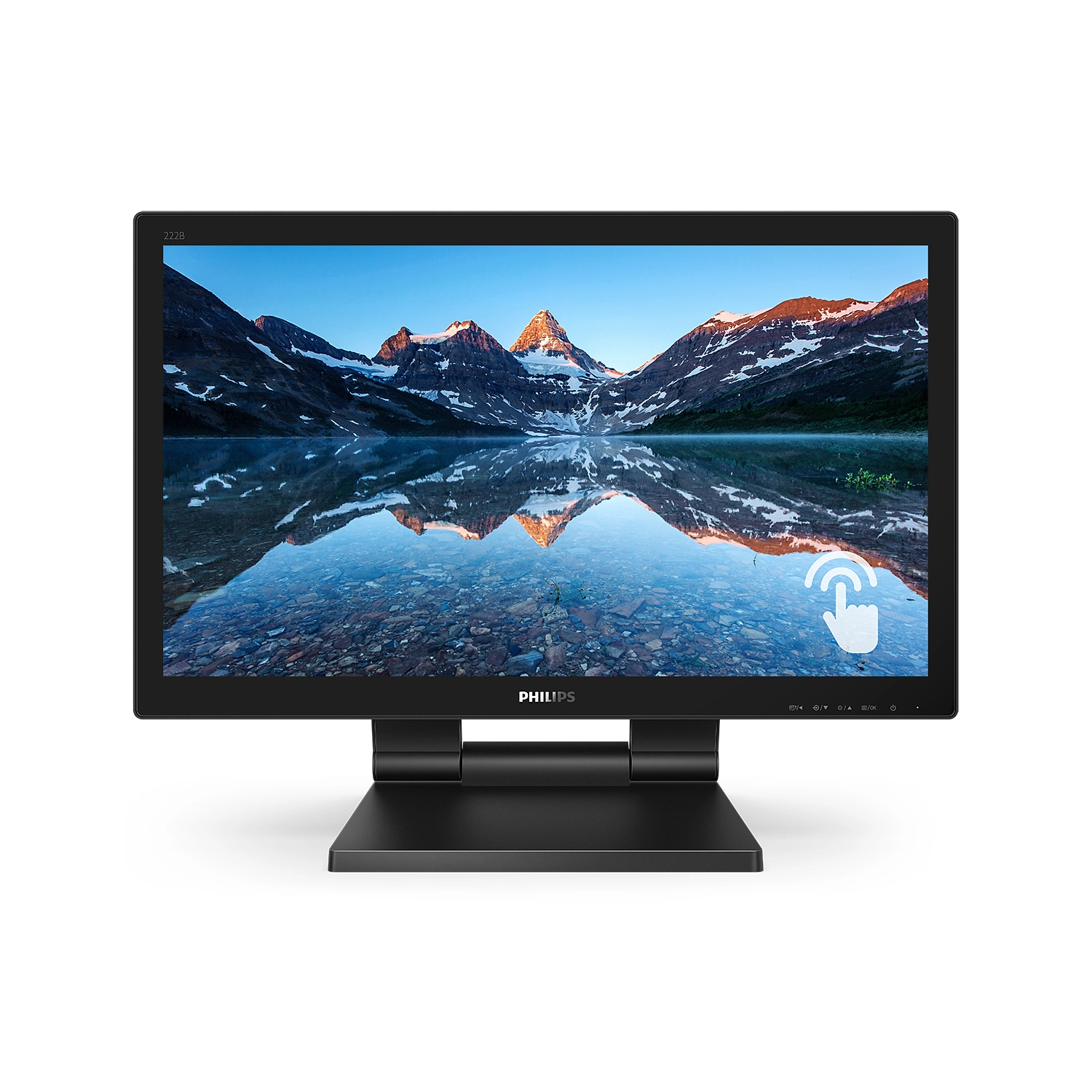

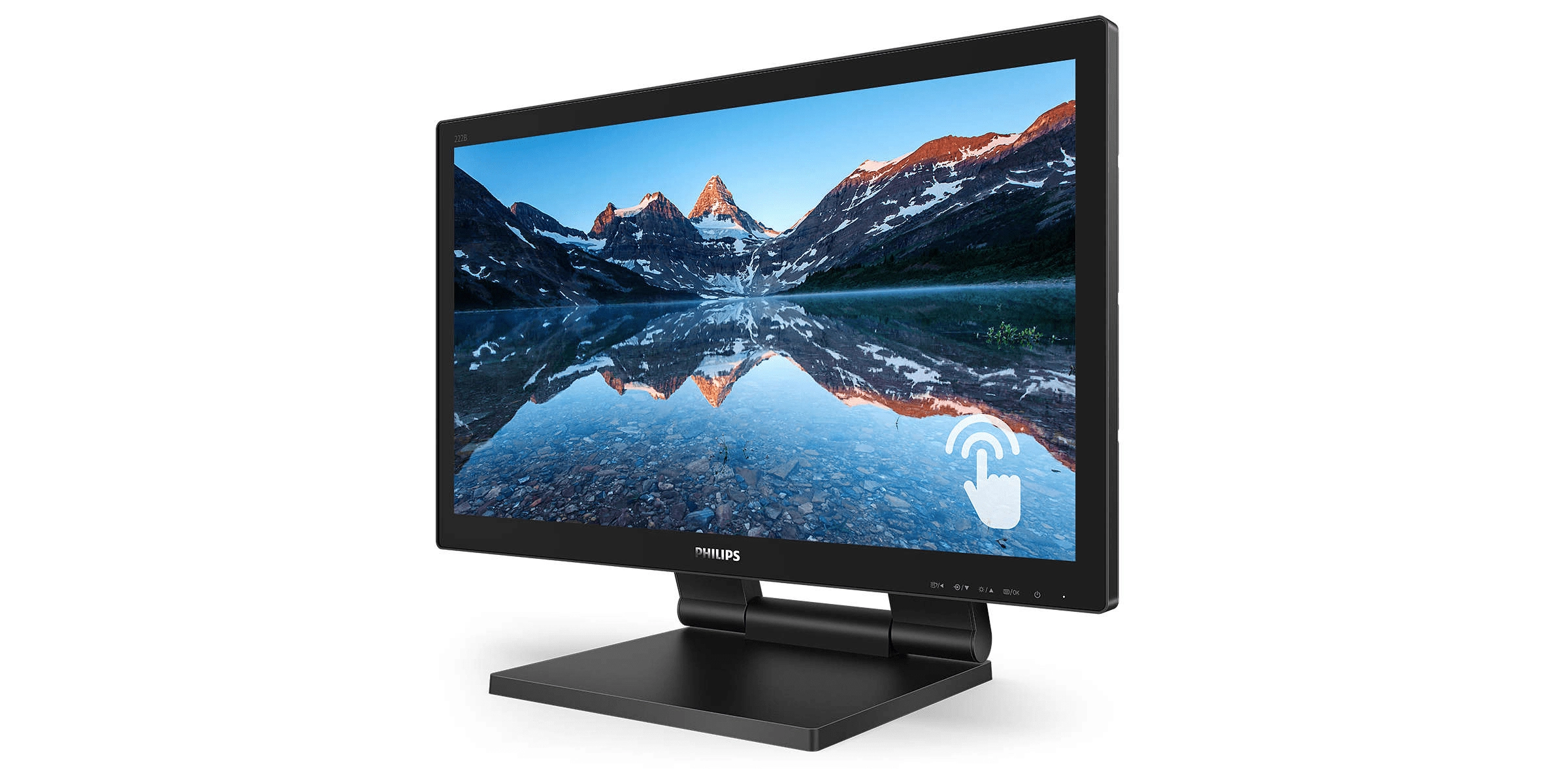

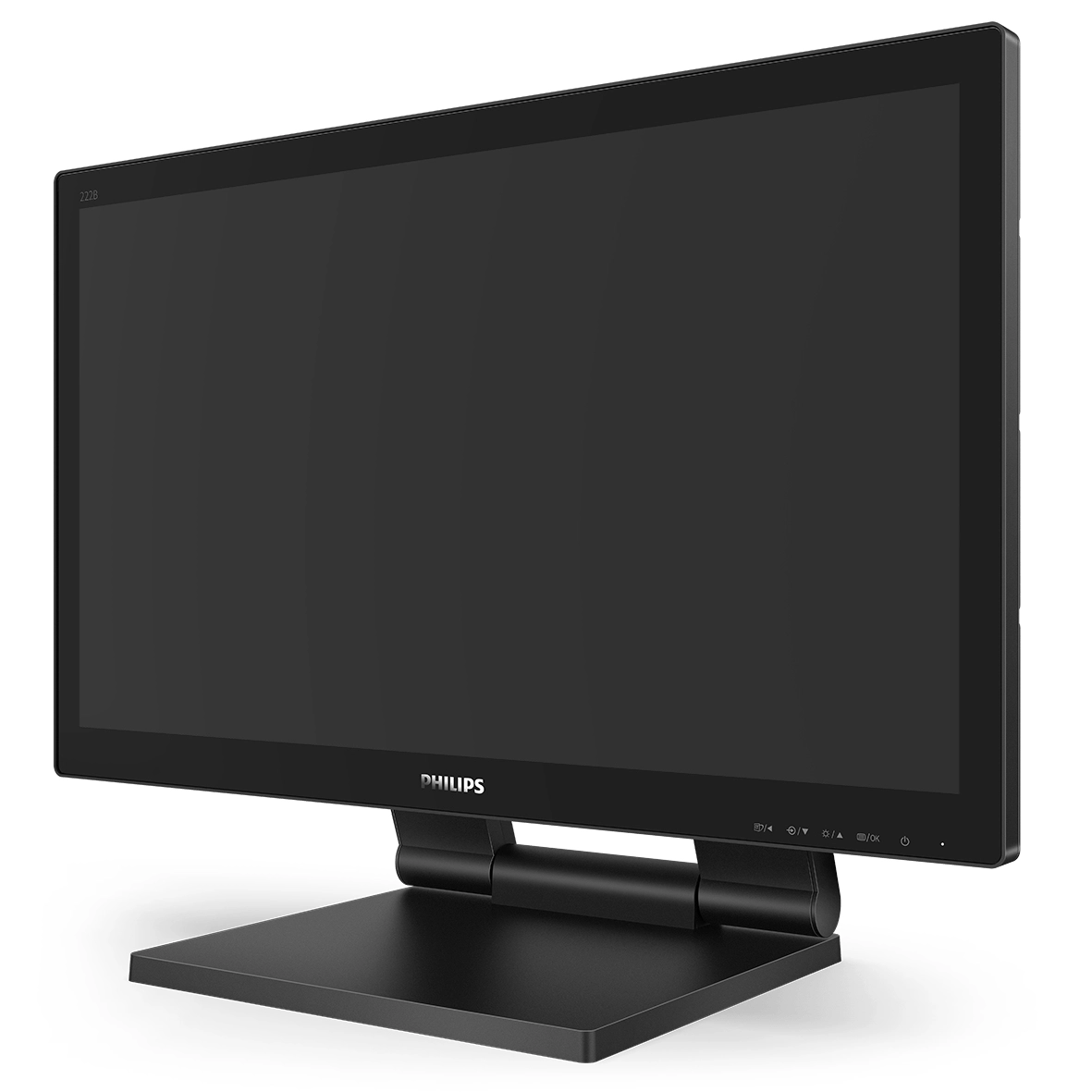

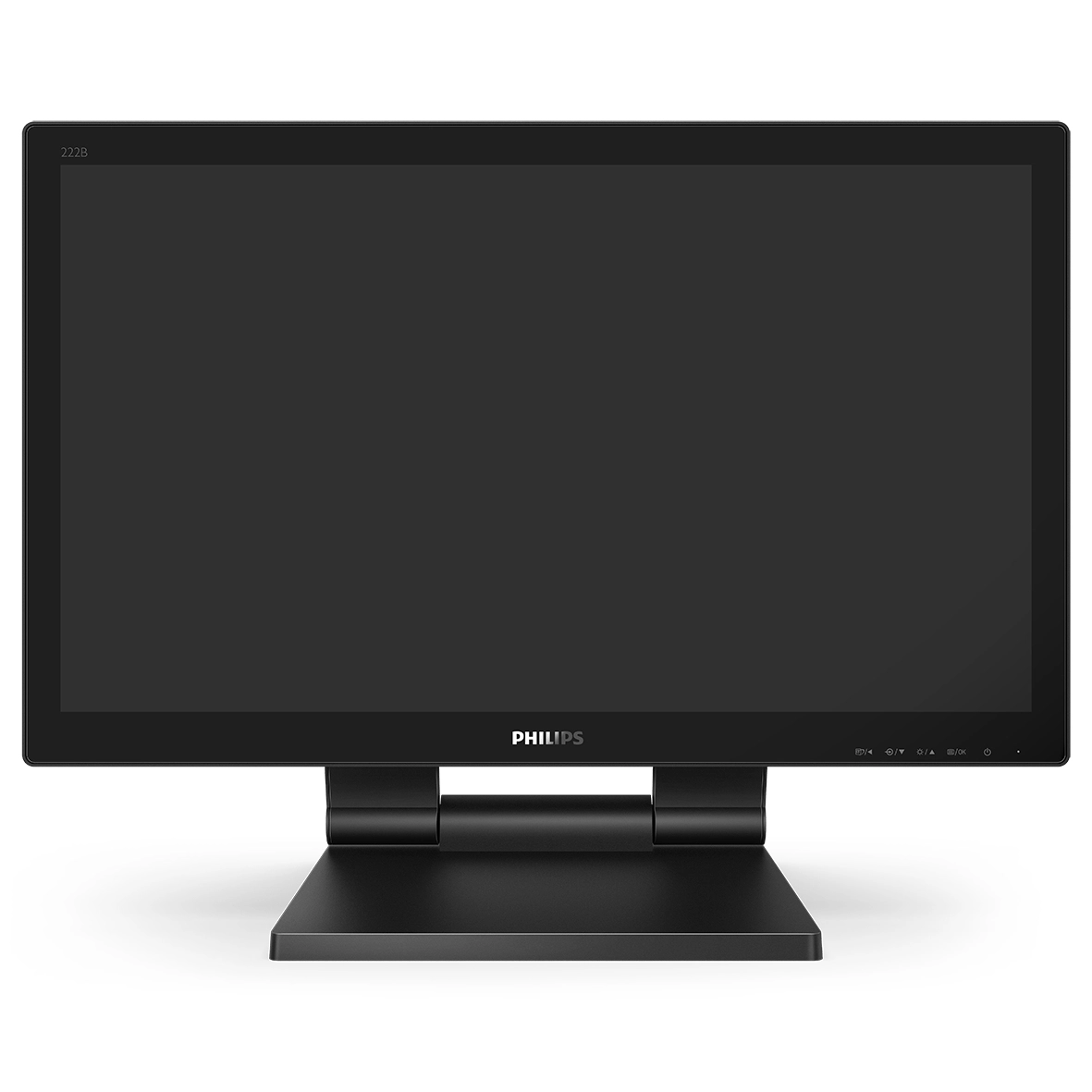

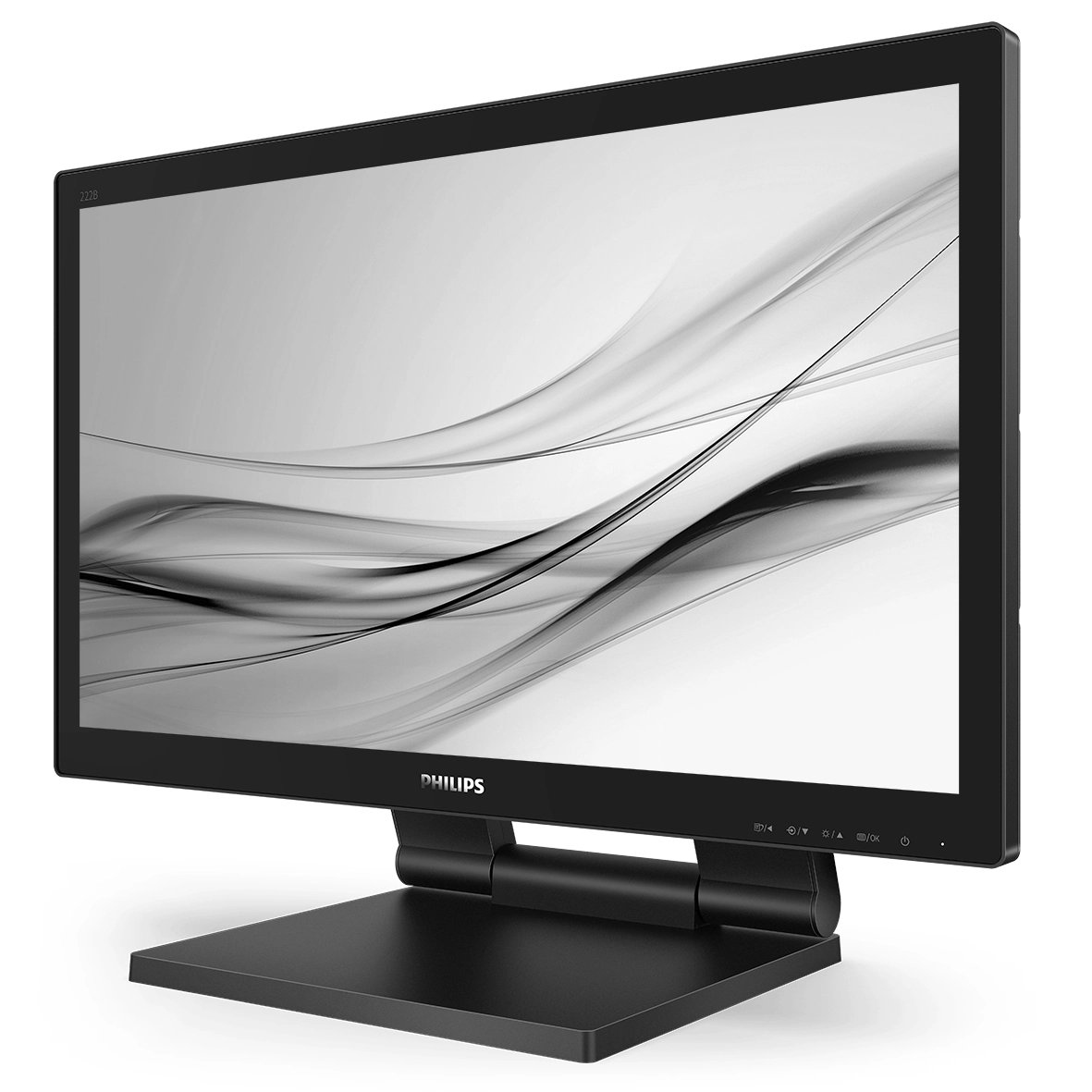

Brilliant interactive display with SmoothTouch

A sturdy, water and dust resistant, anti-glare touch screen monitor for flexible use anywhere, with articulating stand to fit angles you need. Offering simple and intuitive use across applications, greatly boosts up productivity.

Brilliant interactive display
- SmoothTouch display for natural, fluid touch response
- Stylus for fluid and accurate performance with more control
- Monitor front surface meets IP54 for water & dust resistance
- 16:9 Full HD display for crisp detailed images
- SmartContrast for rich black details
- LowBlue Mode for easy on-the-eyes productivity
- Less eye fatigue with Flicker-free technology
- EasyRead mode for a paper-like reading experience

Easy to experience
- HDMI ensures universal digital connectivity
- USB 3.1 high speed data transfer
- DisplayPort connection for maximum visuals

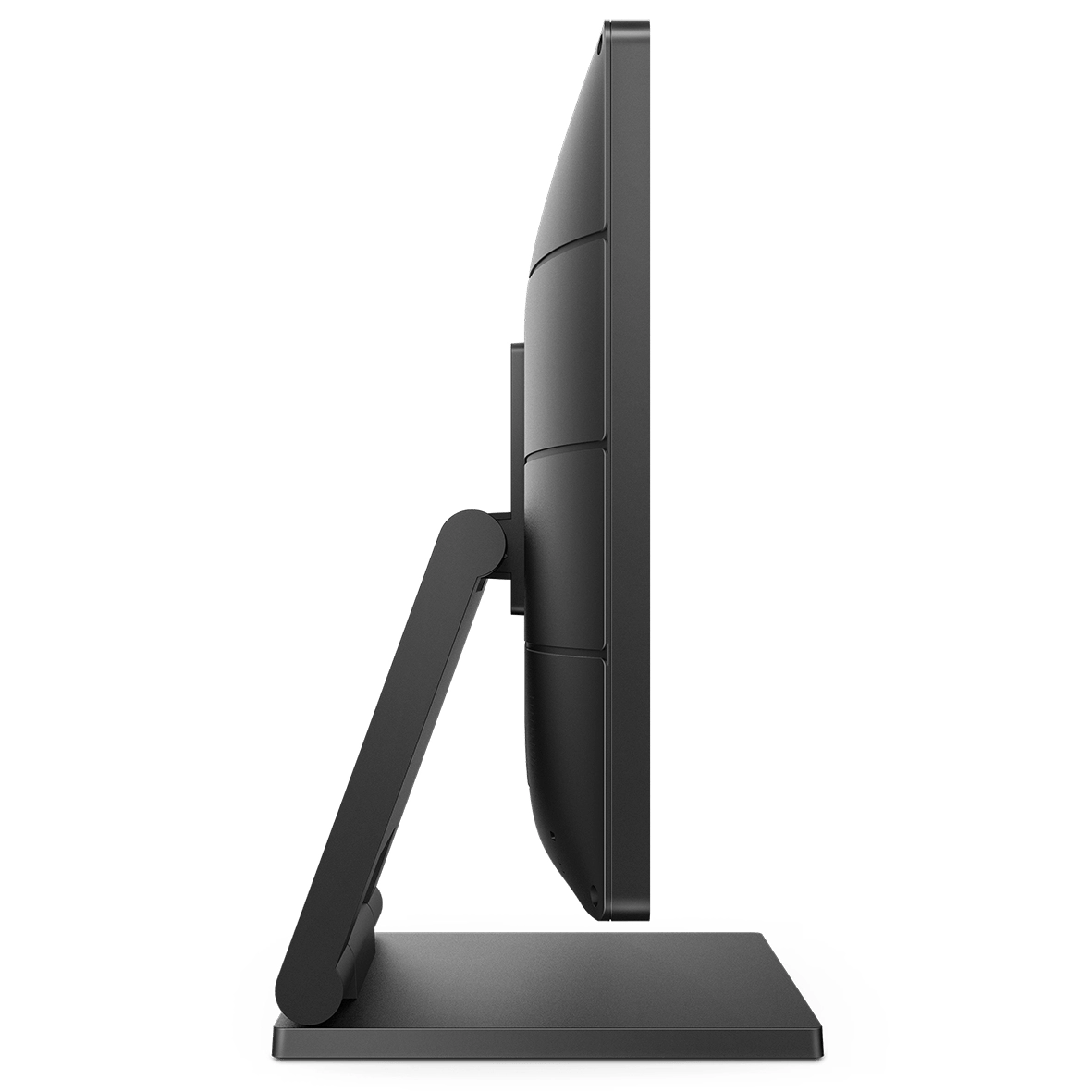

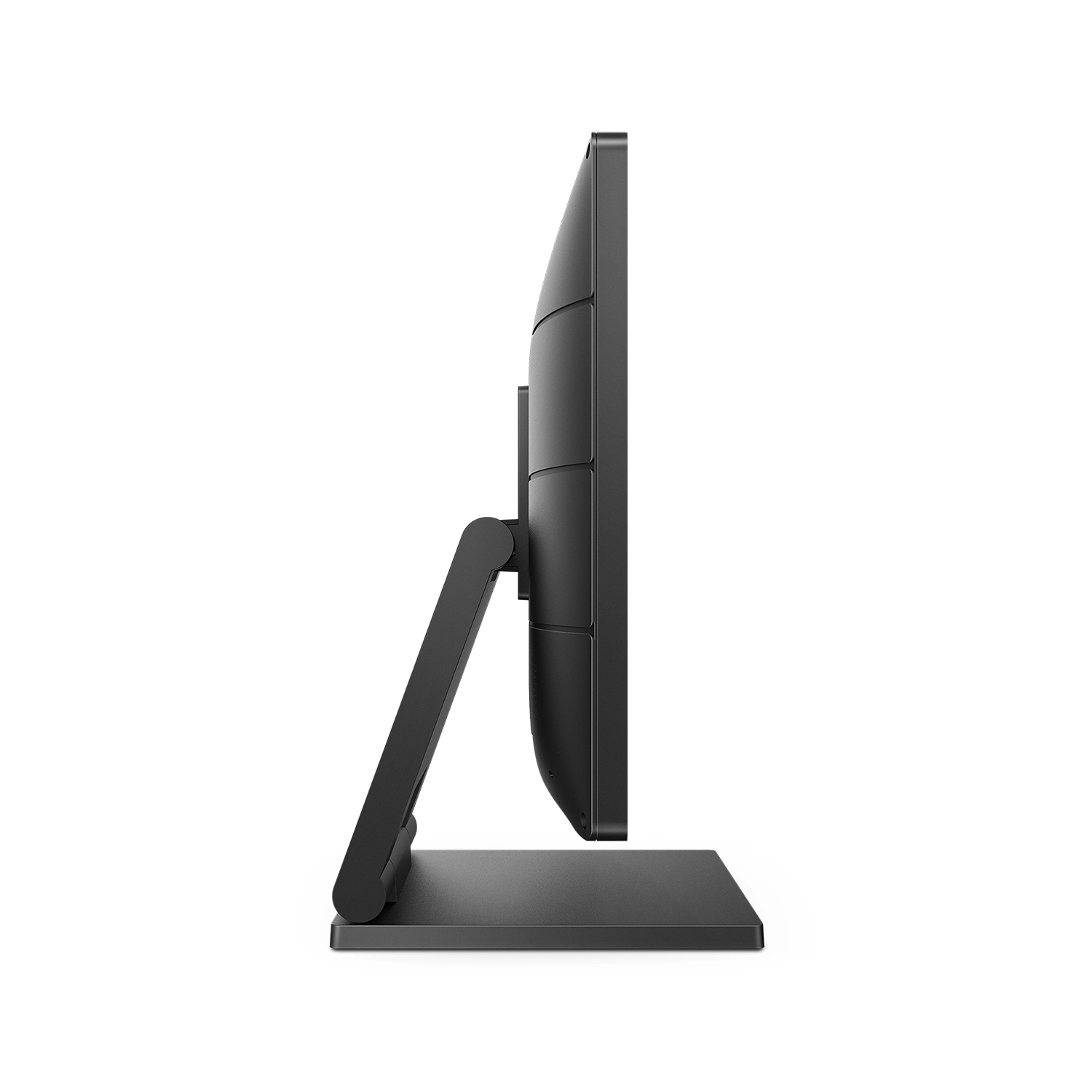

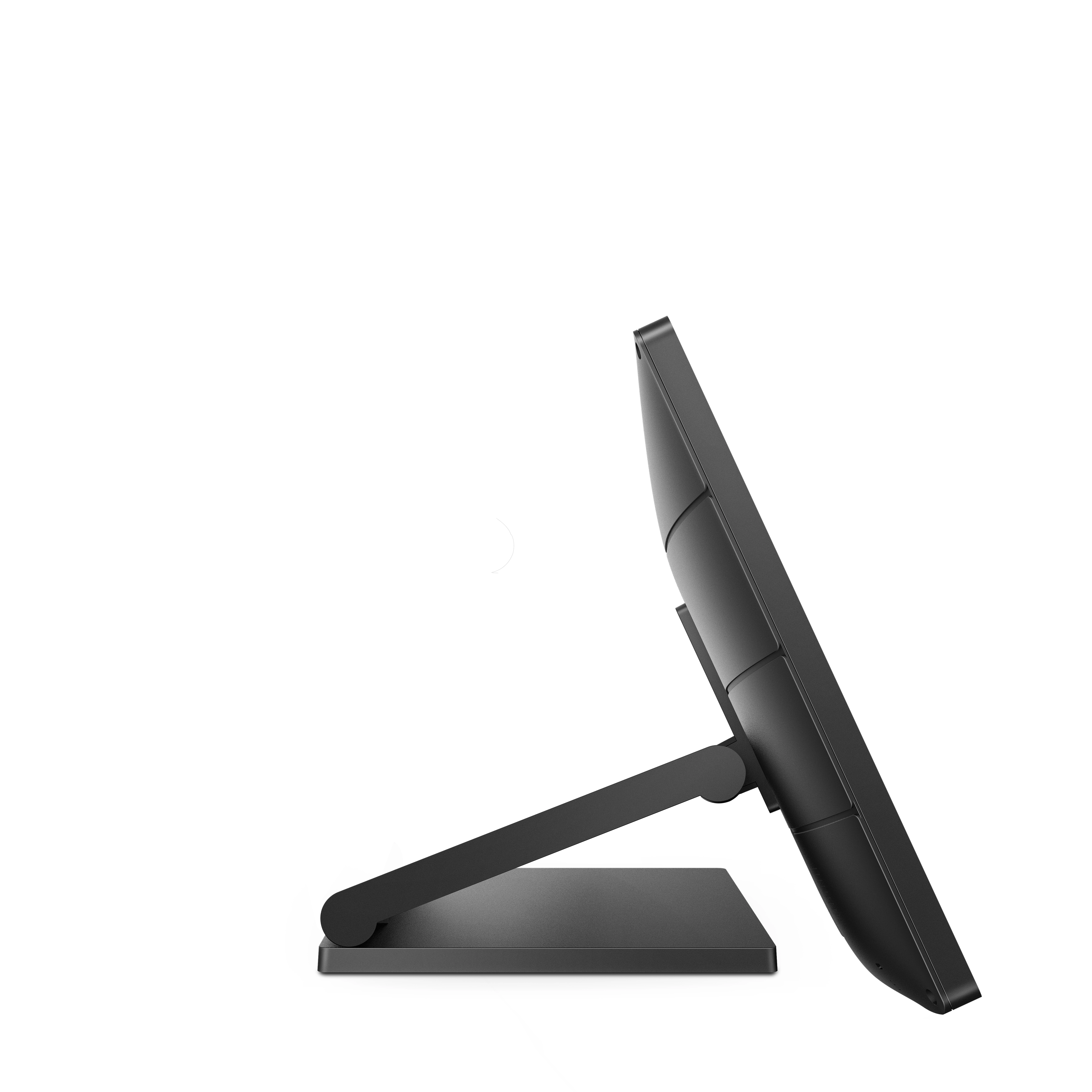

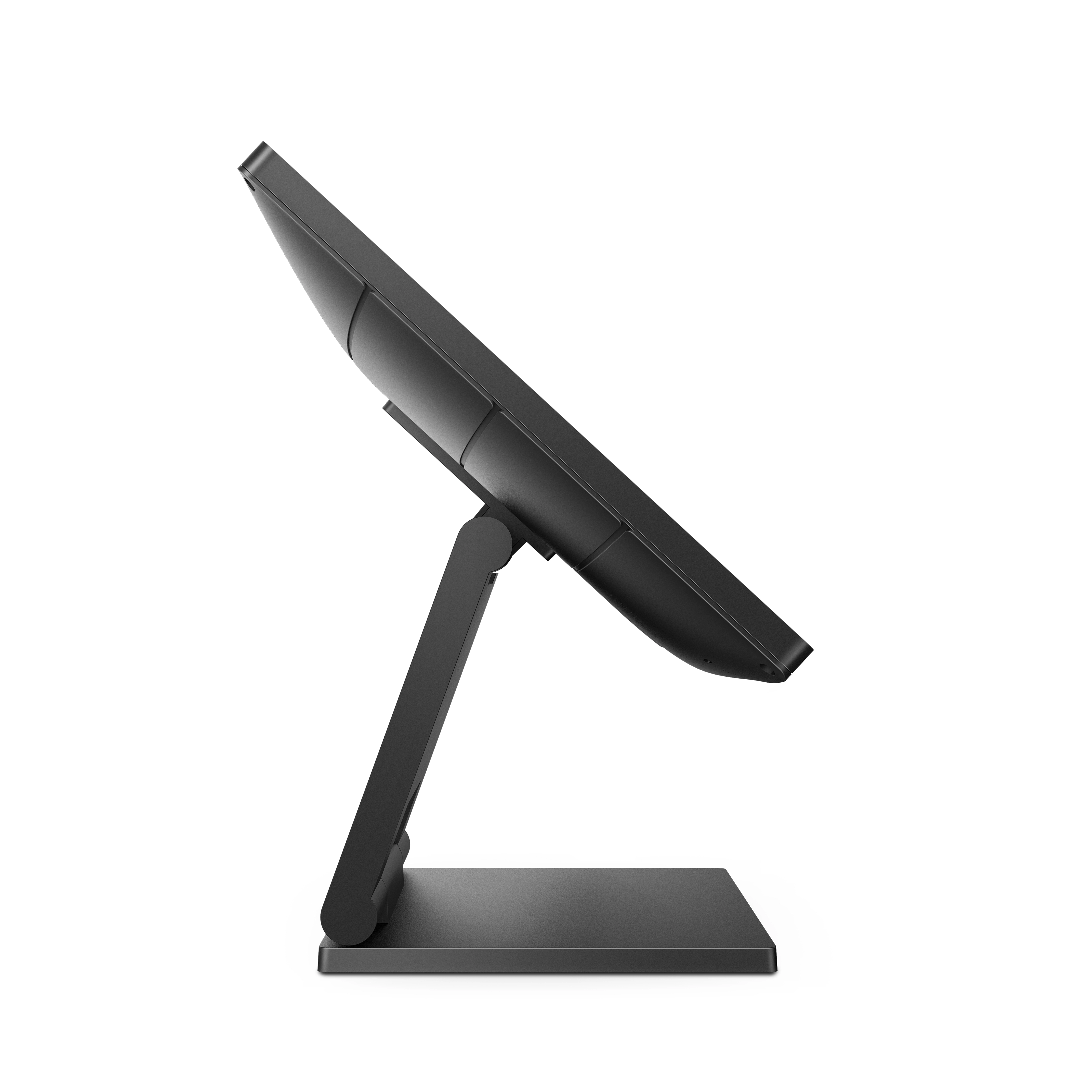

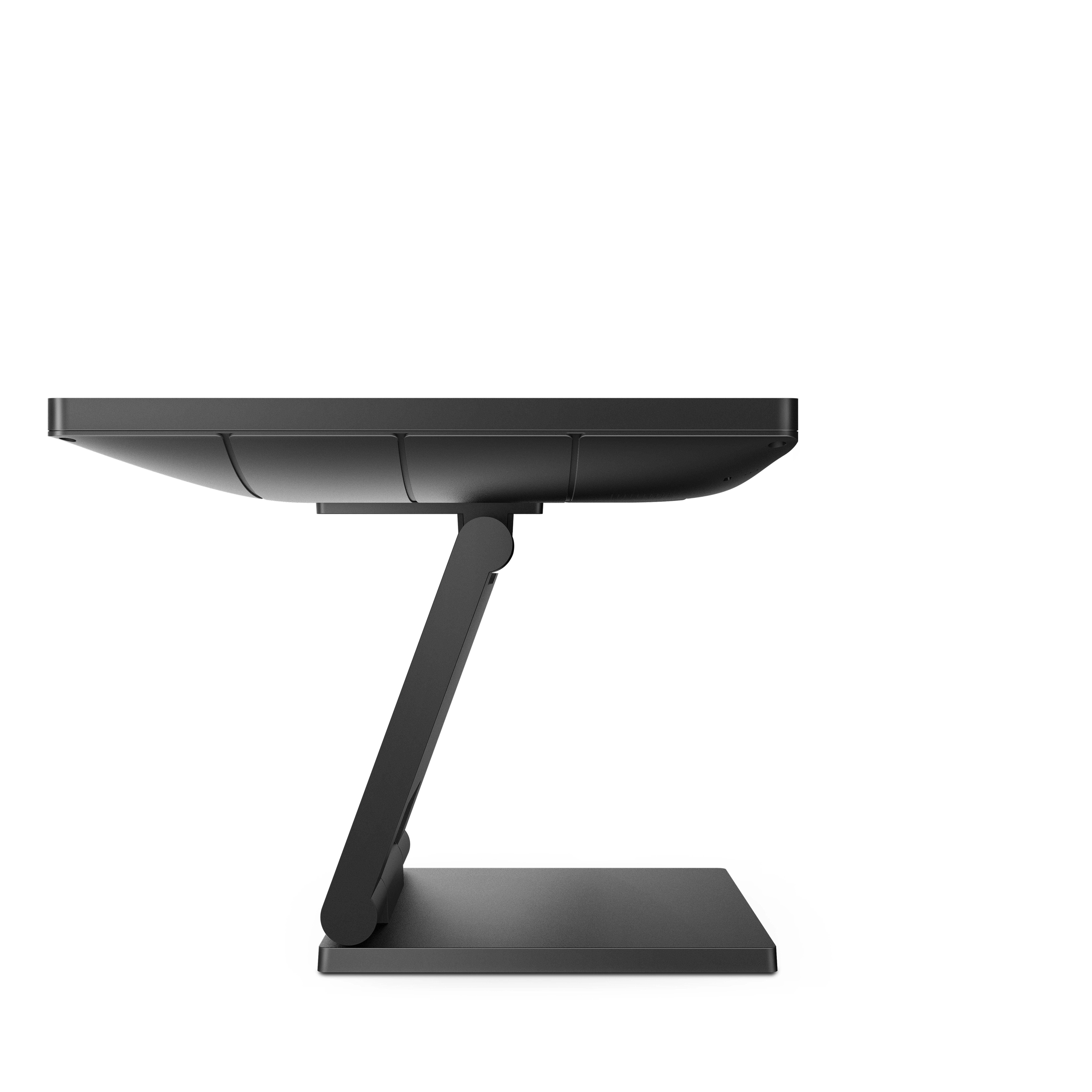

- SmartStand with adjustable angles, boosts productivity

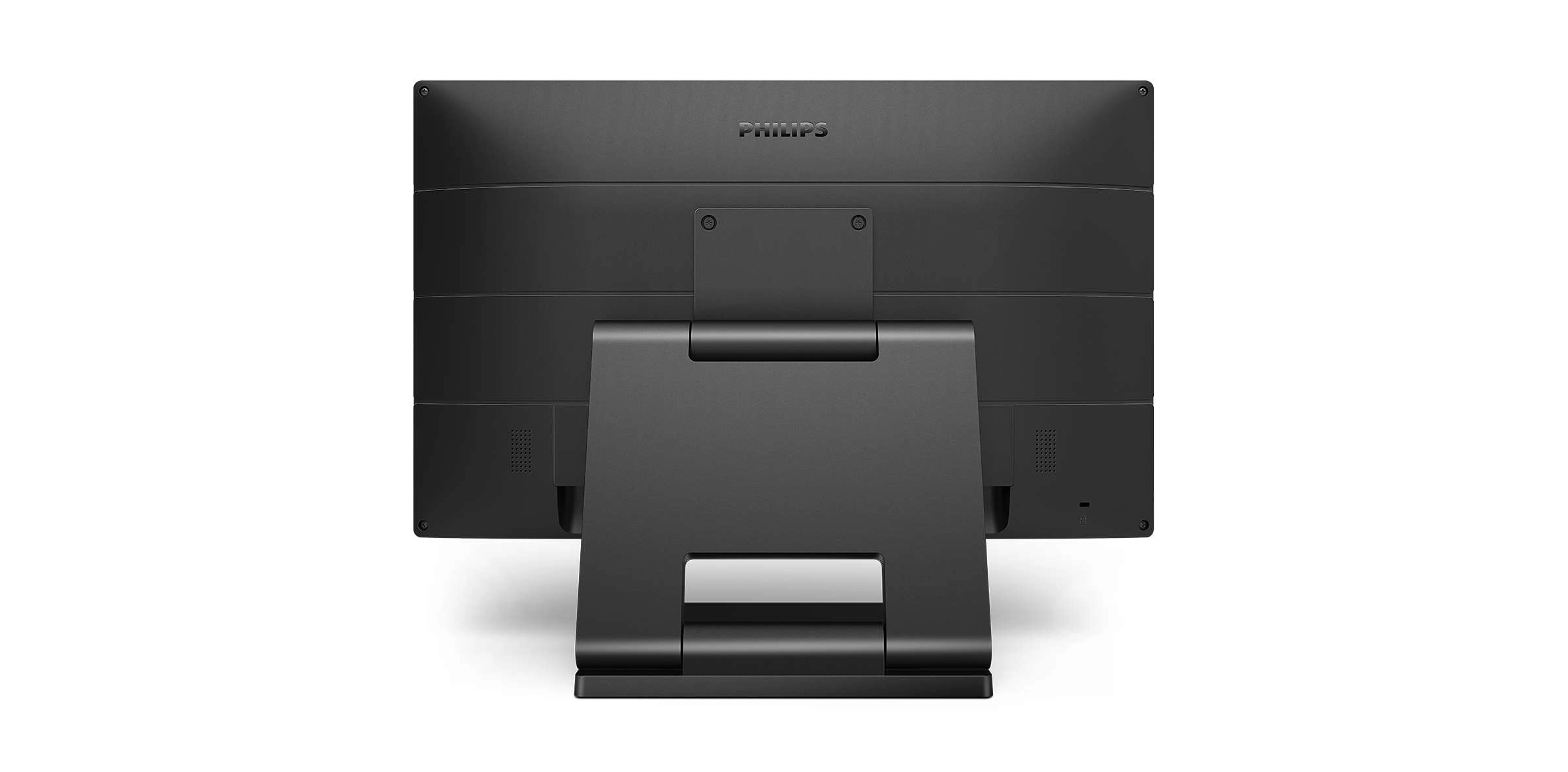

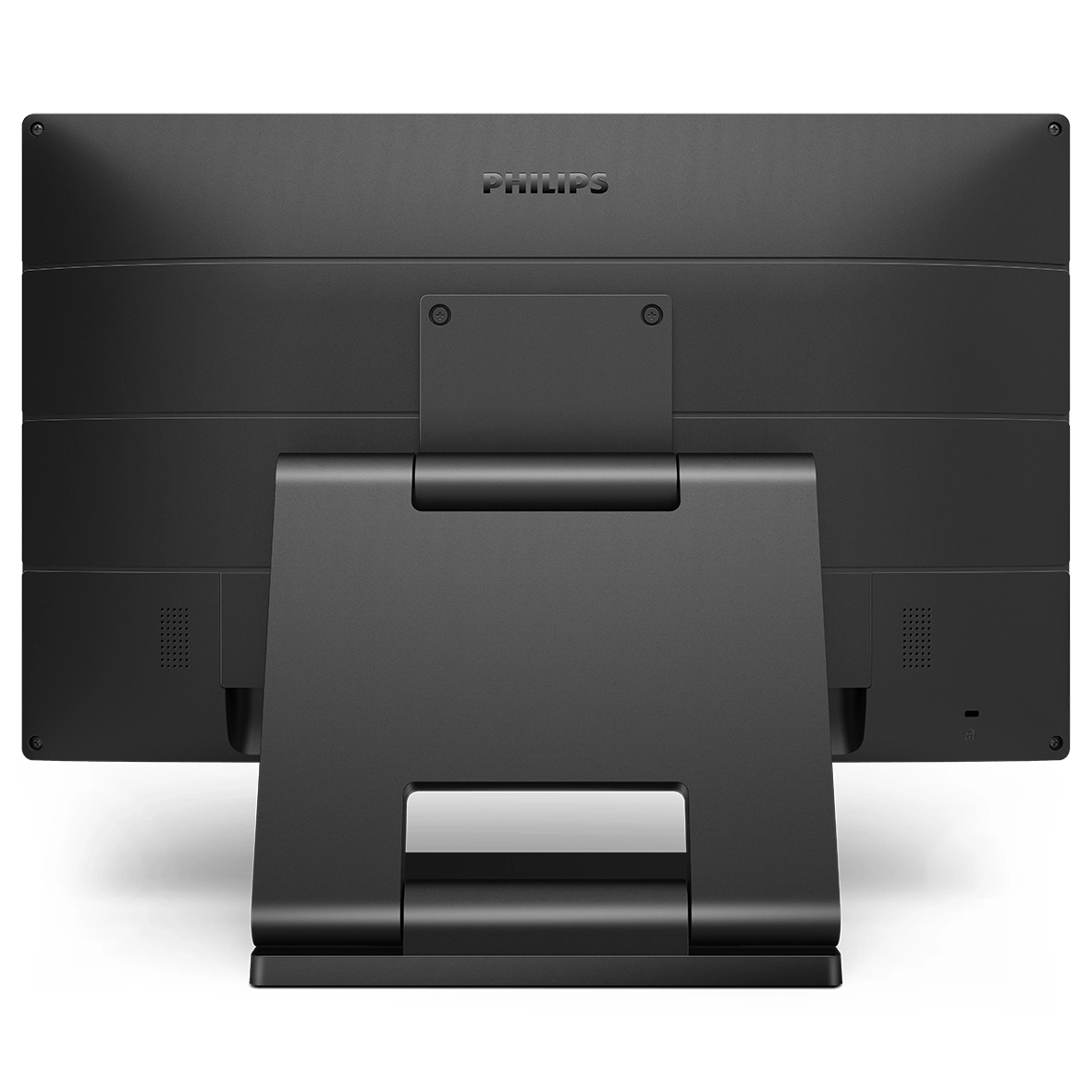

- VESA mount allows for flexibility

- B Line
- 22 (21.5"/54.6 cm diag. )
- Full HD (1920 x 1080)

Specification

Product
Product id	647264
Brand	Philips
Partnr	222B9T/00
EAN/UPC code	8712581756789
Warranty (months)	3 year
Display
Display diagonal	21.5 inch
Display brightness	250 cd/m²
Display resolution	1920 x 1080 Pixels
Panel type	TFT
HD type	Full HD
Display technology	LED
Native aspect ratio	16:9
Aspect ratio	16:9
Display glass type	Tempered glass
Display surface	Gloss
Screen shape	Flat screen
LED backlight	Y
3D	N
Supported graphics resolutions	1920 x 1080 (HD 1080)
Supported video modes	1080p
Pixel density	102 ppi
Viewable size, horizontal	476.64 mm
Viewable size, vertical	268.11 mm
Colour gamut	72 procent
Display	TN+Film
Display number of colours	16.78 million colours
Display diagonal (metric)	54.6 cm
Contrast ratio (typical)	1000:1
Pixel pitch	0.248 x 0.248 mm
Horizontal scan range	30 - 85 kHz
Vertical scan range	48 - 75 Hz
Viewing angle, horizontal	170 °
Viewing angle, vertical	160 °
Display viewable area (HxV)	476.64 x 268.11 mm
Digital horizontal frequency	30 - 85 kHz
Digital vertical frequency	48 - 75 Hz
Swivel angle range	0 - 70 °
Backlight type	W-LED
Contrast ratio (dynamic)	50000000:1
Response time	1 ms
RGB colour space	sRGB
Design
Product colour	Black
Surface hardness	7H
International Protection (IP) code	IP65
Feet colour	Black
Front bezel colour	Black
Performance
Touch technology	Multi-touch
Touchscreen type	Tabletop
Touchscreen technology	Projected capacitive system
Number of simultaneous touchpoints	10
RMS rated power	2 W
Built-in speaker(s)	Y
Number of speakers	2
Built-in camera	N
Built-in microphone	N
On Screen Display (OSD) languages	CHI (SIMPL), CHI (TR), CZE, DEU, DUT, ENG, ESP, FIN, FRE, GRE, HUN, ITA, JPN, KOR, POL, POR, RUS, SWE, TUR, UKR
Connection to PC	Y
Flicker-free technology	Y
Mobile operating systems supported	Android 7.1, Android 7.0, Android 6.0, Android 5.0, Android 4.4
EasyRead mode	Y
Mean time between failures (MTBF)	70000 uur
Low Blue Light technology	Y
HDCP	Y
OmniTapps Multitouch compatibility	N
DDC/CI	Y
Display sRGB	Y
Other operating systems supported	Android
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1
Plug and Play	Y

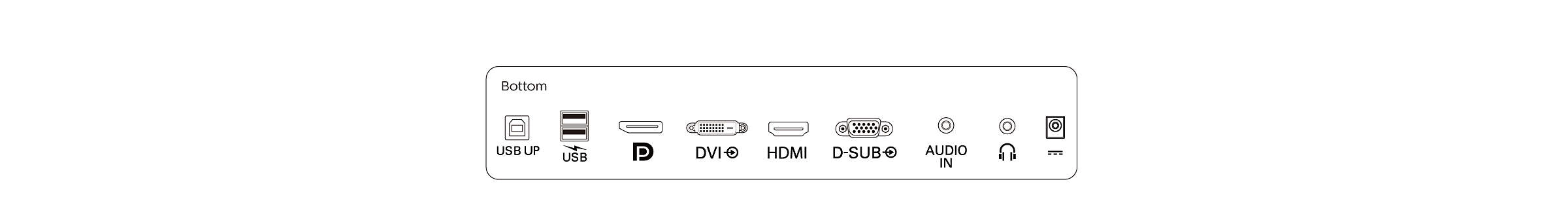

Ports & interfaces
USB Touch port	Y
HDMI	Y
HDMI version	1.4
HDMI ports quantity	1
VGA (D-Sub) ports quantity	1
DVI port	Y
DVI-D ports quantity	1
DisplayPorts quantity	1
DisplayPort version	1.2
Headphone out	Y
Headphone outputs	1
PC Audio in	Y
Ergonomics
Height adjustment	N
Height adjustment	76 mm
Tilt angle range	-5 - 90 °
Cable lock slot type	Kensington
VESA mounting	Y
LED indicators	Operation, Stand-by
Panel mounting interface	100 x 100 mm
Cable lock slot	Y
Pivot	N
Wall mountable	Y
Tilt adjustment	Y
Power
Power supply type	External
Energy efficiency class (SDR)	D
Power consumption (typical)	15 W
Energy efficiency class (old)	A
Power consumption (standby)	0.5 W
Energy consumption (SDR) per 1000 hours	13 kWu
AC input voltage	100 - 240 V
Power consumption (off)	0.3 W
AC input frequency	50 - 60 Hz
Energy Star certified	Y
Energy efficiency class	A
Energy efficiency scale	A to G
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80 procent
Operating altitude	0 - 3658 m
Non-operating altitude	0 - 12192 m
Certificates
RoHS compliance	Y
Certification	CE Mark, FCC Class B, SEMKO, EPA, UKRAINIAN, ICES-003, TUV/GS, TUV Ergo, CU-EAC
EPEAT compliance	Y
Weight & dimensions
Width	515 mm
Height	317 mm
Depth	45 mm
Width (without stand)	515 mm
Depth (without stand)	45 mm
Height (without stand)	317 mm
Weight (without stand)	4170 g
Width (with stand)	515 mm
Depth (with stand)	227 mm
Height (with stand)	394 mm
Weight (with stand)	7460 g
Weight	4170 g
Dimensions (W x D x H) with stand	515 x 227 x 394 mm
Packaging data
Package width	575 mm
Package depth	161 mm
Package height	420 mm
Package weight	9910 g
Packaging content
Cables included	VGA, HDMI, DisplayPort, USB Type-A to USB Type-B, Audio (3.5mm), AC
AC adapter included	Y
Stand included	Y
Bundled software	SmartControl
Technical details
Sustainability certificates	ENERGY STAR, TCO, RoHS, WEEE
Other features
Power consumption (PowerSave)	10.3 W
Market positioning	Home
Recyclable packaging material	100 procent
Heavy metals free	Hg (mercury)
External power adapter	Y
TV tuner integrated	N
Manual	Y
Full HD	Y
Component video sync	Separate sync, Sync-on-green (SOG)
Recommended resolution	1920 x 1080 @ 60 Hz
Picture enhancement	SmartImage
Touchscreen	Y
Anti-reflective	Y
Maximum refresh rate	60 Hz
Regulatory Approvals	CB; CE Mark; FCC Class B; SEMKO; UKRAINIAN; ICES-003; TUV/GS; TUV Ergo; CU-EAC; EAEU RoHS; cETLus
NVIDIA G-SYNC	N
USB Type-A downstream ports quantity	2
Harmonized System (HS) code	85285210
Dynamic contrast ratio marketing name	SmartContrast
Touch method	Stylus, Finger, Glove
AMD FreeSync	N
Display brightness (typical)	250 cd/m²
Doesn't contain	PVC/BFR, Mercury (element)
Folding angle	70 °
SoftBlue	Y
Palm rejection area	30 x 30 mm
