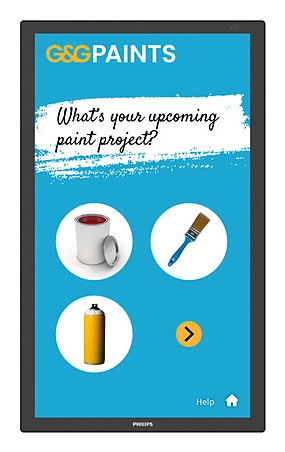

Better connected – versatile multi-touch display

Delivering 24/7 operation with 250 nits brightness, this versatile PCAP display is also designed to reduce energy consumption across the range. Engage. Inspire. Connect. With Android 13, Wave ready, and no need for an external media player.

Easy to clean, with anti-glare and anti-fingerprint coating.
A flush design with no bezel bringing an edge to edge experience augmented with anti-glare glass. Easy to clean, these interactive touch screens also feature anti-fingerprint coating.

Also supporting 30° tilt – ideal for kiosk installations.
Install in portrait or landscape orientations, with the option to tilt to 30°, with size variants to suit a range of installation purposes. Whether on a shelf – ideal for the 24” – angled or upright for Point of Sale, configurators, order points and kiosks – with the 32” and 43” – or for wayfinding – think 55”.

Better visibility even in bright daylight
With 250 cd/m2 brightness for better visibility under bright lights, the Philips Interactive 3000 Series is designed to be used 24/7, making it a great selection for travel and transportation hubs, retail centers, food and beverage locations, and more. FailOver is also included enabling your display to switch automatically between primary and secondary inputs should an outage occur.

No need for external media player. 4GB RAM + 32GB ROM.
The ultimate in intuitive user experience, with a professional Android 13 SoC built in for easy apps and solutions integrations and no need for an external media player. Connections include Wifi and Bluetooth, as well as USB-C port.

Remote monitoring, maintenance, and management.
Manage your display and control content remotely with PPDS Wave Controller – your evolutionary ecosystem designed to support time, energy and cost efficiencies. Discover software applications to support your interactive vision from our network of proven partners on the PPDS ProStore.

Supporting business sustainability and energy savings.
Reduced power consumption compared to previous models, supporting business sustainability and energy savings.

Better connecting customers with content.
Allows seamless connectivity, enabling easily access and engagement with content.

Activated out of the box for hassle free peace of mind.
Reliable, worry-free protection for your displays, with a three-year warranty automatically in place from the start, eliminating any setup effort.

Specification

Product
Product id	986308
Brand	Philips
Partnr	24BDL3751T/00
EAN/UPC code	8721038100082
Display
Display diagonal	23.8 inch
Display resolution	1920 x 1080 Pixels
Display brightness	250 cd/m²
HD type	Full HD
Touchscreen	Y
Touchscreen technology	Projected capacitive system
Number of simultaneous touchpoints	10
Native aspect ratio	16:9
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Display number of colours	16.7 million colours
Pixel pitch	0.2745 x 0.2745 mm
Display diagonal (metric)	60.5 cm
Number of displays	1
Native refresh rate	60 Hz
Panel type	ADS
Glass thickness	1.8 mm
Ports & interfaces
HDMI ports quantity	2
HDMI version	2.0
HDMI input ports quantity	2
DVI port	N
DisplayPorts quantity	1
DisplayPorts in	1
USB port	Y
USB ports quantity	5
USB version	2.0/3.2 Gen 1 (3.1 Gen 1)
Ethernet LAN	Y
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Ethernet LAN (RJ-45) ports	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
Ethernet LAN data rates	1000 Mbit/s
Wi-Fi	Y
USB Power Delivery	Y
USB Power Delivery up to	15 W
Audio (L/R) in	1
Audio (L/R) out	1
RS-232 interface	Y
Infrared data port	Y
Audio
Built-in speaker(s)	Y
Number of built-in speakers	2
RMS rated power	20 W
Design
Design	Interactive flat panel
Product colour	Black
Orientation	Horizontal/Vertical
Wall mountable	Y
Screen shape	Flat screen
VESA mounting	Y
Panel mounting interface	200 x 200 mm
Anti-glare screen	Y
Bezel width (top)	21.1 mm
Bezel width (side)	21.1 mm
Bezel width (bottom)	21.1 mm
Mounting type	Wall
Fingerprint resistant	Y
Performance
Purpose	Commercial
Number of OSD languages	18
On Screen Display (OSD) languages	ARA, CHI (SIMPL), CHI (TR), DAN, DEU, DUT, ENG, ESP, FIN, FRE, ITA, JPN, NOR, POL, POR, RUS, SWE, TUR
Mean time between failures (MTBF)	50000 uur
HID support	Y
Power
Power consumption (typical)	25 W
Power consumption (standby)	0.5 W
Energy efficiency class (SDR)	F
AC input voltage	100 - 240 V
Energy efficiency class (HDR)	Not available
AC input frequency	50/60 Hz
Energy consumption (SDR) per 1000 hours	21 kWu
Energy efficiency scale	A to G
Computer system
Computer system	Y
Computer system type	System on Chip (SoC)
Built-in processor	Y
Processor manufacturer	ARM
Processor family	ARM Cortex
Processor model	A55
Processor architecture	ARM Cortex-A55
Processor cores	4
Internal memory	4 GB
Internal storage capacity	32 GB
On-board graphics adapter model	ARM Mali-G52
Operating system installed	Android
Video formats supported	H.263, H.264, H.265, MPEG1, MPEG4, VP8, VP9
Audio formats supported	AAC, HE-AAC, MPEG-1, MPEG-2
Image formats supported	BMP, JPEG, PNG, WEBP
Operating system version	13
Weight & dimensions
Width (with stand)	570.8 mm
Depth (with stand)	38.4 mm
Height (with stand)	340.3 mm
Weight (with stand)	4780 g
Packaging data
Package weight	6700 g
Packaging content
Handheld remote control	Y
Batteries included	Y
Cables included	AC, RS-232, USB Type-A to USB Type-B
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80 procent
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	5 - 95 procent
Technical details
Warranty period	3 jaar
Compliance certificates	BSMI, CB, CE, ETL, Federal Communications Commission (FCC), PSB, RoHS
Other features
USB connector type	Micro-USB, USB Type-A, USB Type-B, USB Type-C
DisplayPort version	1.3
Bluetooth version	5.2
Bluetooth	Y
Display technology	LCD
Power consumption (max)	83 W
