Smart and modular for an even longer lifetime

Philips D-Line is designed to engage your audience and delight customers. Powered by Android 11 for easy software integrations, this versatile display is suitable for impact in any setting.

Save and play content with internal memory
Save and play content with internal memory. Upload your media into the display and playback content immediately. Working in conjunction with the internal browser, it also serves as a memory cache when streaming online content. If the network ever fails, the internal memory keeps content running by playing a cached version of the content, ensuring that your media stays up even if the network goes down.

ADS wide-view panel display
Be seen from any angle with ADS wide-view technology. Advanced Super Dimension Switch delivers faster on-display picture processing for smoother content transitions, remarkable image accuracy, and superior colour reproduction with 180 degree viewing.

4G/LTE optional module for reliable connection
Select our optional 4G/LTE module for more predictable bandwidth and faster download speeds, providing you with a reliable backup connection in case of 24/4 work requirements or where local network connections are not possible.

FailOver. Ensure your display never goes blank
Critical for demanding commercial applications, FailOver is a revolutionary technology that automatically plays back-up content on screen in the unlikely event of a media player failure. Simply select a primary input connection and a FailOver connection and you are ready for instant content protection.

Modularity - longer product lifetime
Extend your display into the future with our modular approach. Bringing opportunities for longer product lifetime with easily detached and replaced components, and a firm focus on sustainability, with reduced WEEE disposal.

Android SoC processor. Native and web apps
Powered by Android 11 and with integrated WiFi, your Philips D-Line delivers the ultimate, most secure and connected display experience. Optimised for native Android apps, and enabling you to install web apps and software directly onto the display, eliminating the need for an external media player.

Connect and control your content via the cloud
Connect and control your content via the cloud with our integrated HTML5, Chromium-based browser. Design your content online and connect a single display, or your entire network, either landscape or portrait, in 4k UHD resolution. Simply connect to the internet via WiFi or with an RJ45 cable.

Catch the Wave for revolutionary results
Unlock the power, versatility and intelligence inside your Philips D-Line displays remotely with Wave. This evolutionary cloud platform puts you fully in control, with simplified installation and set-up, monitoring and controlling displays, upgrading firmware, managing playlists and setting power schedules. Saving you time, energy and environmental impact.

Specification

Product
Product id	944725
Brand	Philips
Partnr	75BDL4650D/00
EAN/UPC code	8712581799854
Display
Display diagonal	75 inch
Display resolution	3840 x 2160 Pixels
Display brightness	500 cd/m²
HD type	4K Ultra HD
Touchscreen	N
Native aspect ratio	16:9
Response time	8 ms
Contrast ratio (typical)	1200:1
Contrast ratio (dynamic)	500000:1
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Display number of colours	1.07 billion colours
Pixel pitch	0.4296 x 0.4296 mm
Display diagonal (metric)	189.3 cm
Native refresh rate	60 Hz
Haze rate	25 procent
Panel type	ADS
Ports & interfaces
HDMI ports quantity	2
HDMI version	2.0
HDMI input ports quantity	2
DVI port	Y
DVI-I ports quantity	1
DisplayPorts quantity	2
DisplayPorts in	1
DisplayPorts out	1
USB port	Y
USB ports quantity	4
USB version	2.0/3.2 Gen 1 (3.1 Gen 1)
Ethernet LAN	Y
Ethernet LAN (RJ-45) ports	1
Wi-Fi	Y
RS-232C	Y
Infrared data port	Y
Audio
Built-in speaker(s)	Y
Number of built-in speakers	2
RMS rated power	20 W
Design
Design	Digital signage flat panel
Product colour	Black
Placement supported	Indoor
Orientation	Horizontal/Vertical

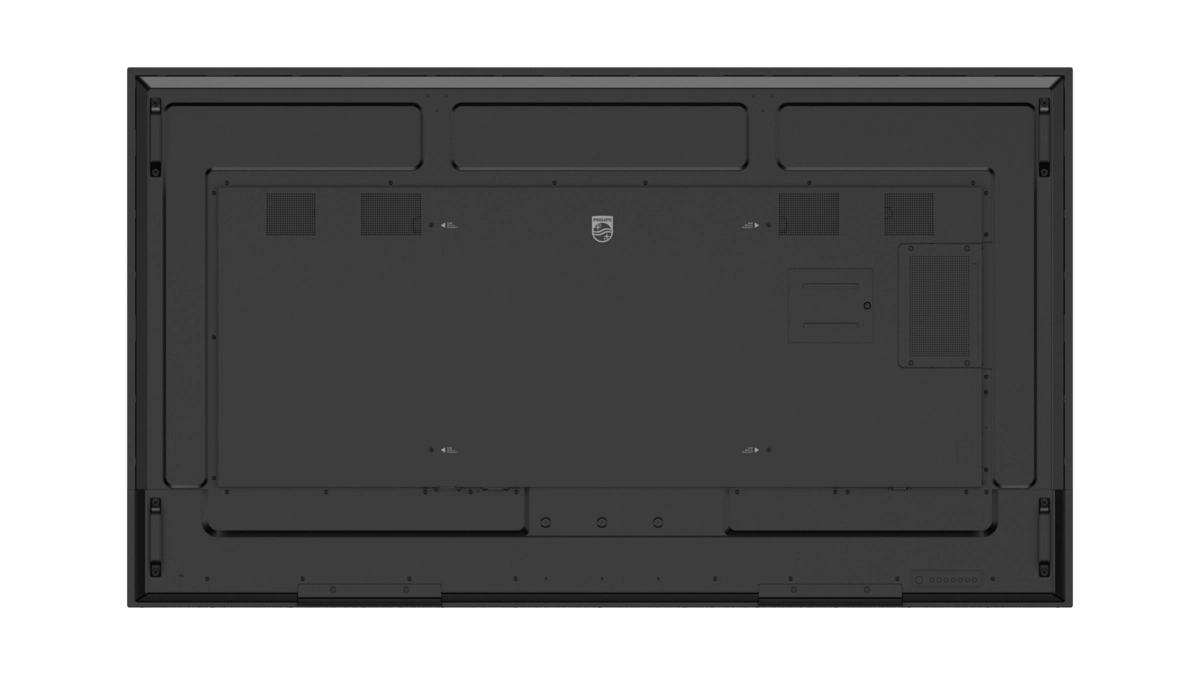

VESA mounting	Y
Panel mounting interface	600 x 400 mm
Bezel width (top)	14.9 mm
Bezel width (side)	14.9 mm
Bezel width (bottom)	14.9 mm
Performance
Purpose	Universal
On Screen Display (OSD)	Y
Operating hours (hours/days)	24/7
Mean time between failures (MTBF)	50000 uur
Power
Power consumption (standby)	0.5 W
Energy efficiency class (SDR)	G
AC input voltage	100-240 V
AC input frequency	50-60 Hz
Energy efficiency scale	A to G
Computer system
Computer system	Y
Computer system type	System on Chip (SoC)
Built-in processor	Y
Processor family	ARM Cortex
Processor architecture	ARM Cortex-A53+Cortex-A72
Internal memory	4 GB
Internal storage capacity	32 GB
Operating system installed	Android 11
Weight & dimensions
Display width	1683.5 mm
Display depth	69.5 mm
Display height	961.7 mm
Display weight	36300 g
Packaging content
Handheld remote control	Y
Batteries included	Y
Cables included	AC, IR sensor, RS-232
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80 procent
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	5 - 95 procent
Other features
USB connector type	Micro-USB, USB Type-A
Bluetooth version	5.2
Bluetooth	Y
Quick start guide	Y
Audio input	1
Audio output	1
Display technology	LCD
