TBS-h574TX
Thunderbolt™ 4 All-Flash NASbook with hot-swappable SSDs empowers uninterrupted creativity.

TBS-h574TX is a Thunderbolt™ 4 all-flash NASbook designed for on-location shoots, small studios, small-scale video production teams, and SOHO users. Featuring an Intel® Core™ processor and high-speed I/O, TBS-h574TX enables online editing, visual effects (VFX), file transfer and backup for both Mac® and Windows® creators. Hot-swappable SSD support also ensures uninterrupted project flows. Pre-installed with QuTS hero OS, it supports ZFS data integrity, immutability, and advanced SSD optimization technologies.

Now available in two models pre-installed with QNAP enterprise-grade E1. S NVMe SSDs (9.6 TB and 19.2 TB in total).

All-flash NASbook supporting E1. S SSDs – a perfect companion for video production
Compared to large rackmount all-flash array storage, the TBS-h574TX all-flash NASbook provides five SSD slots in a compact and portable design. Its high-speed read/write performance is specifically tailored for video editors and VFX professionals. Equipped with QNAP enterprise-grade E1. S SSDs, users benefit from a robust combination of performance, stability, and data security. The TBS-h574TX seamlessly works with USB DAS (such as TR-004) for efficient file backup and archiving, that keeps it in optimal condition for a seamless flow into every creative challenge.

Maximize uptime with hot-swappable E1. S / M.2 SSD
Frontline video production teams are sometimes at risk of project interruptions due to unexpected SSD failures in storage devices. The TBS-h574TX supports hot-swappable SSDs, along with conditional automatic RAID replacement with spares. If an SSD enters a critical state, the system automatically moves data from the affected drive to a spare in the RAID group, seamlessly integrating it into the existing RAID without the need for RAID rebuilding. This significantly reduces the risk of data loss.

QNAP Enterprise E1. S SSDs: Performance, Reliability, Security
QNAP-certified enterprise E1. S SSDs are built for high-density data access and include multiple layers of data protection, ensuring stable, high-speed performance for creative professionals.

High-performance SSDs. Effective heat dissipation.
Designed with an excellent cooling system, the TBS-h574TX is equipped with dual fans and supports SSD heatsinks (heatsinks sold separately) to effectively enhance heat dissipation during intensive workloads, allowing creators to confidently enjoy the ultimate performance of SSD.

Thunderbolt™ 4 direct connection to workstations for higher productivity
The TBS-h574TX has two Thunderbolt™ 4 ports for high-speed data transfer (up to 20Gbps bandwidth). Mac® (including M1 and M2 chip models) or Windows® workstations can directly connect to the TBS-h574TX for fast and smooth real-time video editing, allowing for the transfer of a 1TB 4K video just in 11 minutes.

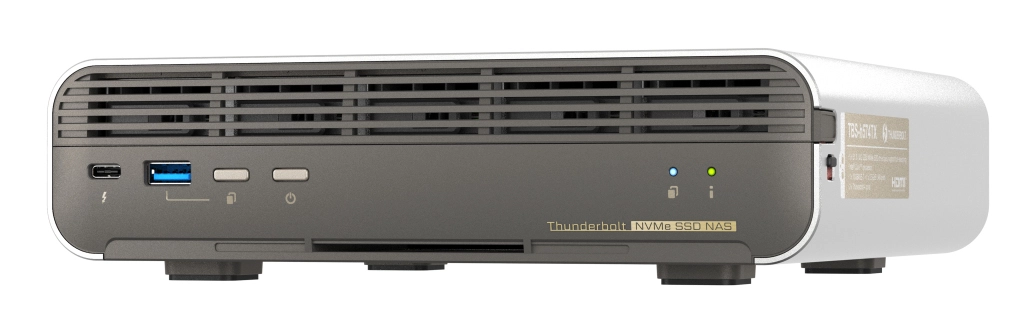

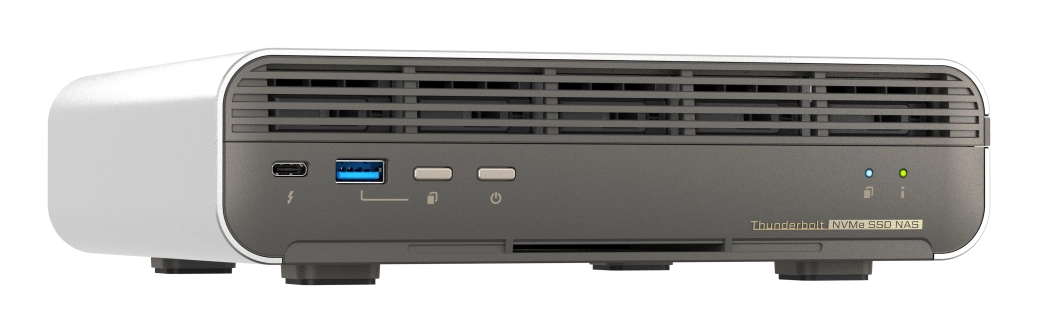

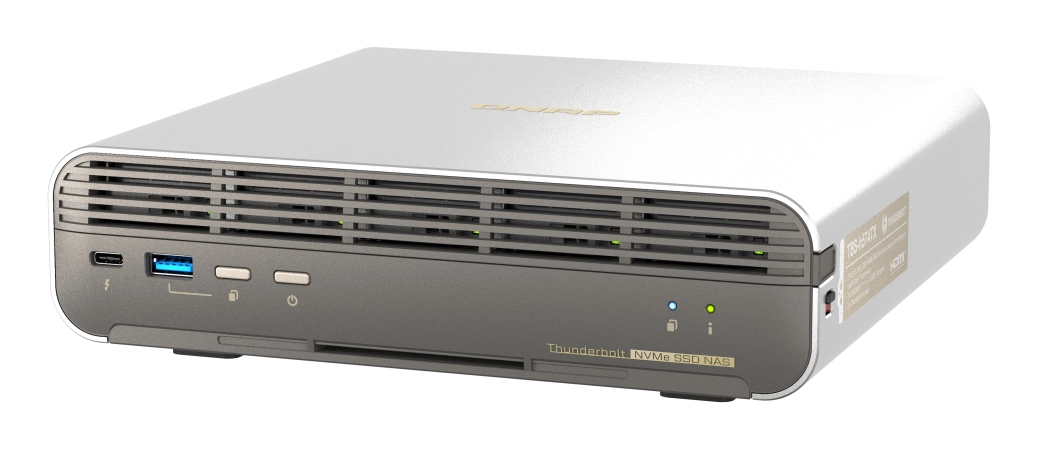

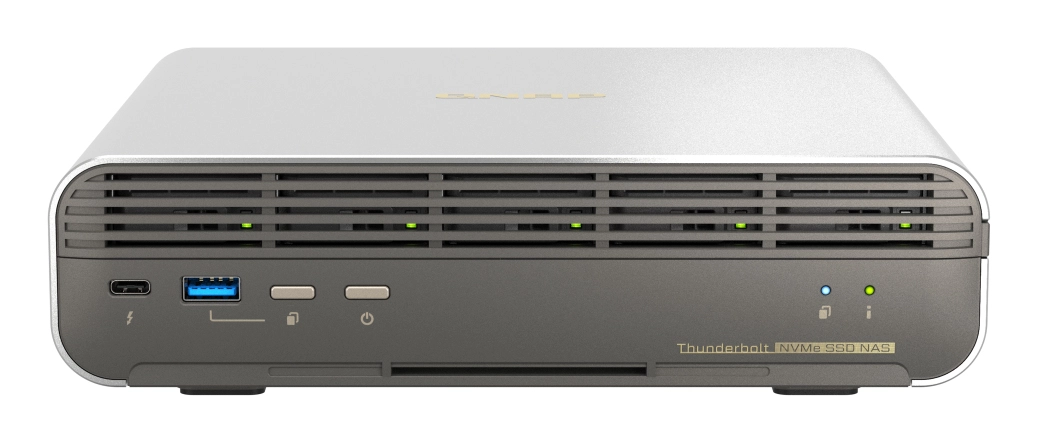

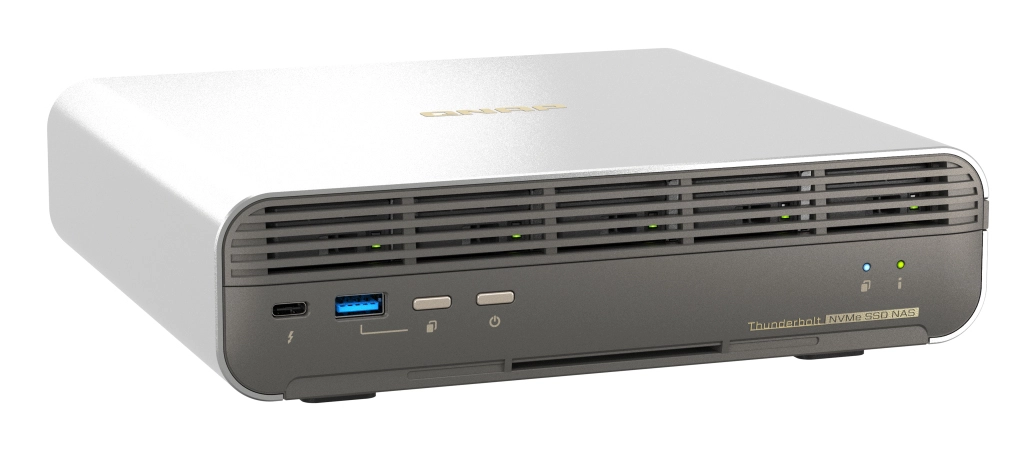

Compact, aesthetic, yet unmatched performance
The TBS-h574TX provides content creators the perfect combination of stylish design and performance. With its metal-finish case, it delivers optimized cooling performance. The set-top design makes the TBS-h574TX space-saving – smaller than A4 paper and with only 2.54 liters in volume – ideal for small-scale studios or video production teams looking for a portable solution.

Next-gen Intel® Core™ processors with hybrid architecture for multitasking potential
The TBS-h574TX adopts the 13th Gen Intel® Core™ hybrid-architecture processor with P-core (Performance-core) and E-core (Efficient-core) performance. Multi-core and multi-thread advantages enable higher multitasking performance with lower CPU workloads and resource consumption, empowering creators with higher productivity.

Ultimate visual experience with real-time video transcoding and 4K HDMI™ output
The TBS-h574TX features built-in Intel® Graphics that accelerates video transcoding and graphical computing for converting videos to different formats smoothly. You can also display videos from the TBS-h574TX to a large screen using HDMI™ (4K @30Hz) for capturing details and clearer quality.

Build the best music server with Roon
Designed for music lovers, Roon Server identifies your entire music library stored on the TBS-h574TX, and consolidates it into Roon’s interconnected digital library. Experiencing smooth music streaming service, you just need to download Roon Server app from QNAP App Center and enable Roon music library on SSD storage devices with simple setting.

Leverage AI to predict NVMe SSD drive failure
Featuring AI-powered diagnostics technology, ULINK DA Drive Analyzer leverages historical usage data of millions of drives to intelligently predict drive failure. It supports NVMe SSD failure prediction*, allowing you to prepare in advance for drive failure before it occurs and ensure the safety of data stored on the TBS-h574TX.

Specification

Product
Product id	1002200
Brand	QNAP
Partnr	TBS-H574TX-I5UC-05S02
EAN/UPC code	4711103091302
Warranty (months)	3 Years
Storage
Storage drives installed	N
Total installed storage capacity	19.2 TB
Number of storage drives installed	5
Number of storage drives supported	5
Installed storage drive type	SSD
Supported storage drive types	HDD & SSD
Storage drive capacity	3840 GB
Storage drive sizes supported	E1. S, M.2 "
RAID support	Y
RAID levels	0, 1, 5, 6, 10, 50, 60, JBOD
Online RAID migration	Y
Online RAID expansion	Y
RAID rebuild	Y
Hot-swap drive bays	Y
Supported file systems	FAT32, exFAT, HFS+, NTFS, ext3, ext4
Bad block scan	Y
Disk roaming	Y
Processor
Processor manufacturer	Intel
Processor family	Intel Core i5
Processor model	i5-1235U
Processor boost frequency	4.4 GHz
Processor cores	10
Processor threads	12
Processor cache	12 MB
Number of processors supported	1
On-board graphics adapter model	Intel UHD Graphics
Memory
Internal memory	16 GB
Flash memory	5000 MB
Network
Ethernet LAN	Y
Ethernet LAN data rates	100, 1000, 2500, 10000 Mbit/s
Ethernet LAN data rate supported (max)	10000 Mbit/s
DHCP server	Y
Jumbo frames support	Y

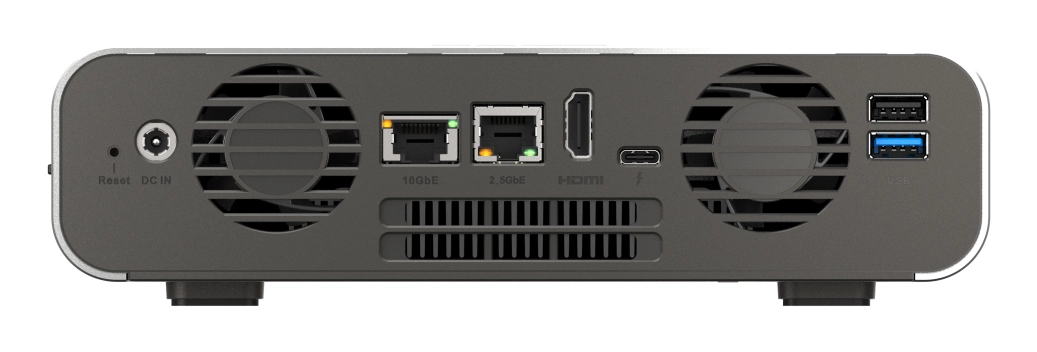

Ports & interfaces
Ethernet LAN (RJ-45) ports	3
USB port	Y
USB 2.0 ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
HDMI ports quantity	1
HDMI version	1.4b
Thunderbolt 4 ports quantity	2
Design
Chassis type	Compact
Cooling type	Active
Product colour	Grey, Black
Number of fans	2 ventilator(en)
Fan diameter	40 mm
LED indicators	Status, USB
Performance
Type	NAS
Device class	Small & Medium Business
Buzzer	Y
Disk scan	Y
S. M. A. R. T. support	Y
Password authentication	Y
Reset button	Y
Software
Operating system installed	QNAP QTS
Operating system version	5.2.6
Power
Power supply unit (PSU) capacity	120 W
Power consumption (typical)	46 W
AC input voltage	100 - 240 V
Output voltage	19 V
Weight & dimensions
Width	215 mm
Depth	199 mm
Height	60 mm
Weight	2240 g
Package width	284.05 mm
Package depth	71 mm
Package height	400 mm
Package weight	3410 g
Technical details
Warranty period	3 jaar
Packaging content
External power adapter	Y
Cables included	AC, LAN (RJ-45)
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 procent
Storage temperature (T-T)	-20 - 70 °C
