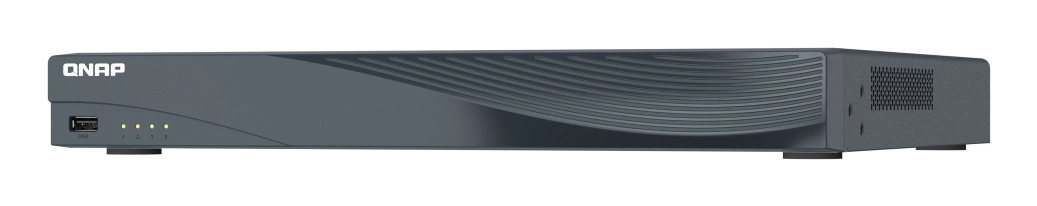

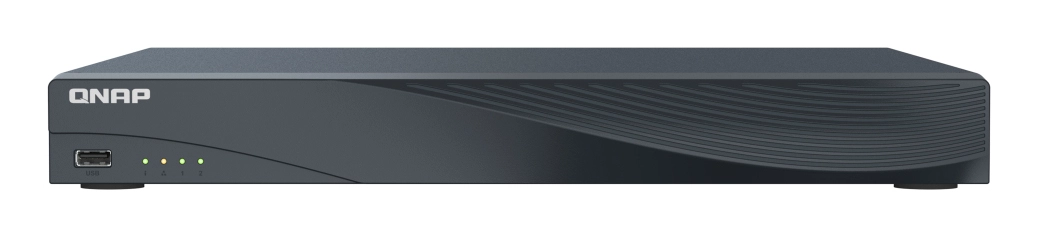

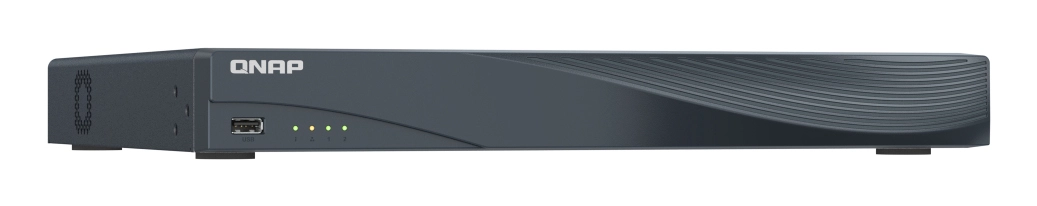

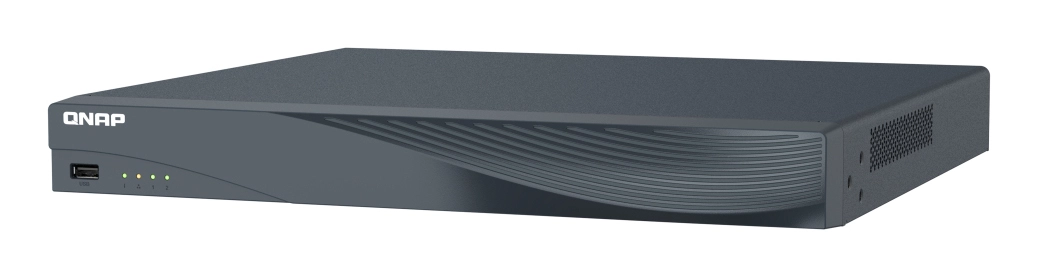

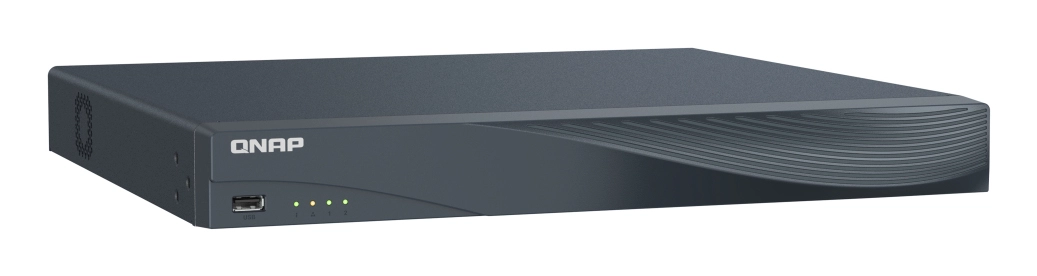

The cost-efficient and high-performing TVR-AI200 NVR features two fixed 2.5-inch/3.5-inch SATA hard drive bays and sixteen PoE+ ports. It is plug-and-play in offline mode, and within 10 minutes, you can complete setup and start recording. The TVR-AI200 supports real-time video display and playback with resolutions up to 16 megapixels (MP), H.265+ compression technology, AI video analytics, and remote backup. With the TVR-AI200, smart retail and small-to-medium businesses can deploy smart video surveillance solutions on a budget, ensuring around-the-clock environmental safety.

4K high-resolution video
The monitoring interface allows you to playback up to 16MP footage and output clear footage through the 4K HDMI™ port. It supports advanced compression technologies like H.265+ provided by the cameras, effectively reducing network bandwidth and halving storage space requirements.

Supports ONVIF® S/T/G standards
Compatible with over 200 brands and more than 8, 000 cameras, and supports third-party camera events and API platform services, providing high hardware and software compatibility.

Easy installation, quick deployment

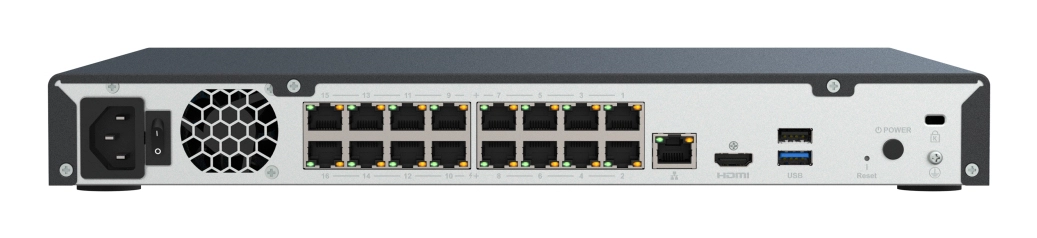

Its 16 PoE+ ports directly powers IP cameras, transmitting both power and data through a single Ethernet cable, eliminating the need for complex cabling.

24/7 recording
Supports hard drives with capacities up to 24TB for storing recordings for over 540 days. Combined with QNAP's active backup solution, TVR-AI200 ensures uninterrupted multi-site video surveillance.

Remote monitoring, powerful management
Advanced real-time detection, notifications, and prompt response to suspicious events, with flexible monitoring through computers or mobile devices to keep you in control.

Lightweight AI Business Analytics
Built-in NPU acceleration for smart image/video recognition, offering advanced AI capabilities such as facial recognition and people counting, even without AI-enabled cameras.

16 PoE plug-and-play ports for IP Cameras
The TVR-AI200 complies with the 802.3at PoE+ standard, is equipped with 16 ports providing 25.5-watt PoE. A single Ethernet cable can simultaneously deliver data and power, supplying power to various 4K PTZ (Pan-Tilt-Zoom) cameras, fisheye cameras, and other high-powered IP cameras, with a total power supply capacity of up to 130W. When paired with a UPS (Uninterruptible Power Supply), it can easily support continuous recording for up to one hour during a power outage.

Specification

Product
Product id	1002175
Brand	QNAP
Partnr	TVR-AI200-16CH-16P
EAN/UPC code	4711103089590
Warranty (months)	60 months
Performance
Video input channels	16 kanalen
Maximum resolution	1920 x 1080 Pixels
Internal memory	4096 MB
Resolution at capture speed	1920x1080@30fps
Throughput data rate	160 Mbit/s
Syslog	Y
Number of fans	1 ventilator(en)
Languages support	DEU, ENG
Wireless LAN features
Wi-Fi	N
Storage
Number of HDDs supported	2
HDD interface	SATA
HDD size	2.5/3.5
RAID support	Y
RAID levels	1
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Power over Ethernet (PoE)	Y
Power over Ethernet (PoE) ports quantity	16
HDMI ports quantity	1
HDMI output	Y
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Features
Rack mounting	Y
Rack capacity	1U
LED indicators	HDD, LAN, Status
Reset button	Y
Product colour	Black
Processor
Built-in processor	Y
Processor cores	4
Processor frequency	2 GHz
Power
Power consumption (typical)	23.9 W
AC input voltage	100 - 240 V
Total Power over Ethernet (PoE) budget	130 W
Power over Ethernet (PoE) power per port	25.5 W
Power supply	190 W
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 procent
Weight & dimensions
Width	360 mm
Depth	333 mm
Height	44 mm
Weight	2160 g
Package weight	3600 g
