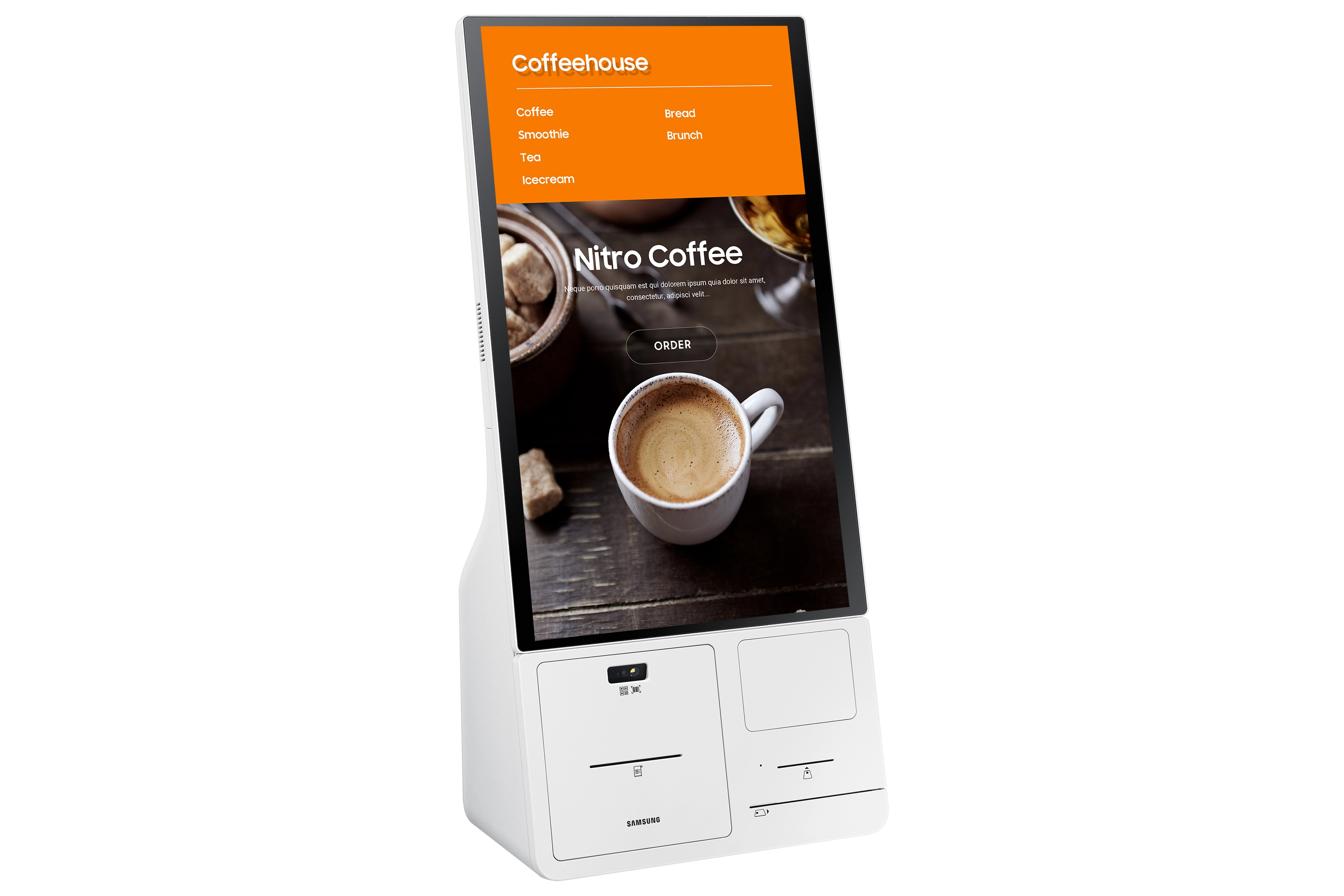

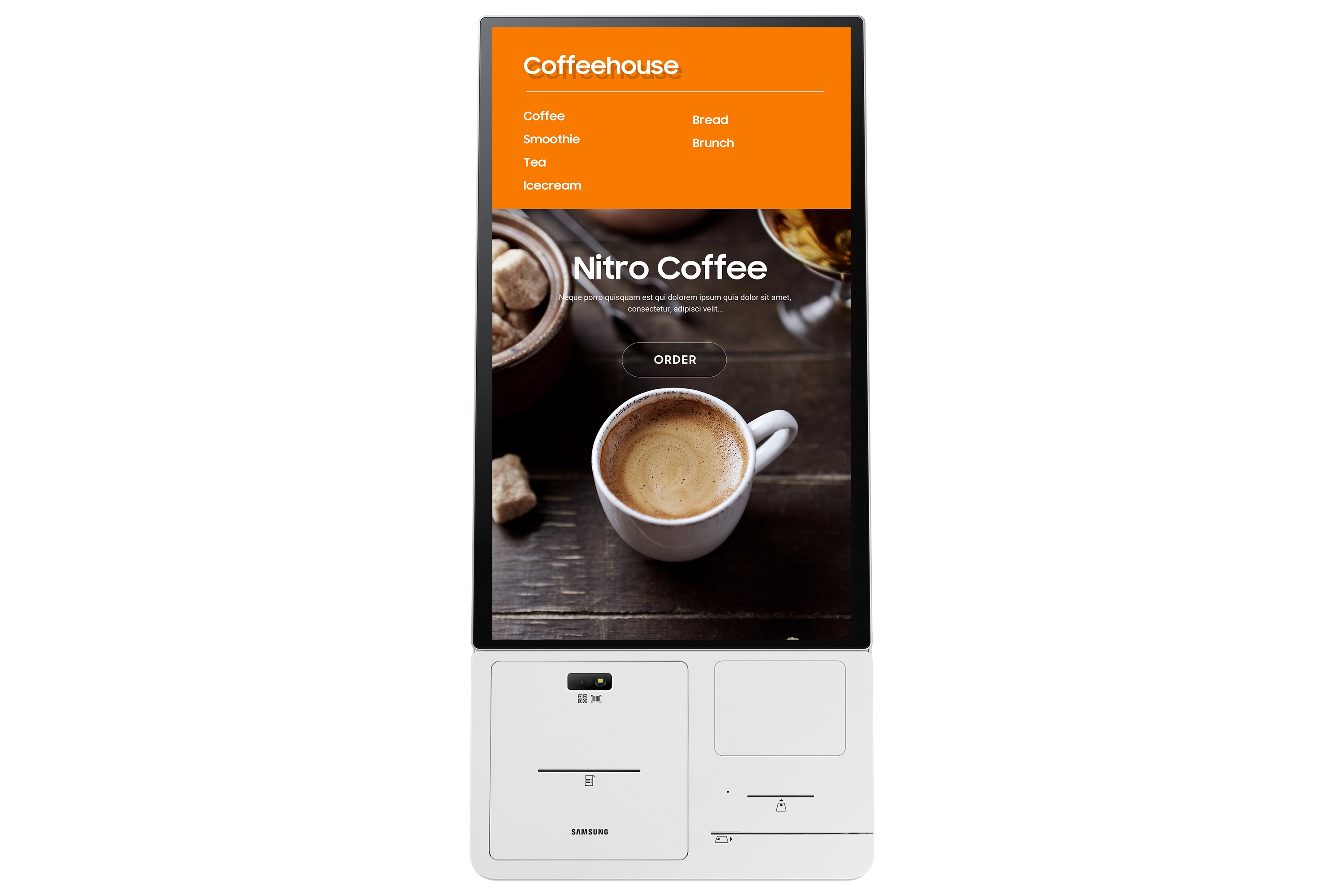

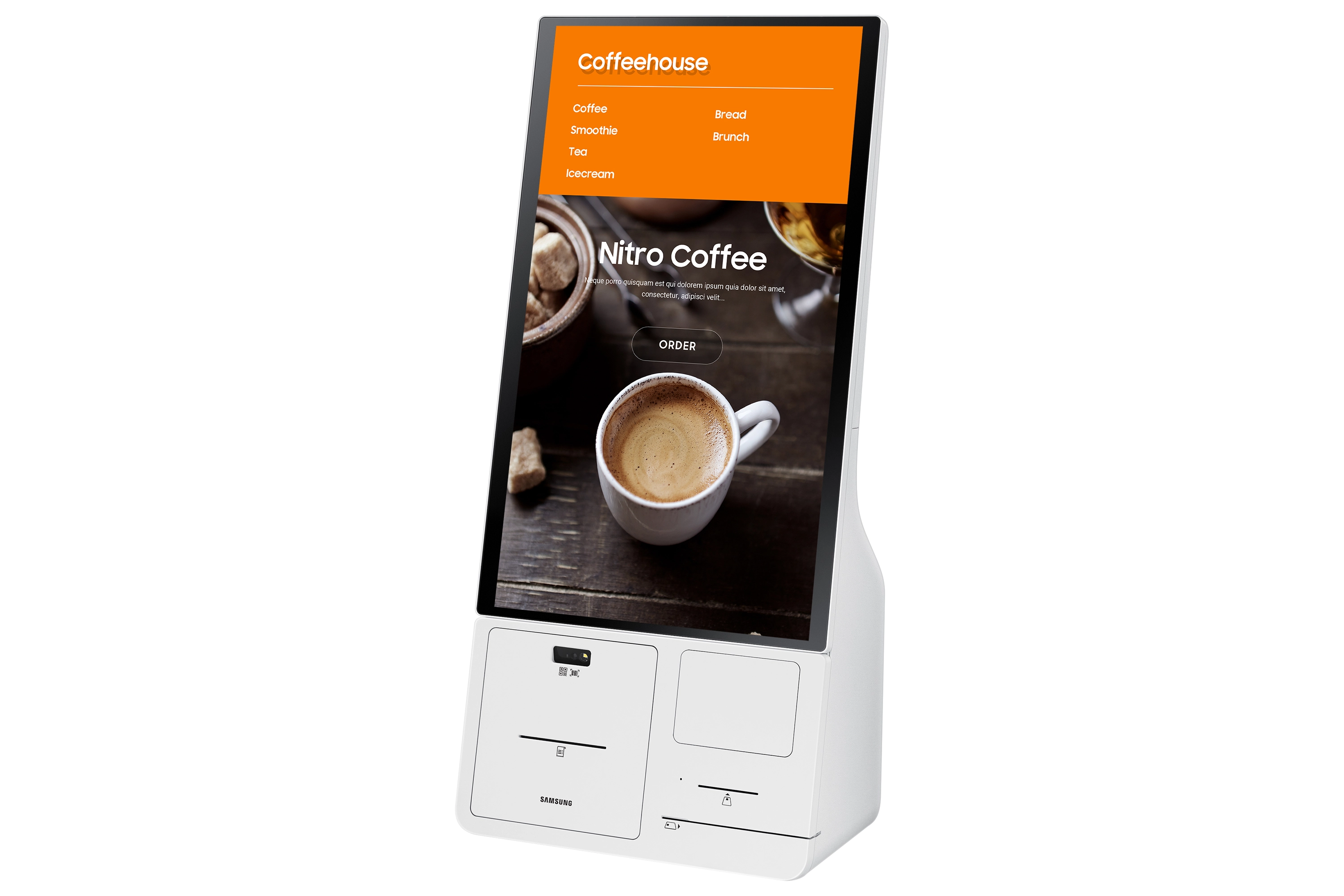

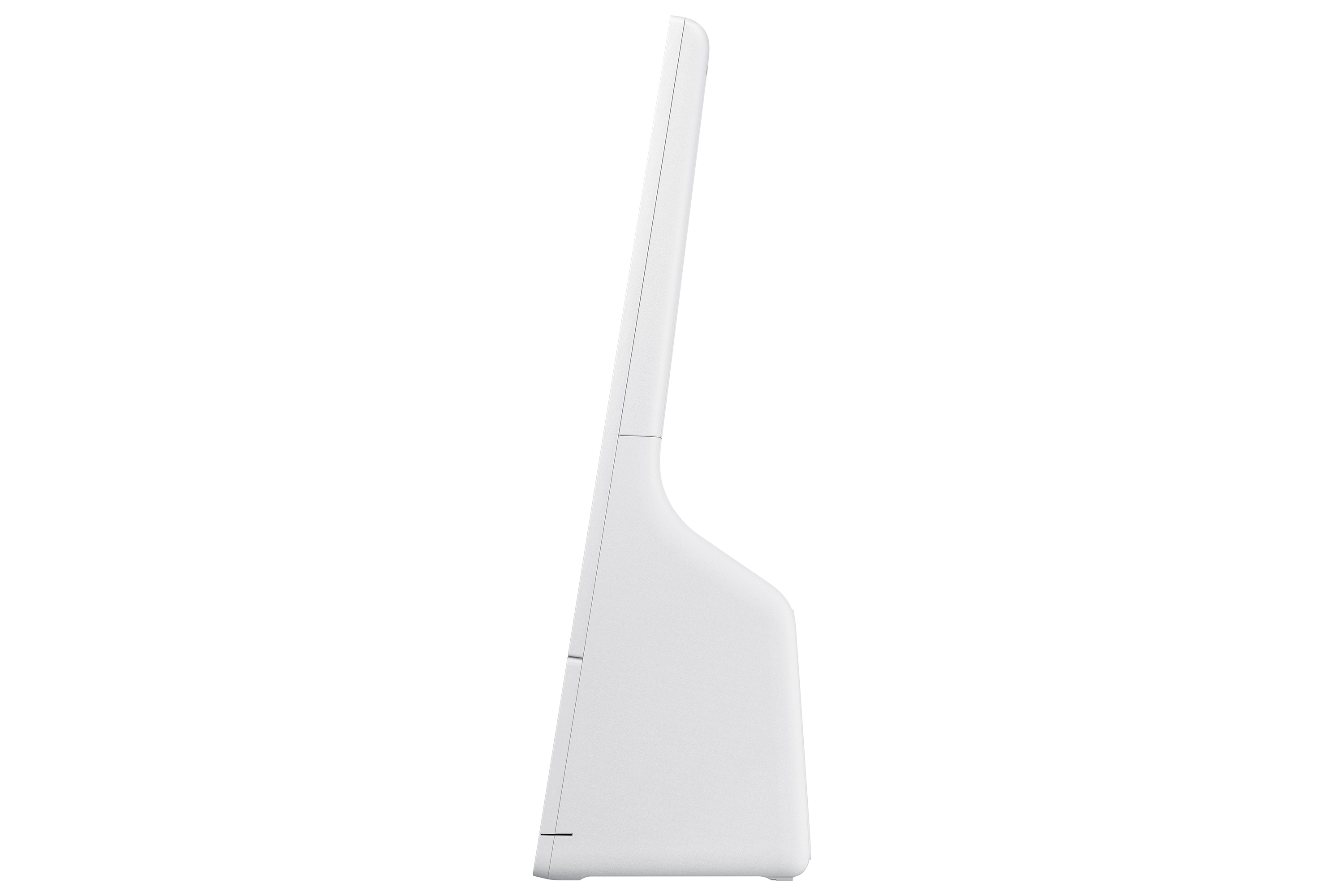

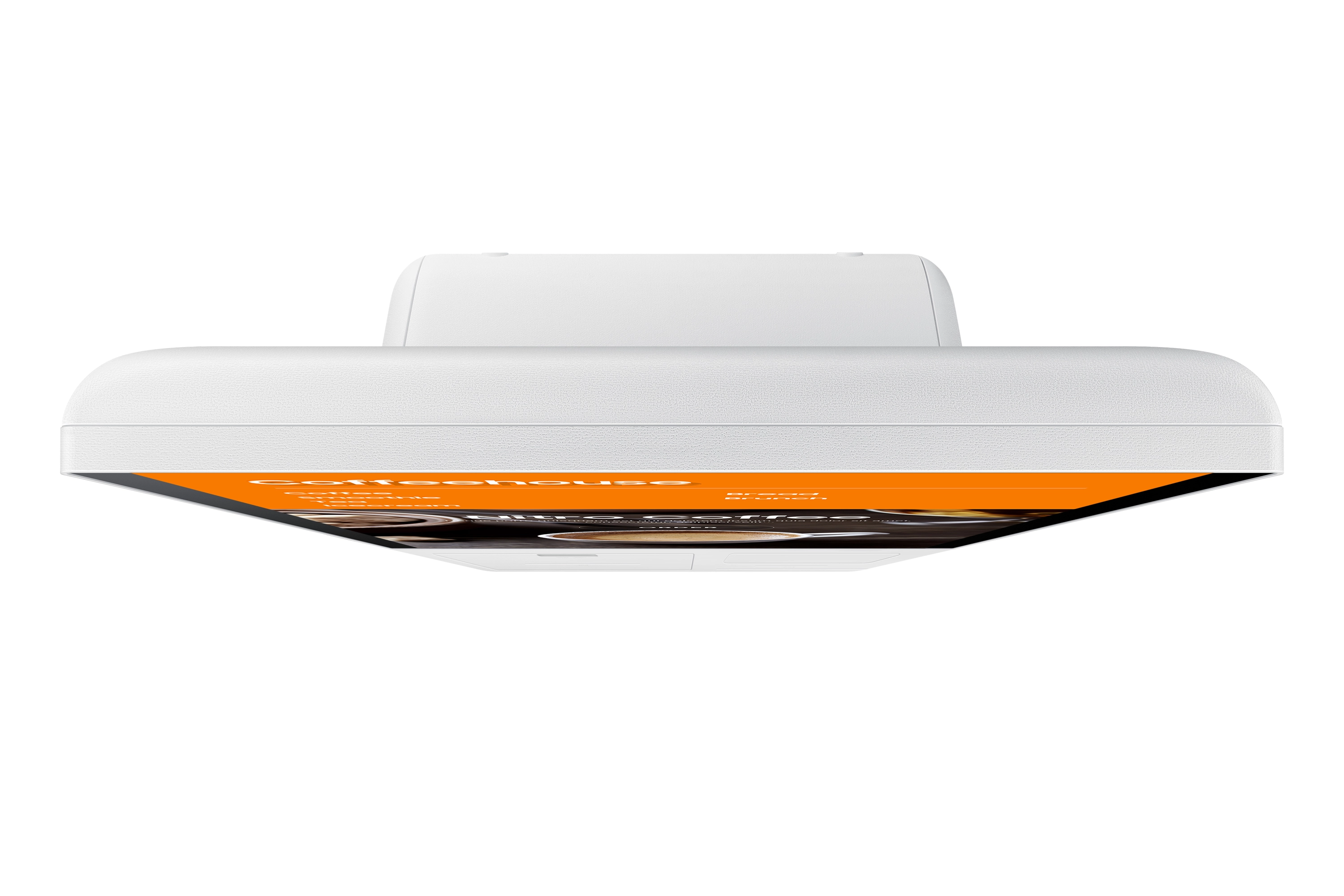

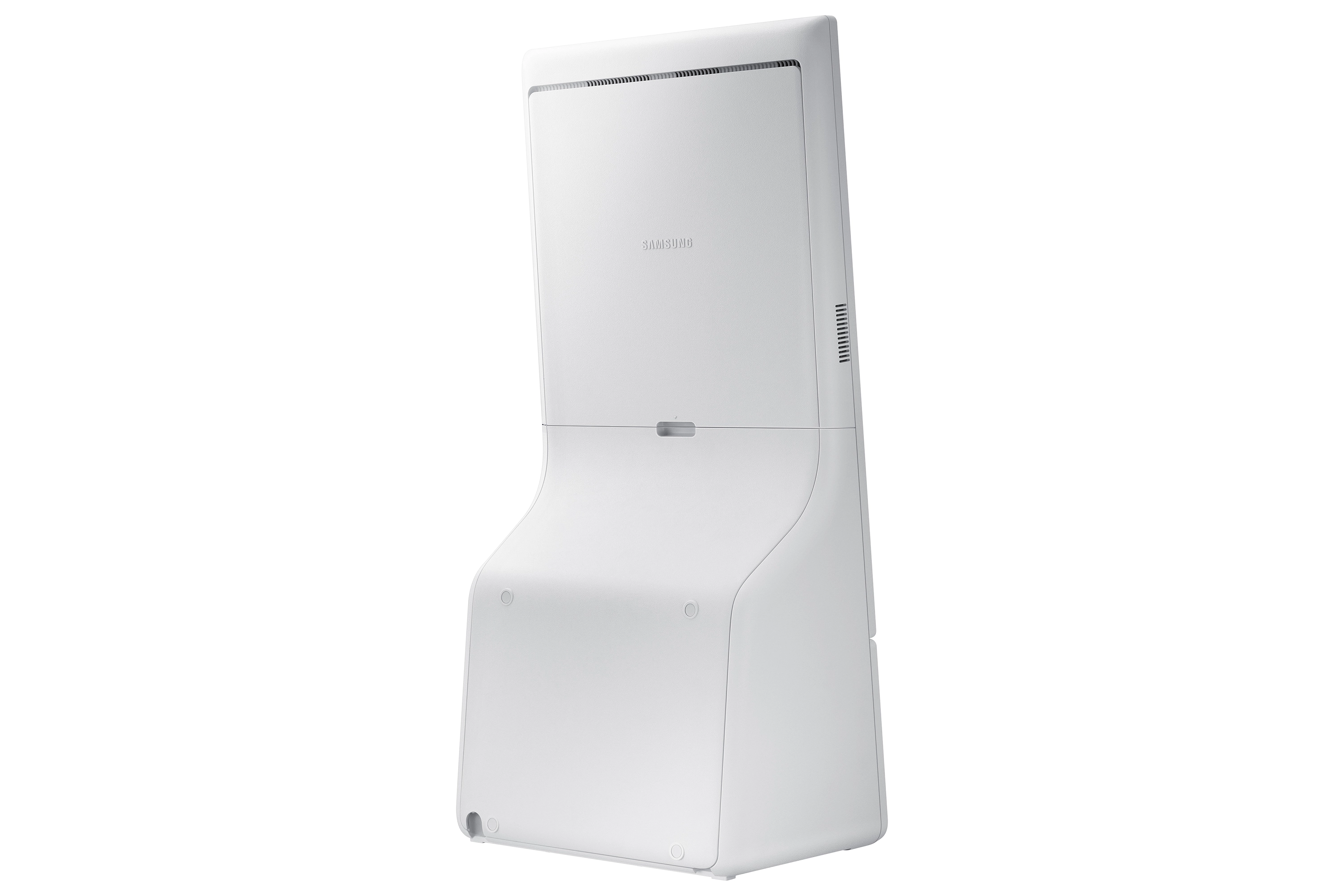

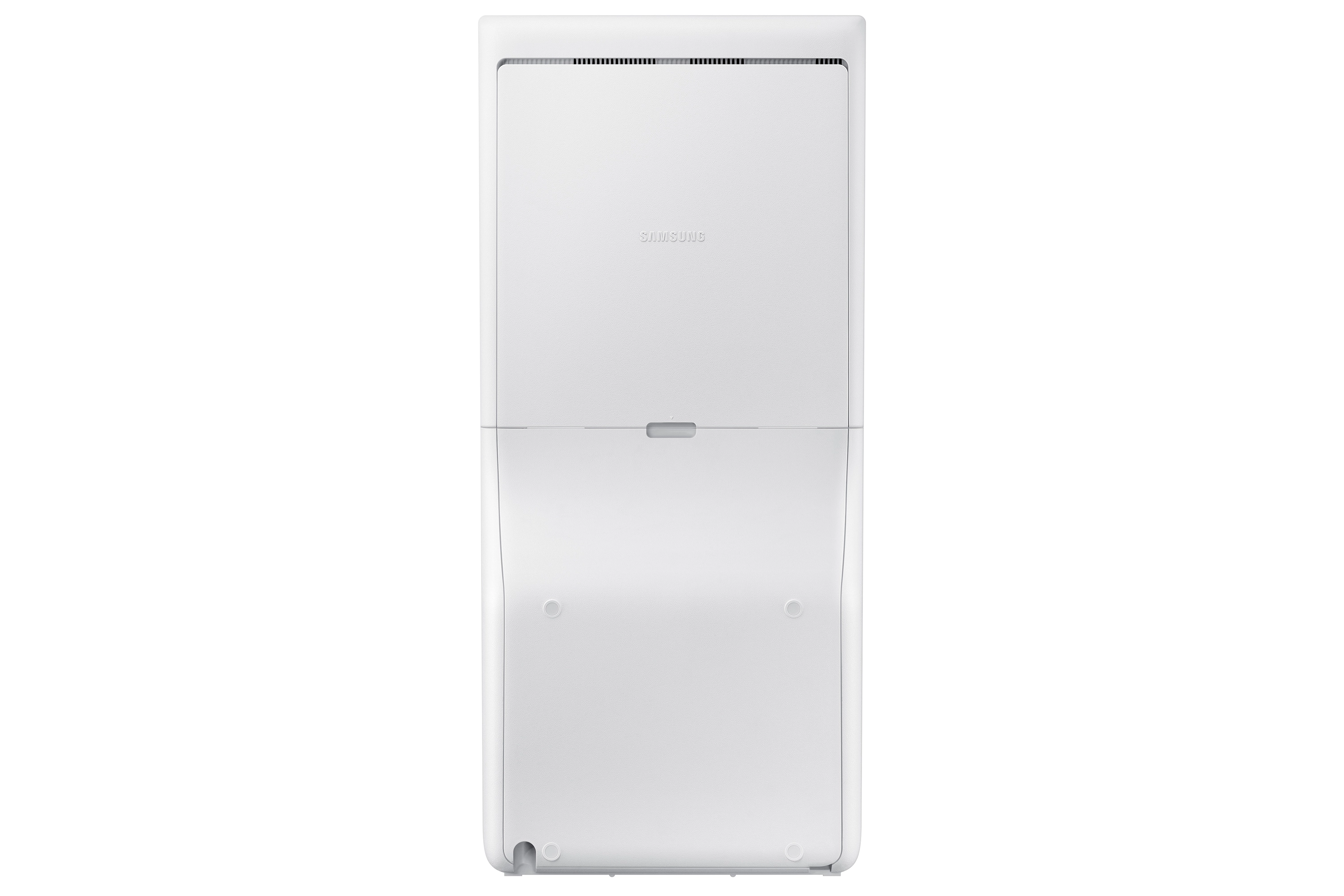

Kiosk Connection Box

Samsung

Not in stock

€ 895,16

€ 1.083,14 incl 21% VAT

Samsung Connec. Box

Specification

Product
Product id	948927
Brand	Samsung
Partnr	CY-KM24CPXEN
EAN/UPC code	8806092554900
Network
Wi-Fi	N
Bluetooth	N
Ports & interfaces
USB 2.0 ports quantity	3
RS-232 ports	3
Ergonomics
VESA mounting	Y
Panel mounting interface	200 x 200 mm
Packaging data
Package width	428 mm
Package depth	316 mm
Package height	471 mm
Package weight	9100 g
Power
Power consumption (typical)	25 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	10 - 80 °C
Weight & dimensions
Width	334.4 mm
Depth	236.5 mm
Height	389.6 mm
Weight	7400 g
Other features
Touchscreen	Y
Ethernet LAN	Y
Ethernet LAN (RJ-45) ports	1
Print technology	Thermal transfer
Scanner type	1D/2D
Printing media thickness	120 µm
Print speed	250 mm/sec
Autocutter	Y
Maximum roll diameter	80 mm
Maximum printing width	83 mm
Barcode reader	Y
Built-in barcodes	CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, EAN13, EAN8, GS1 DataBar, Interleaved 2/5, QR Code, UPC-A, UPC-C
Linear (1D) barcodes supported	Codabar, Code 128, Code 39 (ASCII), Code 93, EAN-13, EAN-8, GS1 DataBar, Interleaved 2 of 5, UPC-A, UPC-E
