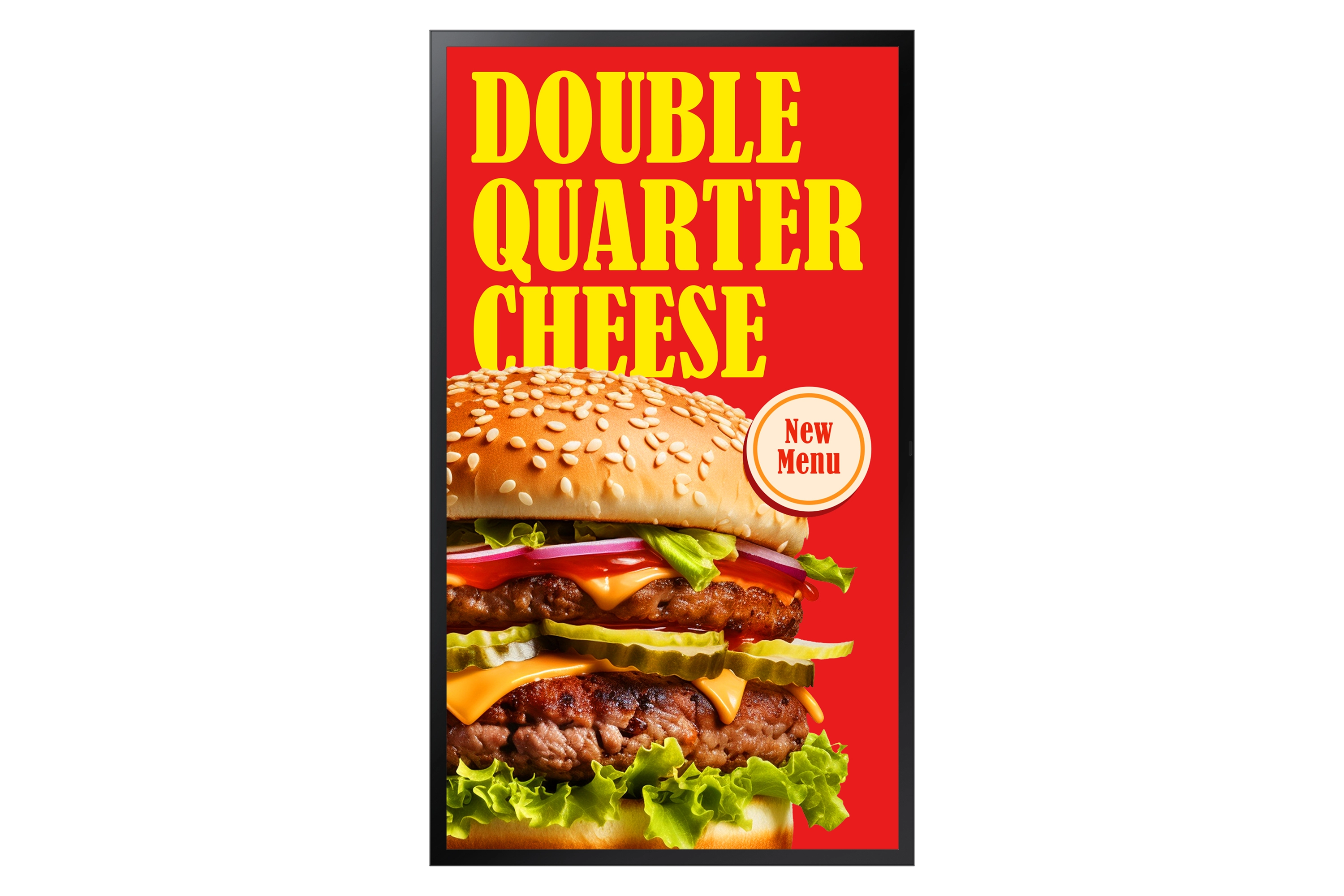

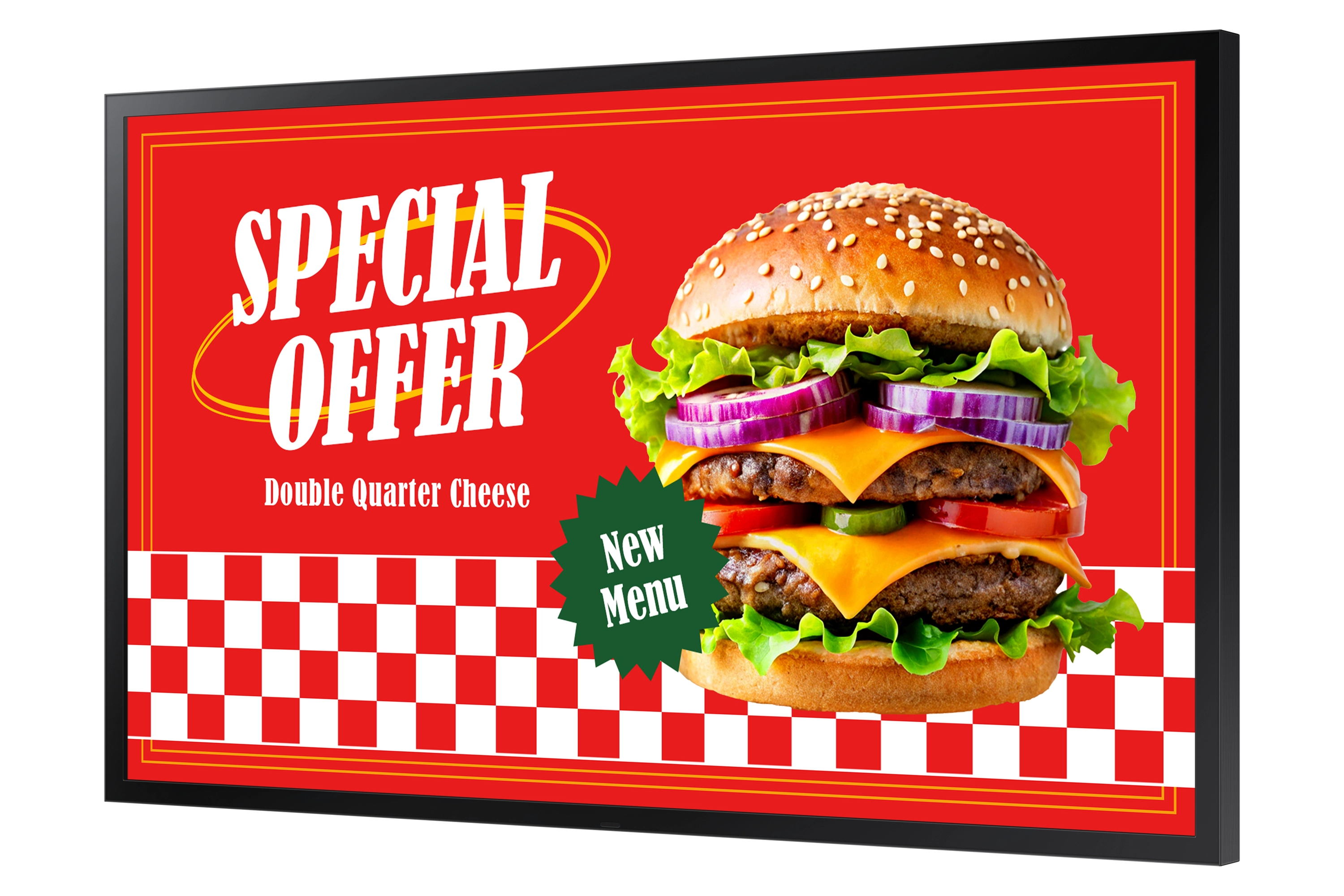

Samsung OH46DX. Product design: Digital signage flat panel. Display diagonal: 116.8 cm (46"), Display technology: LCD, Display resolution: 1920 x 1080 pixels, Display brightness: 3500 cd/m², HD type: Full HD. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Tizen. Product colour: Black

Specification

Product
Product id	980687
Brand	Samsung
Partnr	LH46OHDEBGBXEN
EAN/UPC code	8806095845395
Display
Display diagonal	46 inch
Display resolution	1920 x 1080 Pixels
Display brightness	3500 cd/m²
HD type	Full HD
Touchscreen	N
Native aspect ratio	16:9
Response time	6 ms
Contrast ratio (typical)	6000:1
Dynamic contrast ratio marketing name	Mega Contrast
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Pixel pitch	0.53 x 0.53 mm
Colour gamut	72 procent
Horizontal scan range	15 - 135 kHz
Panel type	VA
Vertical scan range	24 - 75 Hz
Glass thickness	3 mm
Pixel frequency (max)	594 MHz
Glass film	AG/AR Film

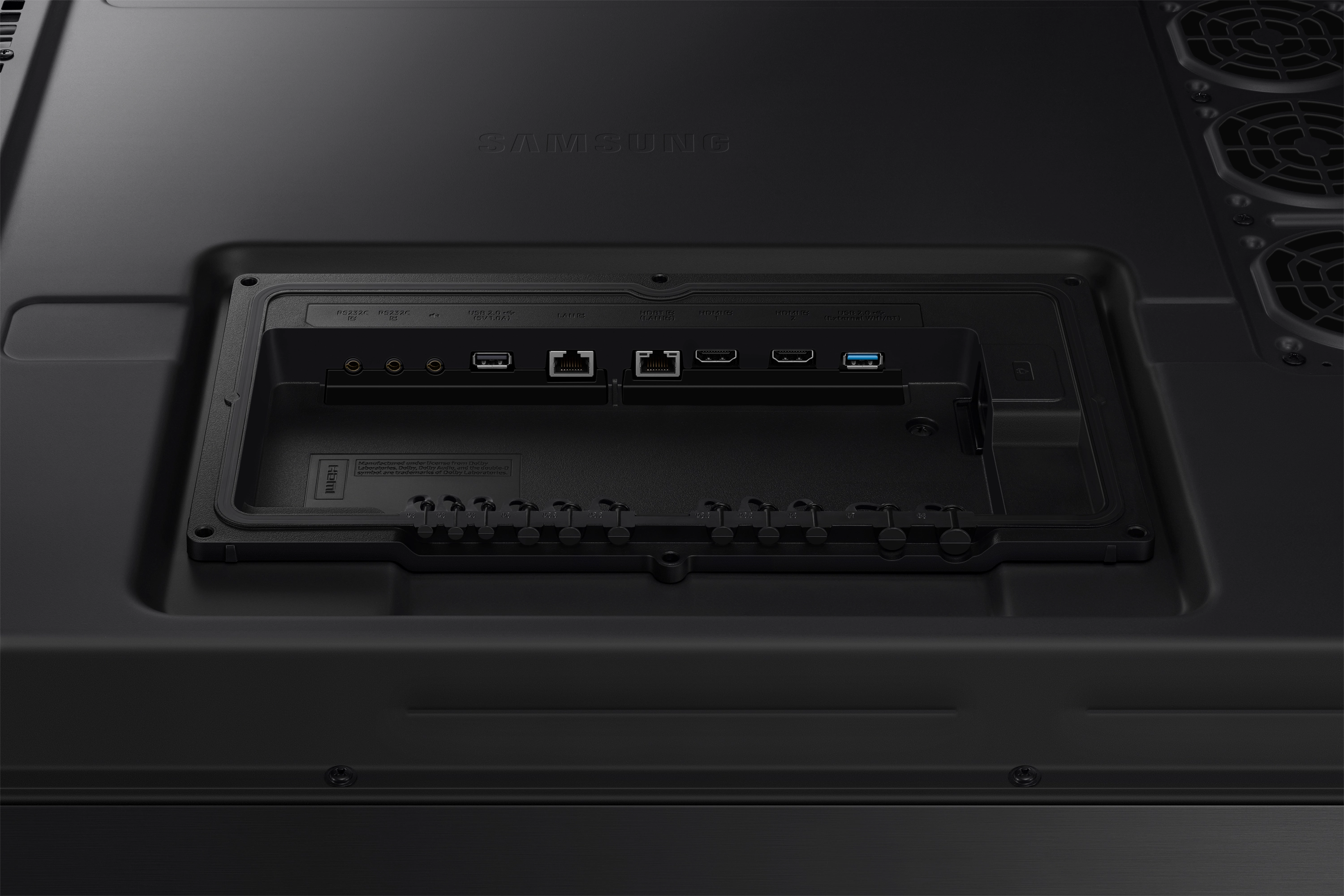

Ports & interfaces
HDMI ports quantity	2
HDMI version	2.0
DVI port	N
USB port	Y
USB ports quantity	2
Ethernet LAN	Y
Ethernet LAN (RJ-45) ports	2
Wi-Fi	Y
RS-232 interface	Y
HDBaseT input ports	1
Audio
Built-in speaker(s)	N
Design
Design	Digital signage flat panel
Product colour	Black
Placement supported	Outdoor
Screen shape	Flat screen
VESA mounting	Y
Panel mounting interface	995 x 500 mm
Bezel width (top)	24.9 mm
Bezel width (side)	24.9 mm
Bezel width (bottom)	24.9 mm
Performance
Purpose	Retail
Operating hours (hours/days)	24/7
HDCP	Y
HDCP version	2.2
International Protection (IP) code	IP56
Power
Power consumption (typical)	480 W
Power consumption (standby)	0.5 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Computer system
Computer system	N
Built-in processor	N
Operating system installed	Tizen
Operating system version	8.0
Weight & dimensions
Display width	1069 mm
Display depth	69 mm
Display height	623.6 mm
Display weight	28200 g
Packaging data
Package width	1190 mm
Package depth	186 mm
Package height	735 mm
Package weight	33700 g
Operational conditions
Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	10 - 80 procent
Technical details
Compliance certificates	Electromagnetic Compatibility (EMC)
Audio out (mini jack)	1
Other features
Display brightness (peak)	4000 cd/m²
RS-232 input ports	1
RS-232 output ports	1
Bluetooth	Y
Display technology	LCD
Flash memory	8000 MB
