Large displays optimized for DOOH
The OHN series has elevated the typical outdoor advertising experience with its bold and engaging content delivery for any bus stop or street billboard. The OHN series will make any business standout from the crowd with its immersive and high-quality images and content.

Unsurpassable visibility day and night
The OHN series allows for exceptional, consistent content delivery with 3, 000nit brightness and 24/7 performance. With a built-in dimming sensor, the display automatically adjusts the brightness based on the external lighting environment, saving display operating expenses and power consumption.

Easy-to-use management software
The embedded MagicINFO Player S6, backed by the powerful TIZEN operating system, boosts the display’s overall performance, allows for painless content management and ensures seamless transition and playback.

Built strong to endure impacts
The OHN series provides advanced safety through tempered Magic Protection Glass. It features durability that is IK10-rated, further proving its robust level of strength that can endure physical impact.

Resistant to outdoor elements
The OHN series is verified to perform in outdoor settings. IP56-rated protection ensures the OHN series will withstand physical impact as well as dust, humidity or other outdoor elements that could affect the display.

Specification

Product
Product id	667542
Brand	Samsung
Partnr	LH85OHNSLGB/EN
EAN/UPC code	8801643520847
Display
Display technology	VA
Display diagonal	85 inch
Display resolution	3840 x 2160 Pixels
HD type	4K Ultra HD
Pixel pitch	0.4875 x 0.4875 mm
Display brightness	3000 cd/m²
Contrast ratio (typical)	3000:1
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Operating hours (hours/days)	24/7
Horizontal scan range	15 - 135 kHz
Vertical scan range	24 - 75 Hz
Design
Placement supported	Indoor/outdoor
Orientation	Vertical
Bezel width (side)	62 mm
Bezel width (top)	62 mm
Bezel width (bottom)	62 mm
VESA mounting	N
Product colour	Black
International Protection (IP) code	IP56
Purpose	Universal
Operating system installed	Tizen

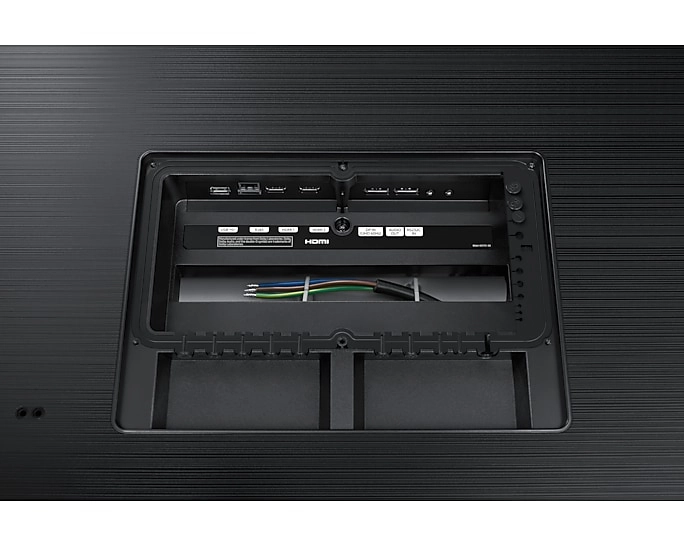

Ports & interfaces
HDMI ports quantity	2
HDMI input ports quantity	2
DVI port	N
DisplayPorts quantity	1
DisplayPorts in	1
Ethernet LAN	Y
Ethernet LAN (RJ-45) ports	1
Wi-Fi	N
USB port	Y
USB ports quantity	1
Power
Power consumption (typical)	1800 W
Power consumption (sleep)	0.5 W
Energy efficiency scale	A+++ to D
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Operational conditions
Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	10 - 80 procent
Weight & dimensions
Width	2004 mm
Depth	120 mm
Height	1185 mm
Weight	163000 g
Packaging data
Package width	2175 mm
Package depth	495 mm
Package height	1383 mm
Package weight	185500 g
Response time	8 ms
Built-in speaker(s)	N
RS-232 interface	Y
Design	Digital signage flat panel
PC Audio out	Y
Annual energy consumption	876 kWu
Glass protection	Y
Computer system	Y
Computer system type	System on Chip (SoC)
Colour saturation	72 procent
Energy efficiency class (old)	D
